NSN 5340-00-793-0860 114E51399, 114E5139-9, 00-793-0860
Product Details | SPRING TENSION CLIP
5340-00-793-0860 A preformed item of semirigid material designed to retain, position, fasten, or support other items, such as cable(s), access cover(s), by its own inherent spring action. It may be fastened to a structure by bolt(s), clip(s), screw(s), and the like. For items conducting electric current, see CLIP, ELECTRICAL or CLAMP, ELECTRICAL. For items which partially surround an item, see STRAP, RETAINING. For items which entirely surround an item and do not have inherent spring tension, see CLAMP, LOOP. See also CLIP, RETAINING. Do not use if a more specific item name is available.
Part Alternates: 114E51399, 114E5139-9, 5340-00-793-0860, 00-793-0860, 5340007930860, 007930860
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 JUL 1968 | 00-793-0860 | 20815 ( CLIP, SPRING TENSION ) |

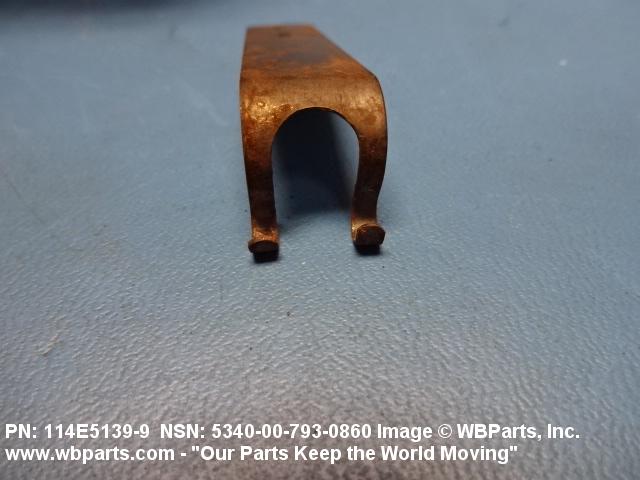

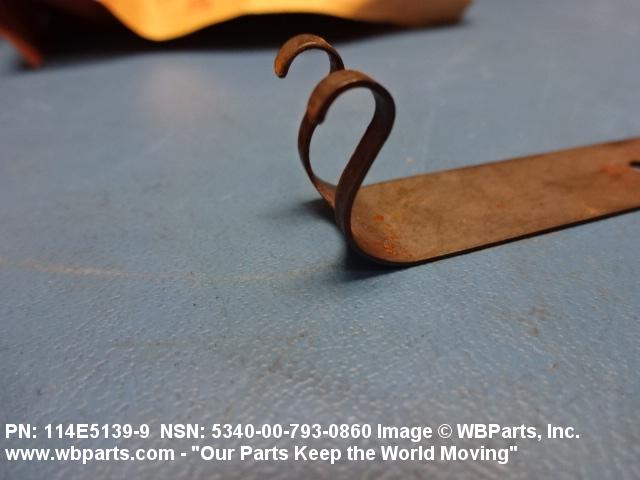

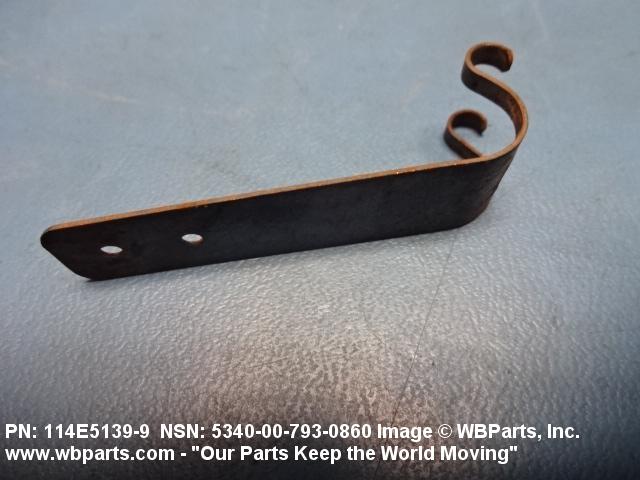

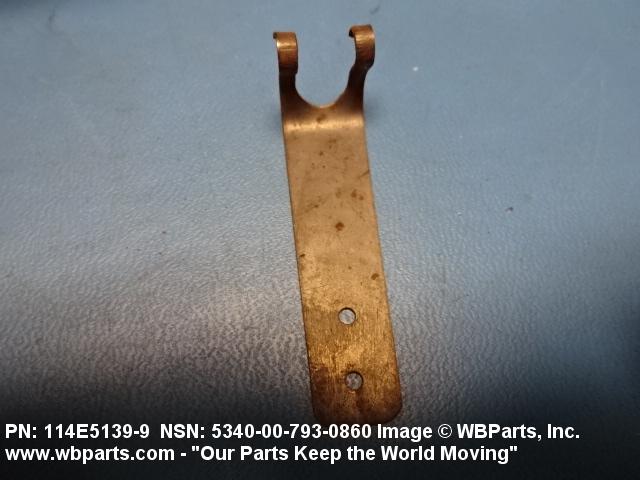

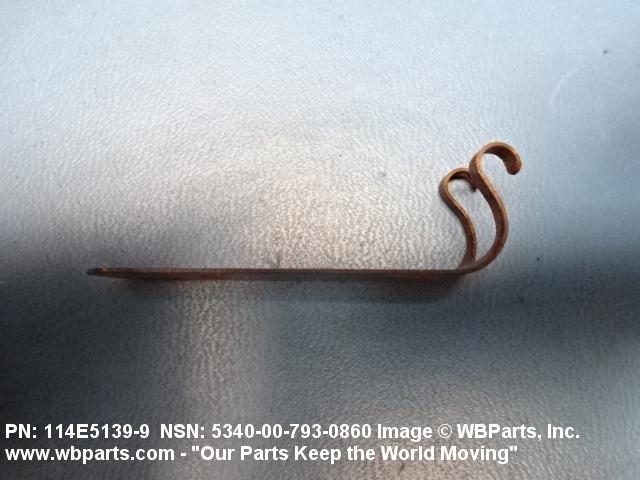

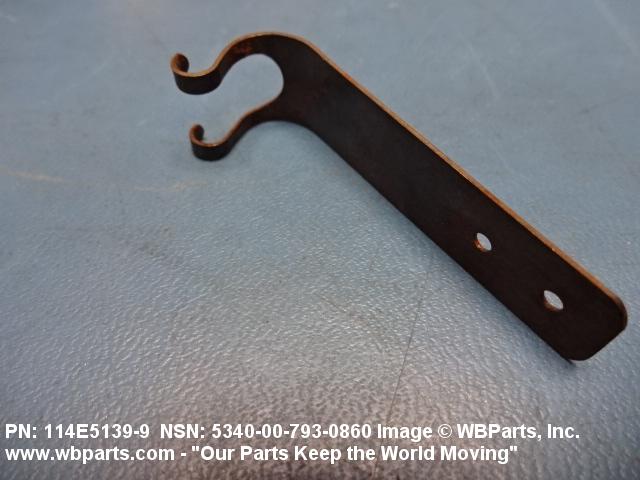

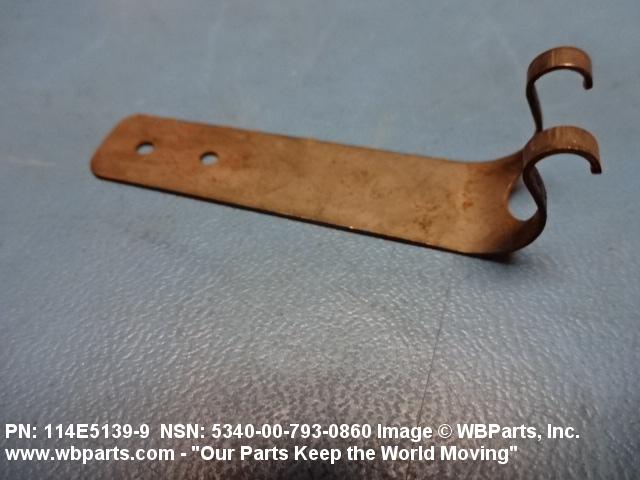

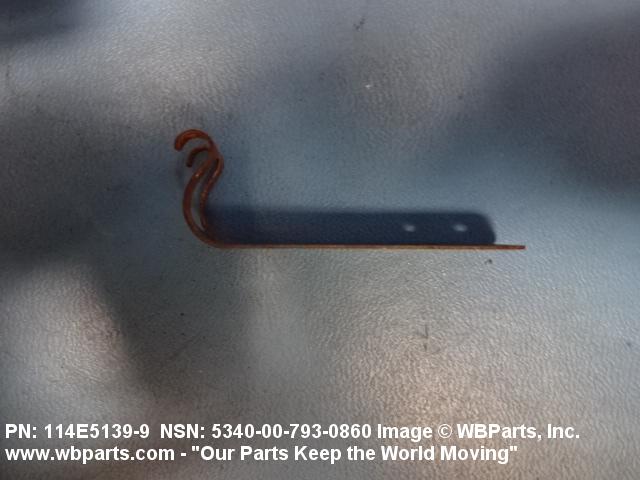

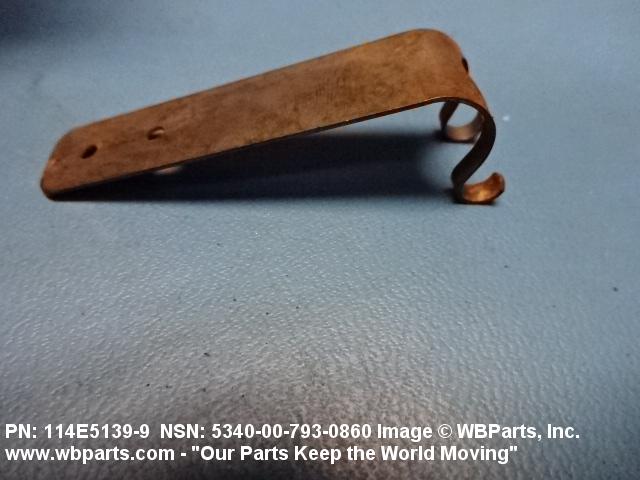

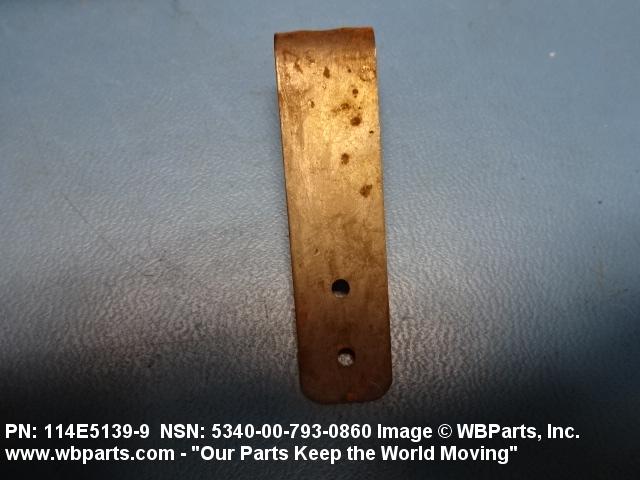

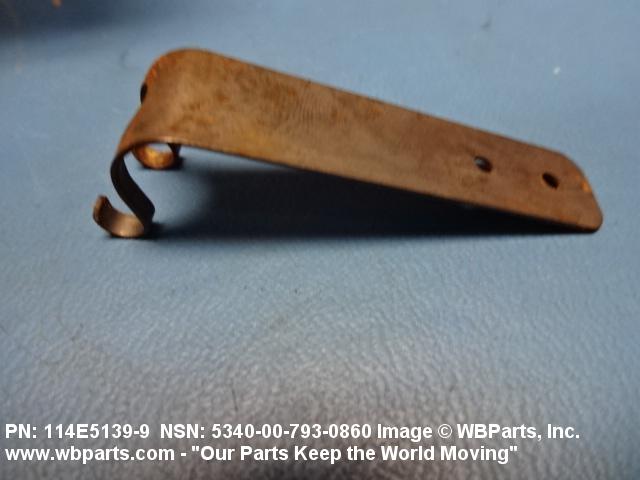

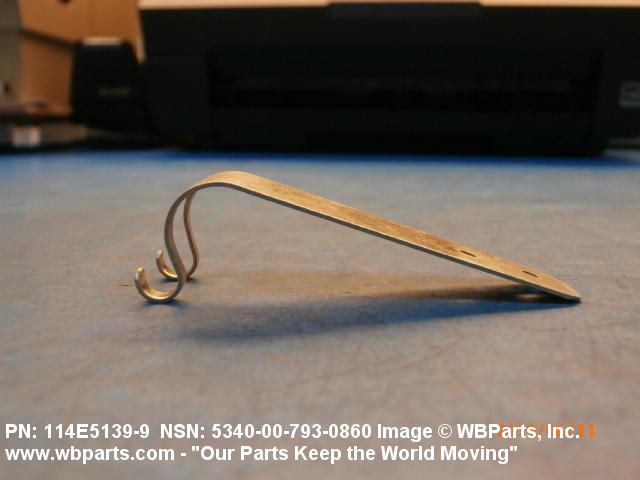

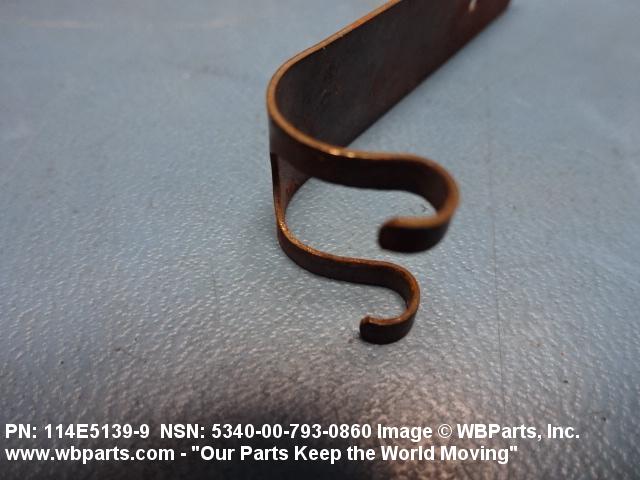

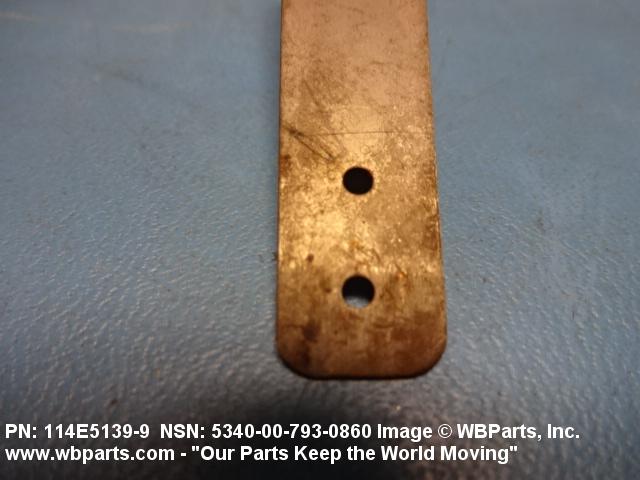

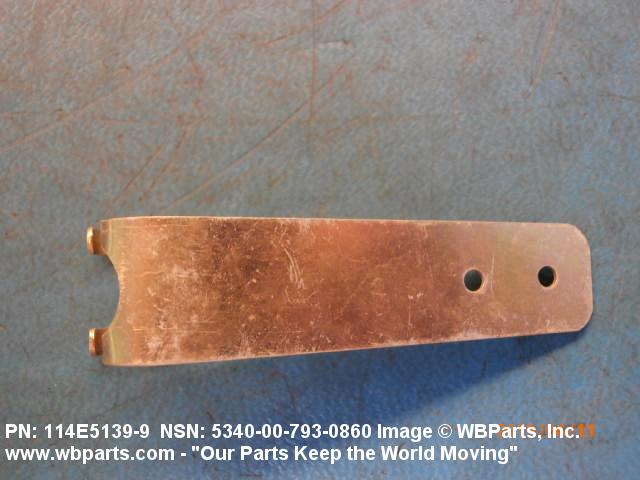

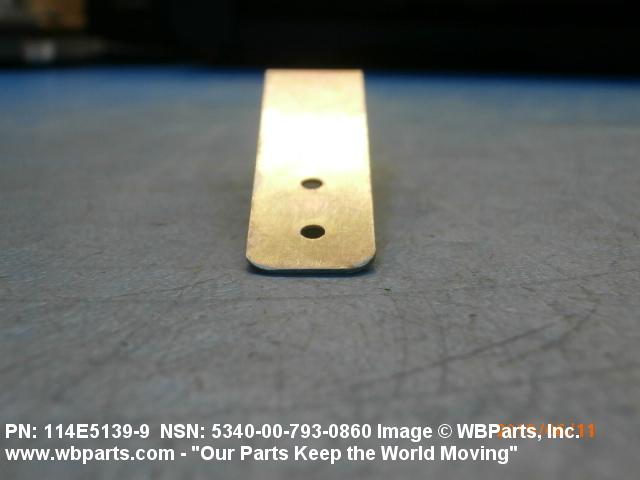

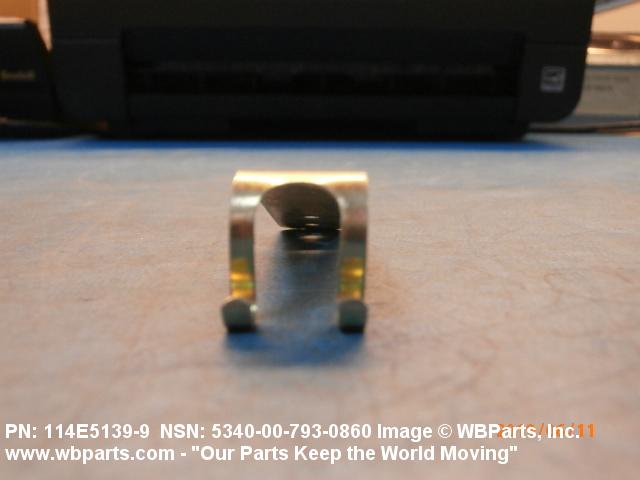

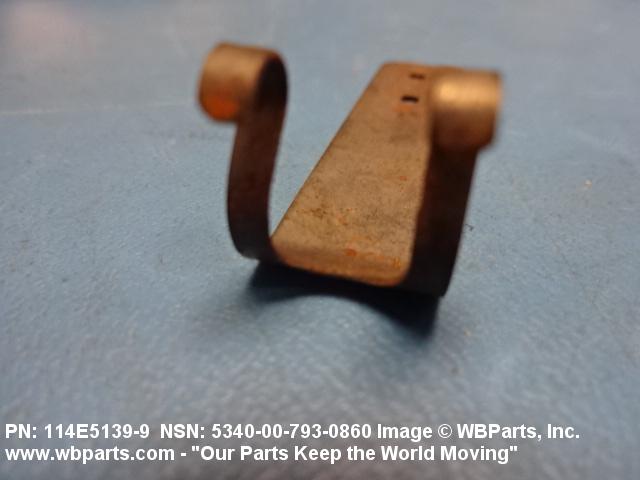

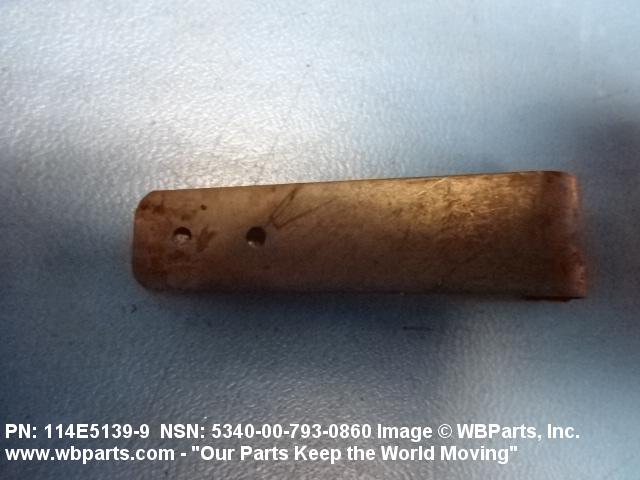

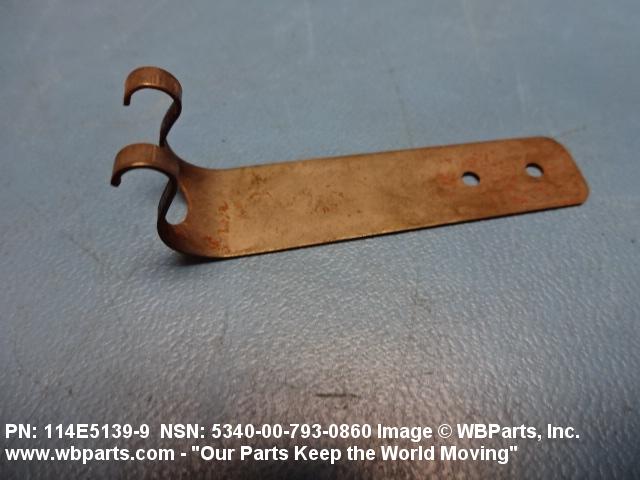

Drawings & Photos | NSN 5340-00-793-0860
Demand History | NSN 5340-00-793-0860
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 114E51399 | 2024-10-282 | 3 | United States |
| 5340-00-793-0860 | 2024-10-282 | 3 | United States |
| 114E51399 | 2022-06-158 | 1 | United States |
| 5340-00-793-0860 | 2021-04-113 | 4 | US |
| 114E51399 | 2020-12-338 | 1 | United States |
| 5340-00-793-0860 | 2020-12-338 | 1 | United States |
| 114E51399 | 2020-10-287 | 1 | United States |
| 5340-00-793-0860 | 2020-10-287 | 1 | United States |
| 114E51399 | 2020-06-171 | 1 | US |
| 114E51399 | 2020-06-170 | 1 | United States |
| 5340-00-793-0860 | 2020-06-170 | 1 | United States |
| 114E51399 | 2020-04-98 | 1 | United States |
| 5340-00-793-0860 | 2020-04-98 | 1 | United States |
| 114E51399 | 2019-10-302 | 1 | United States |
| 114E51399 | 2019-05-143 | 1 | US |
| 114E51399 | 2019-05-137 | 1 | United States |
| 5340-00-793-0860 | 2018-06-162 | 74 | DIBBS |
| 5340-00-793-0860 | 2017-06-172 | 32 | DIBBS |
| 5340-00-793-0860 | 2017-06-164 | 32 | DIBBS |
| 5340-00-793-0860 | 2017-04-101 | 32 | DIBBS |
| 5340-00-793-0860 | 2016-10-292 | 21 | United States |
| 5340-00-793-0860 | 2016-10-280 | 21 | DIBBS |
| 5340-00-793-0860 | 2016-08-228 | 14 | United States |
| 5340-00-793-0860 | 2016-07-188 | 14 | DIBBS |
| 5340-00-793-0860 | 2009-04-114 | 21 | DIBBS |
Cross Reference | NSN 5340-00-793-0860
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 114E5139-9 | 77272 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-793-0860
Related Products | NSN 5340-00-793-0860
Technical Data | NSN 5340-00-793-0860
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1095 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7947 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 1,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SLOT WIDTH | 0.375 INCHES NOMINAL |
| WIDTH | 0.620 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.025 INCHES NOMINAL |
| LENGTH | 2.850 INCHES NOMINAL |
| SMALLEST WIDTH | 0.500 INCHES NOMINAL |
| MANUFACTURERS CODE | 77272 |
| DESIGN CONTROL REFERENCE | 114E5139-9 |
Restrictions/Controls & Freight Information | NSN 5340-00-793-0860
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094220 | CLIPS SHEET STEEL NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-793-0860
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
