NSN 5340-01-444-6079 353262, 01-444-6079, 014446079
Product Details | SPRING TENSION CLIP
5340-01-444-6079 A preformed item of semirigid material designed to retain, position, fasten, or support other items, such as cable(s), access cover(s), by its own inherent spring action. It may be fastened to a structure by bolt(s), clip(s), screw(s), and the like. For items conducting electric current, see CLIP, ELECTRICAL or CLAMP, ELECTRICAL. For items which partially surround an item, see STRAP, RETAINING. For items which entirely surround an item and do not have inherent spring tension, see CLAMP, LOOP. See also CLIP, RETAINING. Do not use if a more specific item name is available.
Part Alternates: 353262, 5340-01-444-6079, 01-444-6079, 5340014446079, 014446079
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 MAY 1997 | 01-444-6079 | 20815 ( CLIP, SPRING TENSION ) |

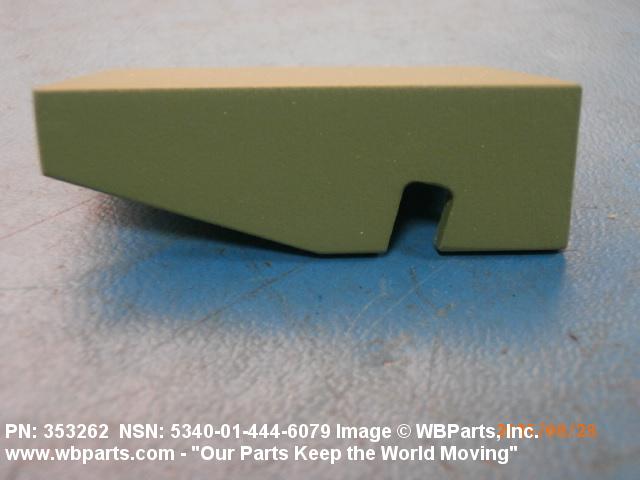

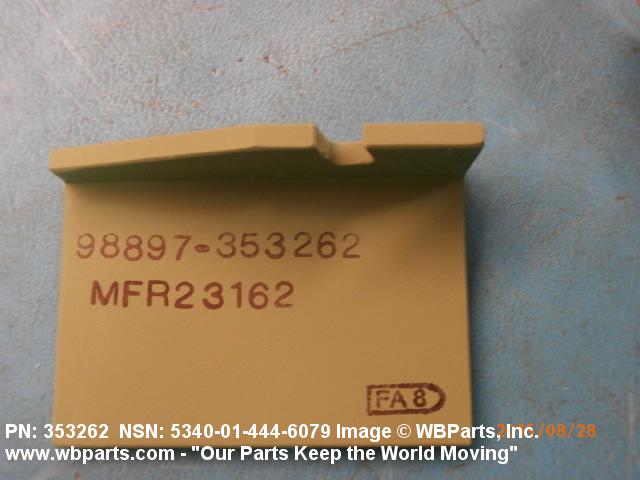

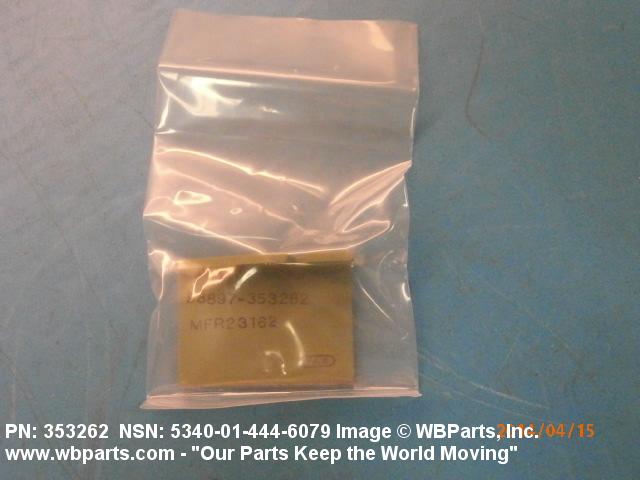

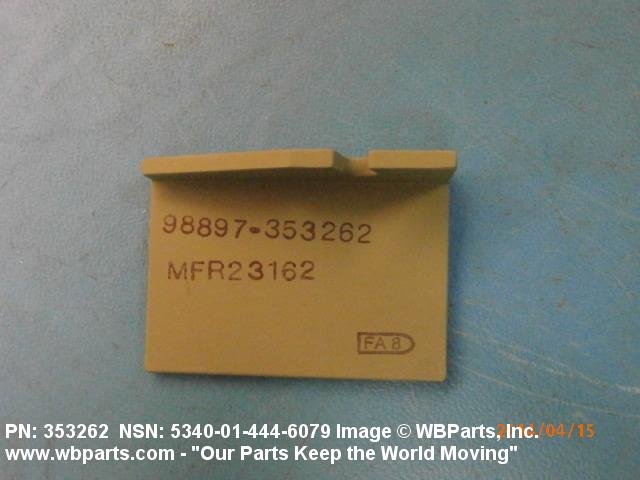

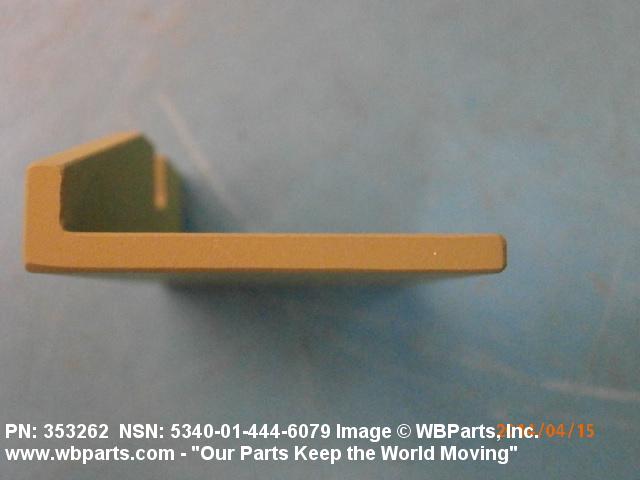

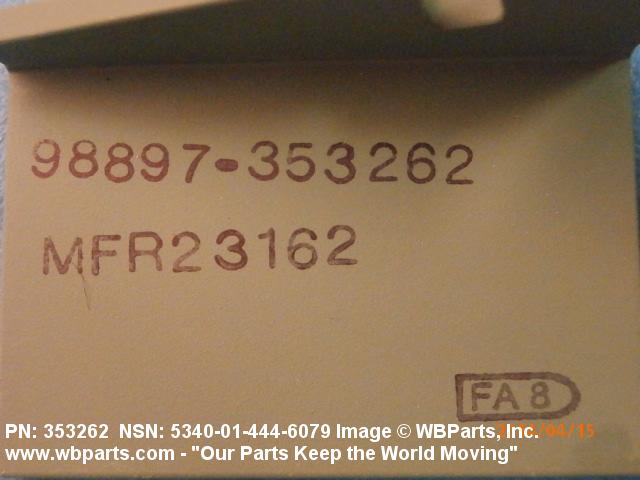

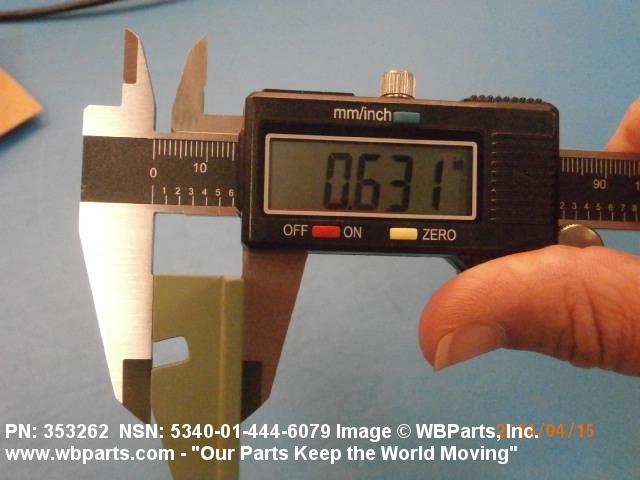

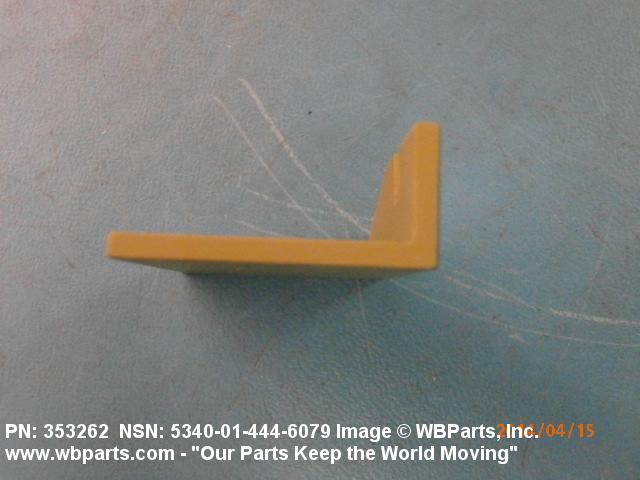

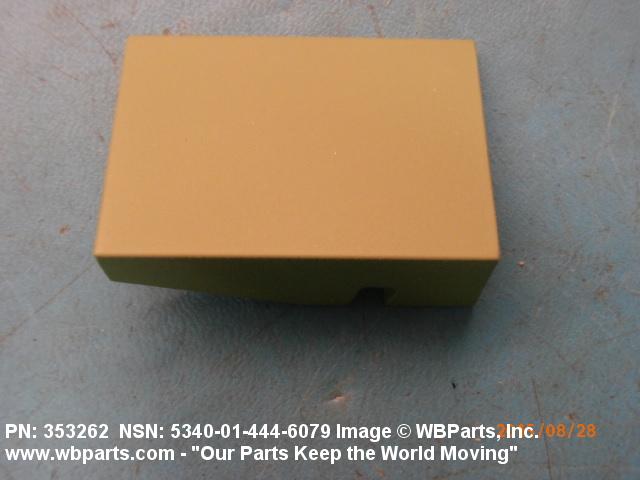

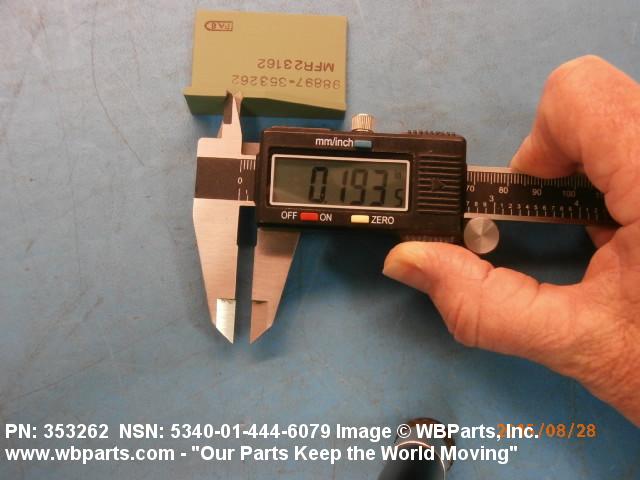

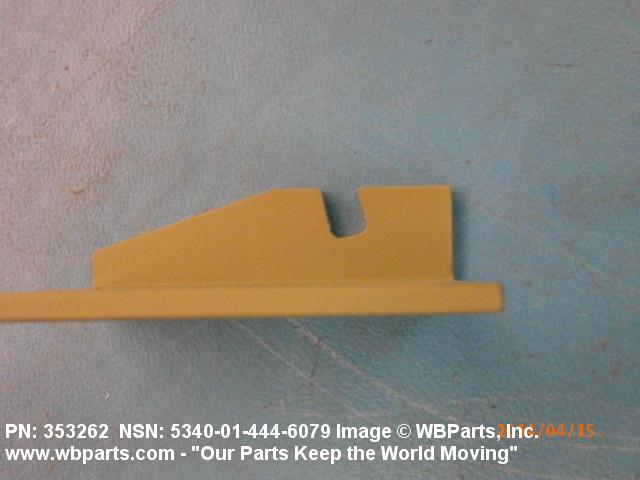

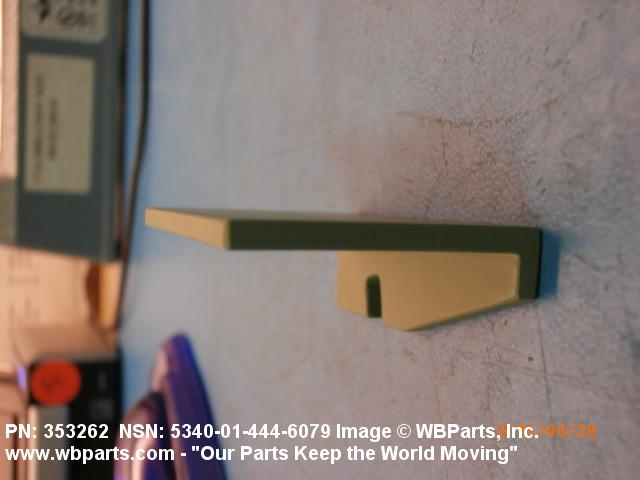

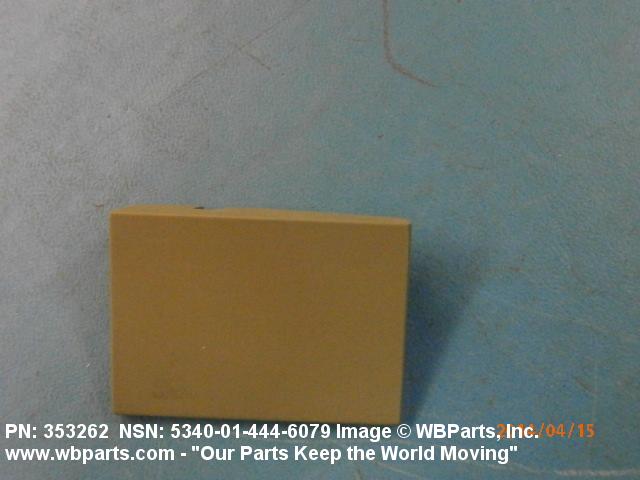

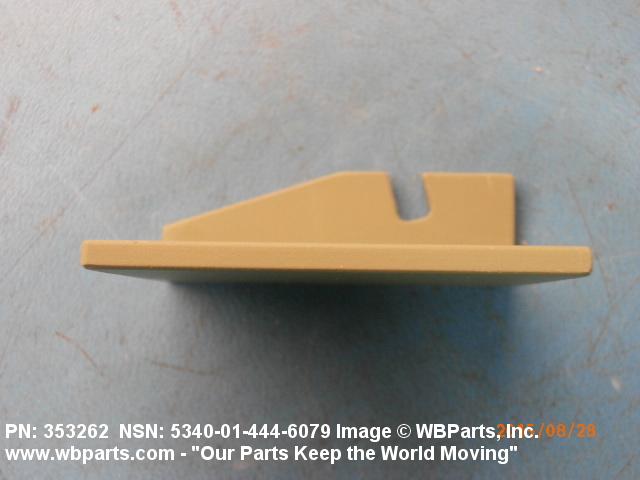

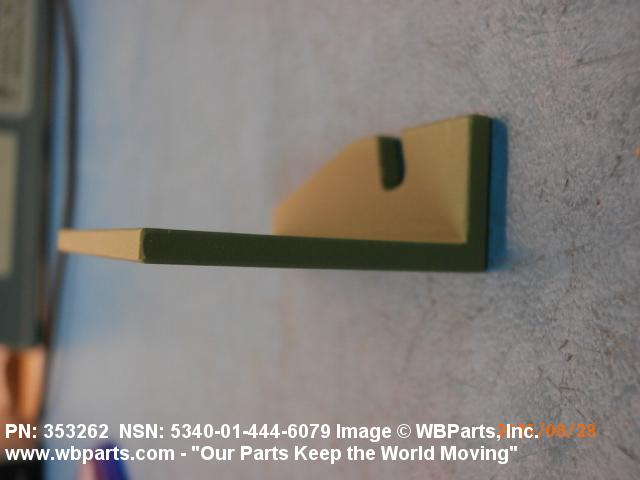

Drawings & Photos | NSN 5340-01-444-6079
Demand History | NSN 5340-01-444-6079
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-444-6079 | 2015-08-236 | 2 | United States |
| 5340-01-444-6079 | 2015-08-225 | 1 | United States |
| 5340-01-444-6079 | 2014-03-85 | 1 | United States |
| 5340-01-444-6079 | 2013-09-259 | 1 | United States |
Cross Reference | NSN 5340-01-444-6079
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 353262 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-444-6079
Technical Data | NSN 5340-01-444-6079
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 380.0 OVERALL |

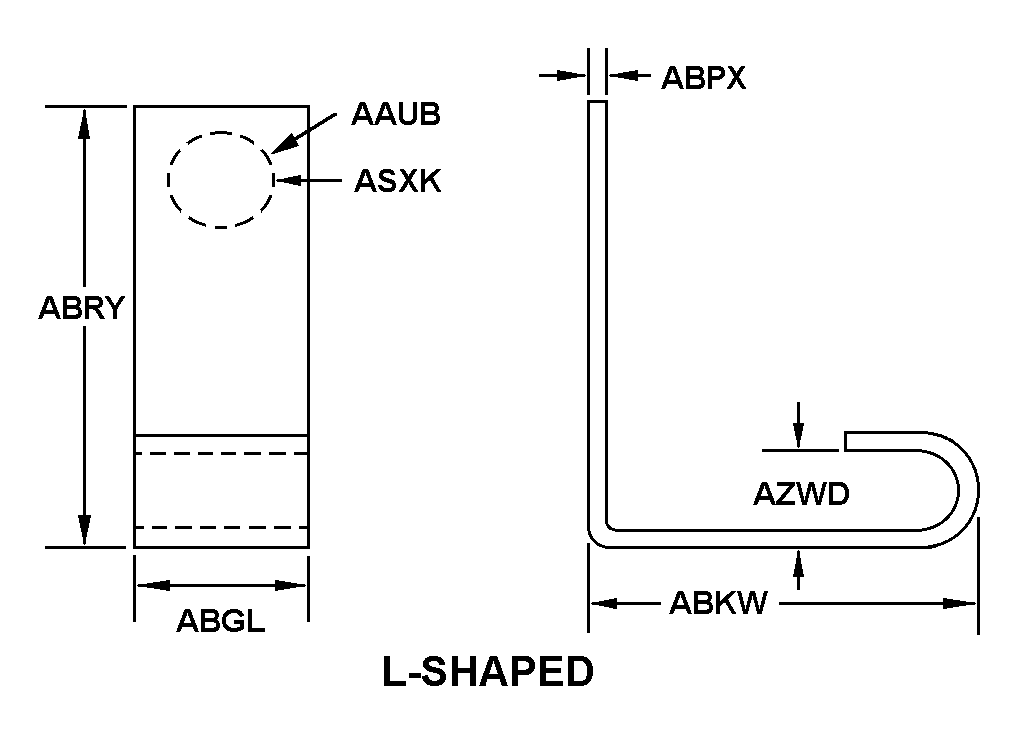

| STYLE DESIGNATOR | C47 L-SHAPED |

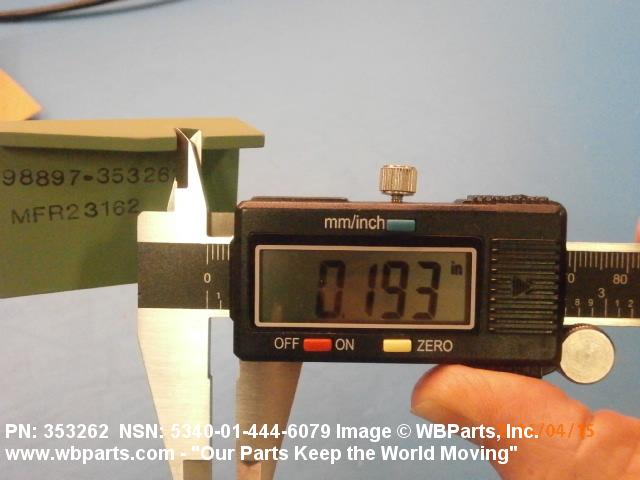

| HOLE DIAMETER | 0.193 INCHES MINIMUM AND 0.199 INCHES MAXIMUM |
| WIDTH | 0.620 INCHES NOMINAL |

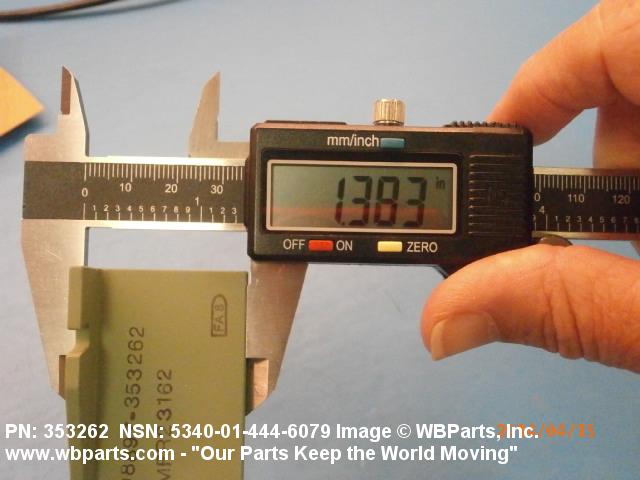

| OVERALL HEIGHT | 1.375 INCHES NOMINAL |

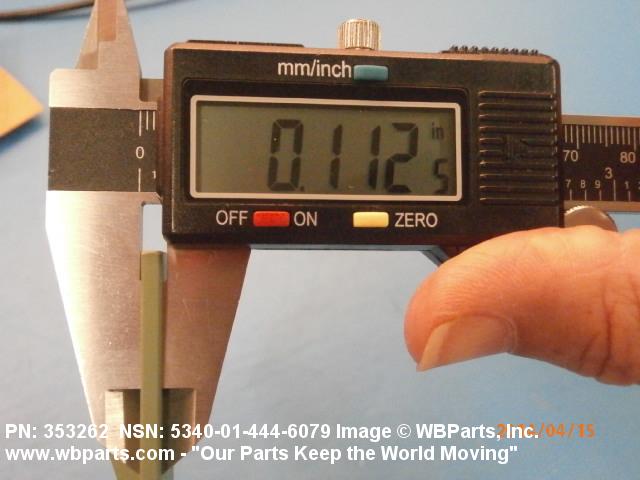

| MATERIAL THICKNESS | 0.109 INCHES NOMINAL |

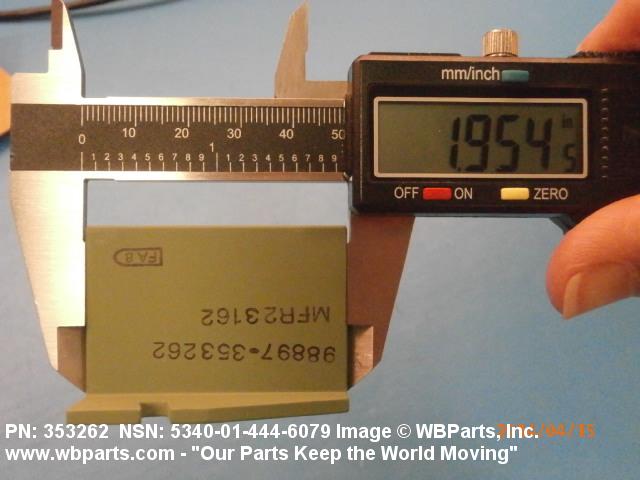

| LENGTH | 1.950 INCHES NOMINAL |
| HOLE QUANTITY | 3 |
| III END ITEM IDENTIFICATION | CLIP ELEVATOR RIG PIN, C130-J ACFT |
Restrictions/Controls & Freight Information | NSN 5340-01-444-6079
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
