NSN 5340-01-444-6100 3738561, 373856-1, 01-444-6100
Product Details | BUTT HINGE
5340-01-444-6100 A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.
Part Alternates: 3738561, 373856-1, 5340-01-444-6100, 01-444-6100, 5340014446100, 014446100
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 MAY 1997 | 01-444-6100 | 22894 ( HINGE, BUTT ) |

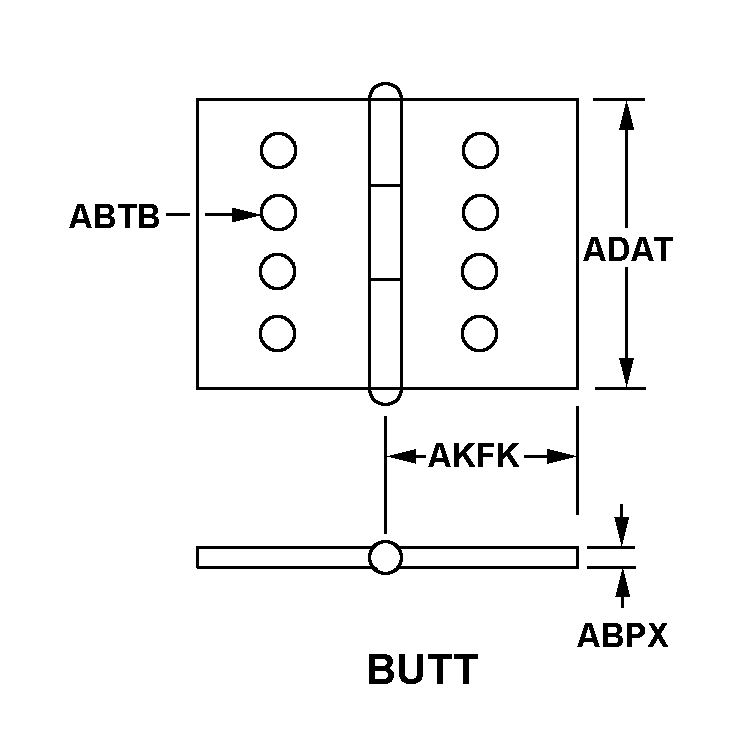

Drawings & Photos | NSN 5340-01-444-6100
Cross Reference | NSN 5340-01-444-6100
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 373856-1 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-444-6100
Technical Data | NSN 5340-01-444-6100
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY, QQ-A-200/3, ALLOY 2024, T4 OVERALL |
| STYLE DESIGNATOR | 15 BUTT |
| MATERIAL THICKNESS | 0.044 INCHES MINIMUM AND 0.056 INCHES MAXIMUM |
| MOUNTING HOLE DIAMETER | 0.218 INCHES MINIMUM AND 0.224 INCHES MAXIMUM |
| BODY WIDTH | 5.000 INCHES NOMINAL |
| PIN CENTER TO BODY EDGE DISTANCE | 0.965 INCHES NOMINAL |
| REVERSIBLE FEATURE | NOT INCLUDED |
| PIN REMOVABILITY | NONREMOVABLE |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | 9 |
| PERFORMANCE TYPE | NOT RATED |
| III END ITEM IDENTIFICATION | ELEC ACESS PANEL FS241, C130-J AFFT |
Restrictions/Controls & Freight Information | NSN 5340-01-444-6100
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
