NSN 5315-01-388-2082 DAA7232D023011, DAA7232D023-011, 01-388-2082
Product Details | HEADED STRAIGHT PIN
5315-01-388-2082 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: DAA7232D023011, DAA7232D023-011, 5315-01-388-2082, 01-388-2082, 5315013882082, 013882082
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 MAR 1994 | 01-388-2082 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-01-388-2082
Cross Reference | NSN 5315-01-388-2082
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DAA7232D023-011 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-388-2082
Related Products | NSN 5315-01-388-2082
Technical Data | NSN 5315-01-388-2082
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP XM-12 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5659 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35, TYPE II FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| DIAMETER | 0.590 INCHES MINIMUM AND 0.600 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 4.300 INCHES NOMINAL |

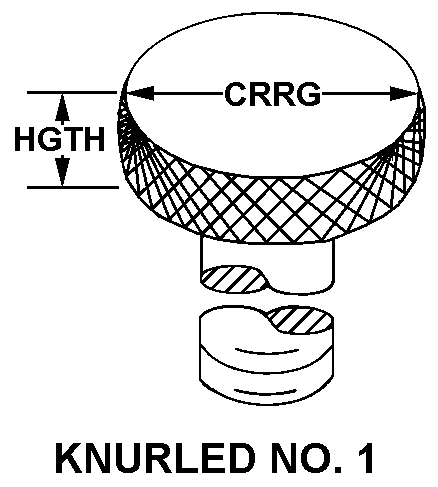

| HEAD STYLE | 25 KNURLED NO. 1 |
| PIN HEAD DIAMETER | 1.750 INCHES NOMINAL |
| HEIGHT | 0.300 INCHES NOMINAL |

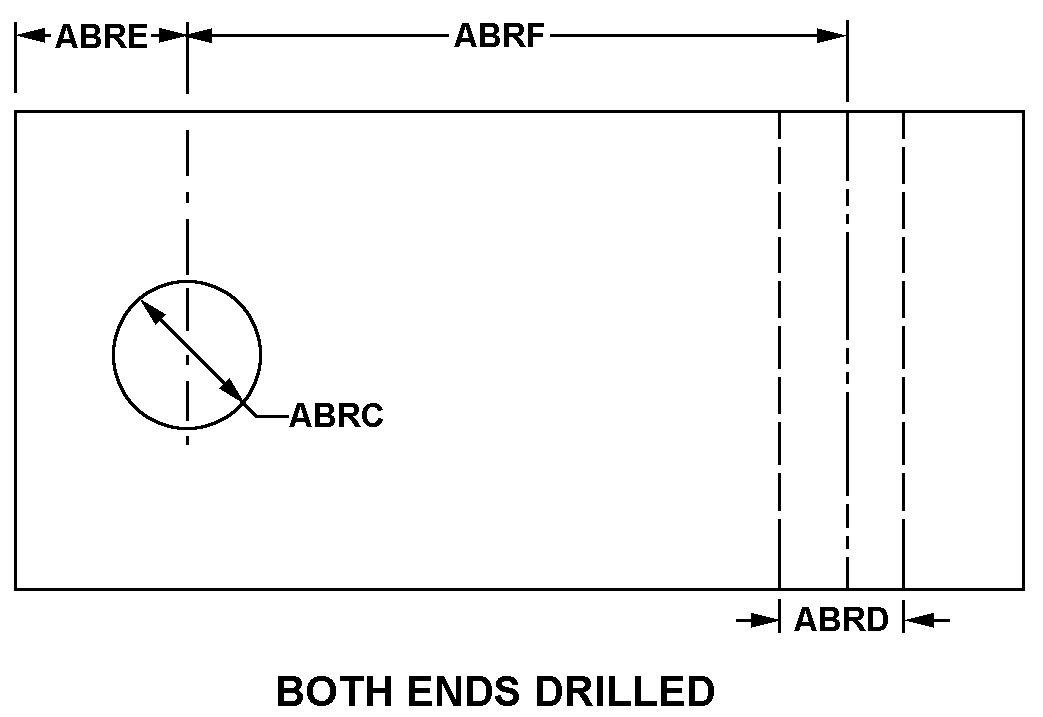

| HOLE ARRANGEMENT STYLE | 9 BOTH ENDS DRILLED |
| FIRST HOLE DIAMETER | 0.125 INCHES MINIMUM AND 0.129 INCHES MAXIMUM |
| SECOND HOLE DIAMETER | 0.125 INCHES MINIMUM AND 0.129 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 1.148 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOLES | 1.689 INCHES NOMINAL |
