NSN 5315-01-463-2626 12976610, 01-463-2626, 014632626
Product Details | HEADED STRAIGHT PIN
5315-01-463-2626 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 12976610, 5315-01-463-2626, 01-463-2626, 5315014632626, 014632626
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 MAR 1999 | 01-463-2626 | 02384 ( PIN, STRAIGHT, HEADED ) |

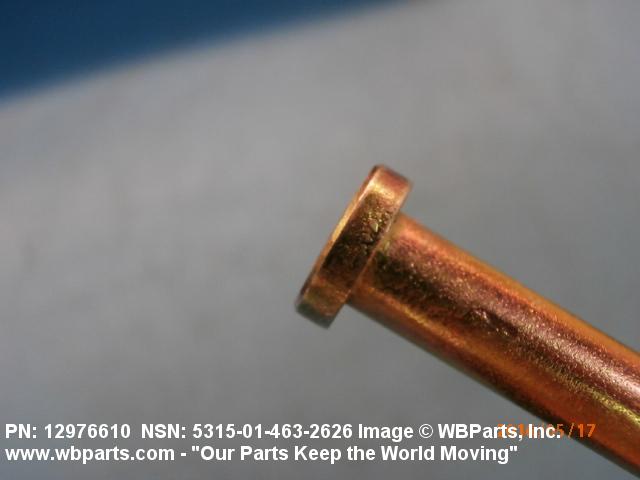

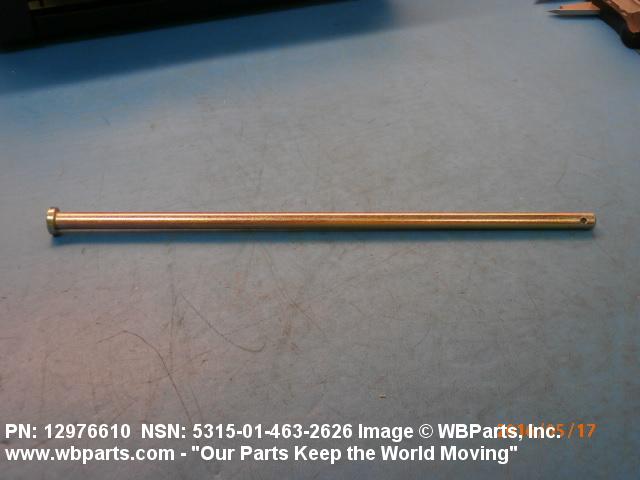

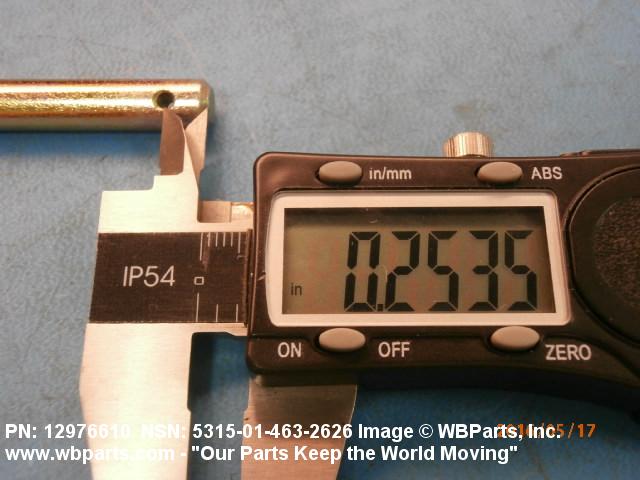

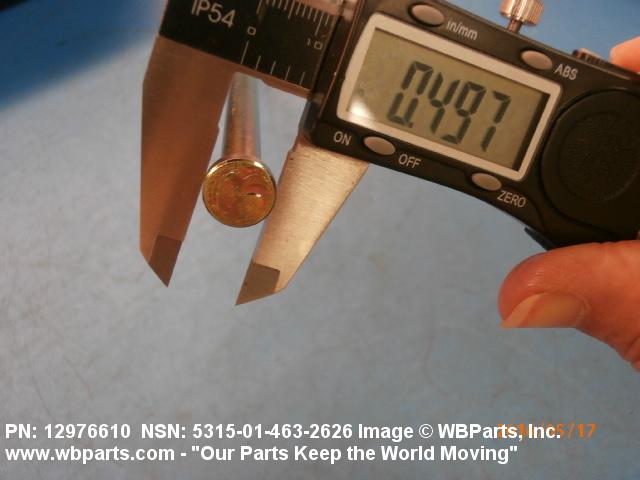

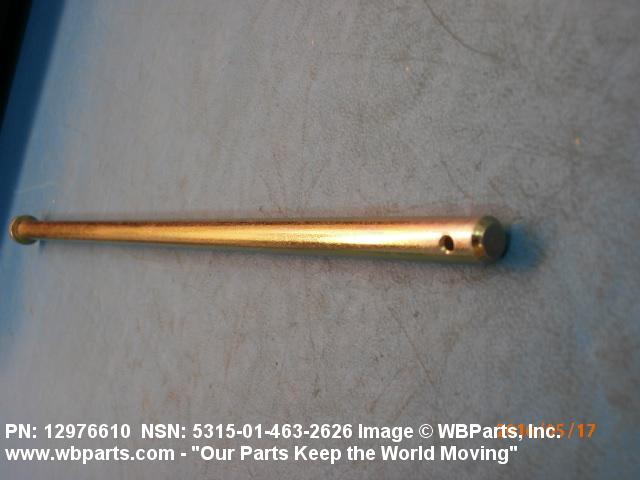

Drawings & Photos | NSN 5315-01-463-2626
Demand History | NSN 5315-01-463-2626
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-463-2626 | 2017-07-183 | 24 | DIBBS |
| 5315-01-463-2626 | 2016-04-117 | 42 | United States |
| 5315-01-463-2626 | 2010-12-337 | 50 | DIBBS |
| 5315-01-463-2626 | 2010-01-19 | 69 | DIBBS |
| 5315-01-463-2626 | 2010-01-13 | 69 | DIBBS |
Cross Reference | NSN 5315-01-463-2626
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12976610 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-463-2626
Related Products | NSN 5315-01-463-2626
Technical Data | NSN 5315-01-463-2626

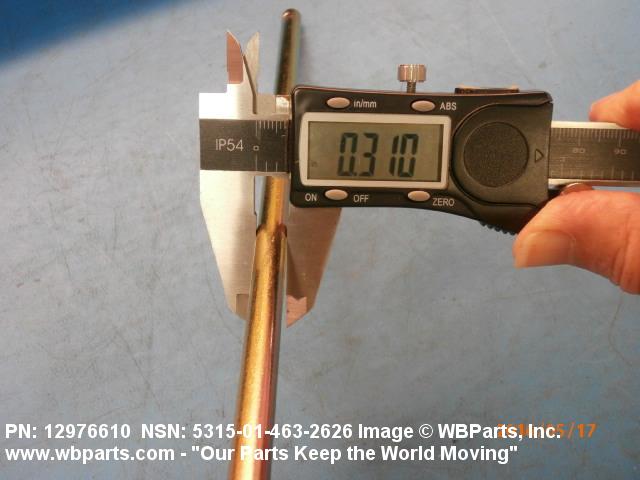

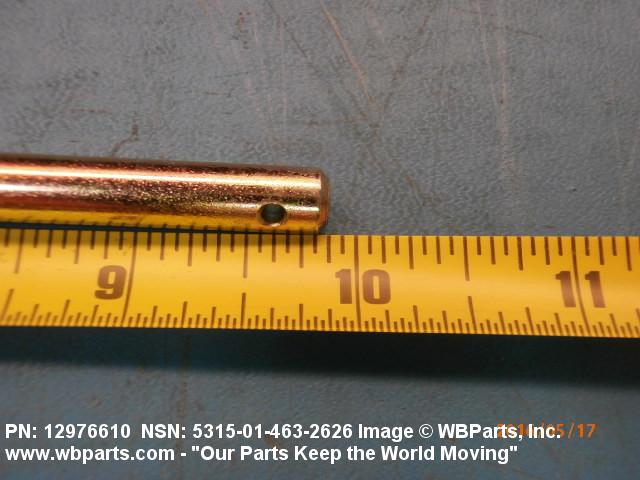

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A36 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A108 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A576 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| DIAMETER | 0.302 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 9.850 INCHES NOMINAL |

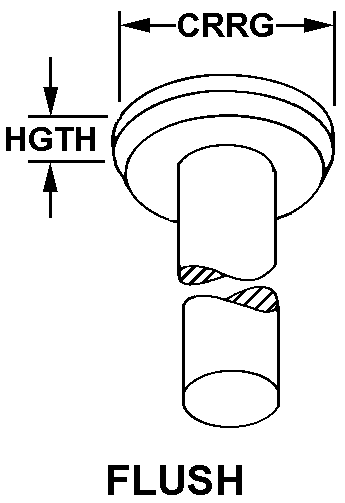

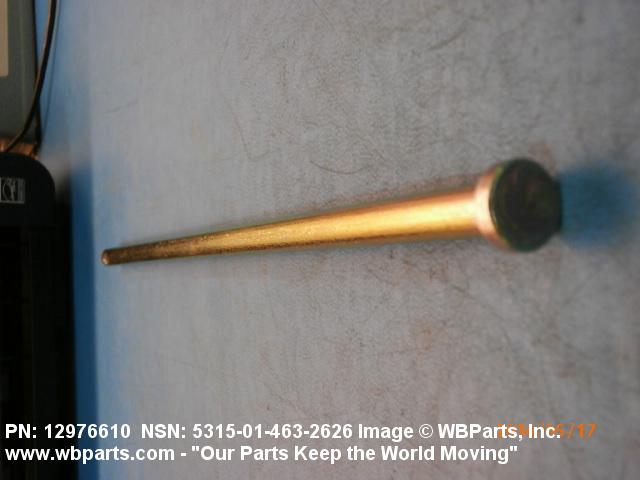

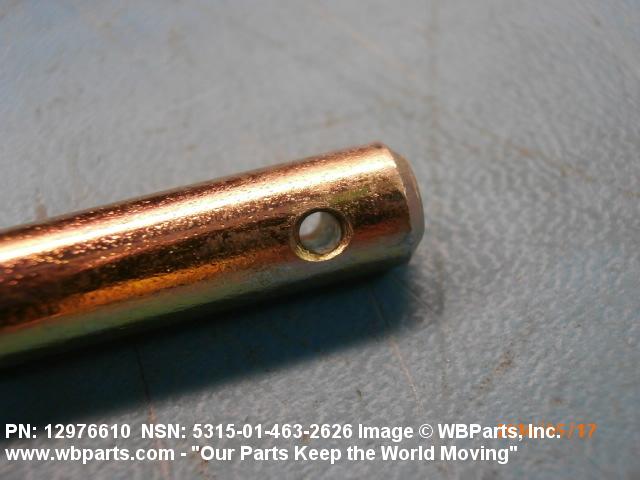

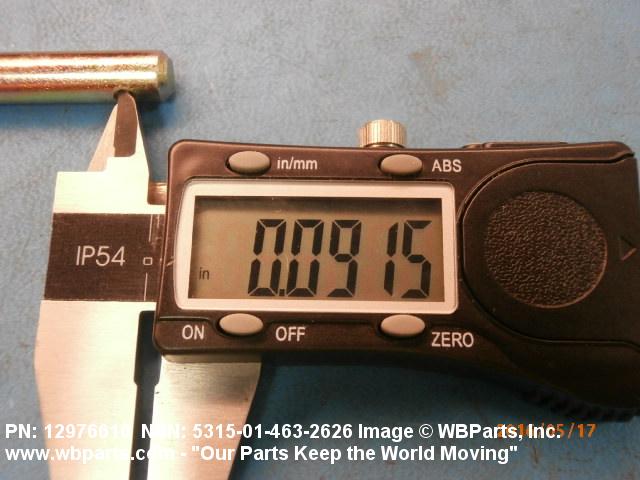

| HEAD STYLE | 15 FLUSH |
| PIN HEAD DIAMETER | 0.500 INCHES NOMINAL |
| HEIGHT | 0.125 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.085 INCHES MINIMUM AND 0.105 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.250 INCHES NOMINAL |
