NSN 5315-01-131-1765 145C61213, 145C6121-3, 01-131-1765
Product Details | HEADED STRAIGHT PIN
5315-01-131-1765 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 145C61213, 145C6121-3, 5315-01-131-1765, 01-131-1765, 5315011311765, 011311765
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 MAY 1982 | 01-131-1765 | 02384 ( PIN, STRAIGHT, HEADED ) |

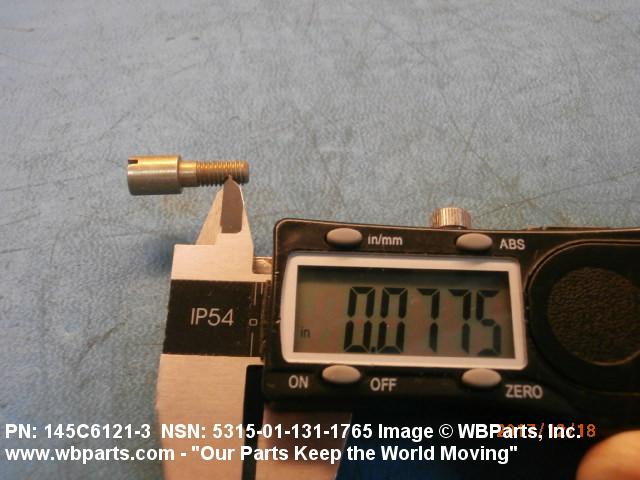

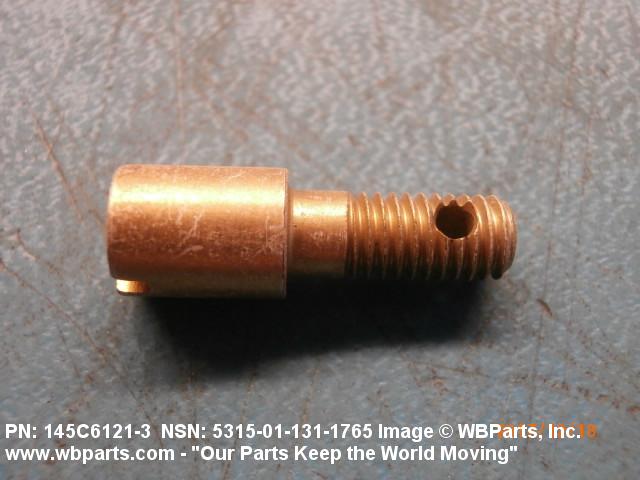

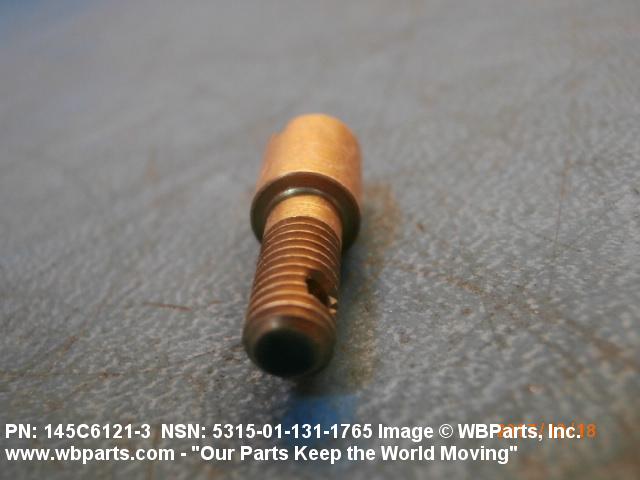

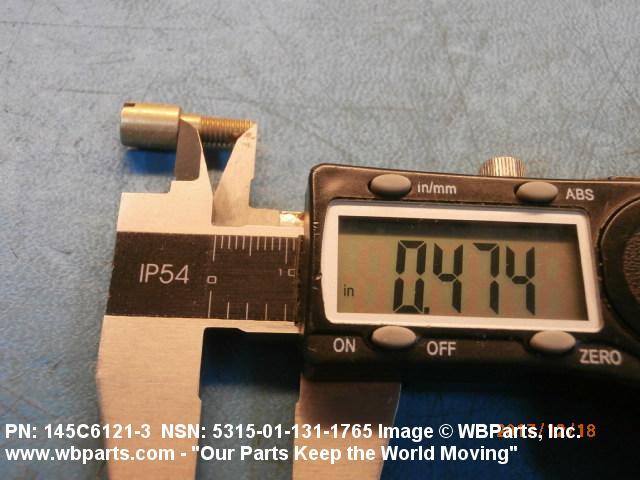

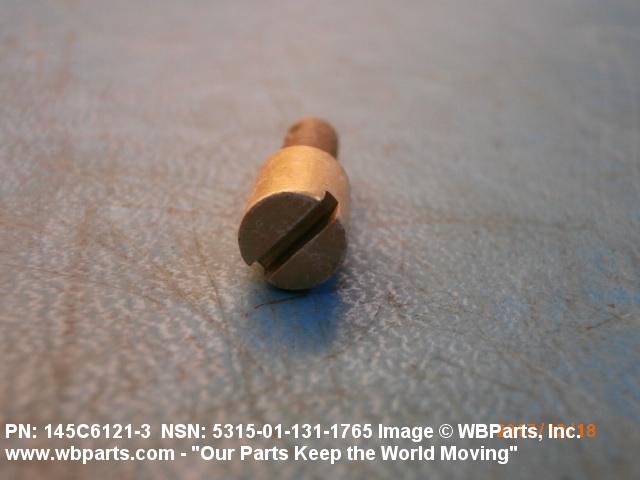

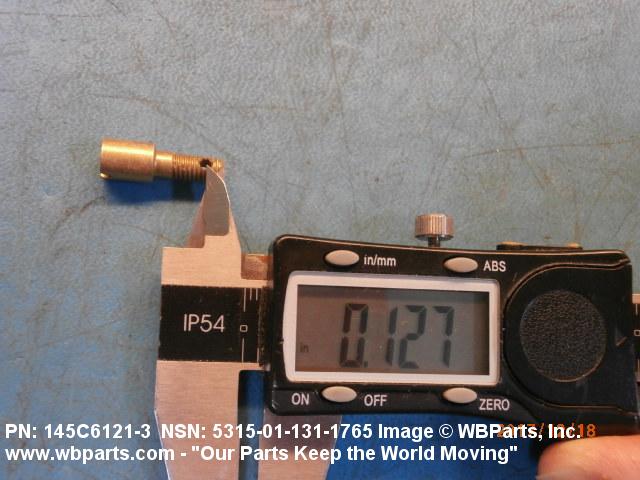

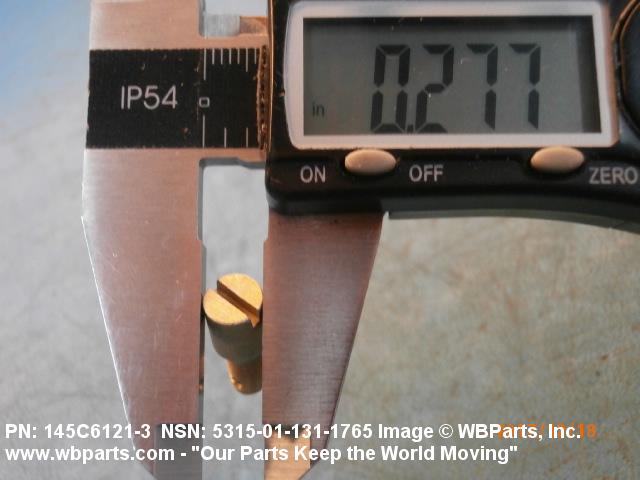

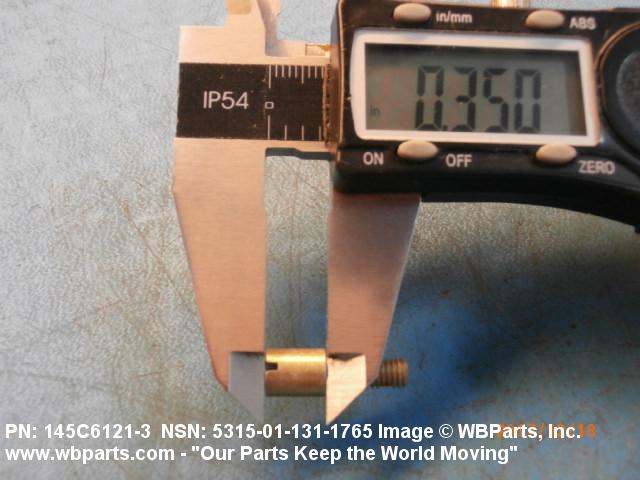

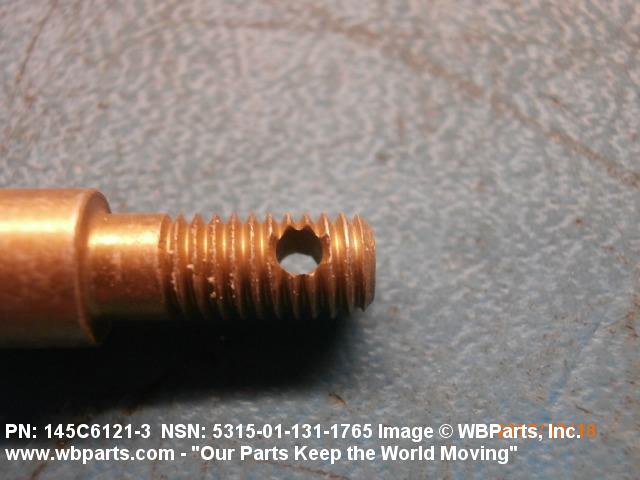

Drawings & Photos | NSN 5315-01-131-1765
Demand History | NSN 5315-01-131-1765
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 145C6121-3 | 2019-03-71 | 5 | DIBBS |
| 145C6121-3 | 2019-01-08 | 5 | DIBBS |
| 5315-01-131-1765 | 2017-11-324 | 1 | United States |
| 5315-01-131-1765 | 2014-07-203 | 20 | DIBBS |
| 145C6121-3 | 2012-01-10 | 2 | AE |
| 5315-01-131-1765 | 2010-10-302 | 14 | DIBBS |
Cross Reference | NSN 5315-01-131-1765
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 145C6121-3 | 77272 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-131-1765
Related Products | NSN 5315-01-131-1765
Technical Data | NSN 5315-01-131-1765
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| DIAMETER | 0.186 INCHES MINIMUM AND 0.189 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 0.480 INCHES NOMINAL |

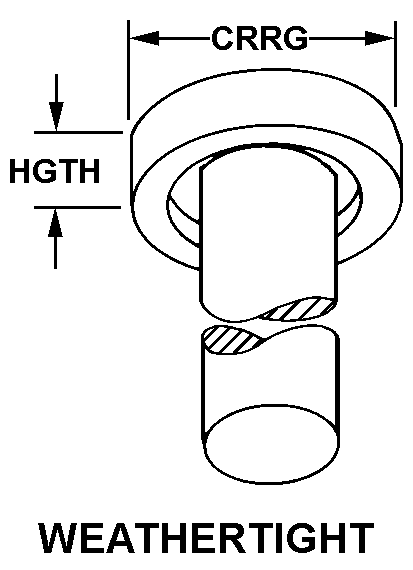

| HEAD STYLE | 56 WEATHERTIGHT |
