Product Details | HEADED STRAIGHT PIN

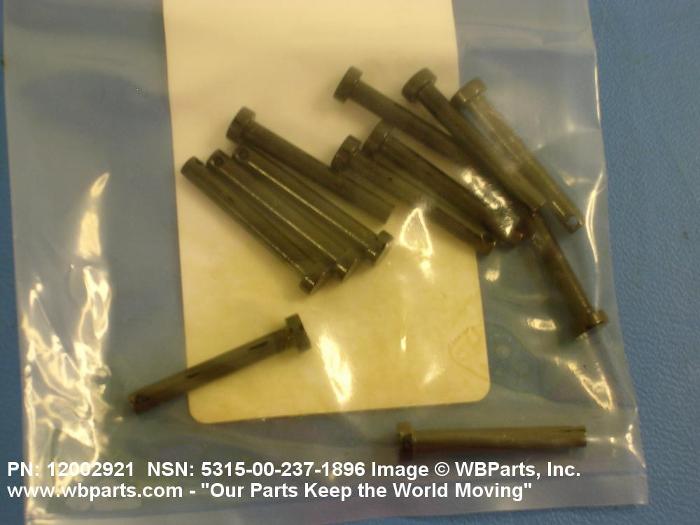

5315-00-237-1896 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 12002921, 5315-00-237-1896, 00-237-1896, 5315002371896, 002371896
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 MAY 1973 | 00-237-1896 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-00-237-1896
Demand History | NSN 5315-00-237-1896
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-237-1896 | 2008-07-199 | 12 | United States |
Cross Reference | NSN 5315-00-237-1896
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12002921 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-237-1896
Related Products | NSN 5315-00-237-1896
Technical Data | NSN 5315-00-237-1896
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4037 OVERALL |
| SURFACE TREATMENT | PHOSPHATE MANGANESE AND PHOSPHATE ZINC OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| DIAMETER | 0.153 INCHES MINIMUM AND 0.154 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 1.126 INCHES MINIMUM AND 1.136 INCHES MAXIMUM |
| HEAD STYLE | 16 FLAT |
| PIN HEAD DIAMETER | 0.220 INCHES MINIMUM AND 0.280 INCHES MAXIMUM |
| HEIGHT | 0.094 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.062 INCHES MINIMUM AND 0.065 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.056 INCHES MINIMUM AND 0.074 INCHES MAXIMUM |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 12002921 |
