NSN 5315-01-388-2294 D63464/7-06050, D63464706050, DOD-P-63464/7
Product Details | HEADLESS GROOVED PIN
5315-01-388-2294 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: D63464/7-06050, D63464706050, DOD-P-63464/7, DODP634647, 5315-01-388-2294, 01-388-2294, 5315013882294, 013882294
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 MAR 1994 | 01-388-2294 | 02386 ( PIN, GROOVED, HEADLESS ) |
Drawings & Photos | NSN 5315-01-388-2294
Demand History | NSN 5315-01-388-2294
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-388-2294 | 2023-12-351 | 246 | DIBBS |
| 5315-01-388-2294 | 2022-08-226 | 246 | DIBBS |
| 5315-01-388-2294 | 2015-06-158 | 540 | DIBBS |
| 5315-01-388-2294 | 2011-06-175 | 500 | US |
| D63464706050 | 2011-03-76 | 200 | US |
| 5315-01-388-2294 | 2011-01-08 | 257 | DIBBS |
| 5315-01-388-2294 | 2010-12-337 | 128 | DIBBS |
| DODP634647 | 2006-09-261 | 200 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-388-2294
Related Products | NSN 5315-01-388-2294
Technical Data | NSN 5315-01-388-2294
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |

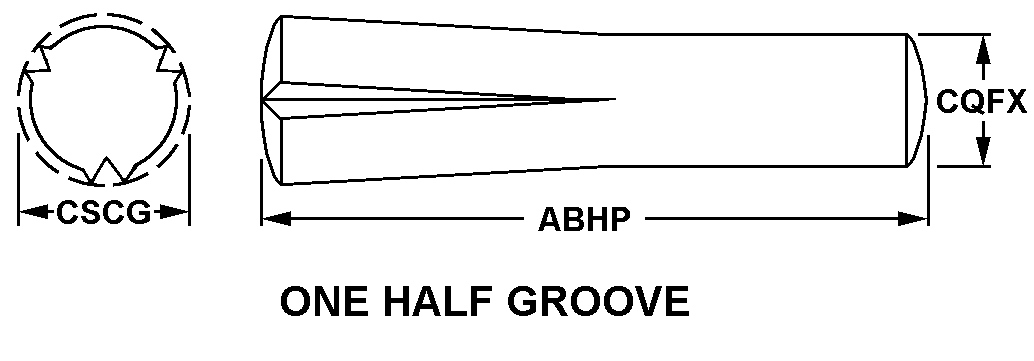

| STYLE DESIGNATOR | F119 ONE HALF GROOVE |
| OVERALL LENGTH | 49.75 MILLIMETERS MINIMUM AND 50.25 MILLIMETERS MAXIMUM |
| PIN SMALL END DIAMETER | 5.95 MILLIMETERS MINIMUM AND 6.00 MILLIMETERS MAXIMUM |
| PIN LARGE END DIAMETER | 6.00 MILLIMETERS MINIMUM AND 6.13 MILLIMETERS MAXIMUM |
| FIRST END STYLE | 9 SQUARE |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | GROOVED END |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | DOD-P-63464/7 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | D63464/7-06050 |
Restrictions/Controls & Freight Information | NSN 5315-01-388-2294
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
