NSN 5315-00-663-3183 1, 00-663-3183, 006633183
Product Details | HEADLESS GROOVED PIN
5315-00-663-3183 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 1, 5315-00-663-3183, 00-663-3183, 5315006633183, 006633183
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-663-3183 | 02386 ( PIN, GROOVED, HEADLESS ) |
Drawings & Photos | NSN 5315-00-663-3183
Demand History | NSN 5315-00-663-3183
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1 | 2024-09-267 | 1 | us |
| 1 | 2024-07-212 | 1 | US |
| 1 | 2023-11-319 | 1 | US |
| 1 | 2023-11-311 | 1 | United States |
| 1 | 2023-05-137 | 1 | US |
| 1 | 2020-11-325 | 1 | US |
| 1 | 2019-05-141 | 1 | US |
| 1 | 2019-04-99 | 4 | |
| 1 | 2016-10-301 | 1 | |
| 1 | 2016-07-209 | 22 | us |
| 1 | 2016-07-209 | 12 | us |
| 1 | 2014-05-136 | 1 | US |
| 1 | 2011-06-160 | 1 | PH |
Cross Reference | NSN 5315-00-663-3183
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1 | 73957 | GROOV-PIN CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-663-3183
Technical Data | NSN 5315-00-663-3183
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |

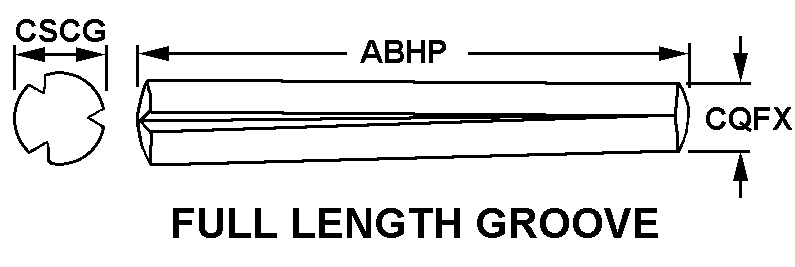

| STYLE DESIGNATOR | F103 FULL LENGTH GROOVE |
| OVERALL LENGTH | 0.188 INCHES NOMINAL |
| PIN SMALL END DIAMETER | 0.061 INCHES MINIMUM AND 0.063 INCHES MAXIMUM |
| PIN LARGE END DIAMETER | 0.067 INCHES MINIMUM AND 0.069 INCHES MAXIMUM |
| FIRST END STYLE | 9 SQUARE |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | BOTH ENDS |
Restrictions/Controls & Freight Information | NSN 5315-00-663-3183
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-663-3183
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
