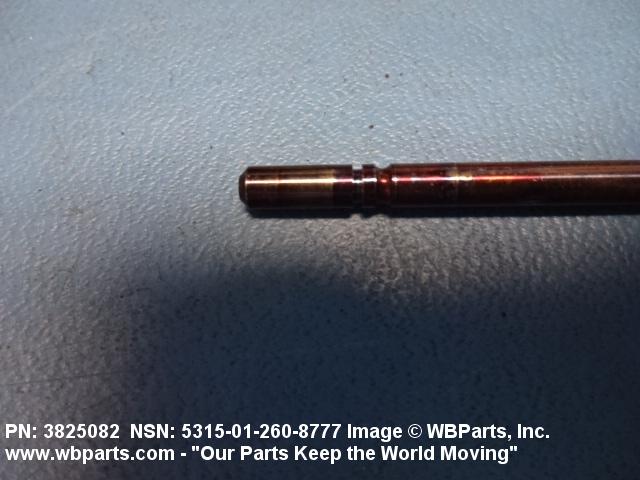

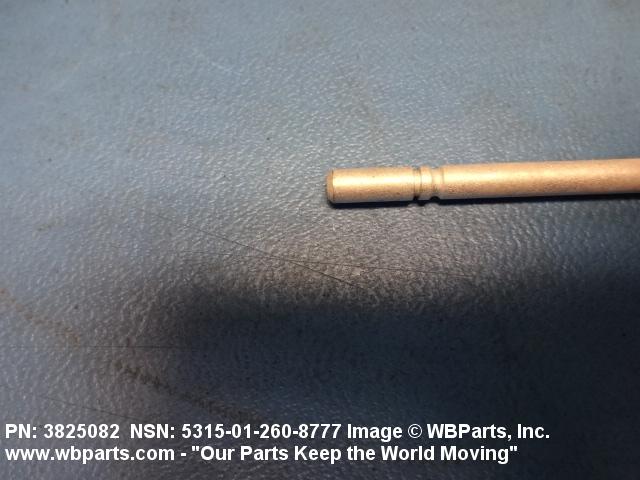

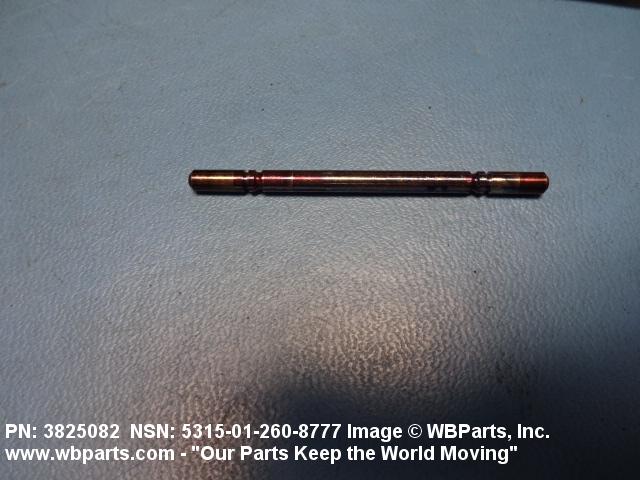

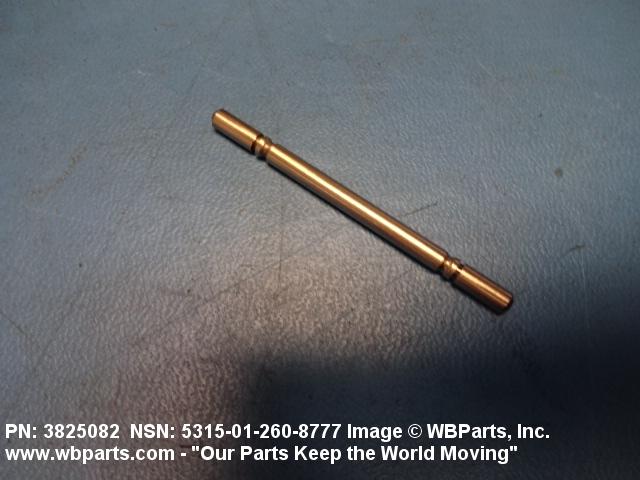

Product Details | HEADLESS GROOVED PIN

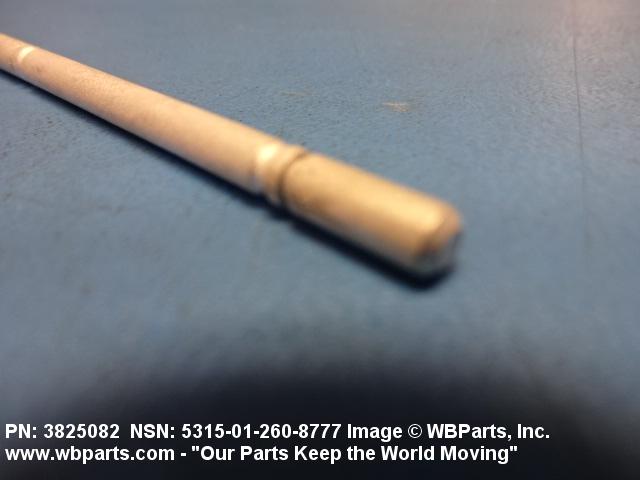

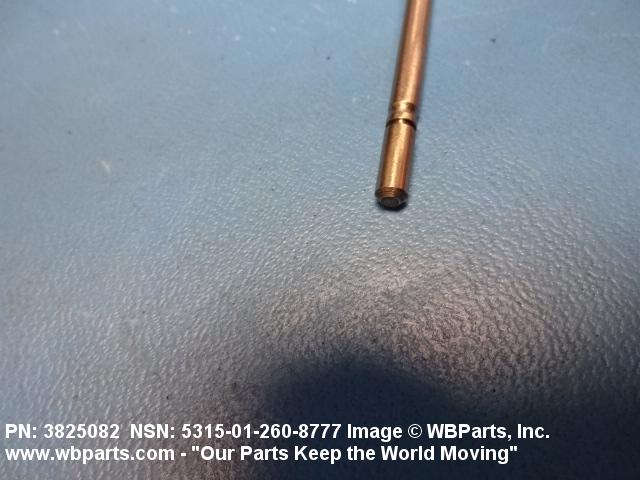

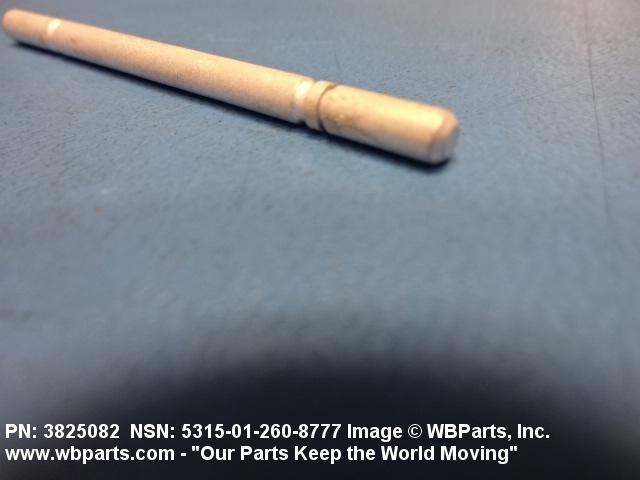

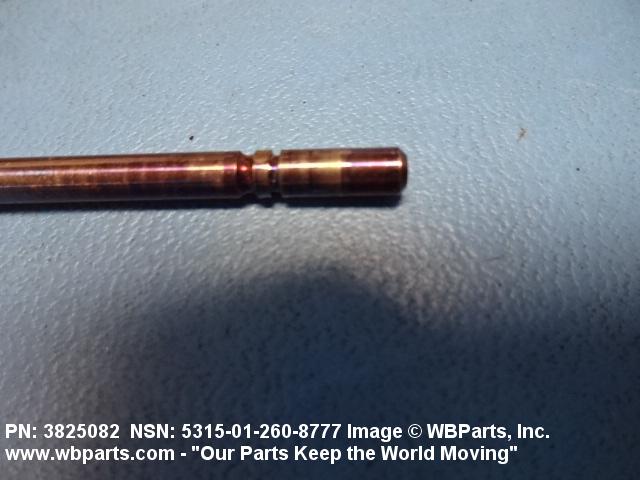

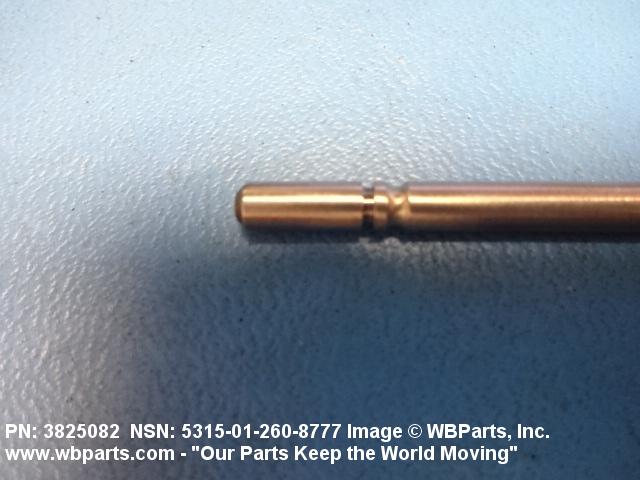

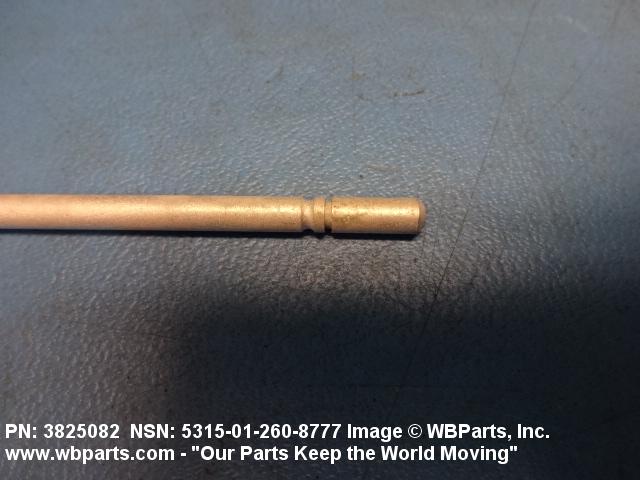

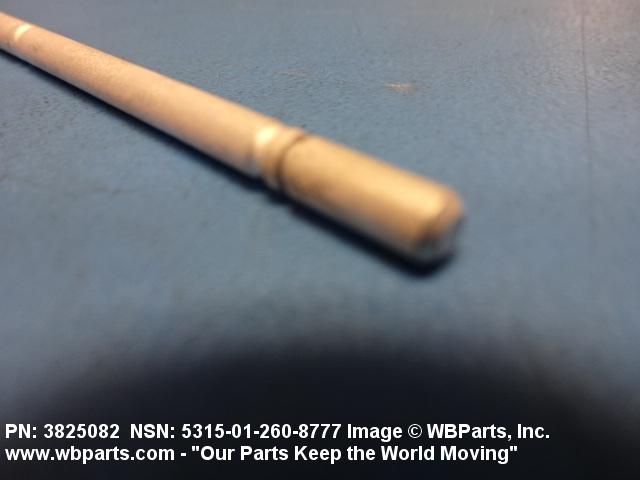

5315-01-260-8777 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 3825082, 5315-01-260-8777, 01-260-8777, 5315012608777, 012608777
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 AUG 1987 | 01-260-8777 | 02386 ( PIN, GROOVED, HEADLESS ) |

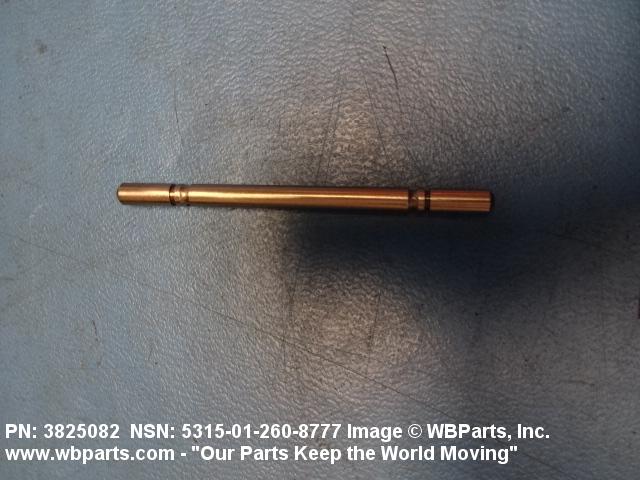

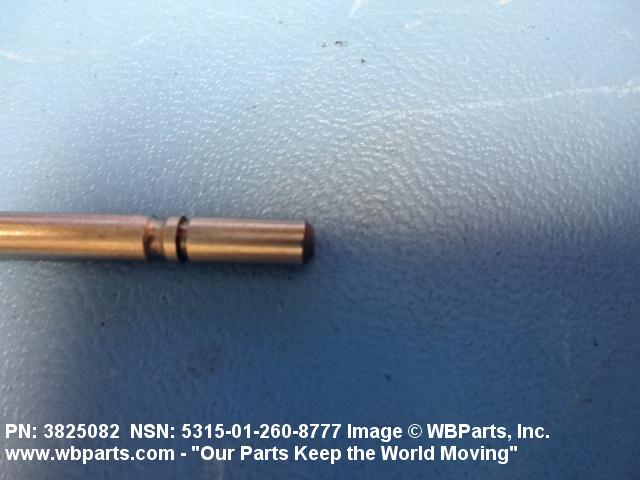

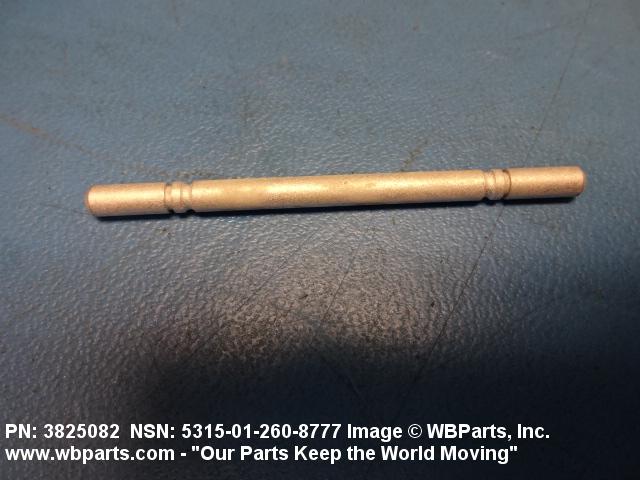

Drawings & Photos | NSN 5315-01-260-8777
Demand History | NSN 5315-01-260-8777
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-260-8777 | 2017-03-83 | 150 | United States |
| 5315-01-260-8777 | 2016-05-131 | 150 | DIBBS |
| 5315-01-260-8777 | 2016-03-74 | 34 | DIBBS |
Cross Reference | NSN 5315-01-260-8777
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3825082 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-260-8777
Related Products | NSN 5315-01-260-8777
Technical Data | NSN 5315-01-260-8777
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

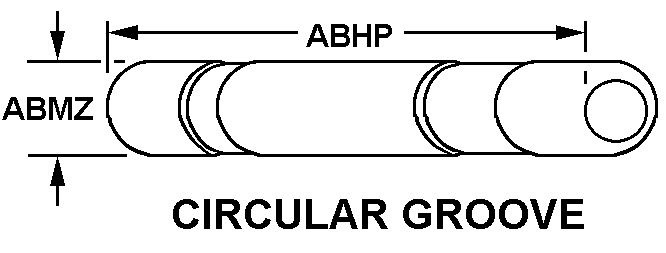

| STYLE DESIGNATOR | F108 CIRCULAR GROOVE |

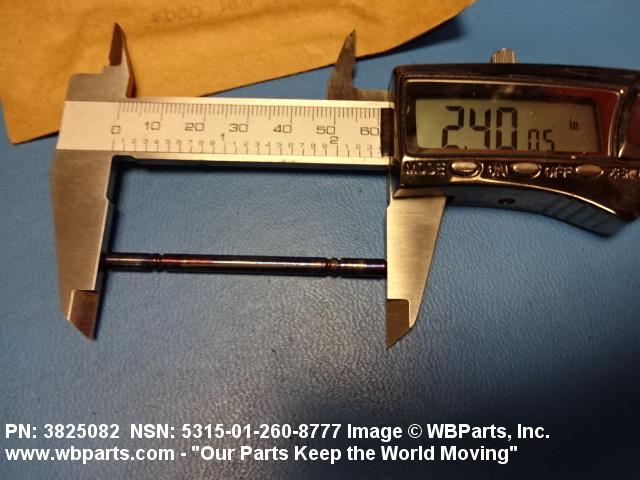

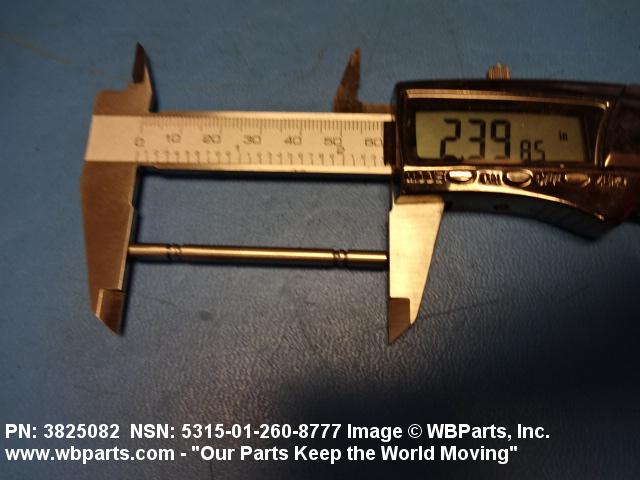

| OVERALL LENGTH | 2.400 INCHES NOMINAL |

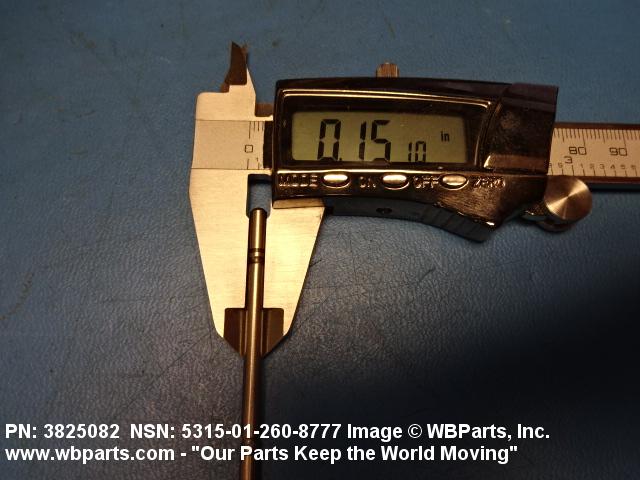

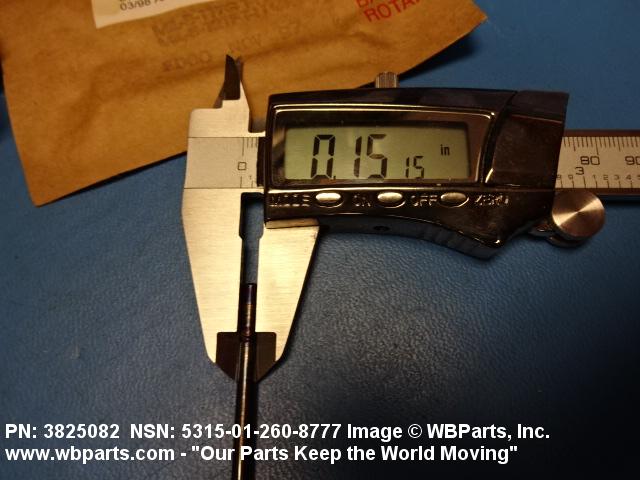

| DIAMETER | 0.148 INCHES MINIMUM AND 0.152 INCHES MAXIMUM |
