NSN 5315-01-260-9001 C1045R, C10-45R, 01-260-9001
Product Details | QUICK RELEASE PIN
5315-01-260-9001 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: C1045R, C10-45R, 5315-01-260-9001, 01-260-9001, 5315012609001, 012609001
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 AUG 1987 | 01-260-9001 | 08323 ( PIN, QUICK RELEASE ) |

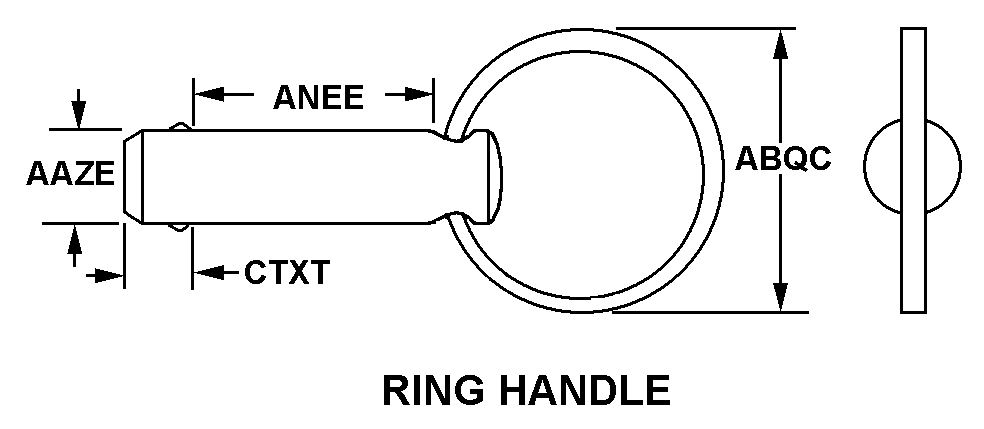

Drawings & Photos | NSN 5315-01-260-9001
Demand History | NSN 5315-01-260-9001
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| C10-45R | 2024-03-81 | 25 | DIBBS |
| C10-45R | 2024-01-28 | 30 | DIBBS |
| C10-45R | 2022-03-88 | 50 | DIBBS |
| 5315-01-260-9001 | 2013-09-258 | 125 | DIBBS |
| 5315-01-260-9001 | 2010-09-272 | 53 | DIBBS |
| 5315-01-260-9001 | 2010-04-100 | 78 | DIBBS |
| 5315-01-260-9001 | 2010-01-19 | 46 | DIBBS |
| 5315-01-260-9001 | 2009-03-66 | 17 | DIBBS |
Cross Reference | NSN 5315-01-260-9001
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C10-45R | 09332 | AEROFAST, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-260-9001
Related Products | NSN 5315-01-260-9001
Technical Data | NSN 5315-01-260-9001
| Characteristic | Specifications |
|---|---|
| SHEAR STRENGTH | 27330 SINGLE POUND |
| STYLE DESIGNATOR | Q251 RING HANDLE |
| SHANK DIAMETER | 0.622 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| GRIP LENGTH | 4.500 INCHES MINIMUM AND 4.560 INCHES MAXIMUM |
| DETENT TO TAPERED END DISTANCE | 0.750 INCHES NOMINAL |
| ACTUATION METHOD | HANDLE |
| DETENT QUANTITY | 1 |
| MANUFACTURERS CODE | 09332 |
| DESIGN CONTROL REFERENCE | C10-45R |
Restrictions/Controls & Freight Information | NSN 5315-01-260-9001
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-260-9001
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
