NSN 5315-01-245-8877 10123232 , 152D54561, 152D5456-1
Product Details | QUICK RELEASE PIN

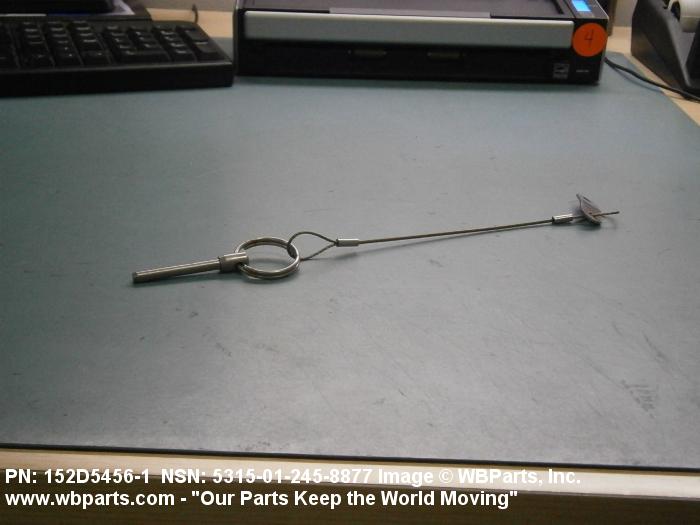

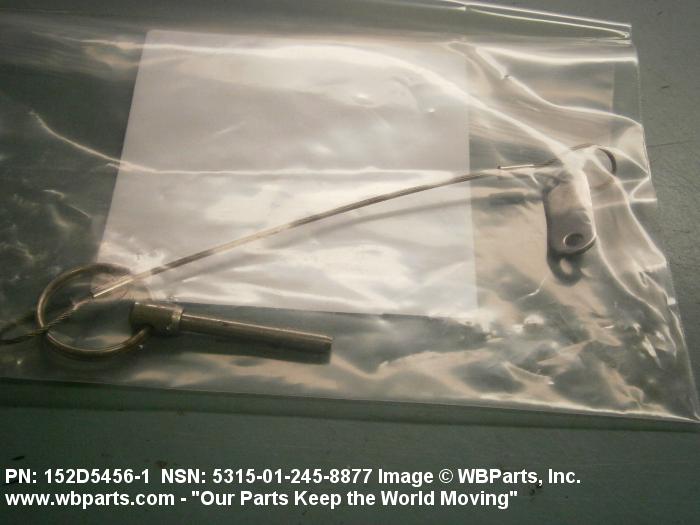

5315-01-245-8877 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: 10123232 , 152D54561, 152D5456-1, 42QRD1, 42-QRD1, 557431, 55743-1, 5315-01-245-8877, 01-245-8877, 5315012458877, 012458877
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 DEC 1986 | 01-245-8877 | 08323 ( PIN, QUICK RELEASE ) |
Drawings & Photos | NSN 5315-01-245-8877
Demand History | NSN 5315-01-245-8877
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 152D54561 | 2024-08-234 | 3 | United States |
| 557431 | 2023-05-150 | 4 | United States |
| 557431 | 2023-05-150 | 20 | United States |
| 557431 | 2023-05-150 | 40 | United States |
| 5315-01-245-8877 | 2019-01-25 | 1 | DIBBS-RFPs |
| 5315-01-245-8877 | 2018-11-305 | 270 | DIBBS |
| 5315-01-245-8877 | 2018-08-217 | 259 | DIBBS |
| 5315-01-245-8877 | 2018-01-21 | 234 | DIBBS |
| 5315-01-245-8877 | 2017-02-43 | 293 | DIBBS |
| 5315-01-245-8877 | 2016-08-244 | 170 | DIBBS |
| 5315-01-245-8877 | 2015-09-254 | 165 | DIBBS |
| 5315-01-245-8877 | 2015-08-229 | 165 | DIBBS |
| 5315-01-245-8877 | 2014-07-209 | 199 | DIBBS |
| 5315-01-245-8877 | 2014-07-198 | 199 | DIBBS |
| 152D54561 | 2013-08-234 | 1 | United States |
| 5315-01-245-8877 | 2010-04-99 | 98 | DIBBS |
| 5315-01-245-8877 | 2009-12-356 | 82 | DIBBS |
| 152D54561 | 2009-03-70 | 8 | US |
| 152D54561 | 2007-12-338 | 5 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-245-8877
Related Products | NSN 5315-01-245-8877
Technical Data | NSN 5315-01-245-8877
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 SHANK |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE SHANK |
| SURFACE TREATMENT | PASSIVATE SHANK |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHANK |
| HARDNESS RATING | 38.0 ROCKWELL C MINIMUM SHANK |
| SHEAR STRENGTH | 5600 DOUBLE POUND |
| STYLE DESIGNATOR | Q250 RING HANDLE |
| HEAD DIAMETER | 0.300 INCHES MINIMUM AND 0.320 INCHES MAXIMUM |

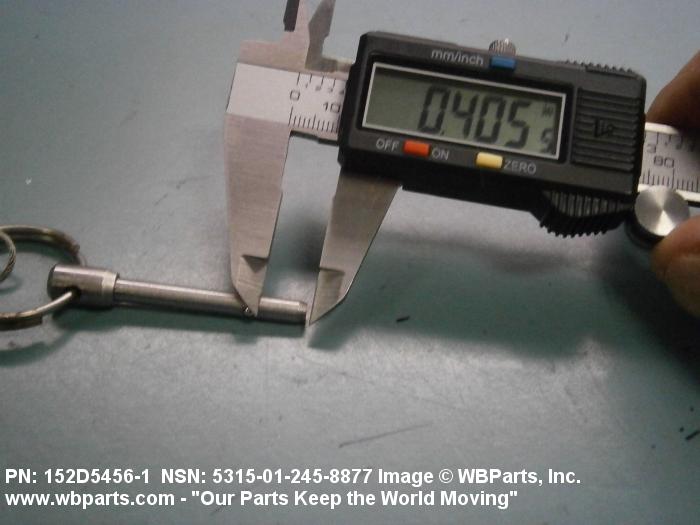

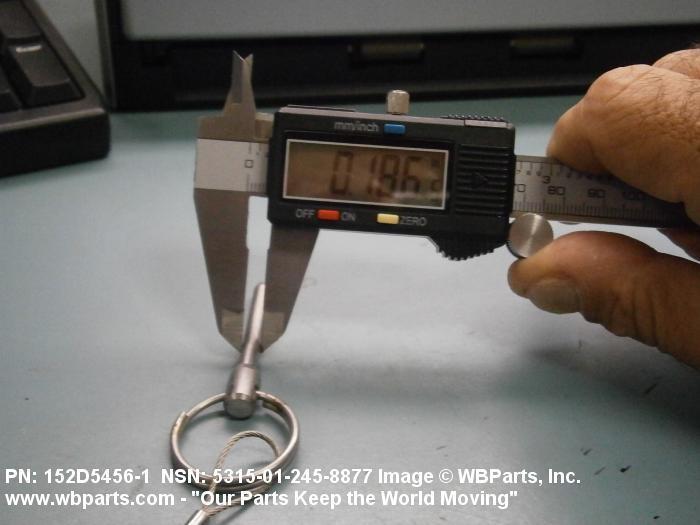

| SHANK DIAMETER | 0.1855 INCHES MINIMUM AND 0.1885 INCHES MAXIMUM |

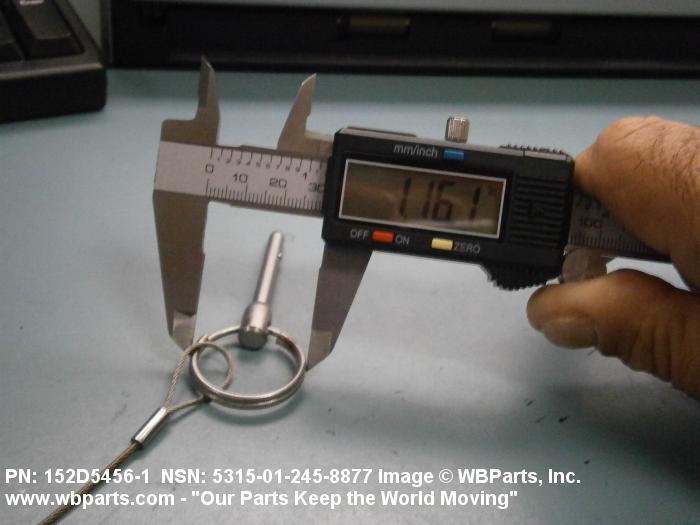

| RING HANDLE DIAMETER | 1.160 INCHES NOMINAL |
| GRIP LENGTH | 1.000 INCHES MINIMUM AND 1.020 INCHES MAXIMUM |
| SHOULDER TO HEAD END DISTANCE | 0.560 INCHES MAXIMUM |
| DETENT TO TAPERED END DISTANCE | 0.329 INCHES MAXIMUM |
| ACTUATION TYPE | PUSH |
| DETENT QUANTITY | 2 |

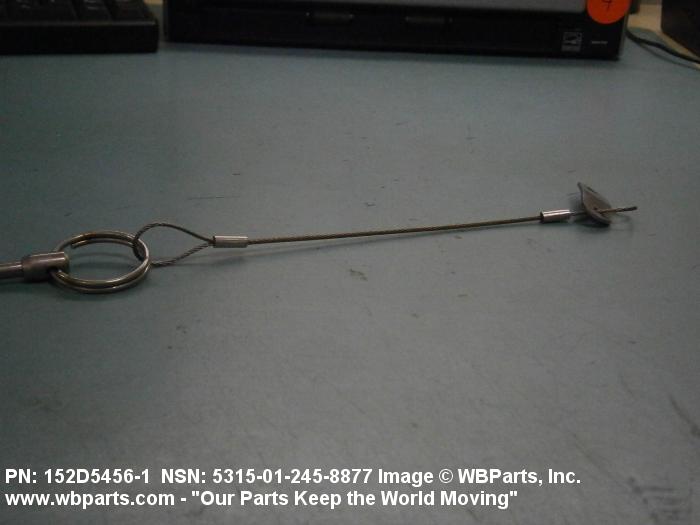

| PIN ATTACHMENT TYPE | CABLE LANYARD W/TERMINATIONS |
| LANYARD LENGTH | 7.750 INCHES MINIMUM AND 8.250 INCHES MAXIMUM |
