NSN 5315-01-359-0771 13376439, 01-359-0771, 013590771
Product Details | QUICK RELEASE PIN
5315-01-359-0771 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: 13376439, 5315-01-359-0771, 01-359-0771, 5315013590771, 013590771
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 MAY 1992 | 01-359-0771 | 08323 ( PIN, QUICK RELEASE ) |

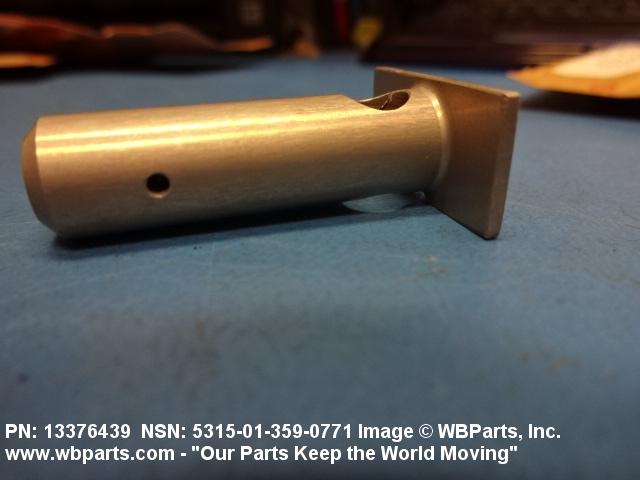

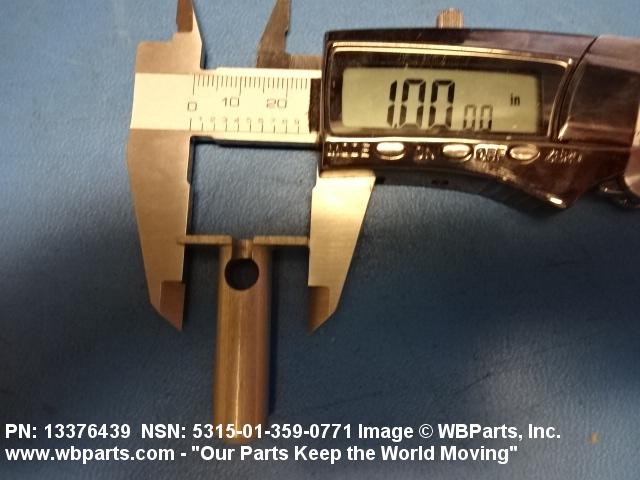

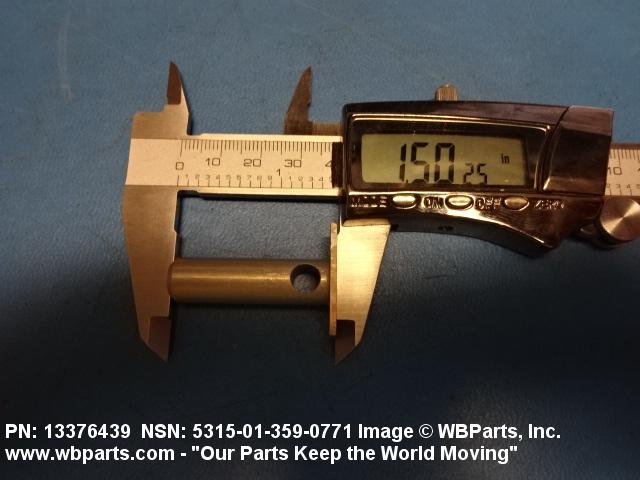

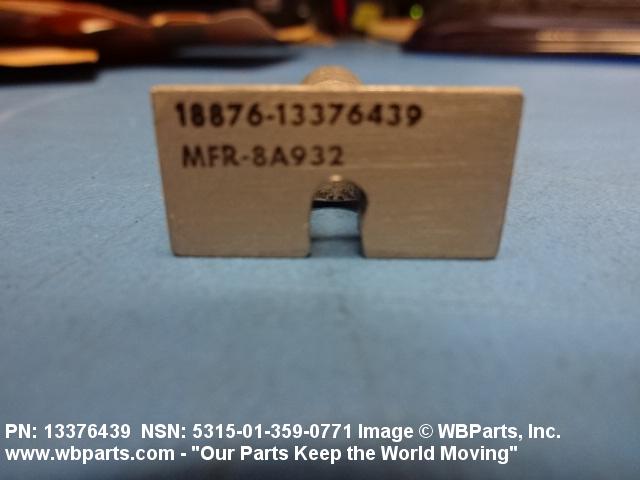

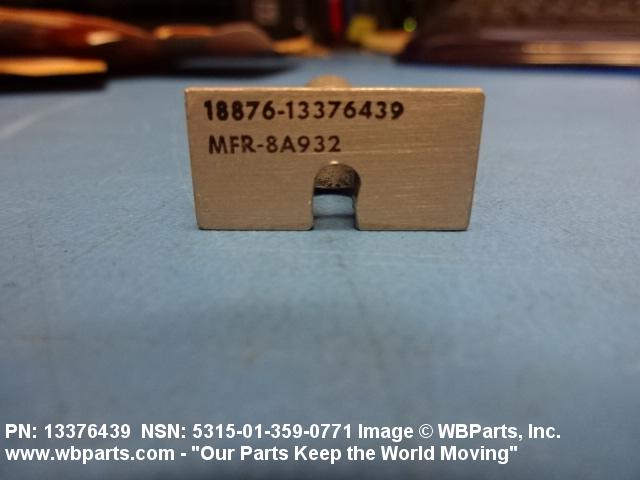

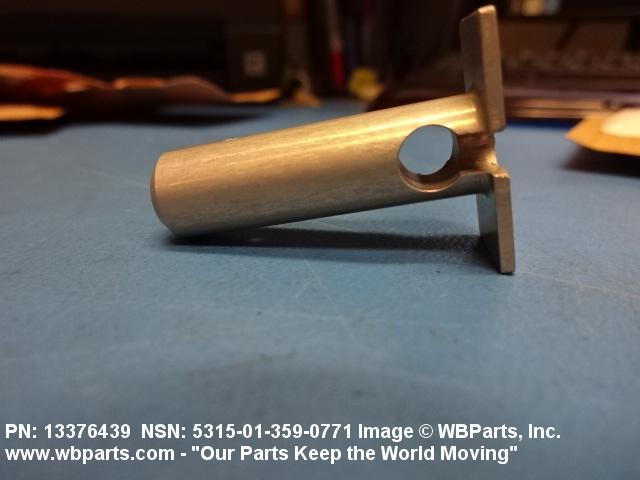

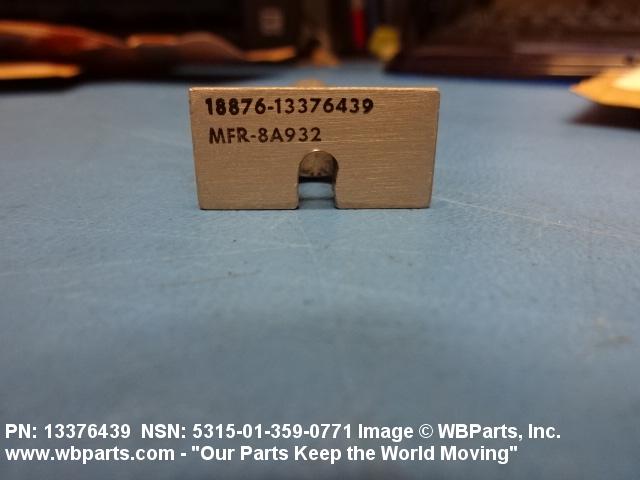

Drawings & Photos | NSN 5315-01-359-0771
Demand History | NSN 5315-01-359-0771
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-359-0771 | 2017-08-221 | 8 | United States |
| 5315-01-359-0771 | 2016-11-315 | 8 | DIBBS |
| 5315-01-359-0771 | 2016-11-307 | 8 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-359-0771
Related Products | NSN 5315-01-359-0771
Technical Data | NSN 5315-01-359-0771
| Characteristic | Specifications |
|---|---|
| TEST DATA DOCUMENT | 18876-13376439 DRAWING |
| III END ITEM IDENTIFICATION | 1560-01-336-9617 |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 13376439 |
Restrictions/Controls & Freight Information | NSN 5315-01-359-0771
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-359-0771
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | D | Surface to Air Missiles |
| Weapons Systems/End Item or Homogeneous Group | DH | Targets |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
