NSN 5315-01-260-9002 BLC8GL16L12C8, 01-260-9002, 012609002
Product Details | QUICK RELEASE PIN
5315-01-260-9002 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: BLC8GL16L12C8, 5315-01-260-9002, 01-260-9002, 5315012609002, 012609002
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 AUG 1987 | 01-260-9002 | 08323 ( PIN, QUICK RELEASE ) |
Drawings & Photos | NSN 5315-01-260-9002
Demand History | NSN 5315-01-260-9002
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BLC8GL16L12C8 | 2024-12-347 | 8 | DIBBS |
| BLC8GL16L12C8 | 2024-03-78 | 8 | DIBBS |
| BLC8GL16L12C8 | 2022-09-261 | 29 | DIBBS |
| BLC8GL16L12C8 | 2021-08-220 | 39 | DIBBS |
| BLC8GL16L12C8 | 2020-04-120 | 36 | DIBBS |
| 5315-01-260-9002 | 2017-02-52 | 60 | DIBBS |
| BLC8GL16L12C8 | 2015-02-47 | 10 | US |
Cross Reference | NSN 5315-01-260-9002
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BLC8GL16L12C8 | 84256 | AVIBANK MFG., INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-260-9002
Related Products | NSN 5315-01-260-9002
Technical Data | NSN 5315-01-260-9002
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OR STEEL COMP 632 SHANK STEEL COMP 630 SPINDLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SHANK AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE SPINDLE |
| SURFACE TREATMENT | PASSIVATE SHANK PASSIVATE SPINDLE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHANK QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM SHANK 40.0 ROCKWELL C MINIMUM SPINDLE |

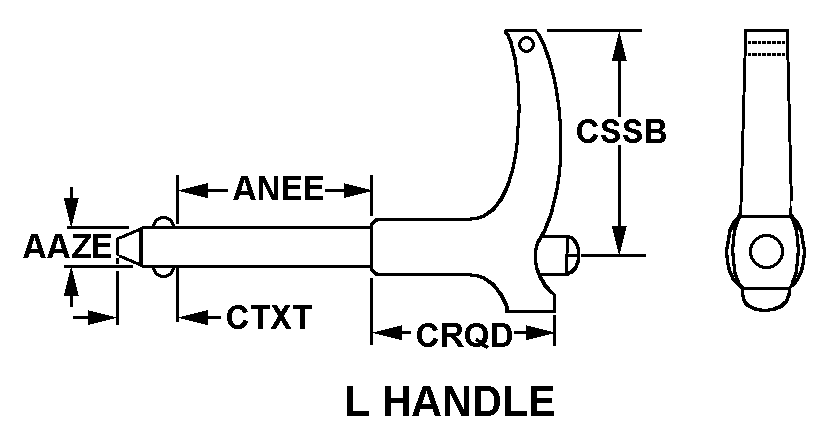

| STYLE DESIGNATOR | Q244 L HANDLE |
| SHANK DIAMETER | 0.4970 INCHES MINIMUM AND 0.4985 INCHES MAXIMUM |
| GRIP LENGTH | 1.600 INCHES MINIMUM AND 1.620 INCHES MAXIMUM |
| SHOULDER TO HEAD END DISTANCE | 1.820 INCHES MAXIMUM |
| PIN CENTER TO HANDLE END DISTANCE | 2.000 INCHES MAXIMUM |
| DETENT TO TAPERED END DISTANCE | 0.800 INCHES MAXIMUM |
| ACTUATION TYPE | PUSH |
| ACTUATION METHOD | PUSH BUTTON |
| DETENT QUANTITY | 2 |
| PIN ATTACHMENT TYPE | CABLE LANYARD W/TERMINATIONS |
| LANYARD LENGTH | 12.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5315-01-260-9002
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105840 | NAILS/SPIKES I/S NOI PLAIN ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 575 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-260-9002
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
