Product Details | HEADED STRAIGHT PIN
5315-01-114-7617 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 10088163 , 12299418, 5315-01-114-7617, 01-114-7617, 5315011147617, 011147617
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 JUN 1981 | 01-114-7617 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-01-114-7617
Demand History | NSN 5315-01-114-7617
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-114-7617 | 2023-12-346 | 76 | DIBBS |
| 5315-01-114-7617 | 2023-10-276 | 70 | DIBBS |
| 5315-01-114-7617 | 2020-03-75 | 48 | DIBBS |
| 5315-01-114-7617 | 2019-10-287 | 80 | DIBBS |
| 5315-01-114-7617 | 2018-08-241 | 25 | DIBBS |
| 5315-01-114-7617 | 2018-03-88 | 20 | DIBBS |
| 5315-01-114-7617 | 2018-03-80 | 20 | DIBBS |
| 5315-01-114-7617 | 2018-01-31 | 20 | DIBBS |
| 5315-01-114-7617 | 2018-01-07 | 3 | DIBBS |
| 5315-01-114-7617 | 2012-03-64 | 4 | DIBBS |
| 5315-01-114-7617 | 2011-07-189 | 6 | DIBBS |
| 5315-01-114-7617 | 2010-01-30 | 4 | DIBBS |
| 5315-01-114-7617 | 2009-05-134 | 107 | DIBBS |
Cross Reference | NSN 5315-01-114-7617
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12299418 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-114-7617
Related Products | NSN 5315-01-114-7617
Technical Data | NSN 5315-01-114-7617
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1010 OVERALL |

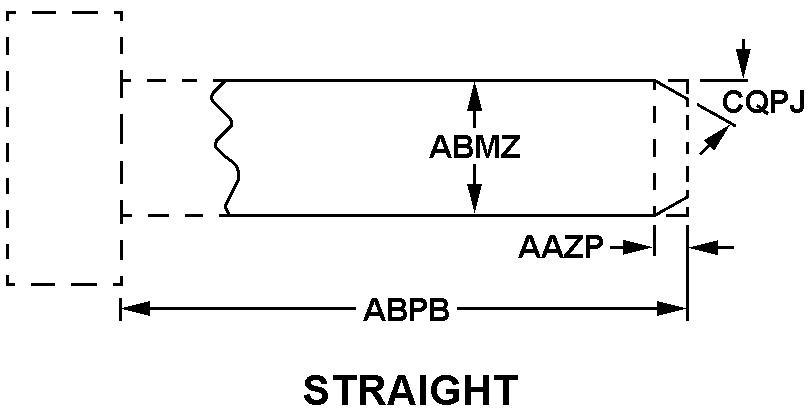

| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.060 INCHES NOMINAL |
| DIAMETER | 0.495 INCHES MINIMUM AND 0.498 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 1.890 INCHES NOMINAL |
| PIN CHAMFER ANGLE | 45.0 DEGREES NOMINAL |

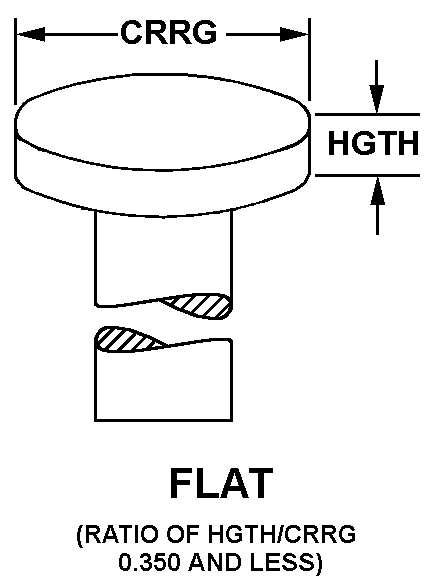

| HEAD STYLE | 16 FLAT |
