Product Details | THREADED STRAIGHT PIN
5315-01-114-7679 A headless, cylindrically-shaped item, having external threads at one end only. The threaded and plain portions are of one nominal diameter. Includes items having cotter pin hole(s) on either one or both ends. Its length must not exceed 12 inches (304 MM). It may have a recess drive feature. See also PIN, STRAIGHT, HEADLESS. Excludes STUD, WELDING; and SETSCREW.
Part Alternates: 10088164 , 12299727, 5315-01-114-7679, 01-114-7679, 5315011147679, 011147679
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 JUN 1981 | 01-114-7679 | 16494 ( PIN, STRAIGHT, THREADED ) |
Drawings & Photos | NSN 5315-01-114-7679
Demand History | NSN 5315-01-114-7679
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-114-7679 | 2020-01-31 | 200 | DIBBS |
| 5315-01-114-7679 | 2020-01-23 | 200 | DIBBS |
| 5315-01-114-7679 | 2019-11-326 | 142 | DIBBS |
| 5315-01-114-7679 | 2019-11-318 | 142 | DIBBS |
| 5315-01-114-7679 | 2019-07-202 | 49 | DIBBS |
| 5315-01-114-7679 | 2009-02-33 | 55 | DIBBS |
| 5315-01-114-7679 | 2008-11-308 | 73 | DIBBS |
Cross Reference | NSN 5315-01-114-7679
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12299727 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-114-7679
Related Products | NSN 5315-01-114-7679
Technical Data | NSN 5315-01-114-7679
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1010 OVERALL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.060 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |

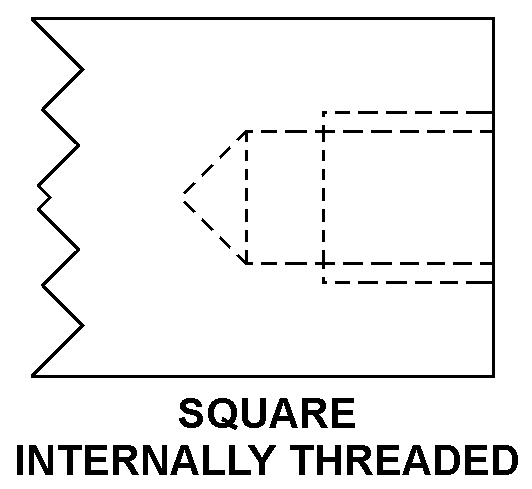

| SECOND END STYLE | 22 SQUARE INTERNALLY THREADED |
