NSN 5315-00-890-0103 MS17990409, MS17990-409, NAS1354S7S09

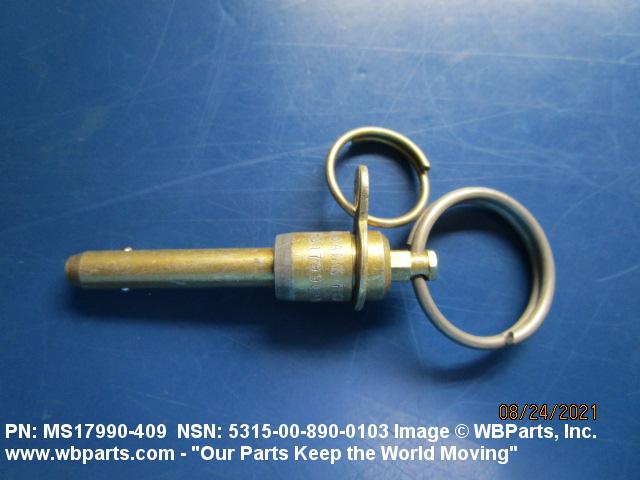

Product Details | QUICK RELEASE PIN
5315-00-890-0103 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: MS17990409, MS17990-409, NAS1354S7S09, DLS4R09N, LH4SR0900, LH4SR09M, LH4S-R-09M, 5315-00-890-0103, 00-890-0103, 5315008900103, 008900103
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-890-0103 | 08323 ( PIN, QUICK RELEASE ) |

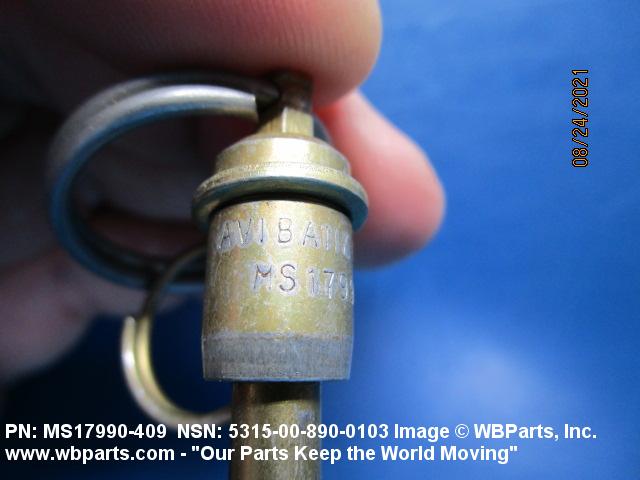

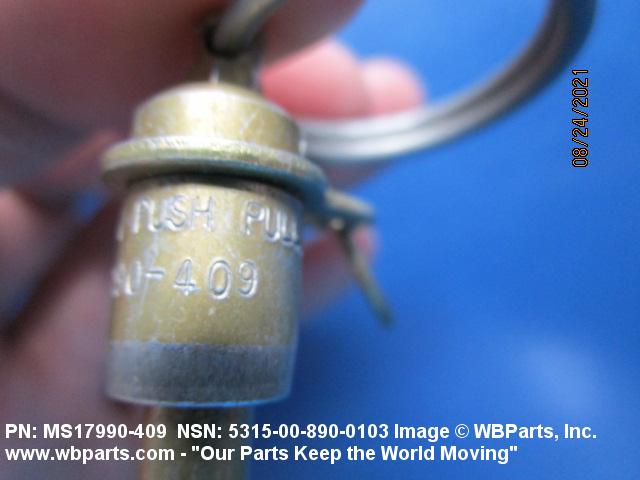

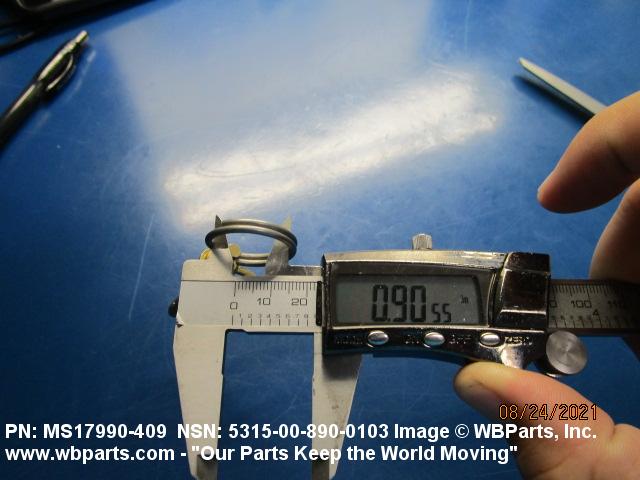

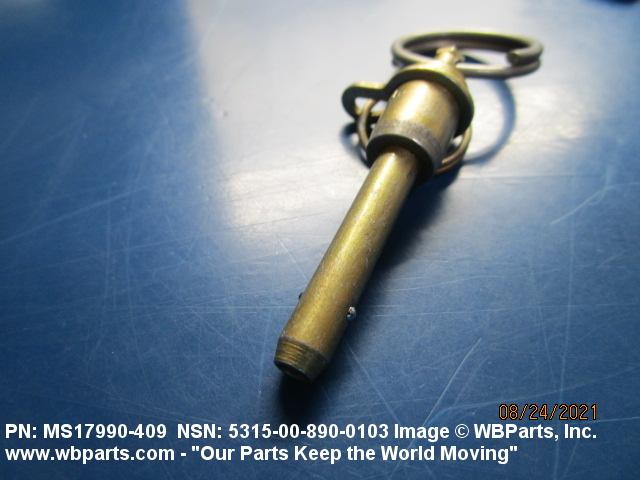

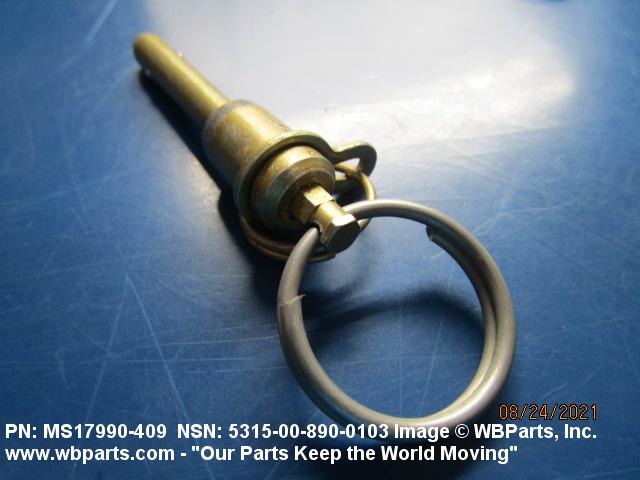

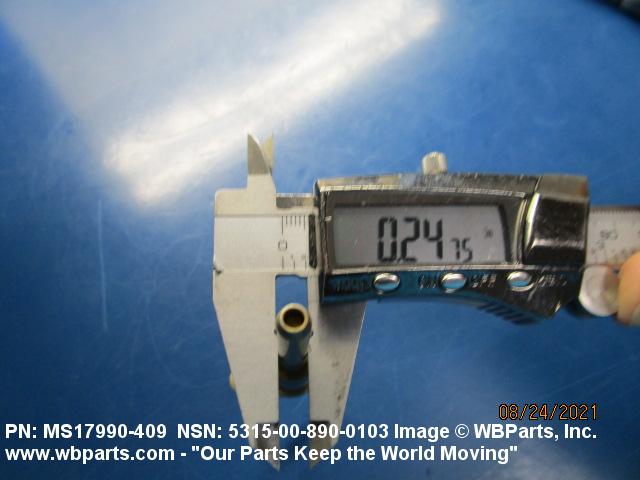

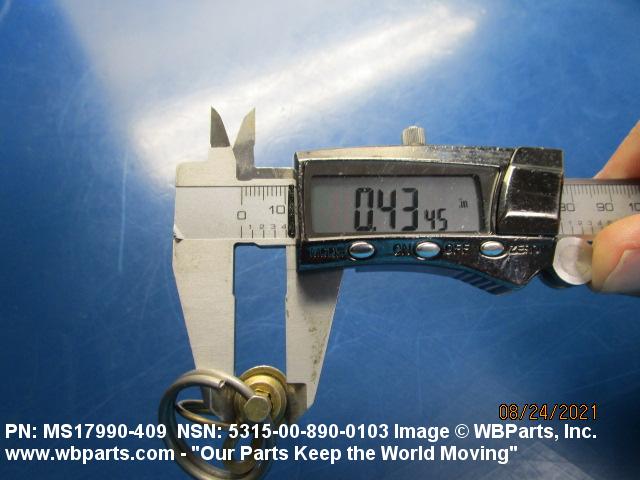

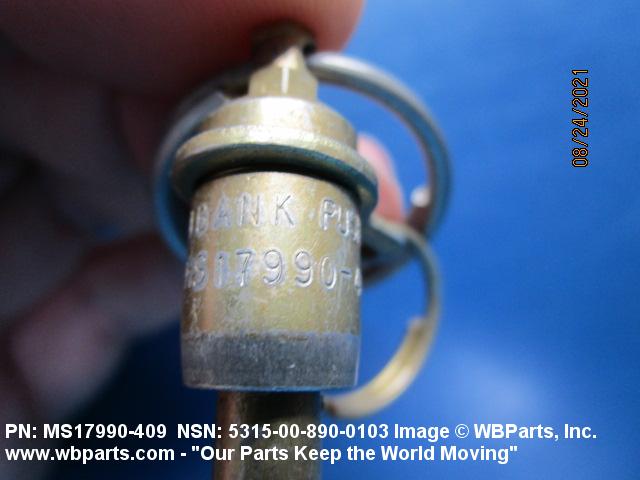

Drawings & Photos | NSN 5315-00-890-0103
Demand History | NSN 5315-00-890-0103
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-890-0103 | 2021-08-215 | 20 | US |
| 5315-00-890-0103 | 2021-07-189 | 20 | US |
| 5315-00-890-0103 | 2013-11-324 | 30 | Pakistan |
| MS17990409 | 2012-08-218 | 5 | PK |
| MS17990409 | 2009-11-309 | 10 | Canada |
Cross Reference | NSN 5315-00-890-0103
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DLS4R09N | 16258 | SPACELOK INC. |
| LH4S-R-09M | 62060 | SOUTHCO INC. |
| LH4S-R-09M | 83014 | HARTWELL CORPORATION |
| LH4SR0900 | 62060 | SOUTHCO INC. |
| LH4SR0900 | 83014 | HARTWELL CORPORATION |
| MS17990-409 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS17990-409 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS17990-409 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| NAS1354S7S09 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
