Product Details | QUICK RELEASE PIN

5315-00-890-0105 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.

Part Alternates: MS17990611, MS17990-611, NAS1356DS7S11, B611RD, BLS6R11N, DLS6R11N, LB6SR1100D, LB6SR1-100D, LH6SR1100, LH6SR11M, LH6S-R-11M, 41369, 5315-00-890-0105, 00-890-0105, 5315008900105, 008900105

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1962 00-890-0105

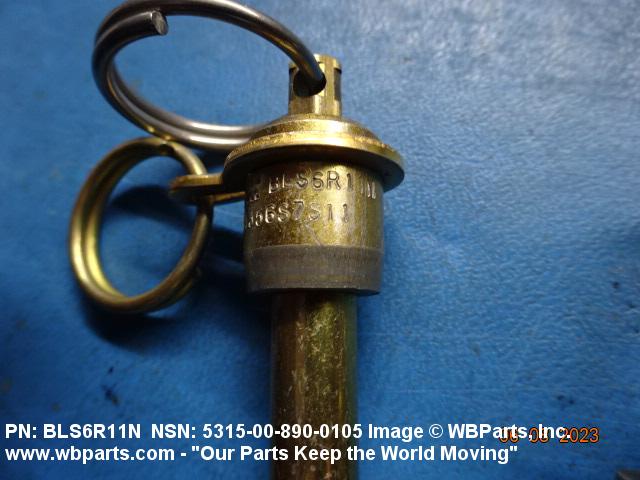

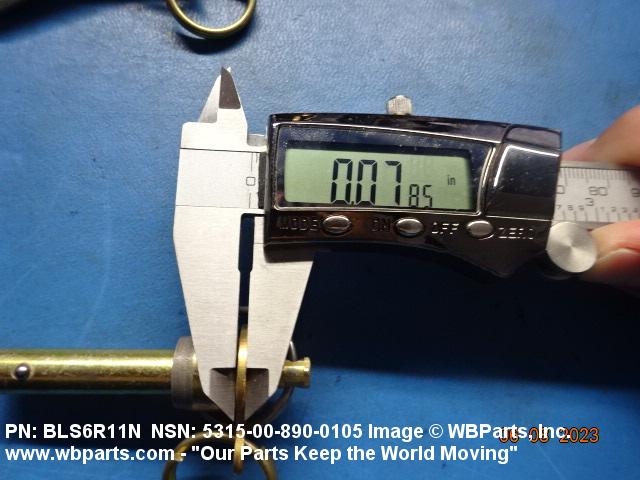

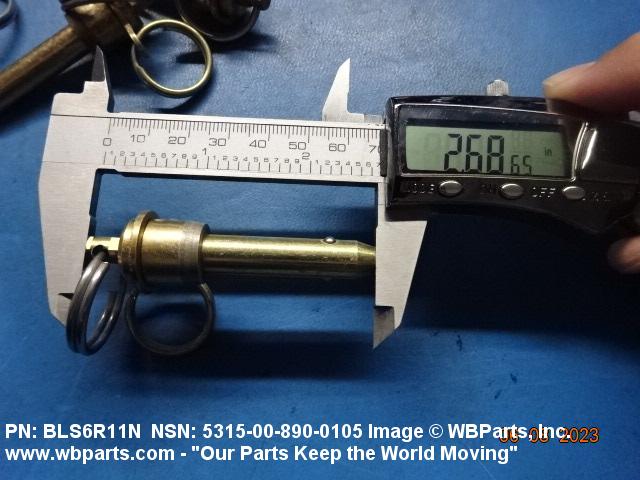

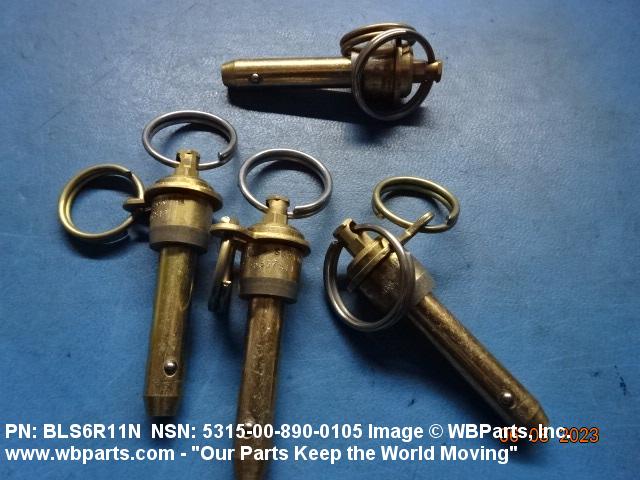

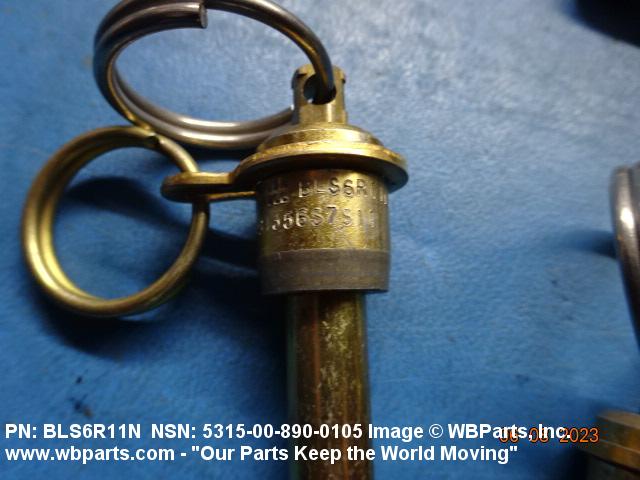

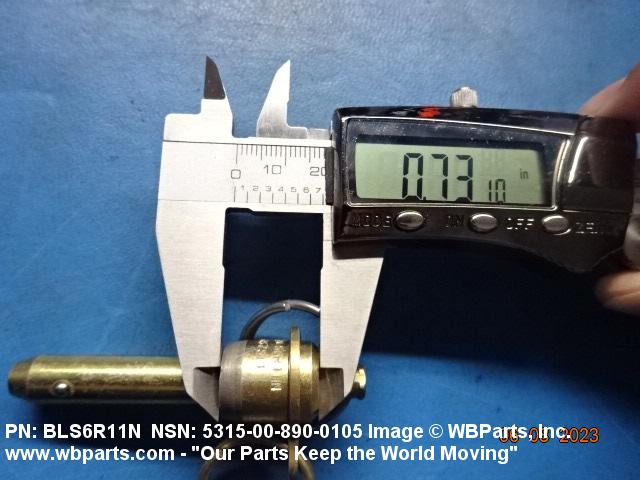

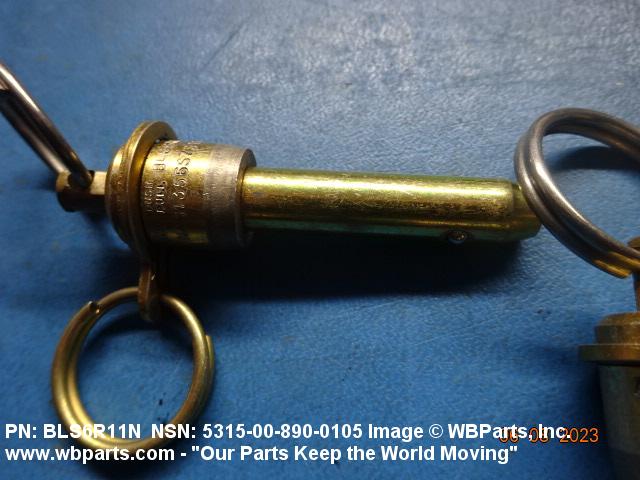

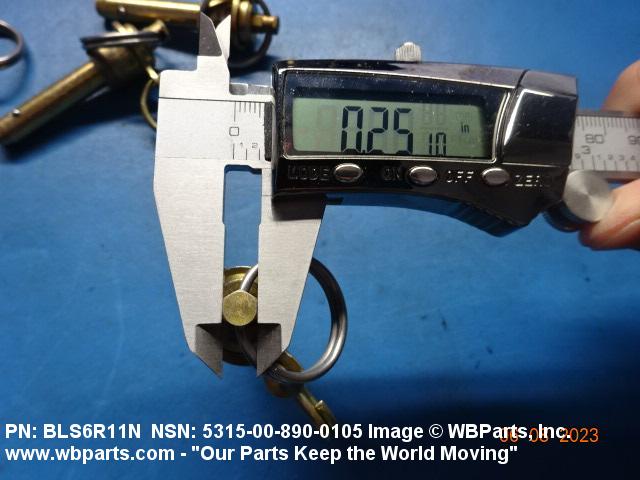

Drawings & Photos | NSN 5315-00-890-0105


Demand History | NSN 5315-00-890-0105

Part Number Request Date QTY Origin
5315-00-890-0105 2023-05-138 50 United States

Cross Reference | NSN 5315-00-890-0105

Part Number Cage Code Manufacturer
41369 90172 WERNER CO DBA WERNER EXTRUDED PRODUCTS CO
B611RD 84256 AVIBANK MFG., INC.
BLS6R11N 84256 AVIBANK MFG., INC.
DLS6R11N 16258 SPACELOK INC.
LB6SR1-100D 62060 SOUTHCO INC.
LB6SR1-100D 83014 HARTWELL CORPORATION
LH6S-R-11M 62060 SOUTHCO INC.
LH6S-R-11M 83014 HARTWELL CORPORATION
LH6SR1100 62060 SOUTHCO INC.
LH6SR1100 83014 HARTWELL CORPORATION
MS17990-611 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS17990-611 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS1356DS7S11 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-890-0105

Technical Data | NSN 5315-00-890-0105

Characteristic Specifications
MATERIAL STEEL COMP 4130 SHANK STEEL COMP 4130 SPINDLE
MATERIAL DOCUMENT AND CLASSIFICATION MIL-T-6736 MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE SHANK MIL-T-6736 MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE SPINDLE
SURFACE TREATMENT CADMIUM AND CHROMATE SHANK CADMIUM AND CHROMATE SPINDLE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE SHANK QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE
HARDNESS RATING 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM SHANK 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM SPINDLE
STYLE DESIGNATOR Q247 RING HANDLE
HEAD DIAMETER 0.510 INCHES MINIMUM AND 0.630 INCHES MAXIMUM

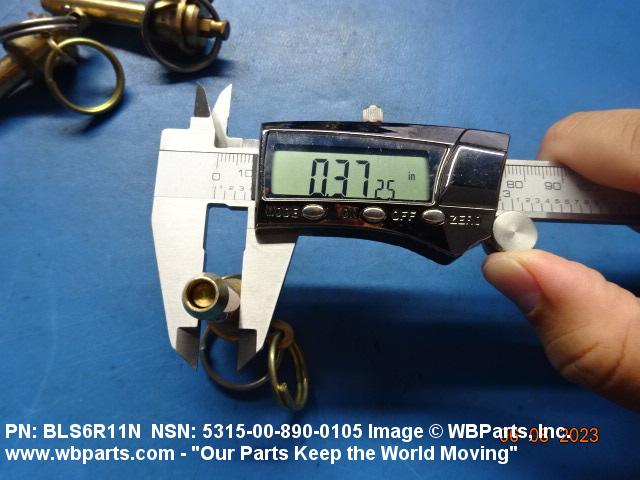

SHANK DIAMETER 0.3720 INCHES MINIMUM AND 0.3735 INCHES MAXIMUM
RING HANDLE DIAMETER 1.000 INCHES MINIMUM AND 1.125 INCHES MAXIMUM
GRIP LENGTH 1.000 INCHES MINIMUM AND 1.020 INCHES MAXIMUM
SHOULDER TO HEAD END DISTANCE 1.000 INCHES MINIMUM
DETENT TO TAPERED END DISTANCE 0.460 INCHES MINIMUM AND 0.510 INCHES MAXIMUM
ACTUATION TYPE PULL AND PUSH
ACTUATION METHOD PUSH BUTTON
DETENT QUANTITY 2
PIN ATTACHMENT TYPE HOOK

Restrictions/Controls & Freight Information | NSN 5315-00-890-0105

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 095190 HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating Q 70.0
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5315-00-890-0105

Category Code Description
Materiel Category and Inventory ManagerT Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
M
EA : Each
Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
M
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
M
EA : Each
