Product Details | WOODRUFF KEY

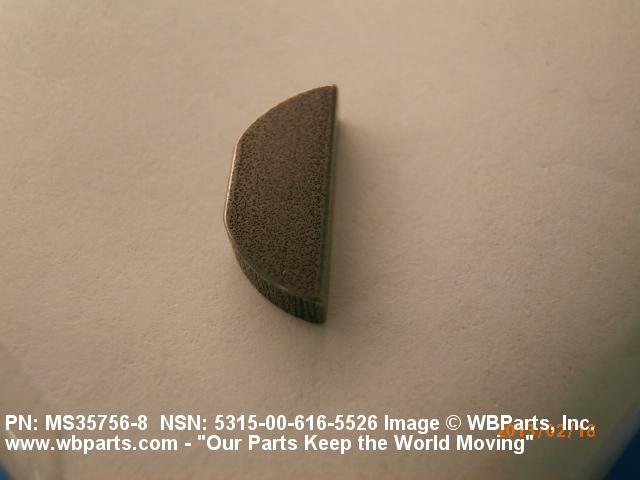

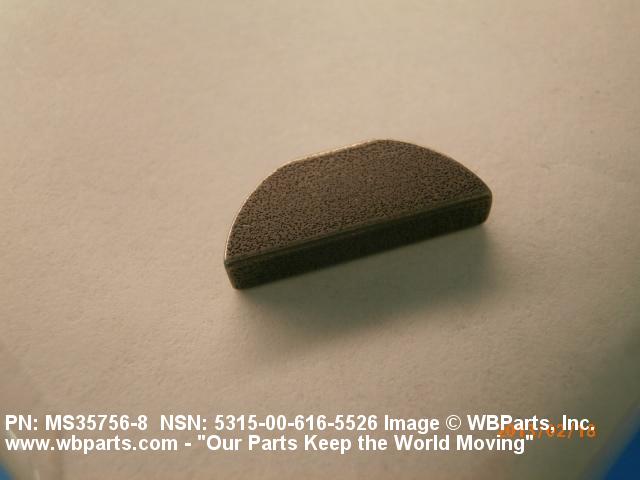

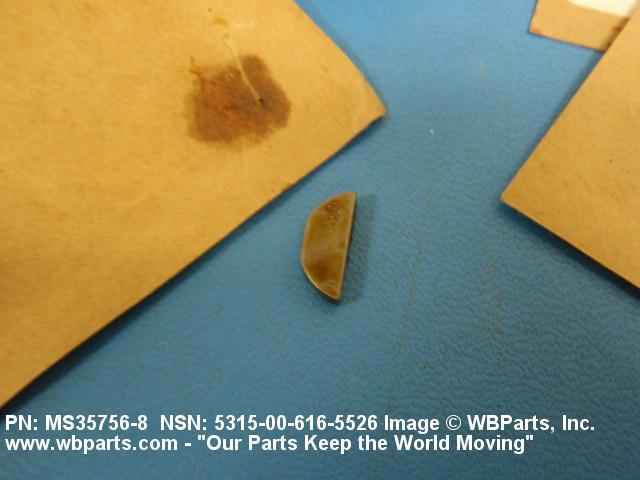

5315-00-616-5526 An item in the form of a segment of a disk, which may have a flat bottom, with or without projecting shoulders, designed to fit into a keyway in an axle or shaft, and into a matching slot in the hub or boss of a wheel, gear or pulley.

Part Alternates: MS3575616, MS35756-16 , MS357568, MS35756-8, MPX433, MPX43-3, N9373 , A1235, A-1235, A157372920, A15737-29-20 , P37A14, X43-3, X504, X433, CR5, CR-5, 70005, 80714400, 807144-00, 847802, 182200-367, 1B8704, 21011, 2153126, 306948, 3418006CA, 34180-06-CA , 103462 , 103905, 124545, 13600021122223, 1615, 5315-00-616-5526, 00-616-5526, 5315006165529, 5315006165526 , 006165526, 182200367

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-616-5526	02380 ( KEY, WOODRUFF )

Drawings & Photos | NSN 5315-00-616-5526
