NSN 5315-00-616-5515 MS21261R304, MS357564, MS35756-4
Product Details | WOODRUFF KEY
5315-00-616-5515 An item in the form of a segment of a disk, which may have a flat bottom, with or without projecting shoulders, designed to fit into a keyway in an axle or shaft, and into a matching slot in the hub or boss of a wheel, gear or pulley.
Part Alternates: MS21261R304, MS357564, MS35756-4 , MS357565, MS35756-5, AN280H304, H PH-1164, HPH1164, KY113, KY11-3, ERNF245, PC103904, 53883, 5388-3, 70002, 703002, 901326, 917014, 919B0051, 919B005-1, 1011643200, 1-01164-3200, 103904, 1124528, 1-12452-8 , 1179A, 124541 , 124542, 13762, 157760, 17896R, 20032, 2003-2, 203675, 205218, 20521-8, 304, 5315-00-616-5515, 00-616-5515, 5315006165515, 006165515
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-616-5515 | 02380 ( KEY, WOODRUFF ) |

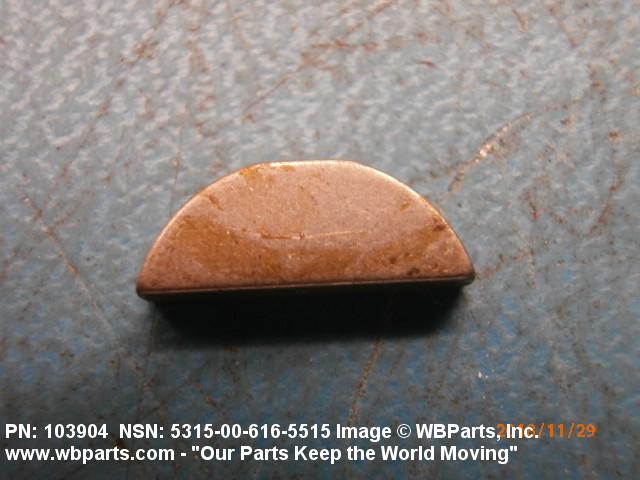

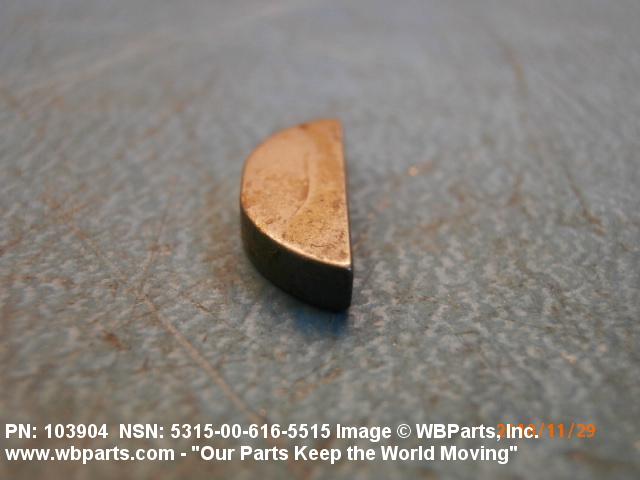

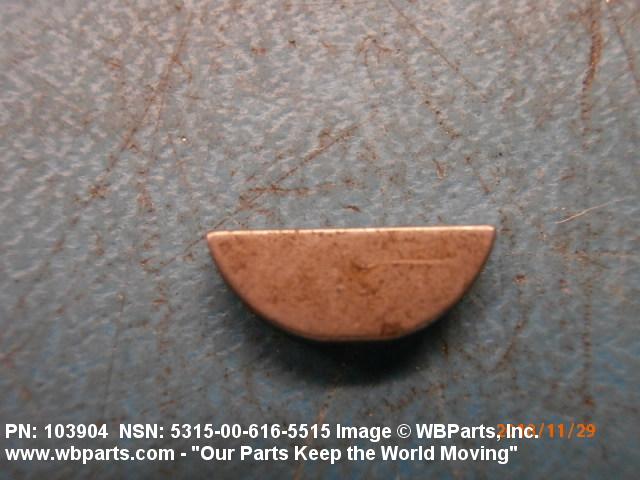

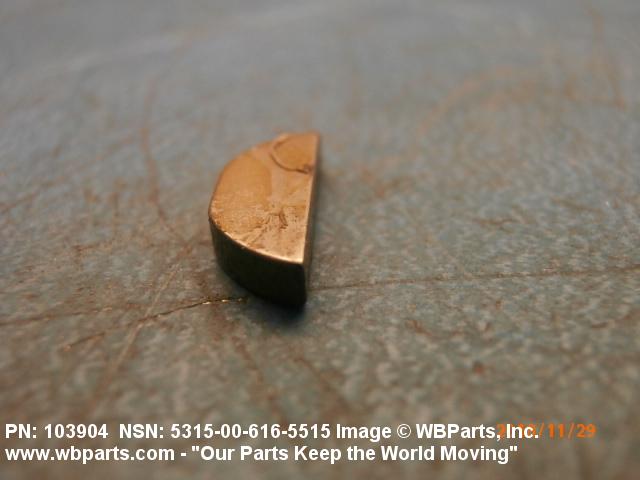

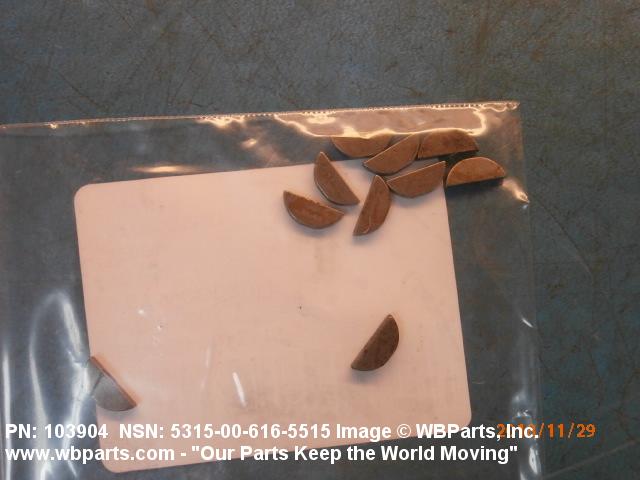

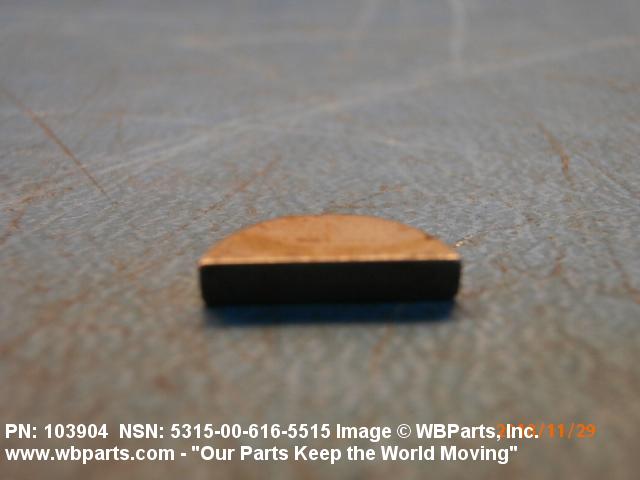

Drawings & Photos | NSN 5315-00-616-5515
Demand History | NSN 5315-00-616-5515
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS357565 | 2024-10-290 | 5 | United States |
| MS357565 | 2024-10-290 | 10 | United States |
| 5315-00-616-5515 | 2024-08-217 | 267 | DIBBS |
| 5315-00-616-5515 | 2024-02-37 | 271 | DIBBS |
| 304 | 2023-08-234 | 9 | United States |
| 304 | 2023-08-220 | 9 | United States |
| 5315-00-616-5515 | 2022-11-306 | 300 | DIBBS |
| 5315-00-616-5515 | 2022-07-208 | 231 | DIBBS |
| 5315-00-616-5515 | 2022-02-54 | 1 | US |
| 5315-00-616-5515 | 2019-02-52 | 447 | DIBBS |
| 5315-00-616-5515 | 2018-11-319 | 10 | United States |
| 5315-00-616-5515 | 2018-11-317 | 395 | DIBBS |
| 5315-00-616-5515 | 2018-11-305 | 395 | DIBBS |
| 5315-00-616-5515 | 2017-09-270 | 135 | DIBBS |
| MS21261R304 | 2015-09-265 | 2 | United States |
| 304 | 2015-09-245 | 10 | us |
| MS35756-5 | 2015-05-141 | 2 | United States |
| MS35756-5 | 2015-05-141 | 2 | United States |
| MS357564 | 2014-01-30 | 2 | Canada |
| 304 | 2012-09-266 | 8 | |
| 304 | 2012-09-260 | 8 | |
| 304 | 2012-09-259 | 8 | |
| 5315-00-616-5515 | 2010-01-15 | 10 | US |
| MS357565 | 2009-01-20 | 37 | Greece |
Cross Reference | NSN 5315-00-616-5515
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-01164-3200 | 70691 | CAPITOL GEARS INC |
| 103904 | 24617 | GENERAL MOTORS CORP |
| 103904 | 72582 | MTU AMERICA INC. |
| 103904 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 1179A | 1ML14 | D.W. HERCULES, LLC DBA HERCULES ENGINE COMPONENTS |
| 1179A | 28265 | HERCULES ENGINE CO INC |
| 124542 | 24617 | GENERAL MOTORS CORP |
| 124542 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 13762 | 24975 | PRESTOLITE ELECTRIC INCORPORATED |
| 13762 | 35510 | PRESTOLITE ELECTRIC INC |
| 17896R | 56442 | DIAMOND REO TRUCK CO |
| 2003-2 | 53496 | SCHRAMM INC. |
| 203675 | H0001 | DAF TRUCKS N.V. |
| 20521-8 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND |
| 20521-8 | 64547 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| 20521-8 | 83298 | ALLIED SIGNAL INC AEROSPACE EQUIPMENT SYSTEMS |
| 304 | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| 5315006165515 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5388-3 | 60399 | REGAL-BELOIT CORPORATION DBA FASCO GROUP DIV CASSVILLE |
| 70002 | 44114 | BAE SYSTEMS LAND & ARMAMENTS L.P. |
| 70002 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 703002 | 55396 | SMITH OTIS A MFG CO |
| 901326 | 06840 | BENDIX CORP THE |
| 901326 | 06848 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 917014 | 6N299 | AGCO CORP PARTS OPN |
| 919B005-1 | 83843 | SUNDSTRAND CORP ELECTRIC POWER SYSTEMS DIV |
| 919B005-1 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| AN280H304 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| ERNF245 | 02978 | L-3 COMMUNICATIONS CORPORATION DBA COMBAT PROPULSION SYSTEMS |
| ERNF245 | 81336 | CHIEF OF ENGINEERS DEPT OF ARMY |
| ERNF245 | R1120 | SATAIR A/S |
| H PH-1164 | 70691 | CAPITOL GEARS INC |
| KY11-3 | 01843 | AMBAC INTERNATIONAL CORPORATION |
| MS21261R304 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS35756-5 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS35756-5 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| PC103904 | C7432 | POWER COMPONENTS (DEUTSCHLAND) GMBH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-616-5515
Related Products | NSN 5315-00-616-5515
Technical Data | NSN 5315-00-616-5515
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 2330 OR STEEL COMP 4130 OR STEEL COMP 8630 OVERALL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 50.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 100000 SINGLE POUNDS PER SQUARE INCH |

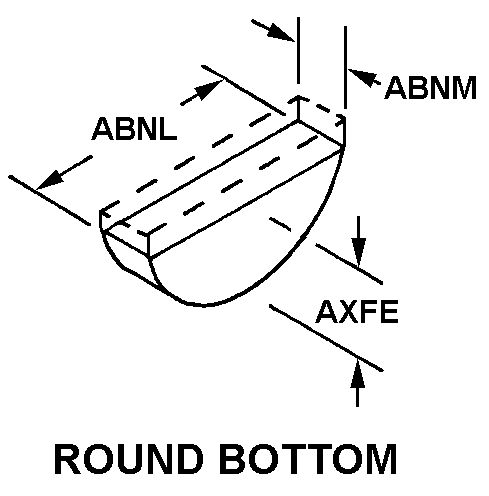

| STYLE DESIGNATOR | C55 ROUND BOTTOM |

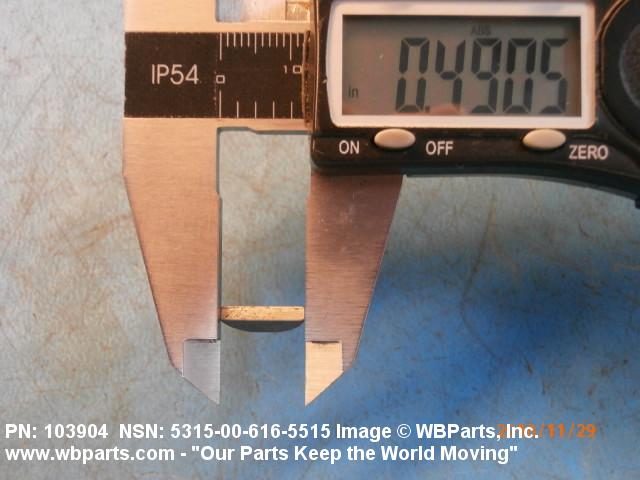

| CIRCLE DIAMETER | 0.490 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |

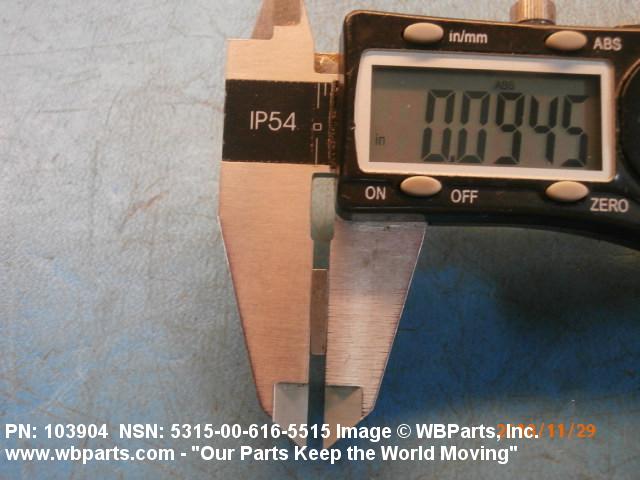

| THICKNESS | 0.0938 INCHES MINIMUM AND 0.0948 INCHES MAXIMUM |

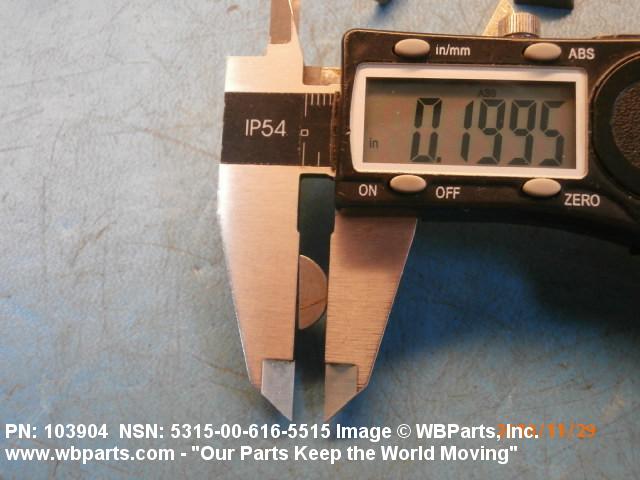

| KEY HEIGHT | 0.198 INCHES MINIMUM AND 0.203 INCHES MAXIMUM |
