NSN 5315-00-616-5519 MS357561, MS35756-1, 10122681
Product Details | WOODRUFF KEY

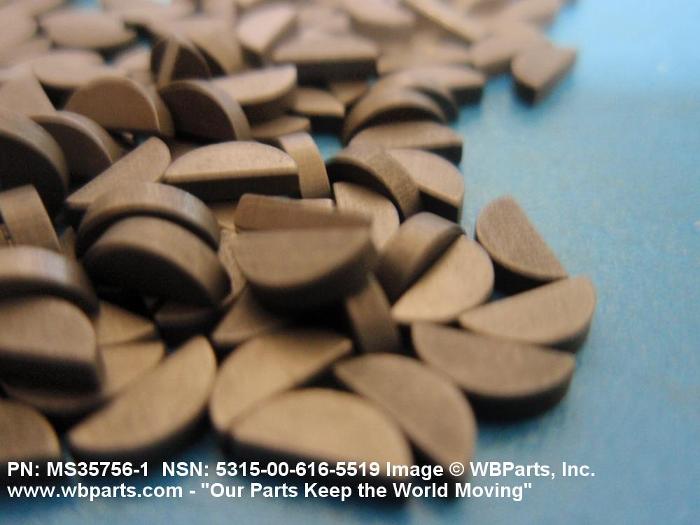

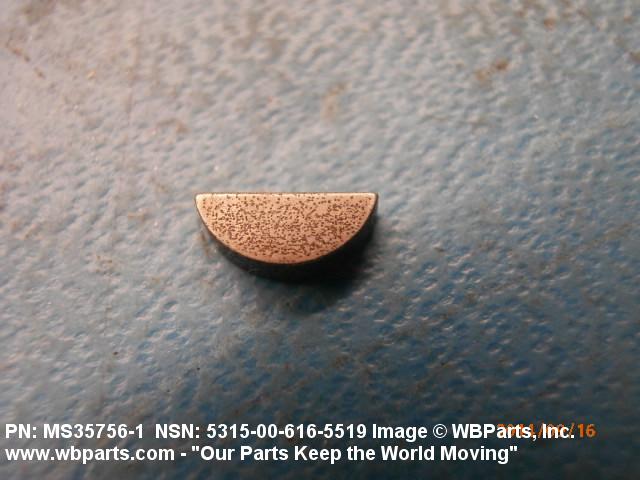

5315-00-616-5519 An item in the form of a segment of a disk, which may have a flat bottom, with or without projecting shoulders, designed to fit into a keyway in an axle or shaft, and into a matching slot in the hub or boss of a wheel, gear or pulley.
Part Alternates: MS357561, MS35756-1, 10122681, 16X128, 16-X-128 , 201, 40 1009, 401009, 5379379, 5315-00-616-5519, 00-616-5519, 5315006165519, 006165519
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-616-5519 | 02380 ( KEY, WOODRUFF ) |

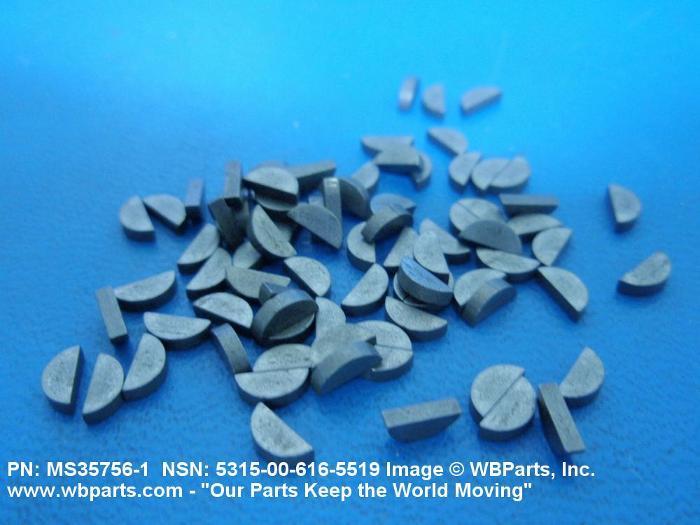

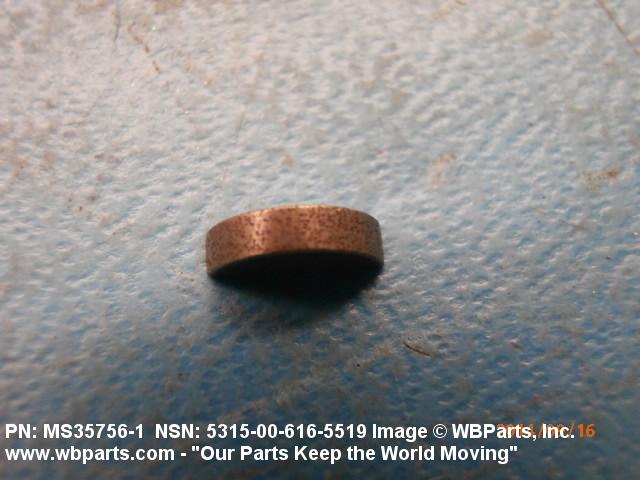

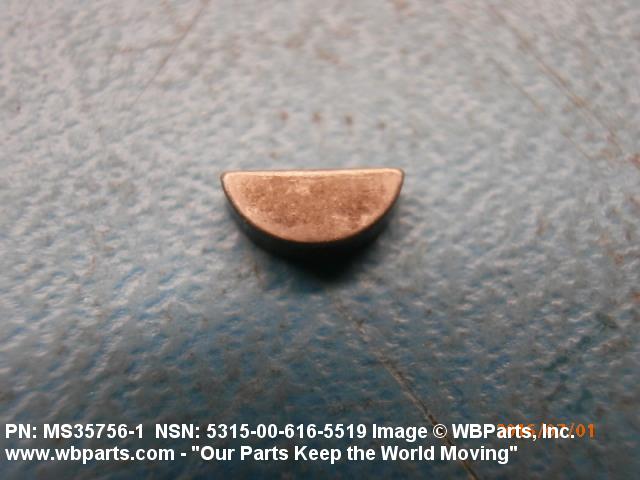

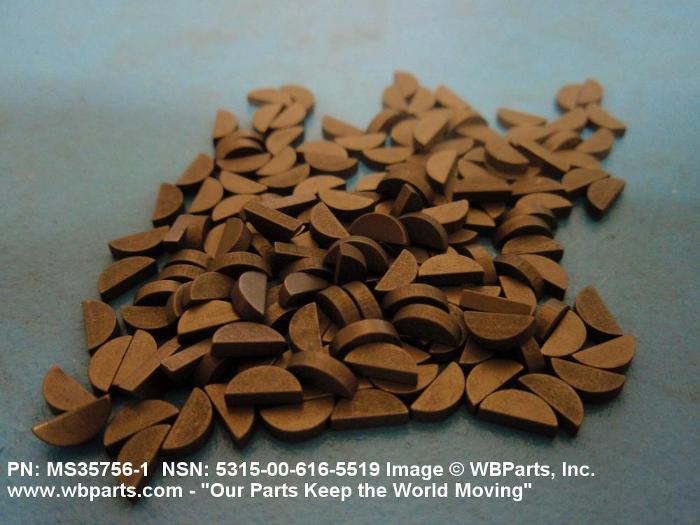

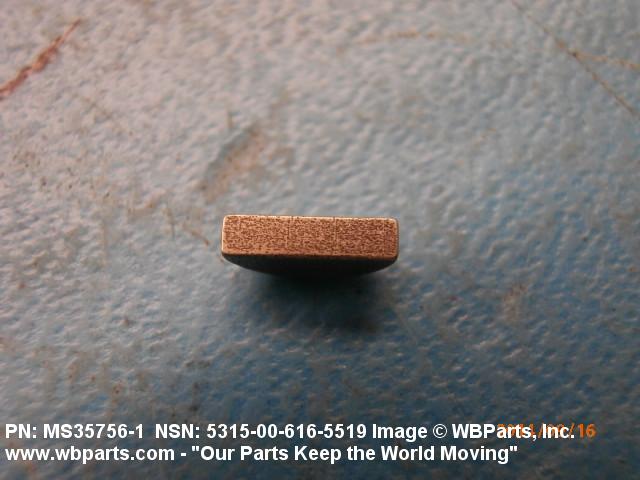

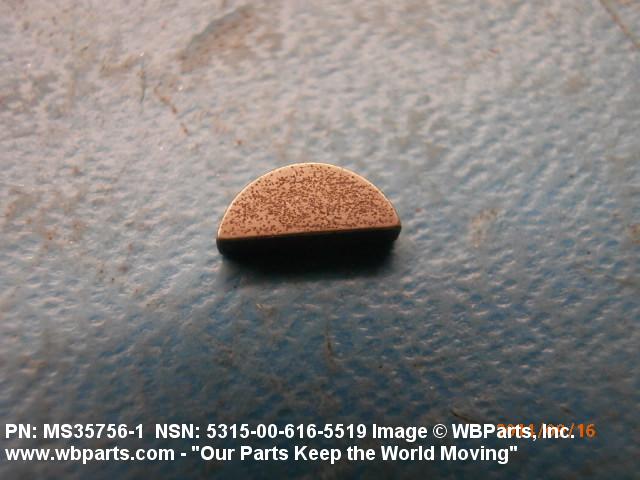

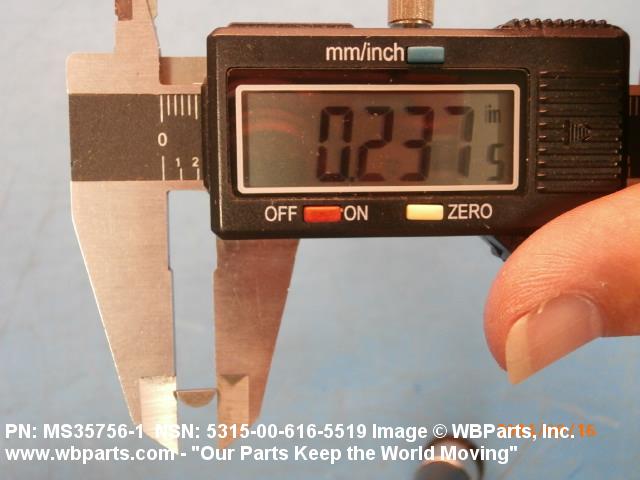

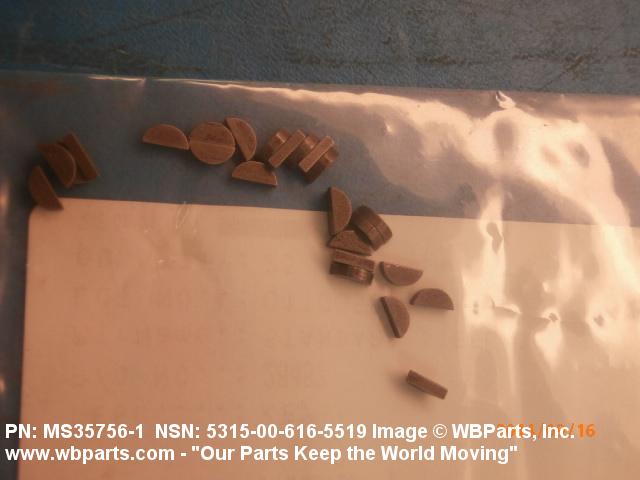

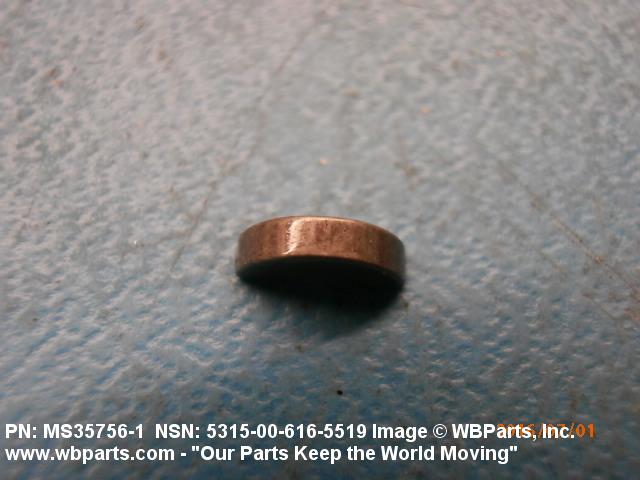

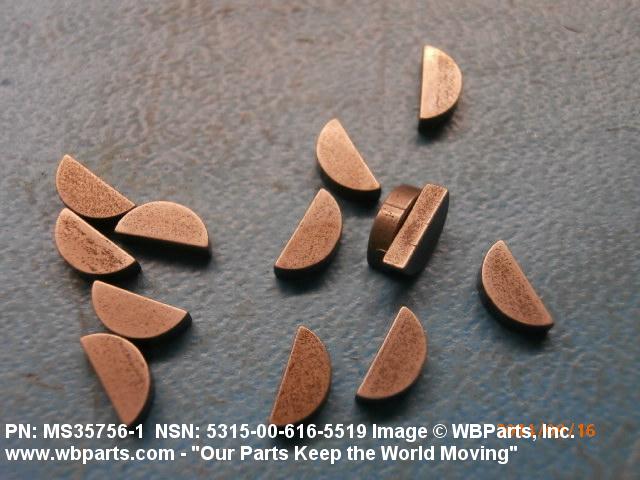

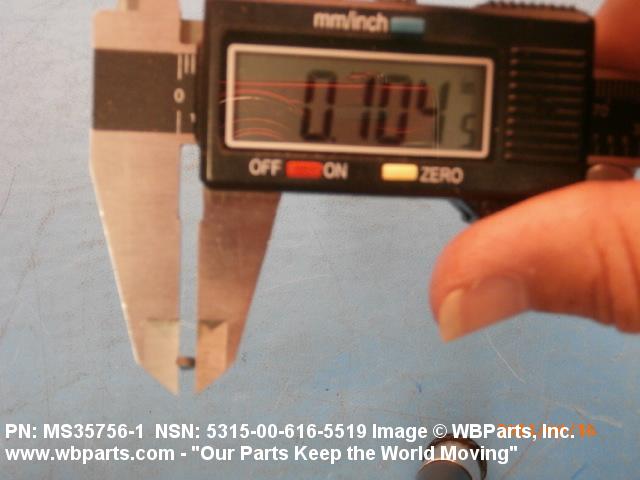

Drawings & Photos | NSN 5315-00-616-5519
Demand History | NSN 5315-00-616-5519
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-616-5519 | 2018-05-134 | 1700 | DIBBS |
| 5315-00-616-5519 | 2017-08-219 | 1238 | DIBBS |
| MS357561 | 2016-06-176 | 25 | United States |
| 5315-00-616-5519 | 2016-03-90 | 6793 | DIBBS |
| 5315-00-616-5519 | 2016-02-43 | 1659 | DIBBS |
| 5315-00-616-5519 | 2016-02-35 | 1659 | DIBBS |
| MS357561 | 2015-11-323 | 25 | United States |
| MS357561 | 2015-03-76 | 1 | CO |
| MS357561 | 2014-09-251 | 20 | United States |
| MS357561 | 2012-05-143 | 10 | US |
| 201 | 2012-02-51 | 6 | United States |
| MS357561 | 2011-12-353 | 250 | US |
| MS357561 | 2011-03-70 | 500 | United States |
| 5315-00-616-5519 | 2010-12-356 | 2916 | DIBBS |
| MS357561 | 2010-12-337 | 100 | United States |
| MS357561 | 2010-12-337 | 200 | United States |
| MS357561 | 2010-06-153 | 500 | US |
| MS357561 | 2008-01-02 | 150 | US |
Cross Reference | NSN 5315-00-616-5519
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16-X-128 | 3D6E9 | AXLETECH INTERNATIONAL, LLC |
| 16-X-128 | 78500 | MERITOR HEAVY VEHICLE SYSTEMS LLC DIV MERITOR HEAVY VEHICLE SYSTEMS, |
| 201 | 78187 | STANDARD HORSE NAIL CORP |
| 40 1009 | U3097 | PYSER SGI LIMITED |
| 401009 | 02145 | RICHARDS IMAGERY INTERPRETATION SYSTEMS L.L.C. |
| 5379379 | 16764 | GENERAL MOTORS CORP DELCO REMY DIV |
| 5379379 | 1LW55 | REMY, INC. |
| 5379379 | 24617 | GENERAL MOTORS CORP |
| MS35756-1 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS35756-1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS35756-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-616-5519
Related Products | NSN 5315-00-616-5519
Technical Data | NSN 5315-00-616-5519
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 2330 OR STEEL COMP 4130 OR STEEL COMP 8630 OVERALL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 50.0 ROCKWELL C MAXIMUM OVERALL |
| STYLE DESIGNATOR | C55 ROUND BOTTOM |

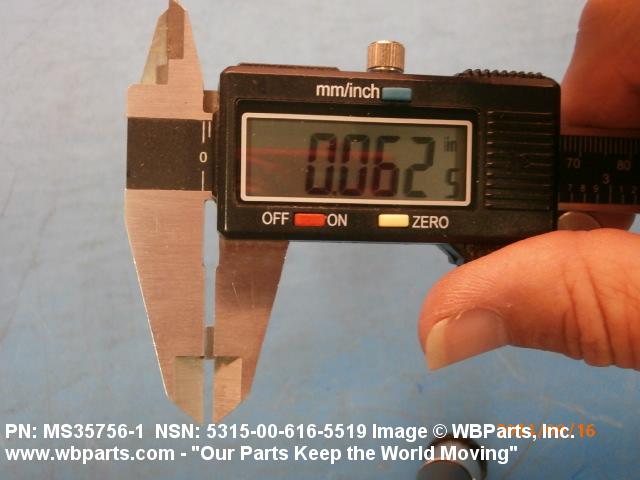

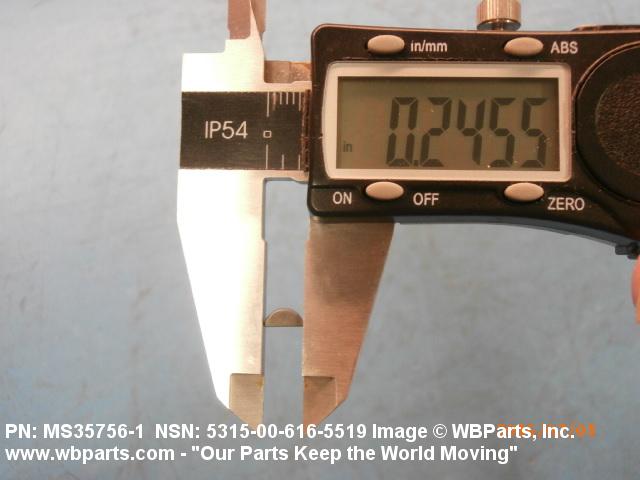

| CIRCLE DIAMETER | 0.240 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |

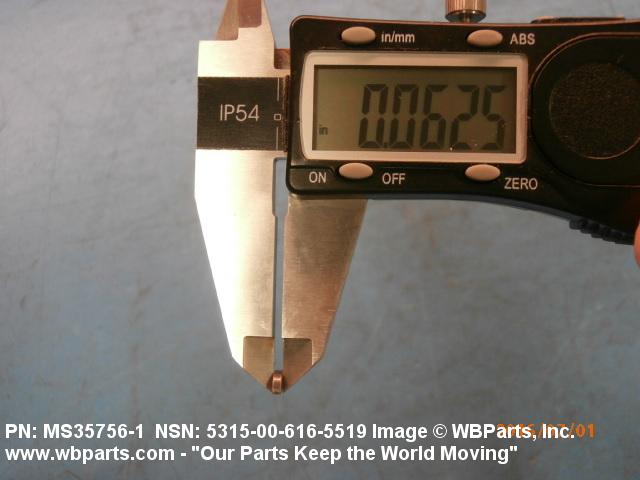

| THICKNESS | 0.0625 INCHES MINIMUM AND 0.0635 INCHES MAXIMUM |
