5315-00-084-1996 An item designed to fasten metal, wood, composition material and the like to concrete, masonry, metal, and wood, with power provided from a cartridge (powder), compressed gas, pneumatic and/or hydraulic power. Excludes items that have the actuating media as an integral part of the pin.

Part Alternates: GGGD777, 2411, 5315-00-084-1996, 00-084-1996, 5315000841996, 000841996

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-084-1996

Drawings & Photos | NSN 5315-00-084-1996


Cross Reference | NSN 5315-00-084-1996

Part Number Cage Code Manufacturer
2411 11078 RAMSET LTD
2411 30323 ILLINOIS TOOL WORKS INC
GGGD777 81348 FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-084-1996

Technical Data | NSN 5315-00-084-1996

Characteristic Specifications
MATERIAL STEEL OVERALL
SURFACE TREATMENT ZINC OVERALL

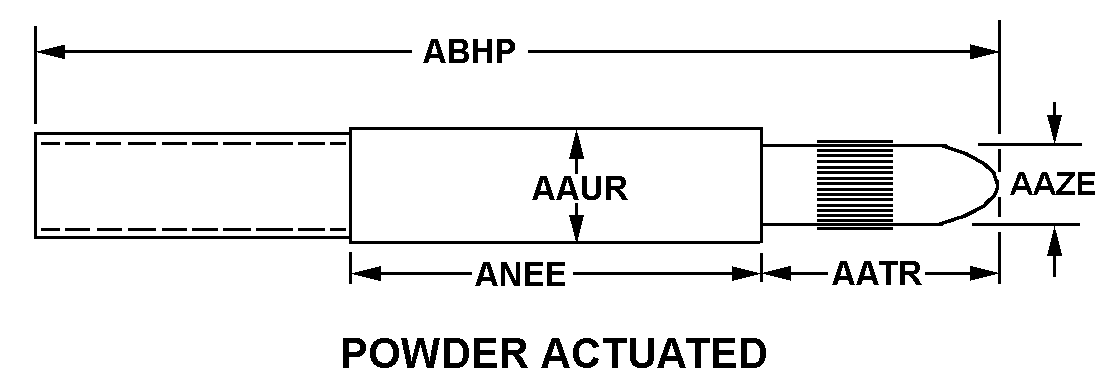

STYLE DESIGNATOR P236 POWDER ACTUATED
SHANK LENGTH 0.688 INCHES NOMINAL
GRIP DIAMETER 0.212 INCHES MINIMUM AND 0.250 INCHES MAXIMUM
SHANK DIAMETER 0.155 INCHES NOMINAL
OVERALL LENGTH 2.750 INCHES NOMINAL
THREAD SERIES DESIGNATOR UNC
NOMINAL THREAD SIZE 0.250 INCHES
THREAD CLASS 2A
THREAD DIRECTION RIGHT-HAND
THREAD LENGTH 1.000 INCHES NOMINAL
MATERIAL FOR WHICH DESIGNED STEEL
NONDEFINITIVE SPEC/STD DATA C STYLE
MANUFACTURERS CODE 81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE GGGD777
