Product Details | POWER ACTUATED DRIVE PIN

5315-00-664-9104 An item designed to fasten metal, wood, composition material and the like to concrete, masonry, metal, and wood, with power provided from a cartridge (powder), compressed gas, pneumatic and/or hydraulic power. Excludes items that have the actuating media as an integral part of the pin.

Part Alternates: T32, 5315-00-664-9104, 00-664-9104, 5315006649104, 006649104

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-664-9104

Drawings & Photos | NSN 5315-00-664-9104


Demand History | NSN 5315-00-664-9104

Part Number Request Date QTY Origin
T32 2017-01-13 1 United States

Cross Reference | NSN 5315-00-664-9104

Part Number Cage Code Manufacturer
T32 05720 OMARK INDUSTRIES INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-664-9104

Technical Data | NSN 5315-00-664-9104

Characteristic Specifications
MATERIAL STEEL OVERALL
SURFACE TREATMENT ZINC OVERALL

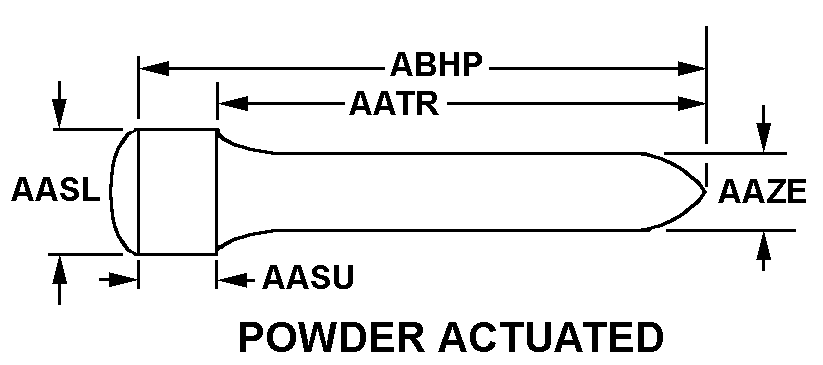

STYLE DESIGNATOR P233 POWDER ACTUATED
HEAD DIAMETER 0.240 INCHES NOMINAL
HEAD HEIGHT 0.130 INCHES NOMINAL
SHANK LENGTH 1.250 INCHES NOMINAL
SHANK DIAMETER 0.156 INCHES NOMINAL
OVERALL LENGTH 2.000 INCHES NOMINAL
MATERIAL FOR WHICH DESIGNED CONCRETE AND MASONRY

Restrictions/Controls & Freight Information | NSN 5315-00-664-9104

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 105000 DOWEL PINS I/S NOI IN BAG/BBL/BOXES
Less than car load rating
Less than truck load rating Q 70.0
Water commodity Code 574 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
