Product Details | POWER ACTUATED DRIVE PIN

5315-00-514-0605 An item designed to fasten metal, wood, composition material and the like to concrete, masonry, metal, and wood, with power provided from a cartridge (powder), compressed gas, pneumatic and/or hydraulic power. Excludes items that have the actuating media as an integral part of the pin.

Part Alternates: 3436, 5315-00-514-0605, 00-514-0605, 5315005140605, 005140605

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1960 00-514-0605

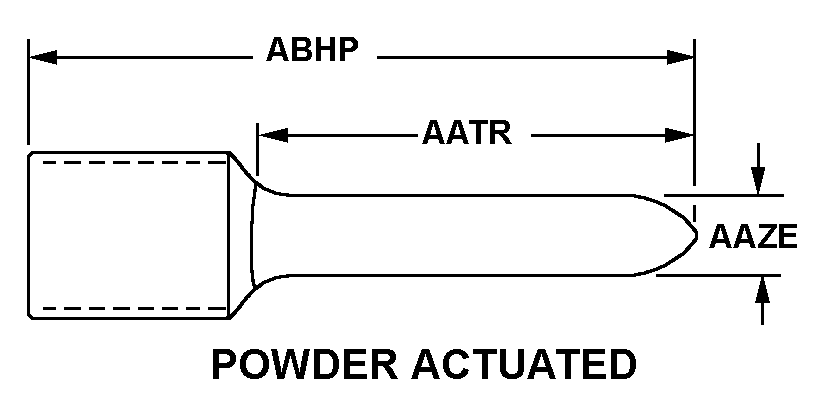

Drawings & Photos | NSN 5315-00-514-0605


Demand History | NSN 5315-00-514-0605

Part Number Request Date QTY Origin
3436 2021-02-34 1 PK

Cross Reference | NSN 5315-00-514-0605

Part Number Cage Code Manufacturer
3436 30323 ILLINOIS TOOL WORKS INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-514-0605

Technical Data | NSN 5315-00-514-0605

Characteristic Specifications
MATERIAL STEEL OVERALL
SURFACE TREATMENT CADMIUM OVERALL
STYLE DESIGNATOR P232 POWDER ACTUATED
SHANK LENGTH 1.625 INCHES NOMINAL
SHANK DIAMETER 0.250 INCHES NOMINAL
OVERALL LENGTH 2.375 INCHES NOMINAL
THREAD SERIES DESIGNATOR UNC
NOMINAL THREAD SIZE 0.375 INCHES
THREAD CLASS 2A
THREAD PITCH DIAMETERS 0.3266 TO 0.3331 INCHES
THREAD DIRECTION RIGHT-HAND
THREAD LENGTH 0.750 INCHES NOMINAL
MATERIAL FOR WHICH DESIGNED CONCRETE AND MASONRY
MANUFACTURERS CODE 30323
DESIGN CONTROL REFERENCE 3436

Restrictions/Controls & Freight Information | NSN 5315-00-514-0605

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 093360 BLANKS KEY METAL IN BOXES
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 671 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
