NSN 5310-00-809-7632 NAS5777A, NAS577-7A, 00-809-7632
Product Details | BARREL SELF-LOCKING NUT
5310-00-809-7632 A nut of cylindrical or partly cylindrical cross-section with integral threads perpendicular to the axial centerline. Ends may be flat or flanged. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, ROUND.
Part Alternates: NAS5777A, NAS577-7A, 5310-00-809-7632, 00-809-7632, 5310008097632, 008097632
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-809-7632 | 15891 ( NUT, SELF-LOCKING, BARREL ) |
Drawings & Photos | NSN 5310-00-809-7632
Demand History | NSN 5310-00-809-7632
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-809-7632 | 2020-06-160 | 4 | US |
| NAS577-7A | 2015-06-168 | 10 | United States |
| 5310-00-809-7632 | 2015-05-134 | 10 | United States |
| NAS5777A | 2011-11-306 | 50 | Malaysia |
| NAS5777A | 2009-09-246 | 2 | Singapore |
Cross Reference | NSN 5310-00-809-7632
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS577-7A | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-809-7632
Related Products | NSN 5310-00-809-7632
Technical Data | NSN 5310-00-809-7632
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.438 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| HARDNESS RATING | NOT RATED |

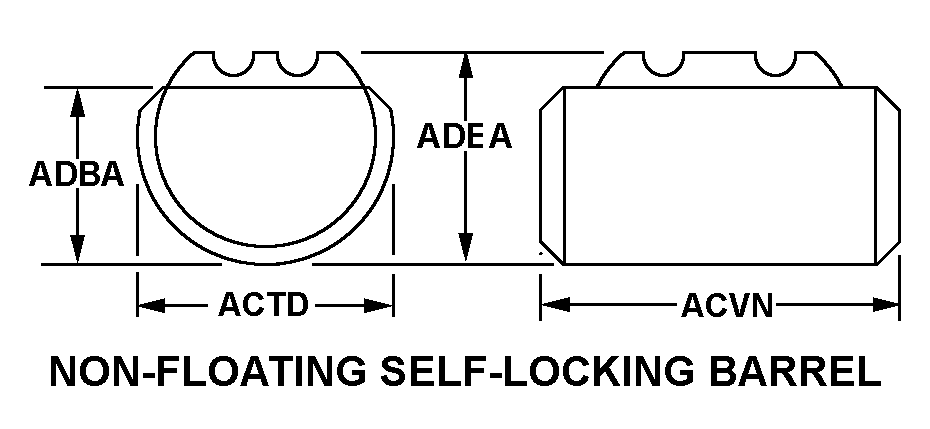

| NUT STYLE | A39 NON-FLOATING SELF-LOCKING BARREL |
| NUT DIAMETER | 0.775 INCHES MINIMUM AND 0.778 INCHES MAXIMUM |
| NUT LENGTH | 0.865 INCHES MINIMUM AND 0.885 INCHES MAXIMUM |
| BARREL HEIGHT | 0.460 INCHES MINIMUM AND 0.470 INCHES MAXIMUM |
| NUT HEIGHT | 0.625 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | 550.0 DEG FAHRENHEIT NOMINAL |
