NSN 5310-00-809-7638 NS22302, NS223-02, 00-809-7638
Product Details | PLATE SELF-LOCKING NUT

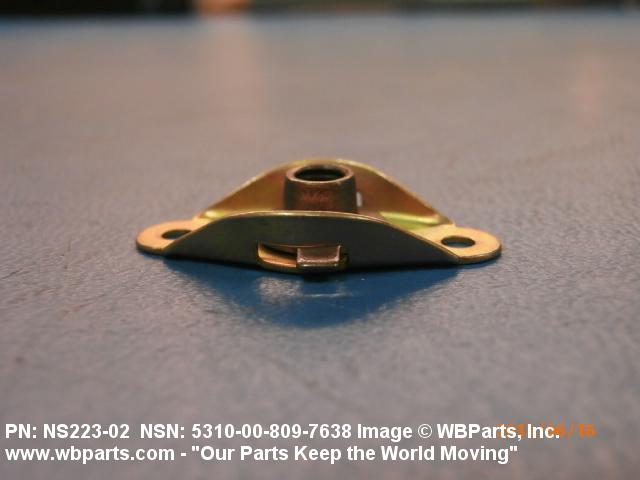

5310-00-809-7638 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NS22302, NS223-02, 5310-00-809-7638, 00-809-7638, 5310008097638, 008097638
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-809-7638 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

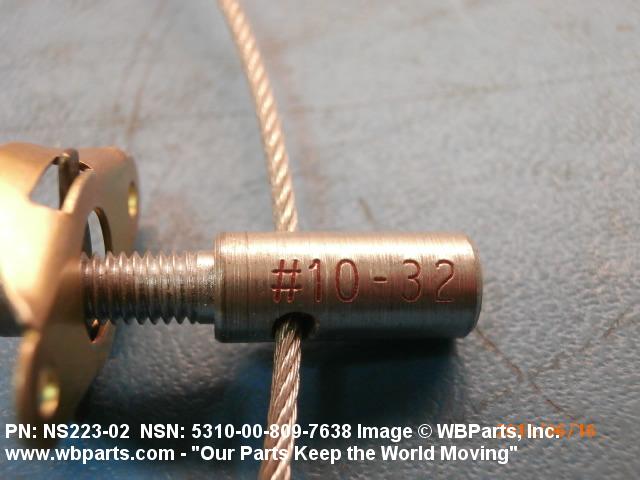

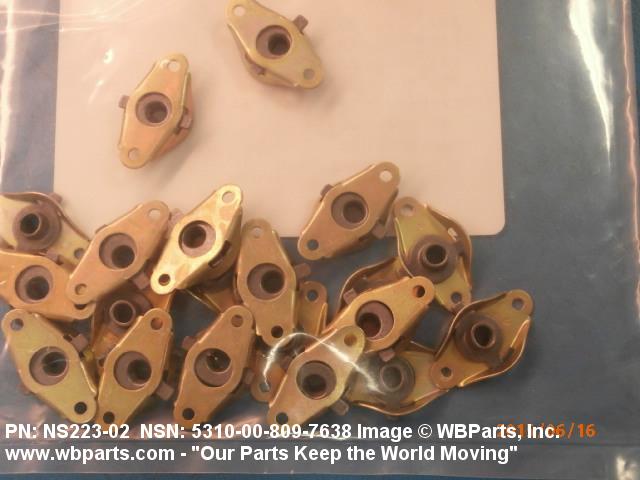

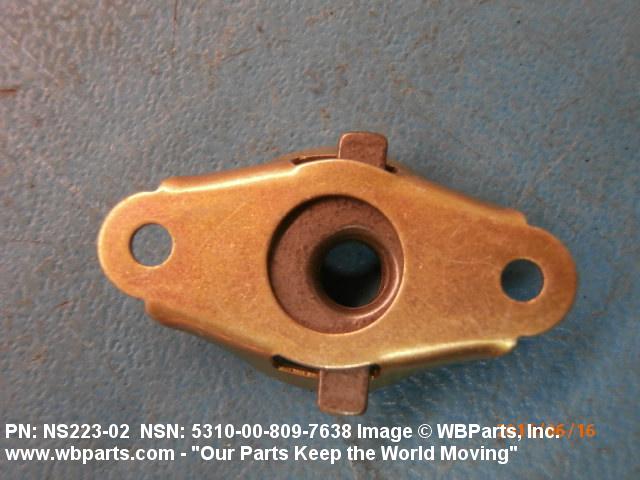

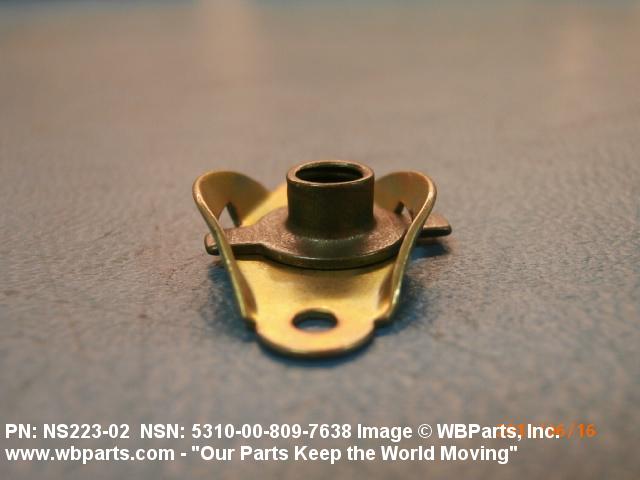

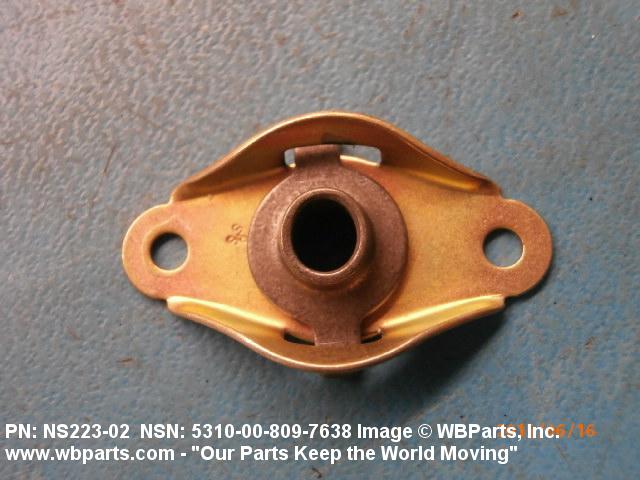

Drawings & Photos | NSN 5310-00-809-7638
Demand History | NSN 5310-00-809-7638
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NS223-02 | 2019-10-276 | 101 | DIBBS |
| 5310-00-809-7638 | 2018-03-81 | 106 | DIBBS |
| 5310-00-809-7638 | 2016-10-278 | 107 | DIBBS |
| 5310-00-809-7638 | 2016-08-216 | 3 | DIBBS |
| 5310-00-809-7638 | 2016-07-208 | 3 | DIBBS |
| 5310-00-809-7638 | 2016-07-206 | 33 | DIBBS |
| 5310-00-809-7638 | 2015-12-350 | 47 | DIBBS |
| NS22302 | 2015-06-153 | 20 | United States |
| 5310-00-809-7638 | 2014-11-320 | 60 | DIBBS |
Cross Reference | NSN 5310-00-809-7638
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NS223-02 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-809-7638
Related Products | NSN 5310-00-809-7638
Technical Data | NSN 5310-00-809-7638
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 4130 NUT STEEL COMP 1050 SHELL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6370 ASSN STD SINGLE MATERIAL RESPONSE NUT AISI C105 ASSN STD SINGLE MATERIAL RESPONSE SHELL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |

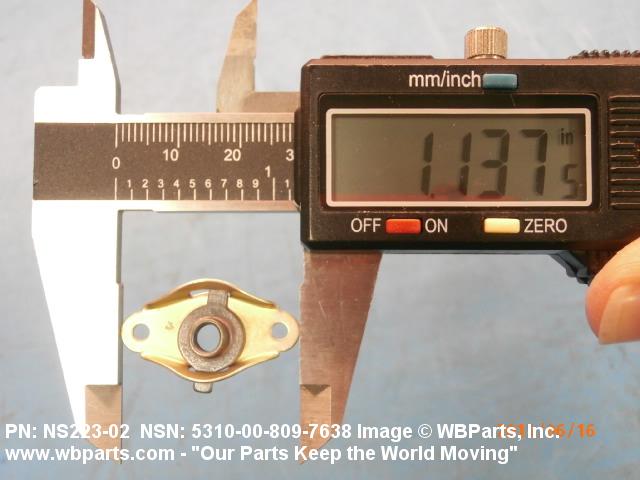

| NUT LENGTH | 1.140 INCHES MAXIMUM |

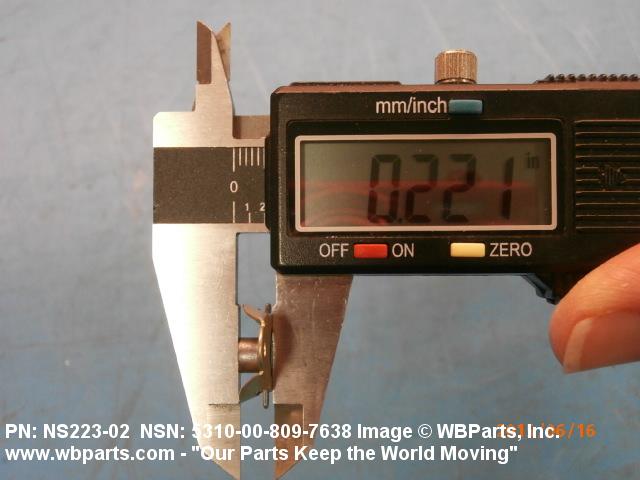

| NUT HEIGHT | 0.232 INCHES MAXIMUM |

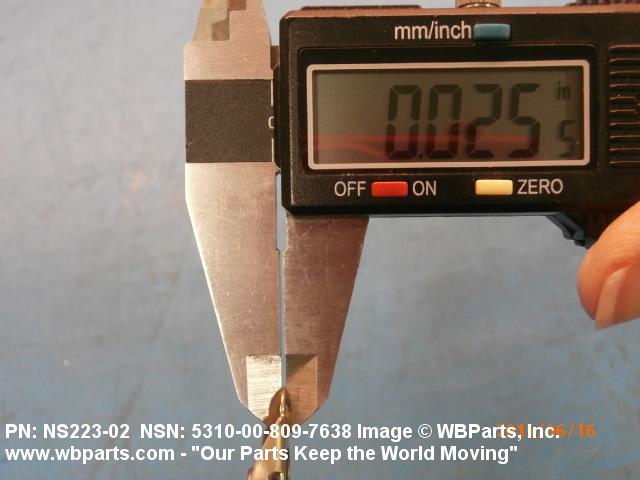

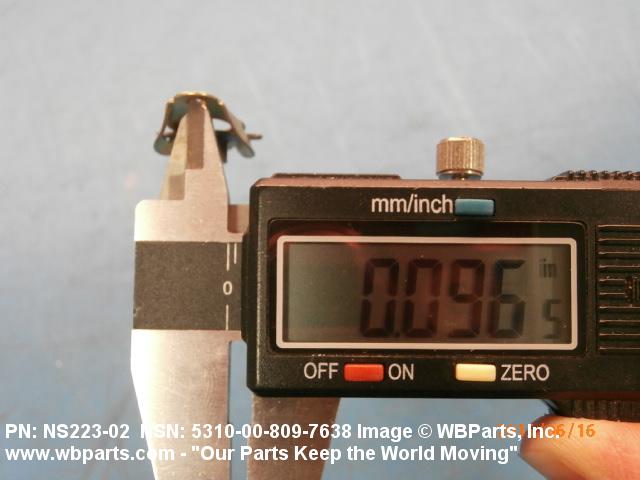

| PLATE THICKNESS | 0.025 INCHES NOMINAL |

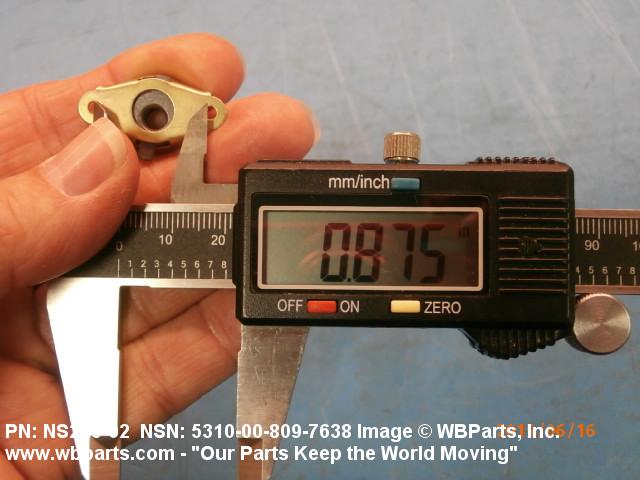

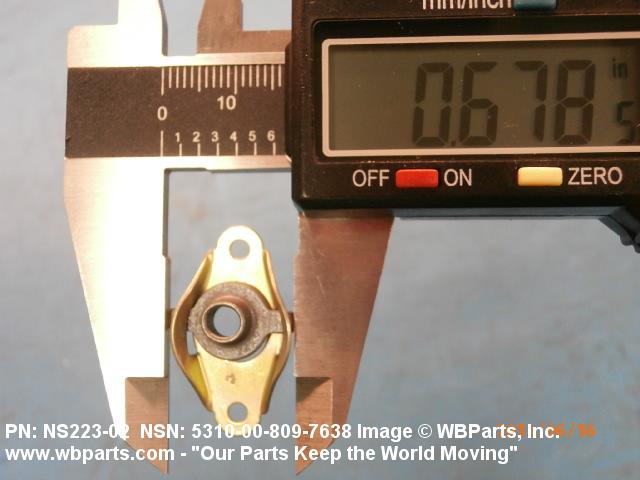

| PLATE WIDTH | 0.820 INCHES MAXIMUM |
| REMOVABLE NUT MANUFACTURER CODE | 80539 |
| REMOVABLE NUT MANUFACTURER PART NUMBER | 1352 |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |

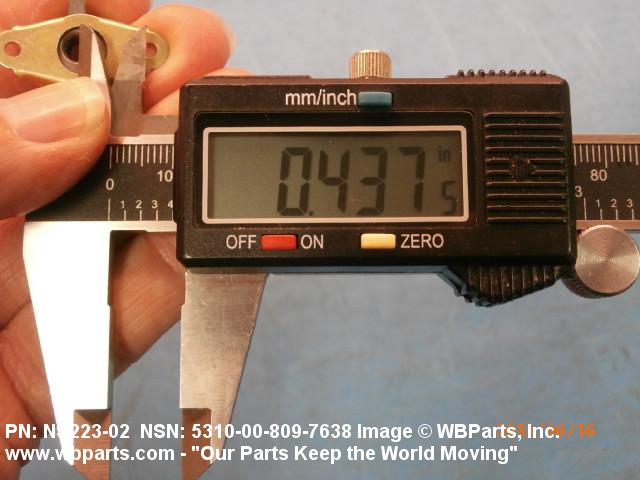

| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.432 INCHES MINIMUM AND 0.442 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.873 INCHES MINIMUM AND 0.877 INCHES MAXIMUM |
| TEMP RATING | 550.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
| MANUFACTURERS CODE | 80539 |
| DESIGN CONTROL REFERENCE | NS223-02 |
Restrictions/Controls & Freight Information | NSN 5310-00-809-7638
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-809-7638
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
