NSN 5310-00-570-4049 BFN009415, BFN00941-5, HS4595054
Product Details | BARREL SELF-LOCKING NUT

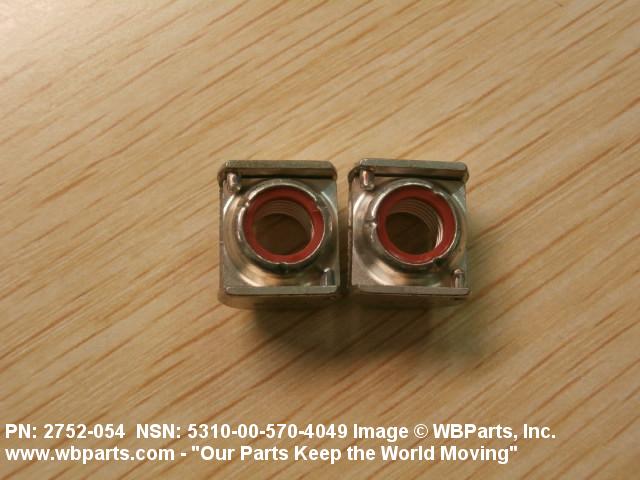

5310-00-570-4049 A nut of cylindrical or partly cylindrical cross-section with integral threads perpendicular to the axial centerline. Ends may be flat or flanged. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, ROUND.
Part Alternates: BFN009415, BFN00941-5, HS4595054, HS4595-054, F2752054, F2752-054, 2752054, 2752-054, 5310-00-570-4049, 00-570-4049, 5310005704049, 005704049
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-570-4049 | 15891 ( NUT, SELF-LOCKING, BARREL ) |

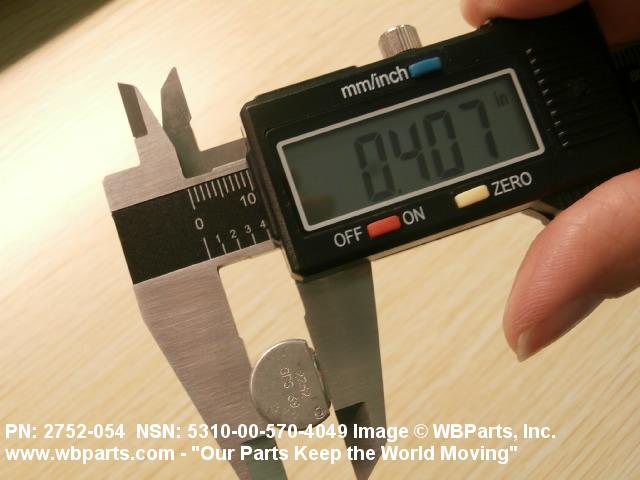

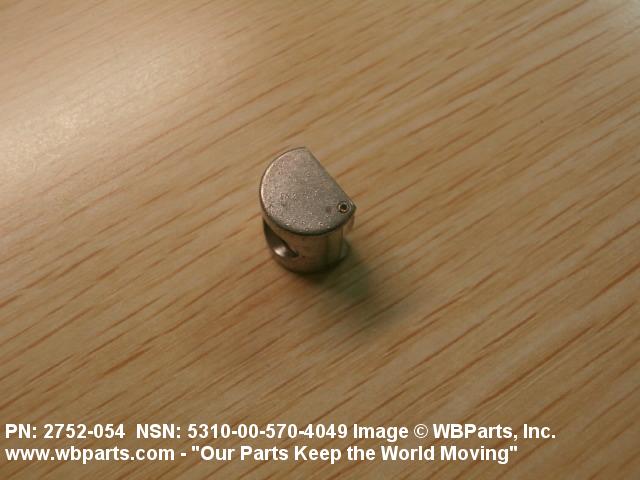

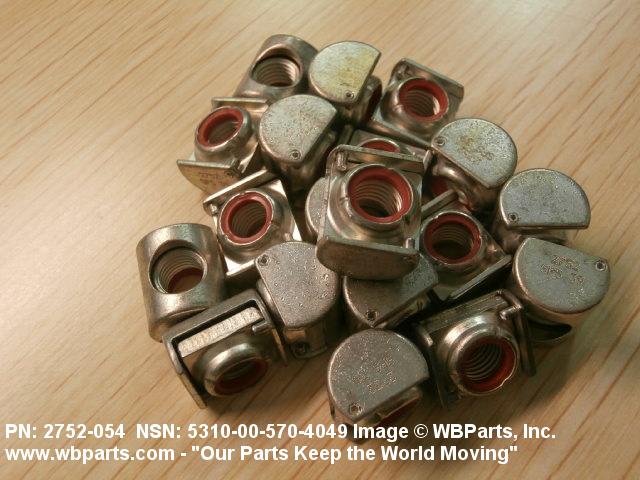

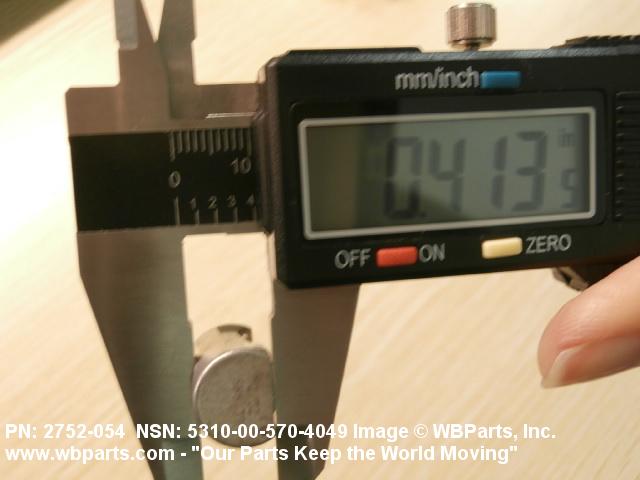

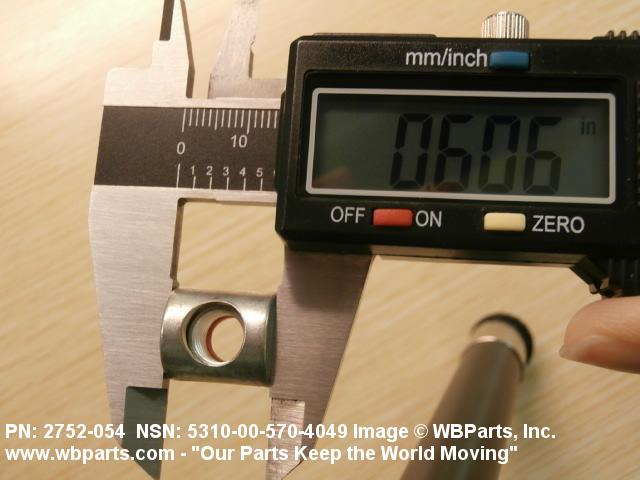

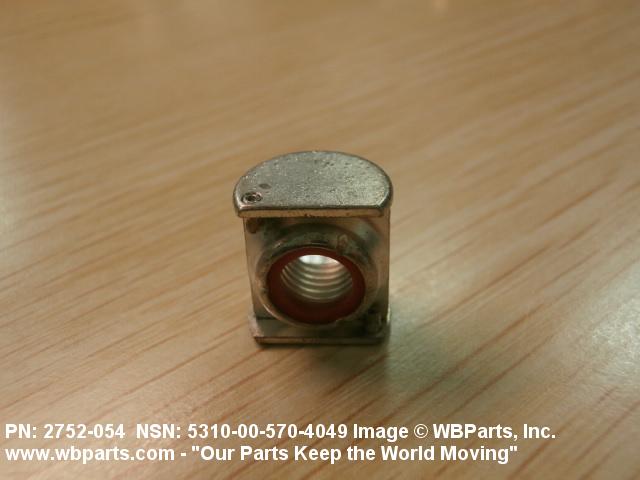

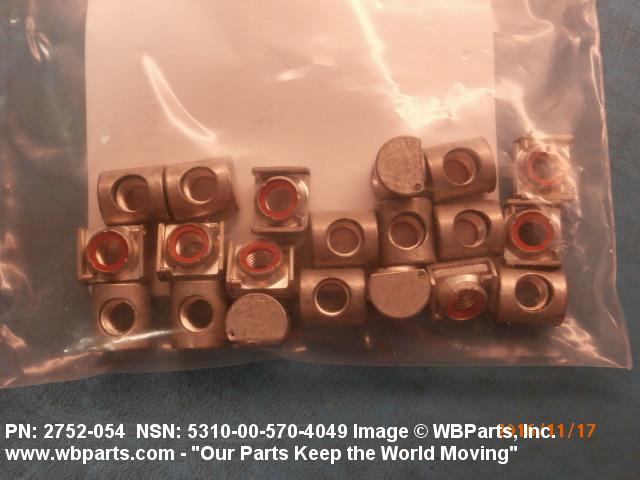

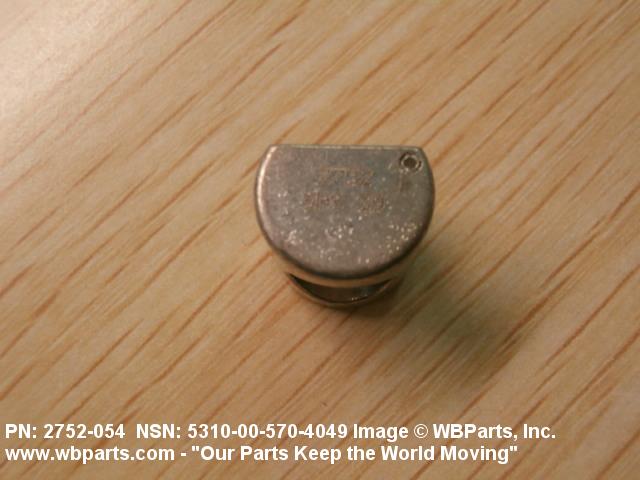

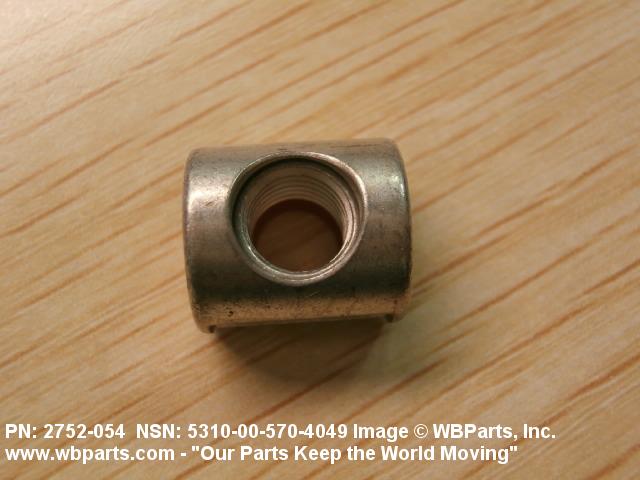

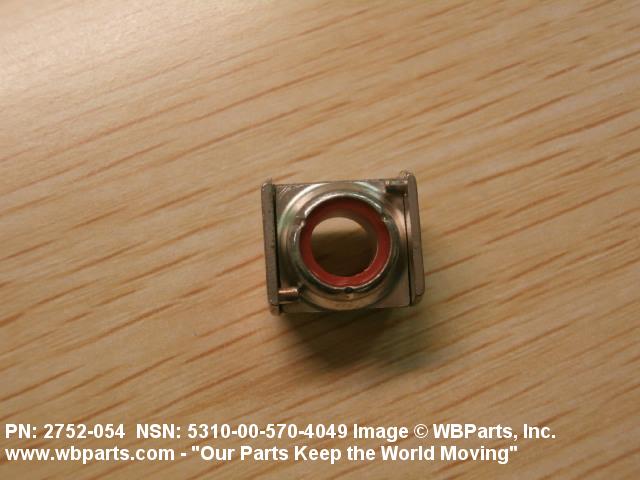

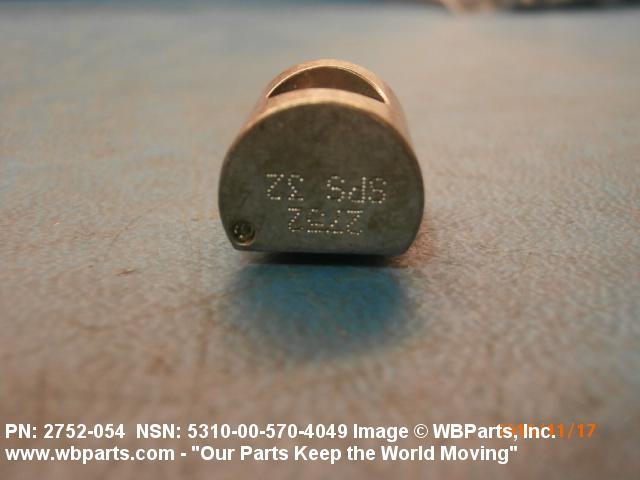

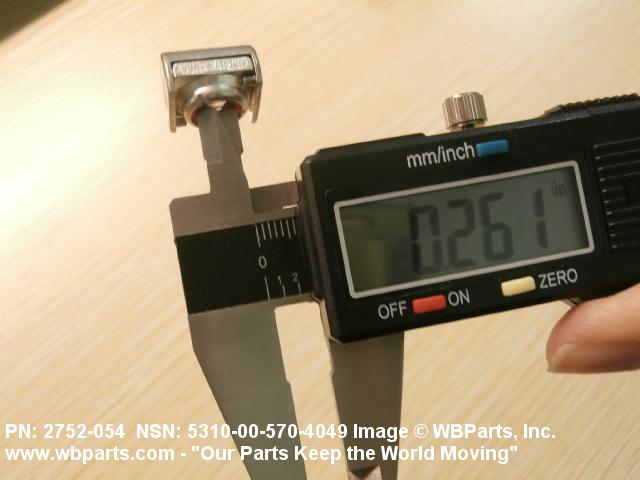

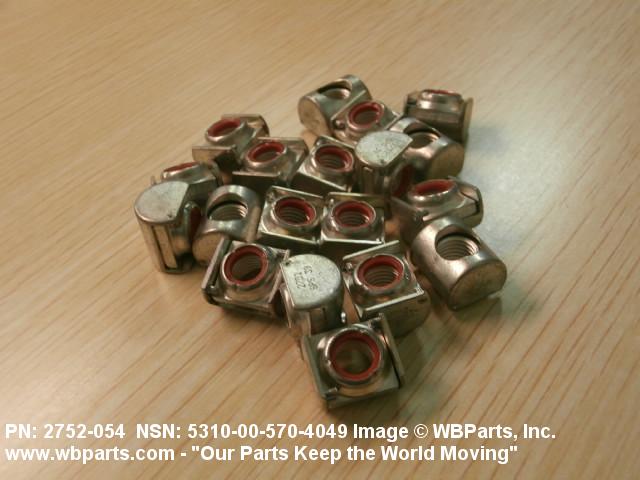

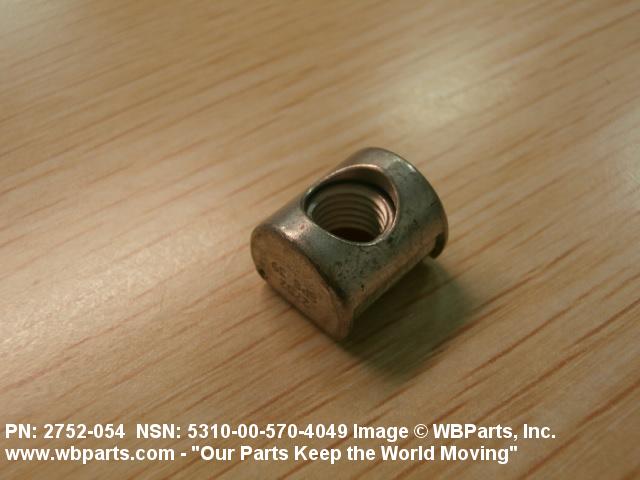

Drawings & Photos | NSN 5310-00-570-4049
Demand History | NSN 5310-00-570-4049
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2752054 | 2021-11-326 | 23 | PK |
| 5310-00-570-4049 | 2021-06-152 | 72 | TW |
| 5310-00-570-4049 | 2020-11-316 | 30 | Sweden |
| 5310-00-570-4049 | 2020-09-272 | 10 | Sweden |
| F2752054 | 2020-09-257 | 16 | ES |
| 5310-00-570-4049 | 2019-11-332 | 4 | Sweden |
| 5310-00-570-4049 | 2019-10-294 | 51 | United States |
| 5310-00-570-4049 | 2019-01-15 | 1 | Sweden |
| 5310-00-570-4049 | 2018-08-219 | 440 | US |
| 5310-00-570-4049 | 2018-08-219 | 1330 | US |
| 5310-00-570-4049 | 2018-05-130 | 1 | DIBBS-RFPs |
| 5310-00-570-4049 | 2018-03-60 | 10 | Sweden |
| 5310-00-570-4049 | 2018-03-60 | 12 | Sweden |
| 5310-00-570-4049 | 2018-01-17 | 21 | UK |
| 5310-00-570-4049 | 2017-10-276 | 25 | United States |
| 2752054 | 2017-02-40 | 35 | Sweden |
| 5310-00-570-4049 | 2016-01-14 | 20 | Sweden |
| 5310-00-570-4049 | 2015-10-277 | 337 | DIBBS |
| 5310-00-570-4049 | 2015-08-239 | 40 | Sweden |
| 5310-00-570-4049 | 2014-11-307 | 19 | Sweden |
| 2752054 | 2013-03-85 | 10 | Sweden |
| 5310-00-570-4049 | 2011-04-102 | 20 | United States |
| F2752054 | 2010-03-81 | 2 | Brazil |
| 2752054 | 2008-10-290 | 100 | India |
| 5310-00-570-4049 | 2008-10-277 | 100 | India |
Cross Reference | NSN 5310-00-570-4049
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2752-054 | 06329 | ASC INTERNATIONAL, INC. DBA ASC INDUSTRIES |
| 2752-054 | 72962 | HARVARD INDUSTRIES INC |
| BFN00941-5 | 27238 | BRISTOL INDUSTRIES |
| F2752-054 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| F2752-054 | 06329 | ASC INTERNATIONAL, INC. DBA ASC INDUSTRIES |
| F2752-054 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| F2752-054 | 72962 | HARVARD INDUSTRIES INC |
| HS4595-054 | 02731 | MCDONNELL DOUGLAS HELICOPTER CO INC |
| HS4595-054 | 27238 | BRISTOL INDUSTRIES |
| HS4595-054 | 8V613 | BOEING COMPANY, THE DBA BOEING |
