NSN 5310-00-638-5730 B421216, B42-1216, BACN10CP12L
Product Details | BARREL SELF-LOCKING NUT
5310-00-638-5730 A nut of cylindrical or partly cylindrical cross-section with integral threads perpendicular to the axial centerline. Ends may be flat or flanged. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, ROUND.
Part Alternates: B421216, B42-1216, BACN10CP12L, BN00924, BN0092412, BN00924-12, SL417612, SL4176-12, SLN16912, SLN169-12, F2452126, F2452-126, K5462812, K54628-12, 10018694007, 10018694-007, 2452126, 2452-126, 3M15512, 3M155-12, 42FBN1216A, 5310-00-638-5730, 00-638-5730, 5310006385730, 006385730
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-638-5730 | 15891 ( NUT, SELF-LOCKING, BARREL ) |

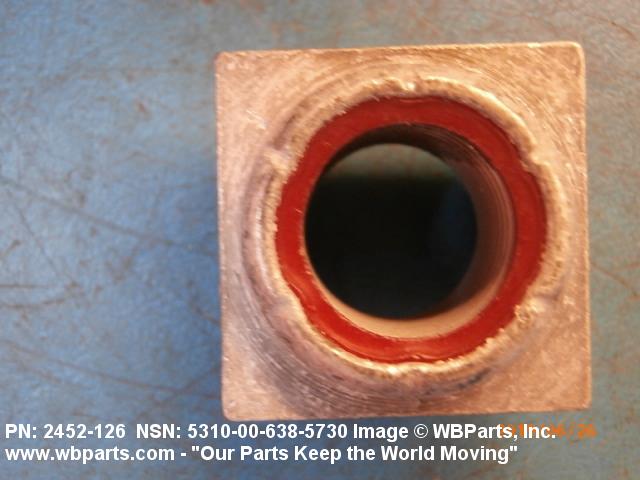

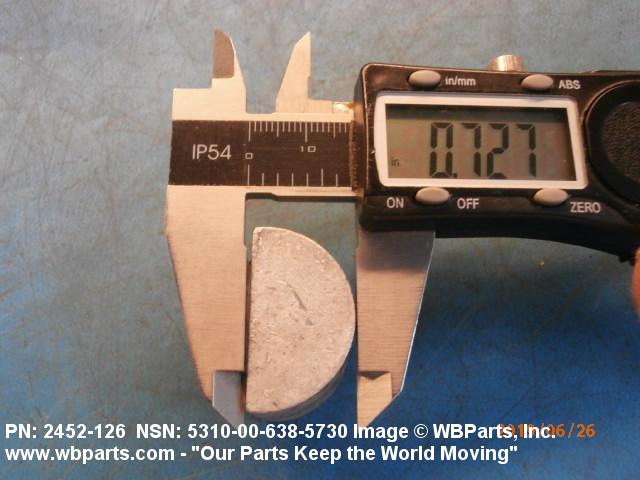

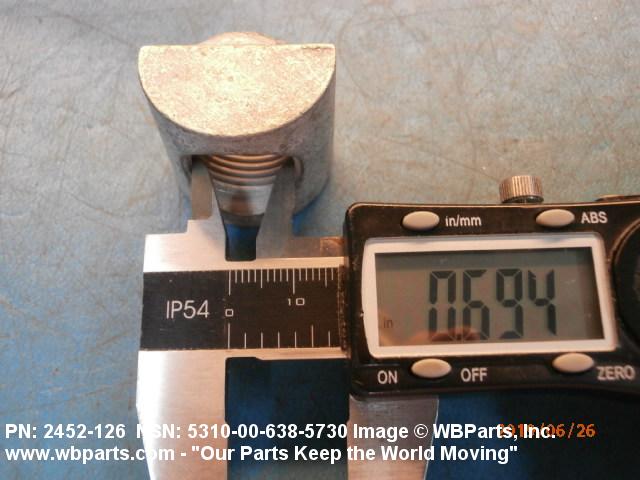

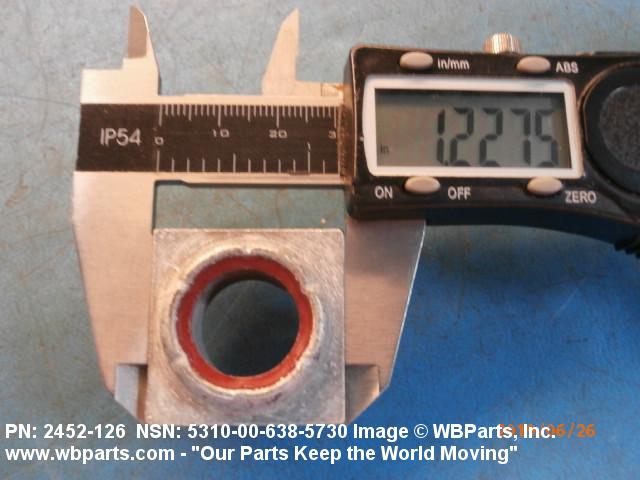

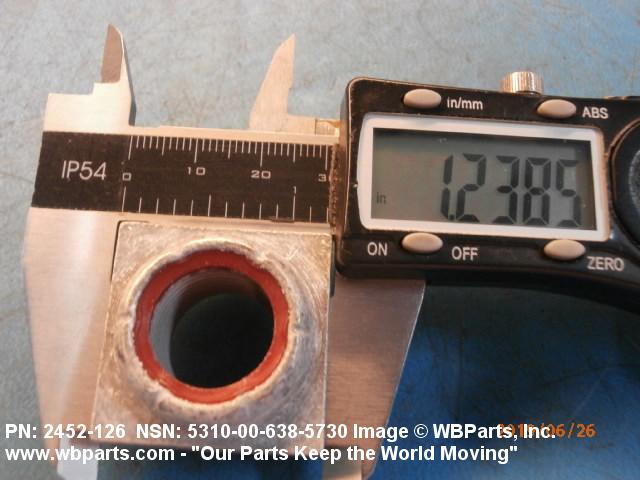

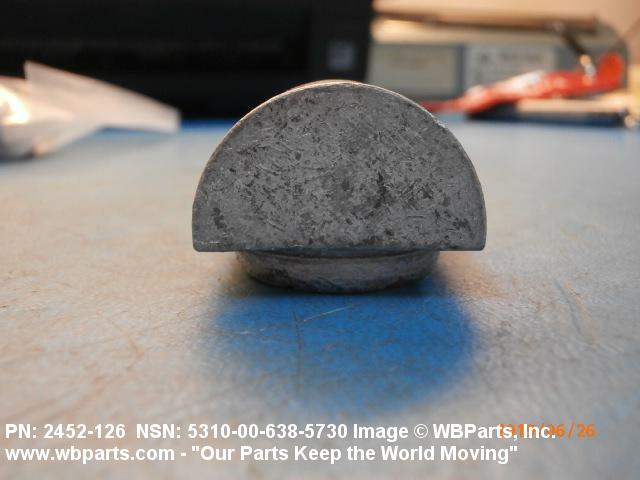

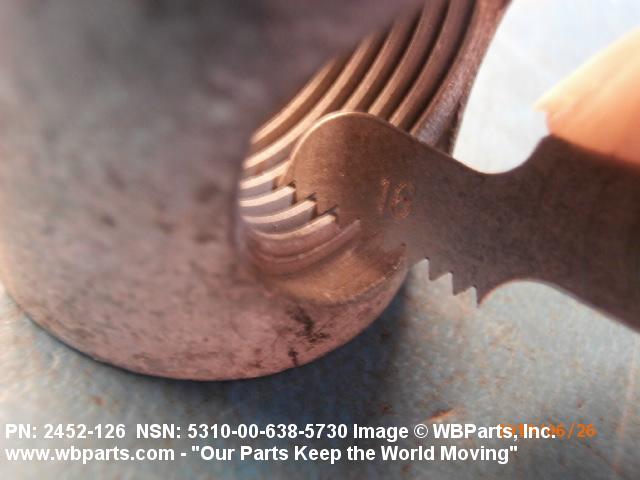

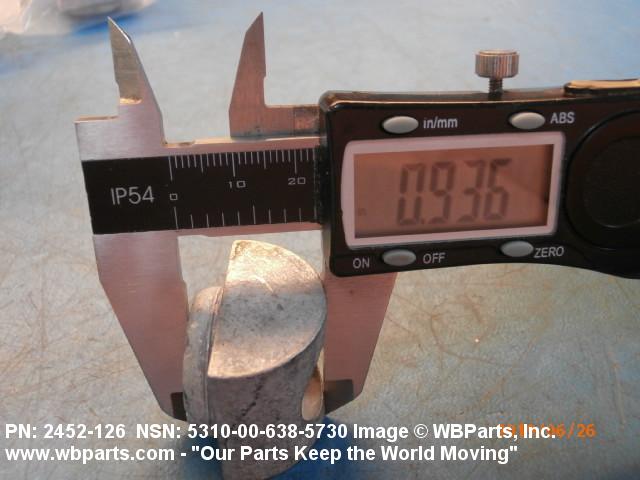

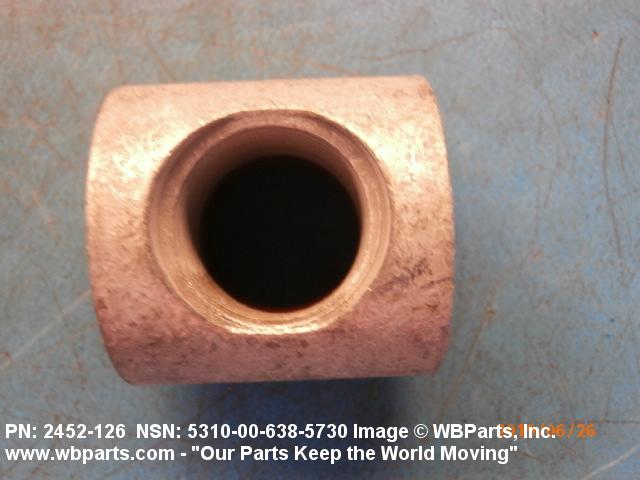

Drawings & Photos | NSN 5310-00-638-5730
Demand History | NSN 5310-00-638-5730
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| F2452-126 | 2024-10-289 | 1485 | DIBBS |
| F2752-126 | 2024-10-289 | 1485 | DIBBS |
| F2452-126 | 2024-08-226 | 1732 | DIBBS |
| F2752-126 | 2024-08-226 | 1732 | DIBBS |
| F2452-126 | 2024-08-218 | 1732 | DIBBS |
| F2752-126 | 2024-08-218 | 1732 | DIBBS |
| F2452-126 | 2023-01-16 | 293 | DIBBS |
| F2752-126 | 2023-01-16 | 293 | DIBBS |
| F2452-126 | 2022-12-363 | 772 | DIBBS |
| F2752-126 | 2022-12-363 | 772 | DIBBS |
| F2452-126 | 2022-10-289 | 285 | DIBBS |
| F2752-126 | 2022-10-289 | 285 | DIBBS |
| 5310-00-638-5730 | 2022-09-269 | 8 | US |
| F2452126 | 2022-08-214 | 1 | United States |
| 5310-00-638-5730 | 2022-07-209 | 1 | United States |
| 5310-00-638-5730 | 2022-07-209 | 10 | United States |
| F2452-126 | 2022-07-198 | 189 | DIBBS |
| F2752-126 | 2022-07-198 | 189 | DIBBS |
| F2452-126 | 2022-04-107 | 298 | DIBBS |
| F2752-126 | 2022-04-107 | 298 | DIBBS |
| F2452-126 | 2021-12-353 | 558 | DIBBS |
| F2752-126 | 2021-12-353 | 558 | DIBBS |
| F2452-126 | 2021-09-269 | 423 | DIBBS |
| F2752-126 | 2021-09-269 | 423 | DIBBS |
| F2452-126 | 2021-05-147 | 484 | DIBBS |
| F2752-126 | 2021-05-147 | 484 | DIBBS |
| F2452-126 | 2021-05-136 | 484 | DIBBS |
| F2752-126 | 2021-05-136 | 484 | DIBBS |
| F2452-126 | 2020-10-292 | 303 | DIBBS |
| F2752-126 | 2020-10-292 | 303 | DIBBS |
| 5310-00-638-5730 | 2020-05-122 | 1 | DIBBS-RFPs |
| 5310-00-638-5730 | 2019-11-317 | 20 | US |
| 2452126 | 2019-03-78 | 4 | United States |
| 5310-00-638-5730 | 2018-09-254 | 2 | United States |
| 5310-00-638-5730 | 2018-08-240 | 4 | United States |
| 2452-126 | 2012-11-310 | 33 | |
| 2452126 | 2012-06-174 | 4 | Italy |
| 5310-00-638-5730 | 2010-12-341 | 945 | DIBBS |
| 5310-00-638-5730 | 2010-04-108 | 8 | United States |
| 2452126 | 2010-01-28 | 50 | Italy |
| 2452126 | 2009-09-246 | 8 | Italy |
| 2452-126 | 2009-08-239 | 16 | IT |
| F2452126 | 2009-03-78 | 300 | us |
| F2452126 | 2009-03-72 | 30 | US |
| F2452126 | 2009-03-71 | 250 | United States |
| 3M15512 | 2008-11-311 | 695 | us |
| 5310-00-638-5730 | 2008-11-311 | 695 | DIBBS |
| 5310-00-638-5730 | 2008-07-196 | 3621 | DIBBS |
| F2452126 | 2007-10-282 | 50 | US |
Cross Reference | NSN 5310-00-638-5730
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10018694-007 | 19200 | US ARMY ARDEC RDECOM |
| 2452-126 | 72962 | HARVARD INDUSTRIES INC |
| 3M155-12 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 42FBN1216A | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| B42-1216 | 97393 | SHUR-LOK CORPORATION DBA SPS FASTENER DIVISION, A PCC |
| BACN10CP12L | 81205 | THE BOEING COMPANY DBA BOEING |
| BN00924 | 27238 | BRISTOL INDUSTRIES |
| BN00924-12 | 27238 | BRISTOL INDUSTRIES |
| F2452-126 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| F2452-126 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| F2452-126 | 72962 | HARVARD INDUSTRIES INC |
| K54628-12 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| SL4176-12 | 97393 | SHUR-LOK CORPORATION DBA SPS FASTENER DIVISION, A PCC |
| SLN169-12 | 16258 | SPACELOK INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-638-5730
Related Products | NSN 5310-00-638-5730
Technical Data | NSN 5310-00-638-5730
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT STEEL COMP 4130 OVERALL EXCEPT INSERT |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE ASSN STD 2ND MATERIAL RESPONSE OVERALL EXCEPT INSERT |
| SURFACE TREATMENT | CADMIUM OVERALL EXCEPT INSERT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A39 NON-FLOATING SELF-LOCKING BARREL |
| NUT DIAMETER | 1.219 INCHES NOMINAL |
| NUT LENGTH | 1.219 INCHES NOMINAL |
| BARREL HEIGHT | 0.740 INCHES NOMINAL |
| NUT HEIGHT | 0.968 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-638-5730
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-638-5730
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
