NSN 5310-00-807-1466 MS20365C0832A, MS20365-C0832A , MS2104208

Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

5310-00-807-1466 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS20365C0832A, MS20365-C0832A , MS2104208, MS21042-08, MS210422, MS21042-2, MN1608, MN16-08, NAS1291X08, H14L08CW, F52LH332482, F52LH3324-82, FN12ALA82, FN12ALA-82, T98S832CPC, F768, 002-004115, 10121710 , 8700235, 870-0235, 5310-00-807-1466, 00-807-1466, 5310008071466, 002004115, 008071466

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-807-1466	29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON )

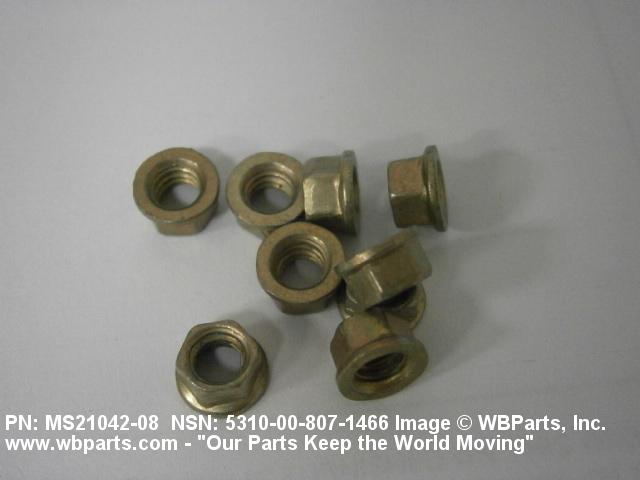

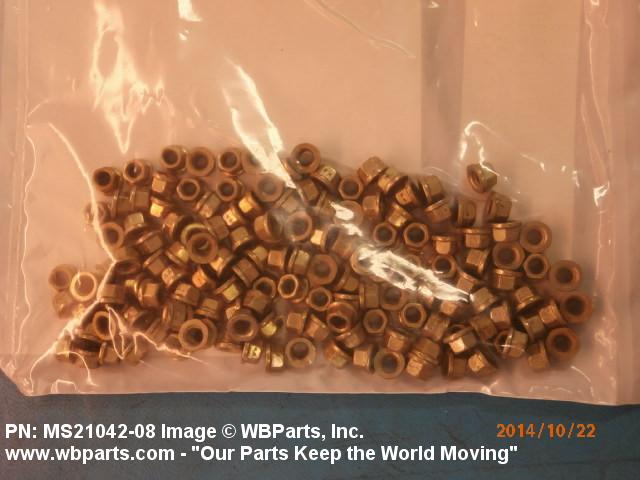

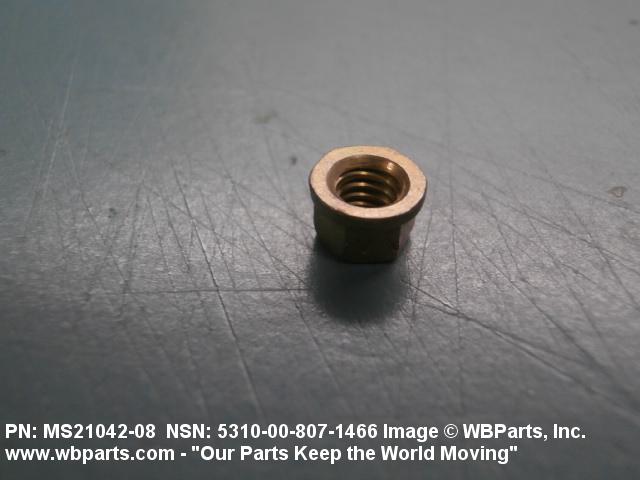

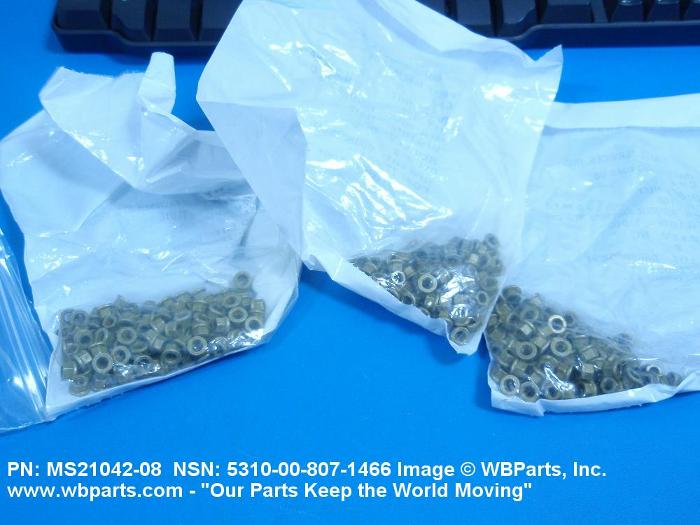

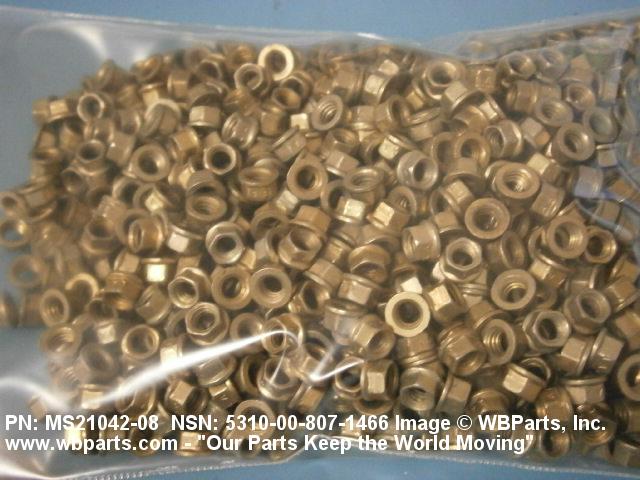

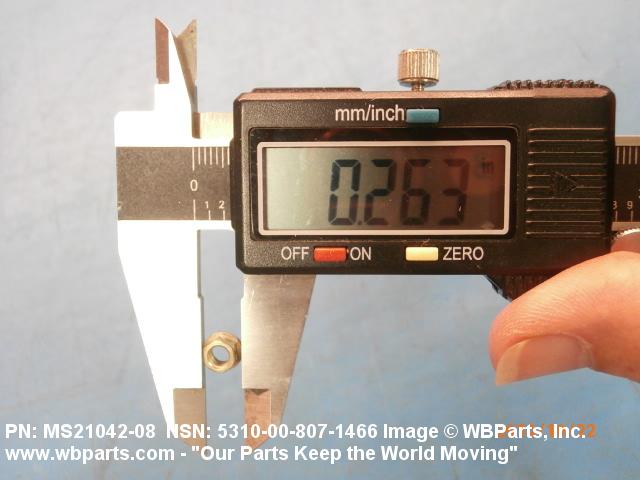

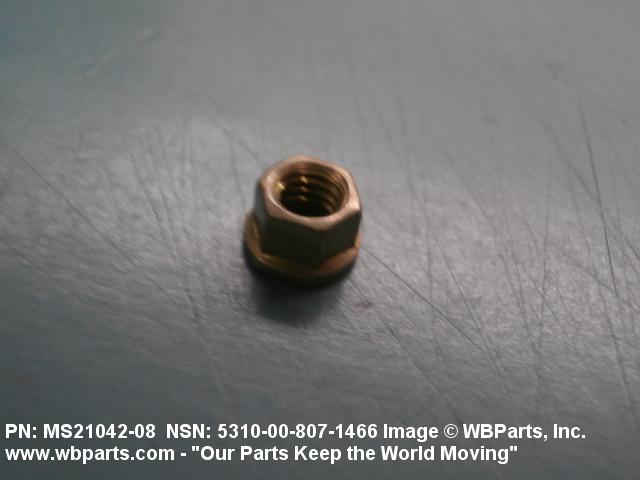

Drawings & Photos | NSN 5310-00-807-1466

Part Number	Request Date	QTY	Origin
5310-00-807-1466	2024-08-227	140	SA
5310-00-807-1466	2024-07-212	5	AE
5310-00-807-1466	2023-11-319	84	us
MS2104208	2023-10-296	3000	US
MS2104208	2023-07-194	1500	United Arab Emirates
MS2104208	2023-05-135	1000	United States
MS2104208	2023-05-135	5000	United States
MS2104208	2022-07-192	216	South Africa
MS2104208	2022-03-62	70	United States
MS2104208	2021-10-300	100	United States
5310-00-807-1466	2021-06-168	5	US
5310-00-807-1466	2020-06-182	480	MANUAL
MS2104208	2020-01-06	50	United States
5310-00-807-1466	2019-04-116	40	Russian Federation
5310-00-807-1466	2018-06-178	4403	DIBBS
5310-00-807-1466	2018-06-166	100	US
5310-00-807-1466	2018-06-155	1923	DIBBS
5310-00-807-1466	2018-05-123	50	United States
MS2104208	2018-04-108	300	United States
5310-00-807-1466	2018-04-108	5000	DIBBS
5310-00-807-1466	2018-04-100	5000	DIBBS
5310-00-807-1466	2018-03-60	5000	DIBBS
MS21042-08	2018-02-53	2
MS2104208	2018-02-37	100	China
5310-00-807-1466	2017-10-291	3605	United States
5310-00-807-1466	2017-10-289	3600	DIBBS
MS2104208	2017-08-219	50	US
MS2104208	2017-04-108	132	US
5310-00-807-1466	2017-04-101	2063	DIBBS
MS210422	2017-03-68	200	Canada
5310-00-807-1466	2017-03-67	479	DIBBS
5310-00-807-1466	2017-02-44	1307	DIBBS
5310-00-807-1466	2016-12-336	683	DIBBS
5310-00-807-1466	2016-09-250	624	DIBBS
MS2104208	2016-04-110	300	Thailand
5310-00-807-1466	2016-04-92	8	United States
MS2104208	2016-03-82	2	United States
MS2104208	2015-12-345	60	us
MS2104208	2015-09-259	2	United States
MS210422	2015-08-243	10	United States
MS21042-08	2015-06-176	1940	Turkey
MS2104208	2015-03-75	30	us
5310-00-807-1466	2015-03-63	1042	DIBBS
MS2104208	2015-01-26	300	Thailand
5310-00-807-1466	2015-01-06	746	DIBBS
MS2104208	2014-10-290	40	United States
MS2104208	2014-10-289	150	United States
MS2104208	2014-10-276	6176	United States
MS21042-08	2014-05-139	25	United States
MS2104208	2014-04-99	200	Taiwan
MS2104208	2014-02-57	1600	United States
MS2104208	2014-02-55	840	US
MS2104208	2013-11-308	10	Turkey
MS21042-08	2013-10-297	10	US
MS2104208	2013-09-259	2	United States
MS2104208	2013-08-231	1	United States
MS2104208	2013-08-226	200	United States
MS21042-08	2013-05-134	50	CZ
MS2104208	2013-04-112	50	United States
MS2104208	2013-04-94	10	Turkey
5310-00-807-1466	2013-02-43	500	US
MS2104208	2012-12-349	6640	United States
NAS1291X08	2012-03-87	250	US
NAS1291X08	2012-03-87	500	US
NAS1291X08	2012-03-87	1000	US
MS2104208	2012-03-74	1000	United States
MS21042-08	2012-02-40	8	TR
5310-00-807-1466	2011-10-300	5000	DIBBS
MS2104208	2011-06-160	20	US
MS2104208	2011-05-138	10	United States
5310-00-807-1466	2011-04-115	1185	DIBBS
5310-00-807-1466	2010-11-312	100	US
5310-00-807-1466	2010-09-257	909	DIBBS
MS2104208	2010-08-238	624	US
5310-00-807-1466	2010-07-210	792	DIBBS
MS2104208	2010-07-190	500	United States
5310-00-807-1466	2010-06-165	6	US
5310-00-807-1466	2010-06-159	765	United States
MS2104208	2010-05-125	10	TN
5310-00-807-1466	2010-03-60	2606	DIBBS
5310-00-807-1466	2009-12-337	10	US
5310-00-807-1466	2009-07-192	20	US
MS2104208	2009-07-182	400	US
5310-00-807-1466	2009-07-182	1145	DIBBS
5310-00-807-1466	2009-04-111	773	DIBBS
5310-00-807-1466	2009-03-70	4	United States
MS2104208	2009-02-55	1	United States
5310-00-807-1466	2009-02-35	100	Singapore
MS2104208	2008-12-357	180	US
MS2104208	2008-11-323	100	United States
MS2104208	2008-11-316	300	United States
5310-00-807-1466	2008-09-260	2000	DIBBS
MS2104208	2008-08-241	50	India
5310-00-807-1466	2008-08-240	50	India
5310-00-807-1466	2008-07-210	2400	Taiwan
MS2104208	2008-02-35	7000	us
MS2104208	2007-07-183	1400	US
MS2104208	2006-04-118	36	KE

Cross Reference | NSN 5310-00-807-1466

Part Number	Cage Code	Manufacturer
002-004115	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
5310008071466	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
870-0235	44940	CUMMINS POWER GENERATION INC.
F52LH3324-82	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
F52LH3324-82	72962	HARVARD INDUSTRIES INC
F768	00365	TLD ACE CORPORATION
FN12ALA-82	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
H14L08CW	15653	ALCOA GLOBAL FASTENERS, INC.
H14L08CW	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
H14L08CW	F6033	TECNOTEC SARL
H14L08CW	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
H14L08CW	R1120	SATAIR A/S
MN16-08	73197	HI-SHEAR CORPORATION
MN16-08	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
MN16-08	R1120	SATAIR A/S
MS20365-C0832A	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21042-08	2N335	PATTONAIR USA, INC. DBA PATTONAIR
MS21042-08	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21042-08	8K112	FREUNDLICH SUPPLY COMPANY, INC.
MS21042-08	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21042-08	K0407	BAE SYSTEMS LAND SYSTEMS (WEAPONS & VEHICLES) LTD
MS21042-2	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS1291X08	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
T98S832CPC	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-807-1466

Compare

Related Products | NSN 5310-00-807-1466

5310-00-807-1467, 5310-00-807-1468, 5310-00-807-1469, 5310-00-807-1471, 5310-00-807-1472

Technical Data | NSN 5310-00-807-1466

Characteristic	Specifications
THREAD SERIES	UNJC

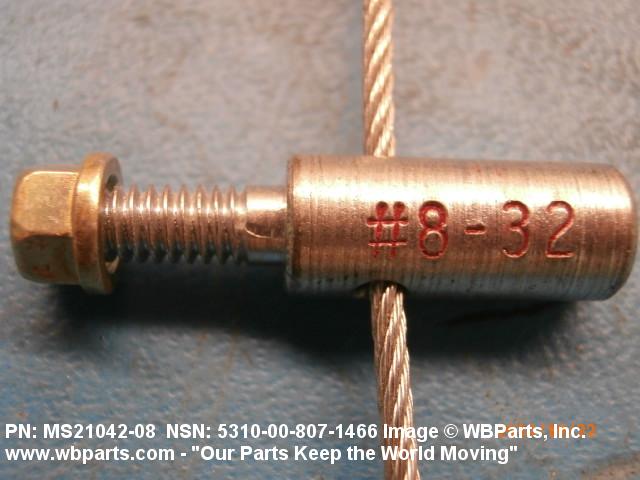

NOMINAL THREAD SIZE	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A294 HEXAGON

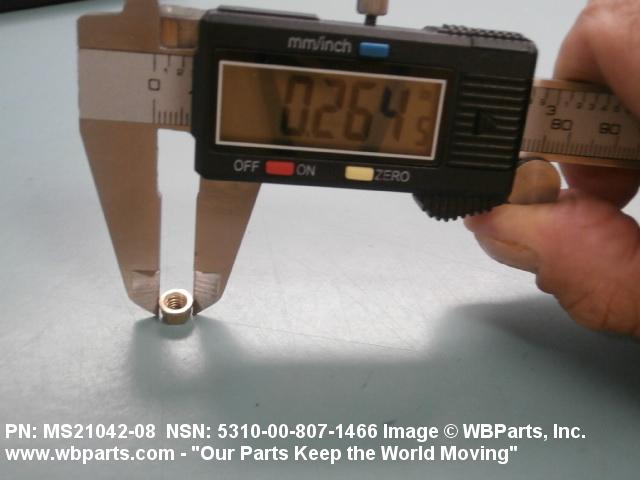

WASHER OUTSIDE DIAMETER	0.290 INCHES MAXIMUM
OVERALL HEIGHT	0.125 INCHES MINIMUM AND 0.188 INCHES MAXIMUM
WASHER THICKNESS	0.015 INCHES MINIMUM

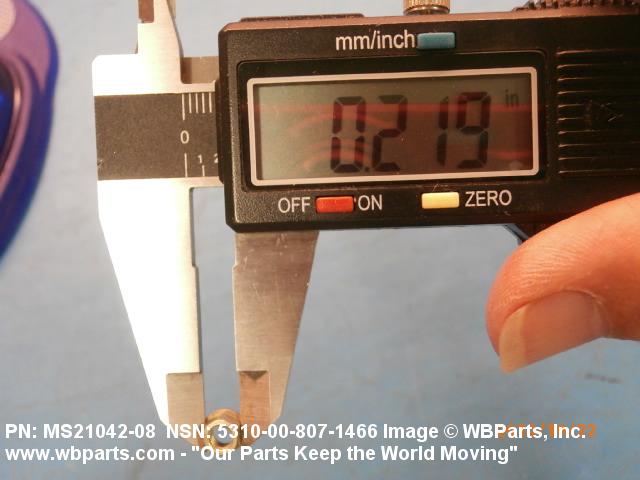

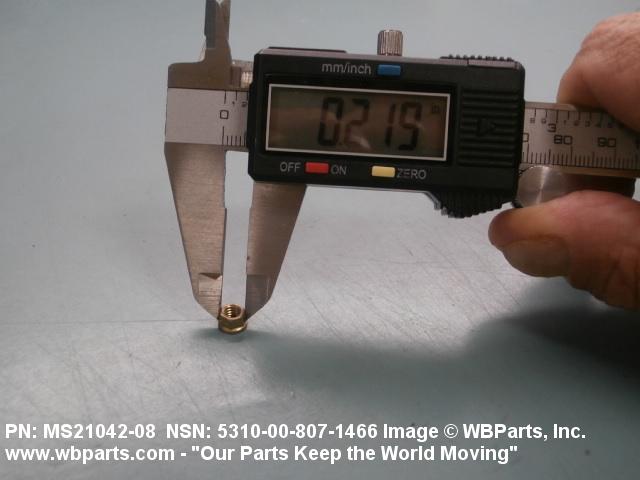

WIDTH ACROSS FLATS	0.213 INCHES MINIMUM AND 0.221 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	SOLUBLE LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL

Restrictions/Controls & Freight Information | NSN 5310-00-807-1466

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-807-1466

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
