NSN 5310-00-807-1468 MS20364428C, MS20364-428C, MS210424

Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

5310-00-807-1468 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS20364428C, MS20364-428C, MS210424, MS21042-4, MS21042428, MS21042-428, MN164, MN16-4, NASM25027, AN364C428, CIPRDMS210424, CIPRD-MS21042-4 , H144CW, H14-4CW, T98S428CPC, FN12A048, FN12A-048, 912060C1, 13207E3409FN108, 21FK428, 21FK-428, 404 530, 404530, 406682, 406-682, 42E028, 451003, 52391428, 52391-428, 52562890332, 525-628-90332, 5310-00-807-1468, 00-807-1468, 5310008071468, 008071468

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-807-1468	29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON )

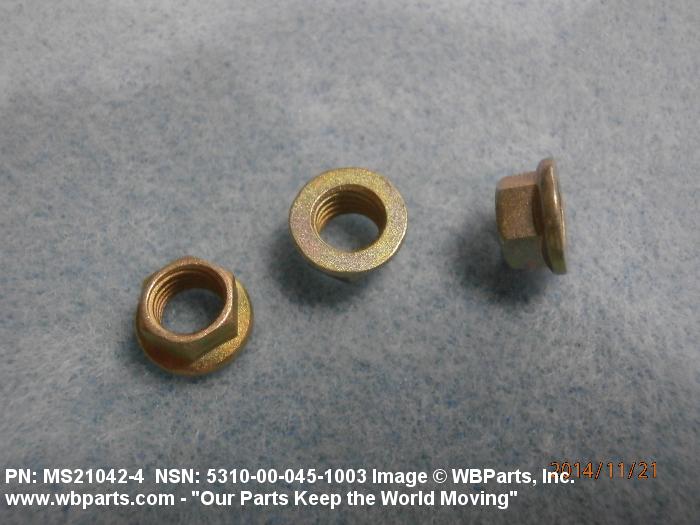

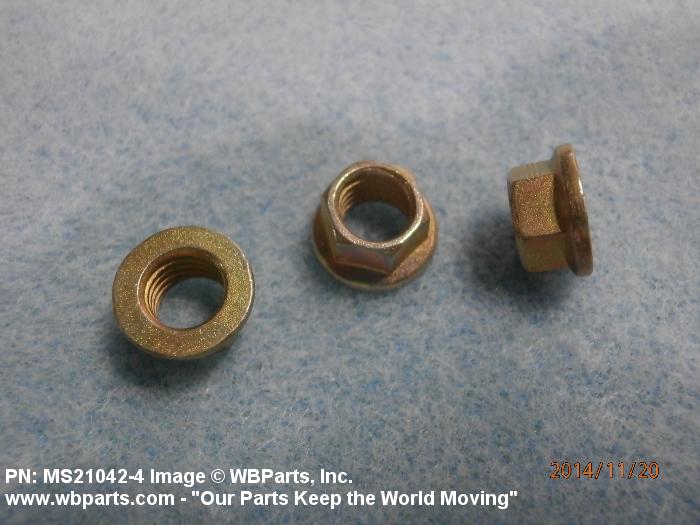

Drawings & Photos | NSN 5310-00-807-1468

Part Number	Request Date	QTY	Origin
MS20364428C	2024-11-318	6	Canada
MS210424	2024-11-318	6	Canada
5310-00-807-1468	2024-10-292	430	United States
MS210424	2024-10-289	20	AE
5310-00-807-1468	2024-10-277	16	Taiwan
MS21042-4	2024-09-263	430	DIBBS
MS21042-4	2024-09-248	2021	DIBBS
MS210424	2024-05-129	100	FR
MS210424	2023-12-345	20	ZA
MS210424	2023-10-285	50	United Arab Emirates
MS210424	2023-09-249	200	US
MS210424	2023-08-233	10	US
MS210424	2023-04-115	1	us
5310-00-807-1468	2023-04-95	35	United States
MS20364428C	2022-09-245	100	South Korea
5310-00-807-1468	2022-04-112	1600	TW
MS210424	2021-10-298	250	US
MS210424	2021-10-298	500	US
MS210424	2021-06-167	275	US
MS210424	2021-04-110	59	Malaysia
MS210424	2021-02-49	100	United States
MS210424	2020-11-316	100	United States
MS210424	2020-10-303	100	United States
MS210424	2020-09-259	30	United States
MS210424	2020-09-247	50	United States
5310-00-807-1468	2020-07-201	200	US
5310-00-807-1468	2020-06-178	1	DIBBS-RFPs
5310-00-807-1468	2020-03-86	60	United States
MS21042-4	2020-03-77	3203	DIBBS
MS21042-4	2020-01-09	3914	DIBBS
MS210424	2020-01-06	50	United States
5310-00-807-1468	2019-12-344	16	US
MS21042-4	2019-11-321	3203	DIBBS
MS21042-4	2019-11-311	3190	DIBBS
MS21042-4	2019-10-295	781	DIBBS
MS21042-4	2019-09-270	4386	DIBBS
MS21042-4	2019-09-259	4767	DIBBS
MS210424	2019-09-254	1	ID
MS210424	2019-09-254	1	ID
MS21042-4	2019-08-238	4767	DIBBS
MS21042-4	2019-08-232	1677	DIBBS
5310-00-807-1468	2019-07-204	333	US
5310-00-807-1468	2019-07-204	606	US
5310-00-807-1468	2019-07-204	738	US
5310-00-807-1468	2019-07-204	1677	DIBBS
MS210424	2019-07-190	100	US
5310-00-807-1468	2019-04-106	160	Russian Federation
MS210424	2019-03-64	20	United States
MS210424	2019-01-25	6	US
MS210424	2019-01-23	176	United States
5310-00-807-1468	2018-08-222	158	United States
5310-00-807-1468	2018-08-218	158	United States
5310-00-807-1468	2018-08-218	198	United States
MS210424	2018-06-164	25	United States
MS210424	2018-03-86	100	Hong Kong
MS210424	2017-05-143	40000	DE
5310-00-807-1468	2017-02-53	27	MANUAL
5310-00-807-1468	2016-11-324	8	United States
MS210424	2016-11-306	25	United Arab Emirates
MS210424	2016-10-293	400	us
MS210424	2016-09-273	55	United States
5310-00-807-1468	2016-08-238	5	United States
MS210424	2016-03-81	2000	us
5310-00-807-1468	2015-11-312	5136	DIBBS
MS210424	2015-10-288	2	US
MS210424	2015-09-265	865	Malaysia
MS210424	2015-09-259	1000	United States
5310-00-807-1468	2015-08-225	1	DIBBS-RFPs
MS210424	2015-07-207	125	United States
MS21042-4	2015-07-201	3000
MS210424	2015-07-183	500	US
MS210424	2015-06-161	16	US
MS210424	2015-05-149	40	US
MS21042-4	2015-03-85	595	US
MS21042-4	2015-03-69	500	US
MS210424	2015-02-57	60	US
MS210424	2015-02-57	58	US
MS210424	2015-02-44	40	United States
5310-00-807-1468	2015-01-09	100	US
MS210424	2014-12-349	200	US
5310-00-807-1468	2014-12-348	943	DIBBS
MS210424	2014-11-330	360	Malaysia
MS21042-4	2014-11-330	360	MY
MS210424	2014-11-308	141	US
MS21042-4	2014-11-308	5000	United States
MS210424	2014-10-290	60	United States
MS20364428C	2014-09-260	20	US
NASM25027	2014-09-253	1500	Ukraine
MS210424	2014-08-223	24	US
MS210424	2014-08-217	12	Canada
MS210424	2014-07-190	5	US
MS210424	2014-06-155	4	United States
5310-00-807-1468	2014-05-131	3716	DIBBS
5310-00-807-1468	2014-04-104	6000	DIBBS
MS21042-4	2014-03-71	21	United States
5310-00-807-1468	2014-03-68	1857	DIBBS
MS210424	2014-02-55	2500	US
MS210424	2014-01-30	2000	United States
NASM25027	2014-01-27	16	US
MS210424	2014-01-20	200	Thailand
MS20364-428C	2014-01-15	4	CN
5310-00-807-1468	2013-12-350	2678	DIBBS
MS21042-4	2013-11-322	32	Belgium
NASM25027	2013-10-298	1	US
MS210424	2013-09-261	31	United States
406682	2013-09-259	1	US
5310-00-807-1468	2013-05-141	161	Malaysia
MS21042-4	2013-04-94	12	ID
MS21042-4	2012-09-263	250	US
404530	2012-05-143	4	TW
404530	2012-05-143	2	TW
MS210424	2012-03-90	60	US
MS210424	2012-03-68	50	United Kingdom
MS210424	2011-10-295	1000	US
MS210424	2011-07-200	4	United States
MS210424	2011-07-195	21	CA
MS210424	2011-06-181	34	US
5310-00-807-1468	2011-05-151	100	GR
MS210424	2011-05-129	2	United States
MS210424	2011-05-126	30	United States
MS210424	2011-02-41	200	United States
5310-00-807-1468	2010-11-306	470	DIBBS
5310-00-807-1468	2010-09-251	2658	DIBBS
MS210424	2010-08-238	468	US
MS210424	2010-08-238	936	US
5310-00-807-1468	2010-08-235	3900	DIBBS
5310-00-807-1468	2010-07-200	916	DIBBS
5310-00-807-1468	2010-07-196	609	DIBBS
5310-00-807-1468	2010-07-194	1	United States
MS210424	2010-07-190	1050	United States
5310-00-807-1468	2010-04-92	1	US
5310-00-807-1468	2010-03-82	1000	DIBBS
5310-00-807-1468	2010-03-75	410	DIBBS
5310-00-807-1468	2010-02-55	853	DIBBS
NASM25027	2010-01-28	175	US
5310-00-807-1468	2010-01-28	1400	DIBBS
5310-00-807-1468	2010-01-20	650	DIBBS
5310-00-807-1468	2009-12-365	1	US
5310-00-807-1468	2009-12-365	1	US
MS210424	2009-11-313	2000	United States
5310-00-807-1468	2009-10-299	866	DIBBS
MS210424	2009-10-282	10000	US
NASM25027	2009-08-225	200	United Kingdom
5310-00-807-1468	2009-08-224	2000	DIBBS
NASM25027	2009-07-191	48000	US
5310-00-807-1468	2009-07-187	10	BA
NASM25027	2009-06-176	1000	United Kingdom
5310-00-807-1468	2009-06-174	6363	DIBBS
5310-00-807-1468	2009-04-117	3573	DIBBS
FN12A048	2009-04-105	2	BA
5310-00-807-1468	2009-04-99	4200	DIBBS
5310-00-807-1468	2009-04-98	1	MX
5310-00-807-1468	2009-04-93	1000	Turkey
5310-00-807-1468	2009-03-78	6055	DIBBS
5310-00-807-1468	2009-01-21	10	United States
5310-00-807-1468	2009-01-05	5000	DIBBS
MS210424	2008-12-357	120	US
5310-00-807-1468	2008-12-343	12	US
5310-00-807-1468	2008-10-295	12000	DIBBS
5310-00-807-1468	2008-10-282	168	US
NASM25027	2008-09-268	1	Netherlands
NASM25027	2008-09-261	25	us
5310-00-807-1468	2008-09-247	30	US
5310-00-807-1468	2008-09-245	300	United Kingdom
5310-00-807-1468	2008-07-196	5	United States
5310-00-807-1468	2008-05-127	10	United States
MS210424	2008-04-106	46	DE
5310-00-807-1468	2008-01-28	6000	DIBBS
NASM25027	2007-12-338	60	United States
MS210424	2007-07-183	500	US
5310-00-807-1468	2006-10-295	3	Turkey
5310-00-807-1468	2006-10-294	3	Turkey
5310-00-807-1468	2006-10-294	3	Turkey

Cross Reference | NSN 5310-00-807-1468

Part Number	Cage Code	Manufacturer
13207E3409FN108	97403	CECOM LR CENTER
21FK-428	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
403010071	S5652	RAFAEL
404 530	77294	PIPER AIRCRAFT INC.
406-682	77294	PIPER AIRCRAFT INC.
42E028	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
42E028	72962	HARVARD INDUSTRIES INC
451003	24617	GENERAL MOTORS CORP
52391-428	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
525-628-90332	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
5310008071468	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
723009731800	A1140	OTO MELARA SPA UNITA'' BREDA MECCANICA BRESCIANA
912060C1	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN364C428	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
CIPRD-MS21042-4	14153	DEFENSE LOGISTICS AGENCY DBA DEFENSE SUPPLY CENTER
FN12A-048	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
H14-4CW	15653	ALCOA GLOBAL FASTENERS, INC.
H14-4CW	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
H14-4CW	F6033	TECNOTEC SARL
H14-4CW	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
H14-4CW	R1120	SATAIR A/S
MN16-4	73197	HI-SHEAR CORPORATION
MN16-4	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
MN16-4	R1120	SATAIR A/S
MS20364-428C	79318	MEGGITT (NORTH HOLLYWOOD), INC.
MS20364-428C	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21042-4	15653	ALCOA GLOBAL FASTENERS, INC.
MS21042-4	1V757	WESCO AIRCRAFT HARDWARE CORP.
MS21042-4	2N335	PATTONAIR USA, INC. DBA PATTONAIR
MS21042-4	52828	REPUBLIC FASTENER MFG. CORP.
MS21042-4	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
MS21042-4	60119	MONADNOCK COMPANY THE DBA LISI AEROSPACE
MS21042-4	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21042-4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21042-4	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21042-428	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NASM25027	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
T98S428CPC	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
T98S428CPC	71087	REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-807-1468

Compare

Related Products | NSN 5310-00-807-1468

5310-00-807-1469, 5310-00-807-1471, 5310-00-807-1472, 5310-00-807-1473, 5310-00-807-1474

Technical Data | NSN 5310-00-807-1468

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.250 INCHES
THREAD QUANTITY PER INCH	28
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A294 HEXAGON

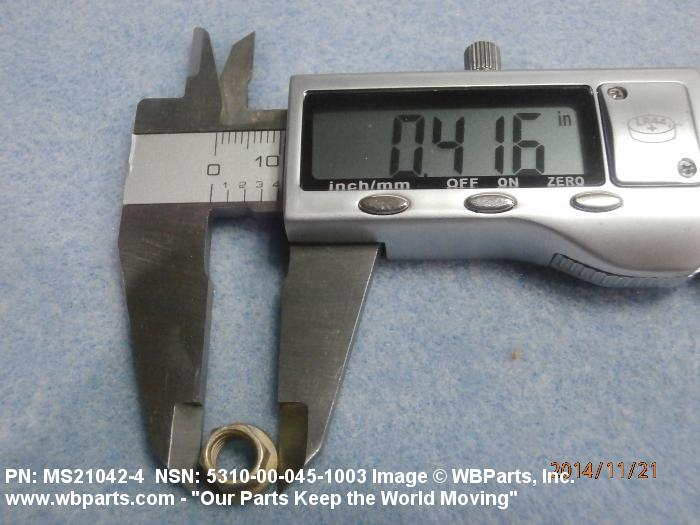

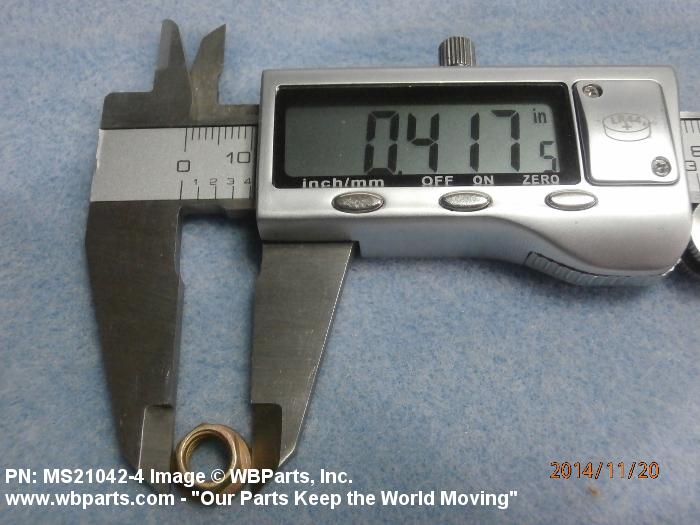

WASHER OUTSIDE DIAMETER	0.420 INCHES MAXIMUM

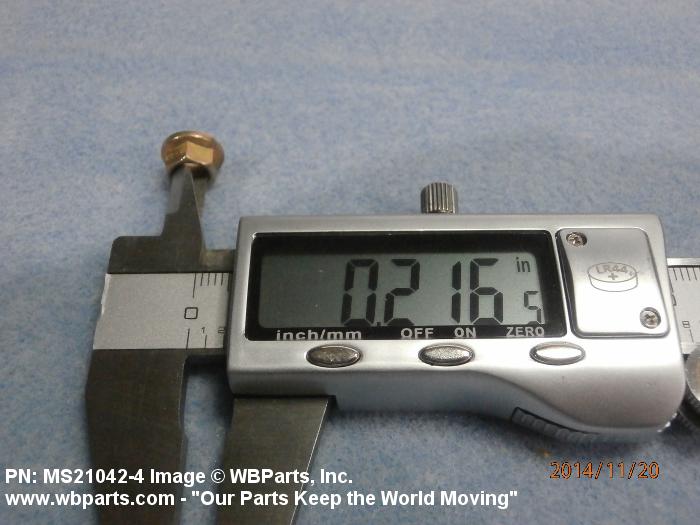

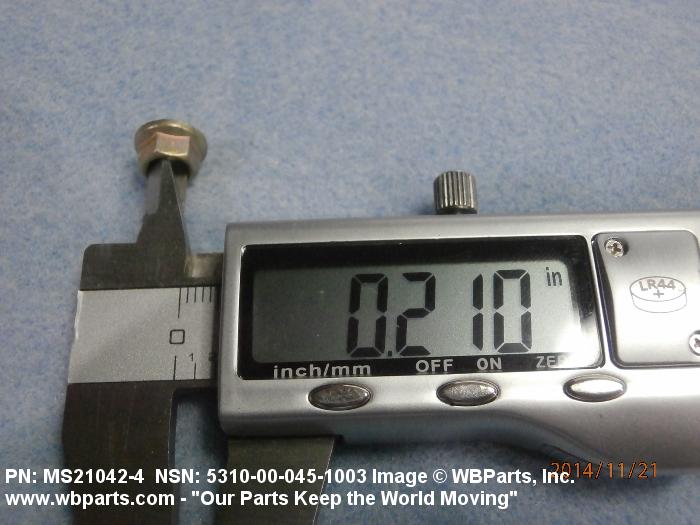

OVERALL HEIGHT	0.204 INCHES MINIMUM AND 0.219 INCHES MAXIMUM
WASHER THICKNESS	0.019 INCHES MINIMUM

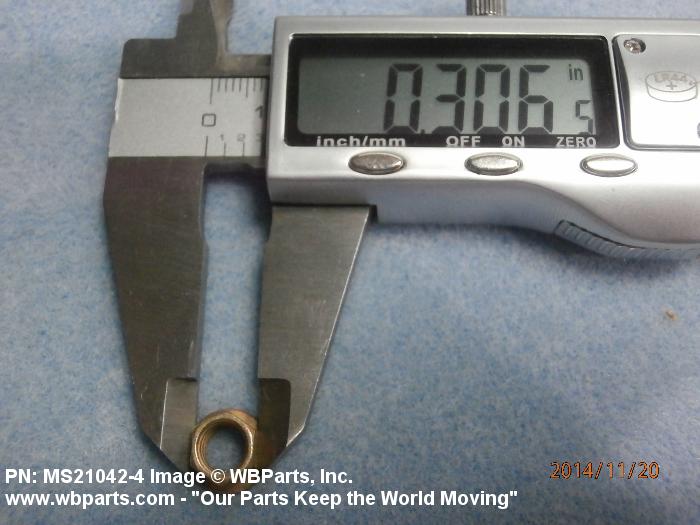

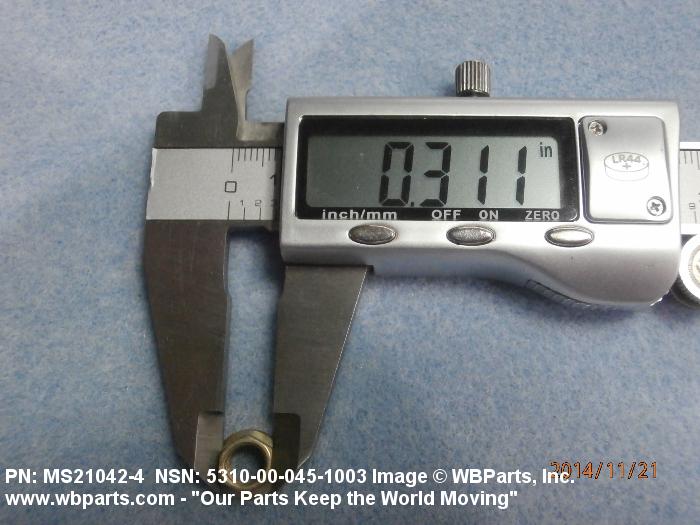

WIDTH ACROSS FLATS	0.304 INCHES MINIMUM AND 0.316 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	SOLUBLE LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
MANUFACTURERS CODE	96906
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS20364-428C

Restrictions/Controls & Freight Information | NSN 5310-00-807-1468

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-807-1468

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SO	TG:SPECIAL OPERATIONAL FORCES (SOF) PECULIAR
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
