NSN 5310-00-807-1472 MS21042C06, MS21042L06, MN16PJ06

Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

5310-00-807-1472 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS21042C06, MS21042L06, MN16PJ06, AS8600B, H14L06, FN12M62, FN12M-62, P26039, RM52LH332462, RM52LH3324-62, T98S632, Z00.N5415371130, Z00N5415371130, 10121714 , 3029766503, 30-297-665-03, 3331422040, 333-1422-040, 000004001330000, 000004001420000, 75523003, 75523-003, 984023, 5310-00-807-1472, 00-807-1472, 5310008071472, 008071472

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-807-1472	29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON )

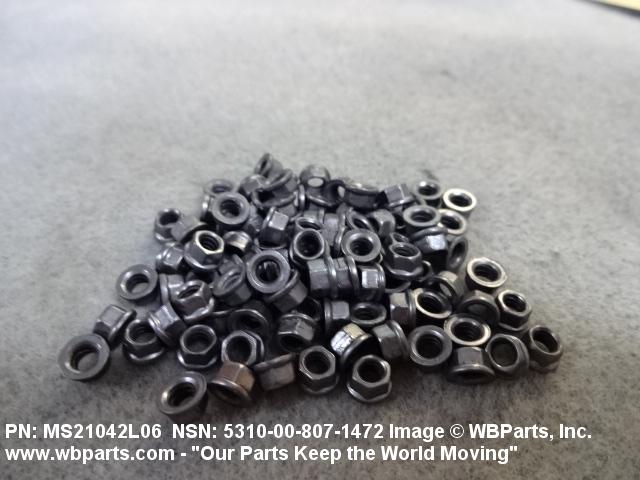

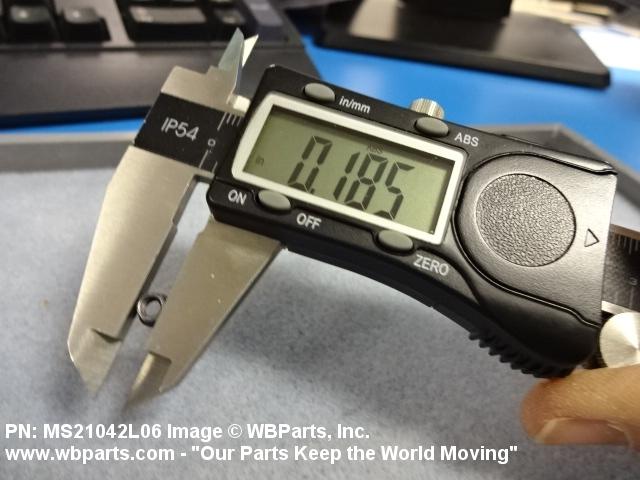

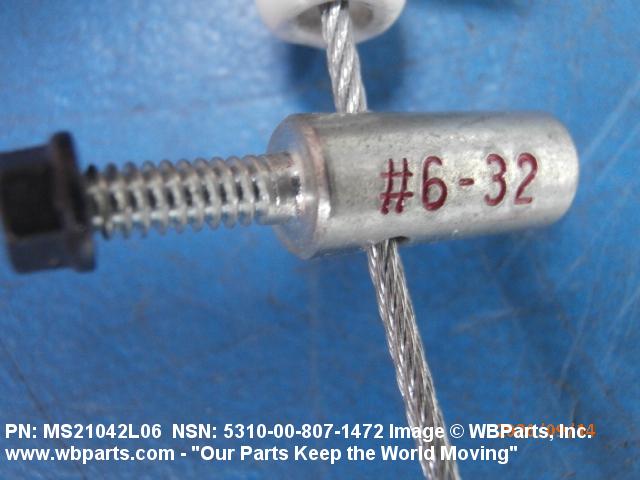

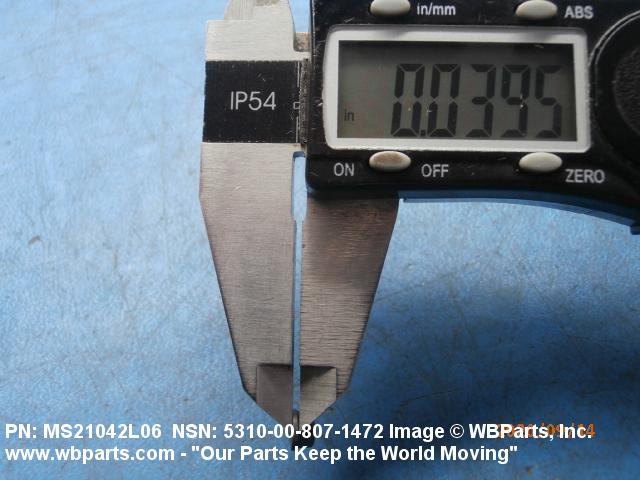

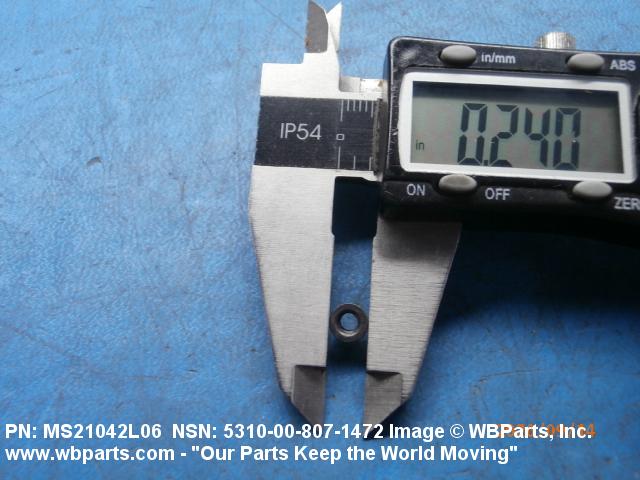

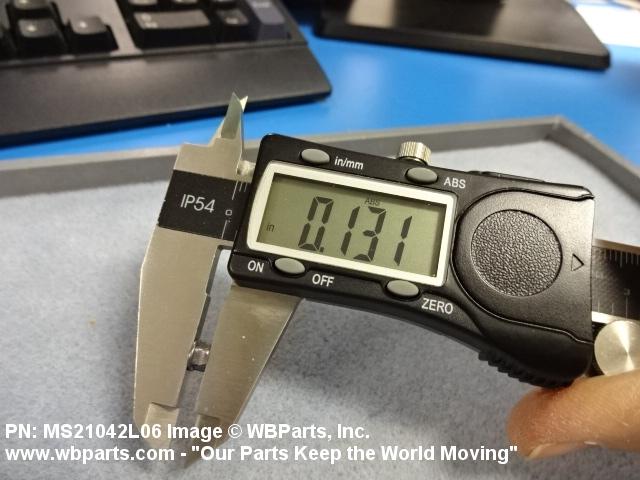

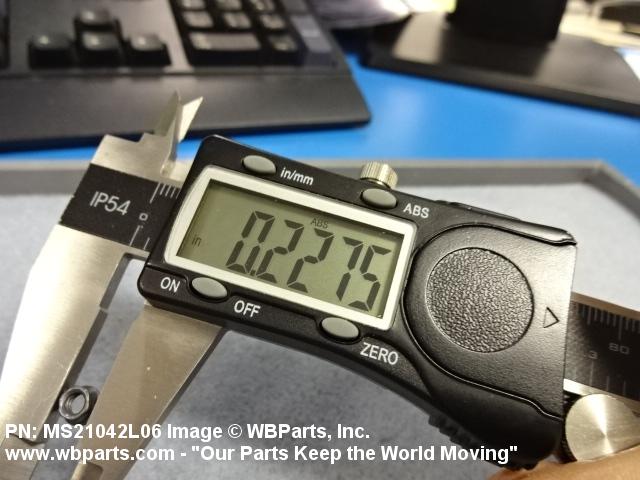

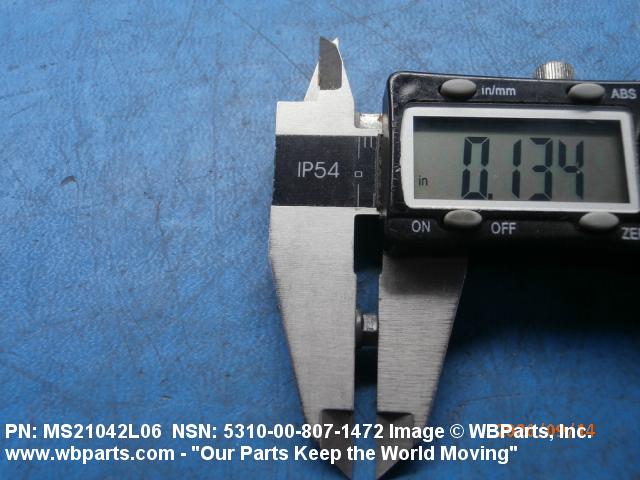

Drawings & Photos | NSN 5310-00-807-1472

Part Number	Request Date	QTY	Origin
MS21042L06	2024-08-215	4	Japan
MS21042L06	2022-12-347	272	United States
MS21042L06	2022-02-48	6	United States
MS21042L06	2021-12-361	200	Sri Lanka
MS21042L06	2021-10-300	100	United States
MS21042L06	2021-08-230	60	IN
5310-00-807-1472	2021-08-214	100	US
5310-00-807-1472	2021-02-36	155	US
MS21042L06	2020-10-290	25	United States
MS21042L06	2020-08-232	180	United States
5310-00-807-1472	2019-08-233	500	United States
5310-00-807-1472	2019-08-220	500	United States
MS21042L06	2019-02-42	50	Lebanon
MS21042L06	2017-08-233	20	US
MS21042L06	2017-03-89	100	Korea
MS21042L06	2017-03-79	10	United States
5310-00-807-1472	2016-01-19	618	DIBBS
5310-00-807-1472	2015-12-348	10	US
5310-00-807-1472	2015-09-256	1739	DIBBS
5310-00-807-1472	2015-08-225	1	DIBBS-RFPs
5310-00-807-1472	2015-06-162	4	US
MS21042L06	2015-05-142	45	United States
5310-00-807-1472	2015-05-130	423	DIBBS
MS21042L06	2015-04-91	20	Greece
5310-00-807-1472	2015-03-84	988	DIBBS
5310-00-807-1472	2015-02-55	988	DIBBS
MS21042L06	2015-02-36	104	US
5310-00-807-1472	2015-02-32	557	DIBBS
5310-00-807-1472	2015-01-01	921	DIBBS
5310-00-807-1472	2014-12-364	9792	United States
MS21042L06	2014-10-295	1	TH
MS21042L06	2014-10-275	300	US
5310-00-807-1472	2014-09-266	243	DIBBS
MS21042L06	2014-08-234	8	Seychelles
MS21042L06	2014-08-234	2	TH
5310-00-807-1472	2014-07-208	455	DIBBS
MS21042L06	2014-04-118	1	US
5310-00-807-1472	2014-03-78	699	DIBBS
MS21042L06	2013-05-122	1702	United Kingdom
MS21042L06	2013-03-74	0	United States
MS21042L06	2013-01-07	20	Indonesia
5310-00-807-1472	2012-11-318	140	United States
MS21042L06	2012-08-242	4	US
MS21042L06	2012-05-136	16	UK
MS21042L06	2012-01-26	60	United States
MS21042L06	2011-09-257	500	PK
5310-00-807-1472	2011-09-257	500	PK
MS21042L06	2011-09-255	500	PK
5310-00-807-1472	2011-09-250	500	SG
MS21042L06	2011-06-157	36	US
MS21042L06	2011-05-137	24	United States
5310-00-807-1472	2011-03-87	30	United States
5310-00-807-1472	2011-03-80	450	DIBBS
5310-00-807-1472	2011-03-66	120	LK
5310-00-807-1472	2010-12-347	1021	DIBBS
MS21042L06	2010-10-293	2	US
5310-00-807-1472	2010-09-266	2117	DIBBS
MS21042L06	2010-08-229	10	United States
5310-00-807-1472	2010-08-216	50	United States
MS21042L06	2010-06-153	100	Taiwan
MS21042L06	2010-05-145	100	Taiwan
5310-00-807-1472	2009-09-264	15	US
5310-00-807-1472	2009-08-222	28	US
5310-00-807-1472	2009-06-170	65	US
MS21042L06	2009-04-92	2000	United States
MS21042L06	2009-03-82	10	US
5310-00-807-1472	2009-02-58	250	India
5310-00-807-1472	2009-01-14	4082	DIBBS
5310-00-807-1472	2008-11-322	250	United States
5310-00-807-1472	2008-10-303	5130	DIBBS
MS21042L06	2008-10-291	20	India
5310-00-807-1472	2008-06-178	400	Colombia
5310-00-807-1472	2008-06-154	200	US
5310-00-807-1472	2007-05-122	2000	China
5310-00-807-1472	2006-12-338	90	US

Cross Reference | NSN 5310-00-807-1472

Part Number	Cage Code	Manufacturer
000004001330000	F0554	ALKAN
000004001420000	F0554	ALKAN
30-297-665-03	K5294	GE AVIATION SYSTEMS LTD
333-1422-040	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
75523-003	52969	CERADYNE, INC.
984023	F0754	SOC EXPLOITATION MATERIELS MARTINBAKER
AS8600B	60119	MONADNOCK COMPANY THE DBA LISI AEROSPACE
AS8600B	U1653	SOCIETY OF BRITISH AEROSPACE COMPANI LTD SBAC
FN12M-62	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
H14L06	15653	ALCOA GLOBAL FASTENERS, INC.
H14L06	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
H14L06	F6033	TECNOTEC SARL
H14L06	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
H14L06	K1678	FAIRCHILD FASTENERS UK LTD
H14L06	K6405	KAYNAR MICRODOT AEROSPACE
H14L06	R1120	SATAIR A/S
MN16PJ06	73197	HI-SHEAR CORPORATION
MN16PJ06	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
MN16PJ06	L4528	LISI AEROSPACE CANADA CORP
MN16PJ06	R1120	SATAIR A/S
MS21042C06	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21042L06	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21042L06	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21042L06	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
P26039	D1131	AUTOFLUG GMBH DBA AUTOFLUG SICHERHEITSGERATE
RM52LH3324-62	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
RM52LH3324-62	72962	HARVARD INDUSTRIES INC
T98S632	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
Z00.N5415371130	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-807-1472

Compare

Related Products | NSN 5310-00-807-1472

5310-00-807-1473, 5310-00-807-1474, 5310-00-807-1475, 5310-00-807-1476, 5310-00-807-1477

Technical Data | NSN 5310-00-807-1472

Characteristic	Specifications
THREAD SERIES	UNJC
NOMINAL THREAD SIZE	0.138 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A294 HEXAGON
WASHER OUTSIDE DIAMETER	0.244 INCHES MAXIMUM
OVERALL HEIGHT	0.115 INCHES MINIMUM AND 0.141 INCHES MAXIMUM
WASHER THICKNESS	0.010 INCHES MINIMUM
WIDTH ACROSS FLATS	0.181 INCHES MINIMUM AND 0.190 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL

Restrictions/Controls & Freight Information | NSN 5310-00-807-1472

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-807-1472

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Operational Test Code	0	Items of supply which when properly packaged and placed in storage, do not require the performance of special procedures while in storage, nor prior to issue, and for which it has been determined that existing Care in Stores quality control procedures are adequate.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
