NSN 5310-00-807-1477 MS21042L6, N135957, CIPRDMS21042L6

Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

5310-00-807-1477 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS21042L6, N135957, CIPRDMS21042L6, CIPRD-MS21042-L6 , H14-6, FN12M064, FN12M-064, GN10U624, RM52LH3324064, RM52LH3324-064, T98S624, Z00.N5415371413, Z00N5415371413, H146, 2110079, 24932623, 2493262-3, 25009298, 2500929-8, 984051, 5310-00-807-1477, 00-807-1477, 5310008071477, 008071477

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-807-1477	29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON )

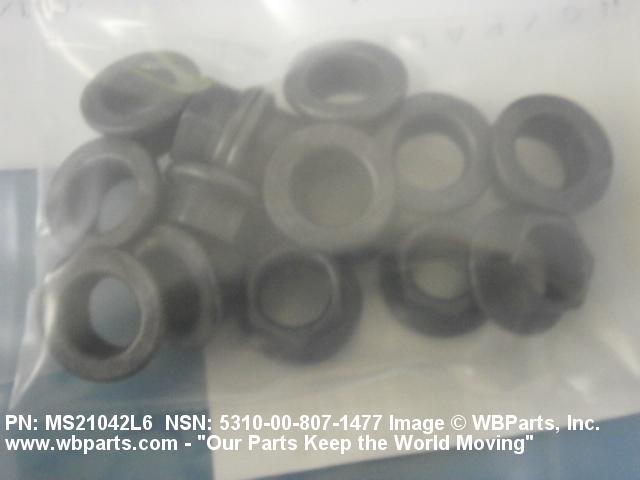

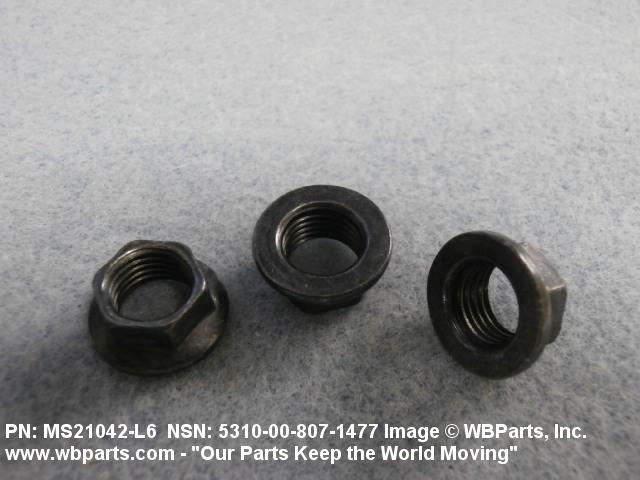

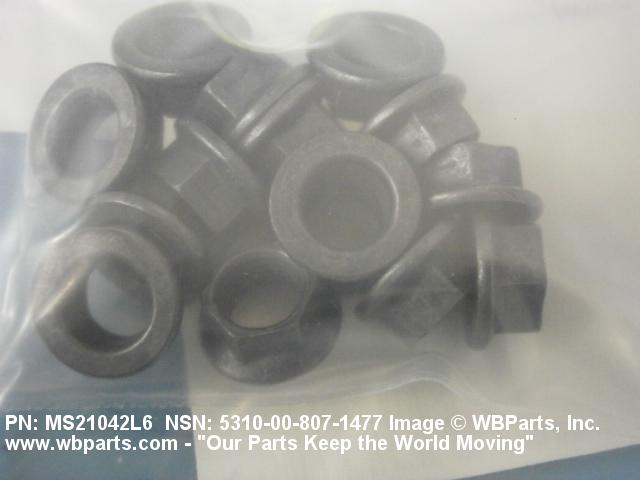

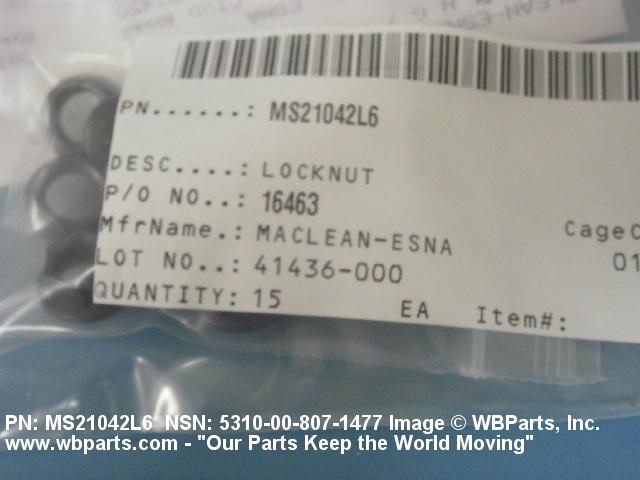

Drawings & Photos | NSN 5310-00-807-1477

Part Number	Request Date	QTY	Origin
MS21042L6	2024-05-30	32	US
MS21042L6	2024-04-24	11	Lithuania
MS21042L6	2023-12-01	10	Lithuania
MS21042L6	2023-10-17	66	us
MS21042L6	2023-10-05	315	United States
MS21042L6	2023-10-03	12	US
MS21042L6	2023-10-03	2	CA
MS21042L6	2023-08-22	144	United States
MS21042L6	2022-08-23	50	United States
MS21042L6	2022-04-12	14	US
MS21042L6	2021-09-16	106	United States
MS21042L6	2021-08-26	300	US
5310-00-807-1477	2021-06-08	100	United States
MS21042L6	2021-06-08	100	United States
MS21042L6	2021-01-05	2	AT
5310-00-807-1477	2020-09-08	50	SA
5310-00-807-1477	2020-09-04	1	DIBBS-RFPs
MS21042L6	2020-05-22	275	US
5310-00-807-1477	2020-04-10	1	DIBBS-RFPs
MS21042L6	2020-03-16	800	United States
MS21042L6	2020-03-06	100	Hong Kong
MS21042L6	2020-03-06	100	Hong Kong
MS21042L6	2019-12-12	230	United States
MS21042L6	2019-11-13	40	United States
MS21042L6	2019-09-30	40	United States
MS21042L6	2019-08-07	15	United States
5310-00-807-1477	2019-06-12	18	United States
MS21042L6	2019-06-12	25	United States
MS21042L6	2019-03-21	12	us
MS21042L6	2019-03-07	16	United States
MS21042L6	2019-02-11	50	Lebanon
MS21042L6	2019-01-31	7000	AU
MS21042L6	2017-09-03	5000	IR
MS21042L6	2017-08-21	50	US
MS21042L6	2017-07-28	5000	China
5310-00-807-1477	2017-05-22	2	United States
MS21042L6	2017-03-20	10	United States
5310-00-807-1477	2017-02-22	18	MANUAL
MS21042L6	2017-01-25	15	us
MS21042L6	2016-07-19	100	US
MS21042L6	2016-07-18	100	US
MS21042L6	2016-06-22	5	US
MS21042L6	2016-04-18	4500	us
MS21042L6	2016-01-28	385	US
5310-00-807-1477	2015-08-13	1	DIBBS-RFPs
5310-00-807-1477	2015-06-30	50000	DIBBS
MS21042L6	2015-05-12	80	United States
5310-00-807-1477	2015-04-20	51704	DIBBS
5310-00-807-1477	2015-02-05	136	DIBBS
5310-00-807-1477	2015-02-05	12015	DIBBS
MS21042L6	2014-12-09	8	United States
MS21042L6	2014-09-02	4	Australia
MS21042L6	2014-08-20	62	Australia
MS21042L6	2014-08-20	62	United States
MS21042L6	2014-08-20	62	United States
MS21042L6	2014-08-15	62	Australia
5310-00-807-1477	2014-08-14	30690	DIBBS
5310-00-807-1477	2014-03-27	160000	DIBBS
5310-00-807-1477	2014-03-14	20	United States
MS21042L6	2013-06-28	84	United States
MS21042L6	2013-06-28	144	United States
5310-00-807-1477	2013-06-24	106344	DIBBS
MS21042L6	2013-05-14	5	CZ
MS21042L6	2013-04-19	4	US
MS21042L6	2013-03-20	4	United States
MS21042L6	2013-01-30	2	United Kingdom
MS21042L6	2012-08-30	406	AR
MS21042L6	2012-03-13	15	Taiwan
5310-00-807-1477	2012-03-12	280	MANUAL
MS21042L6	2012-03-12	280	TW
MS21042L6	2011-12-21	100	US
MS21042L6	2011-10-07	4	UK
5310-00-807-1477	2010-12-27	16	US
5310-00-807-1477	2010-05-24	200	us
5310-00-807-1477	2009-12-04	4	US
5310-00-807-1477	2009-07-30	6	US
5310-00-807-1477	2009-03-23	12	YU
5310-00-807-1477	2008-08-07	250	US
5310-00-807-1477	2008-06-02	10	US
5310-00-807-1477	2008-04-03	10	US
5310-00-807-1477	2008-02-14	50	BE
MS21042L6	2007-02-15	2000	Czech Republic
5310-00-807-1477	2006-07-08	20	Austria

Cross Reference | NSN 5310-00-807-1477

Part Number	Cage Code	Manufacturer
2110079	001JK	EMBRAER S/A
2110079	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
2493262-3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
2500929-8	07187	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
984051	F0754	SOC EXPLOITATION MATERIELS MARTINBAKER
CIPRD-MS21042-L6	14153	DEFENSE LOGISTICS AGENCY DBA DEFENSE SUPPLY CENTER
FN12M-064	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
GN10U624	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
H14-6	15653	ALCOA GLOBAL FASTENERS, INC.
H14-6	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
H14-6	F6033	TECNOTEC SARL
H14-6	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
H14-6	R1120	SATAIR A/S
MS21042L6	27238	BRISTOL INDUSTRIES
MS21042L6	52828	REPUBLIC FASTENER MFG. CORP.
MS21042L6	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21042L6	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
MS21042L6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N135957	K0642	GOODRICH ACTUATION SYSTEMS LTD
RM52LH3324-064	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
RM52LH3324-064	72962	HARVARD INDUSTRIES INC
T98S624	05693	CHERRY TEXTRON INC CHERRY COMMERCIAL FASTENERS PRODUCTS
T98S624	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
Z00.N5415371413	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-807-1477

Compare

Related Products | NSN 5310-00-807-1477

5310-00-807-1492, 5310-00-807-1512, 5310-00-807-1582, 5310-00-807-1740, 5310-00-807-1743

Technical Data | NSN 5310-00-807-1477

Characteristic	Specifications
THREAD SERIES	UNJF

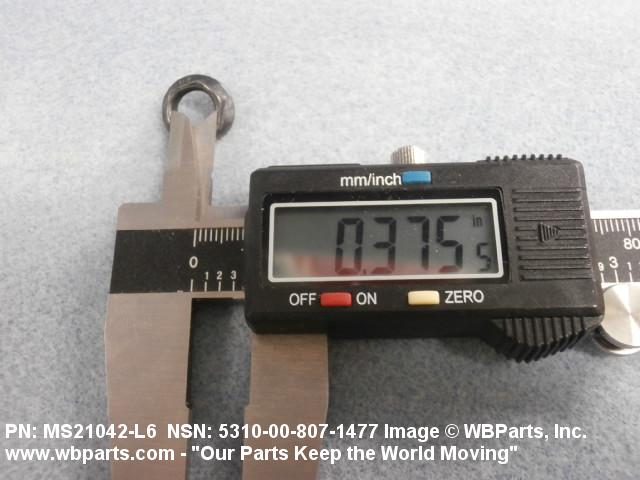

NOMINAL THREAD SIZE	0.375 INCHES
THREAD QUANTITY PER INCH	24
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A294 HEXAGON

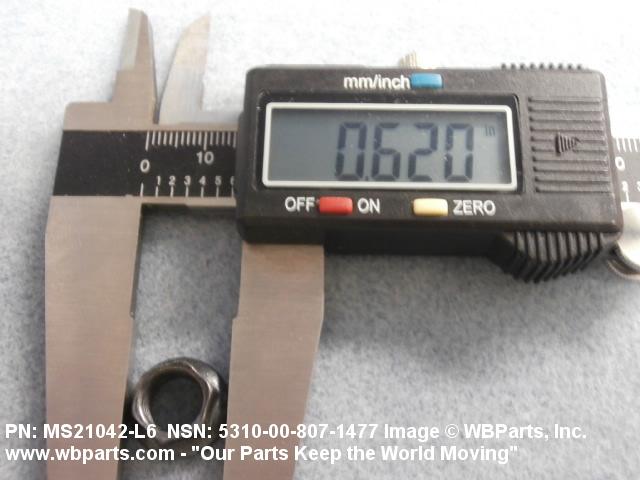

WASHER OUTSIDE DIAMETER	0.620 INCHES MAXIMUM
OVERALL HEIGHT	0.267 INCHES MINIMUM AND 0.282 INCHES MAXIMUM
WASHER THICKNESS	0.030 INCHES MINIMUM

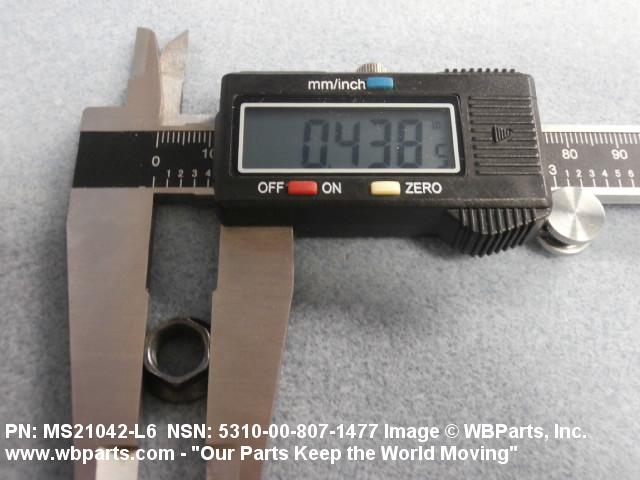

WIDTH ACROSS FLATS	0.430 INCHES MINIMUM AND 0.440 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
SPECIFICATION/STANDARD DATA	26512-GN10U MANUFACTURERS STANDARD

Restrictions/Controls & Freight Information | NSN 5310-00-807-1477

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-807-1477

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each
