NSN 5310-00-807-1471 MS210421L04, MS21042L04, MS21042-L04

Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

5310-00-807-1471 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS210421L04, MS21042L04, MS21042-L04, C119990010, C11999-0010, FN12M40, FN12M-40, T98S440, 63430600, 6343-0600 , HL04, 000004001320000, 10121713, 25009292, 2500929-2, 3331422020, 333-1422-020, 3340002050, 334-0002-050, 5310-00-807-1471, 00-807-1471, 5310008071471, 008071471

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-807-1471	29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON )

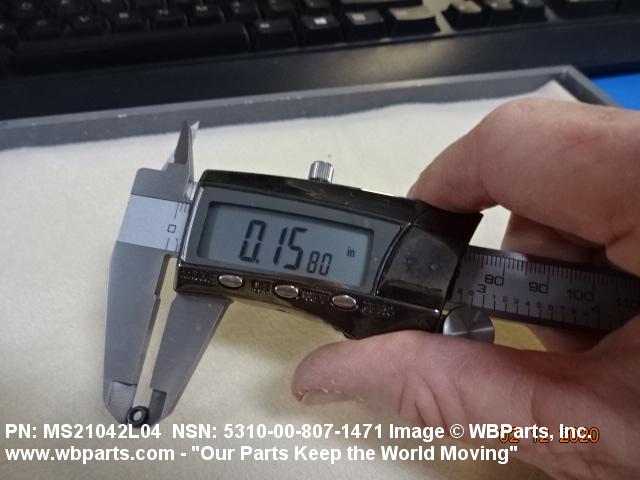

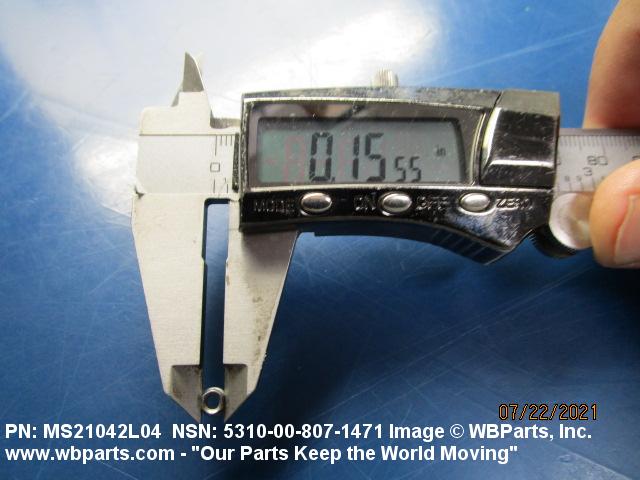

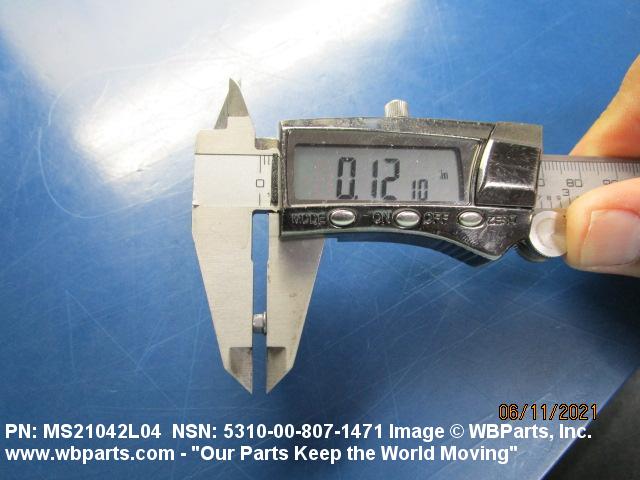

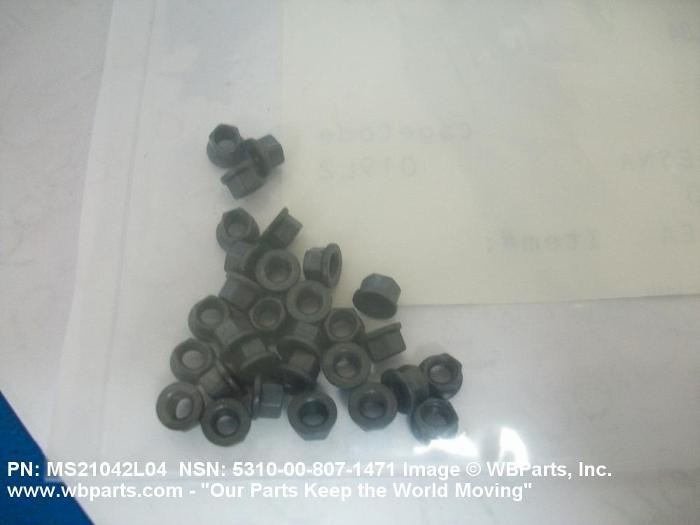

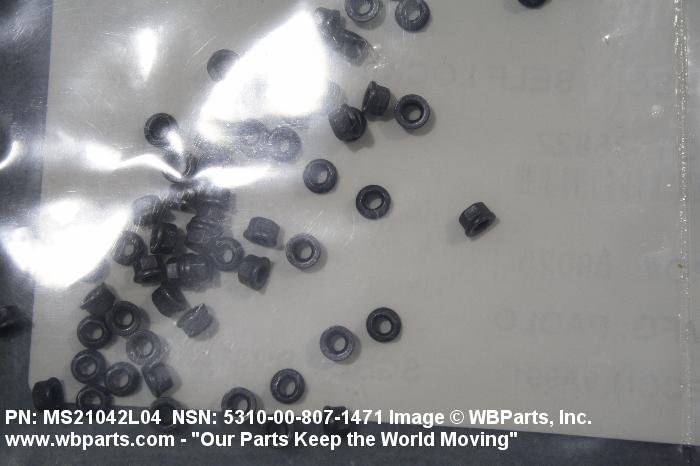

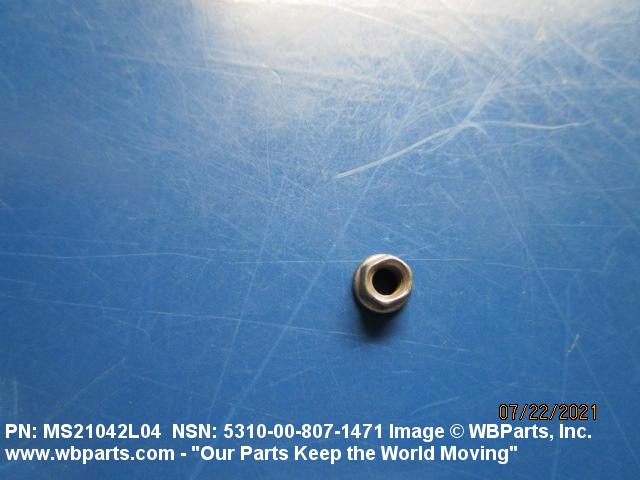

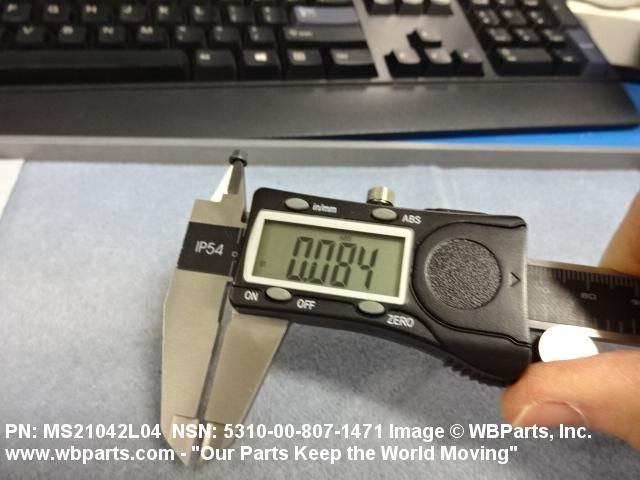

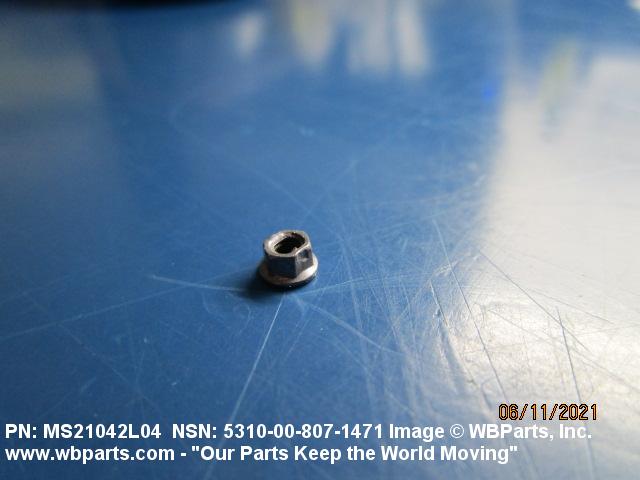

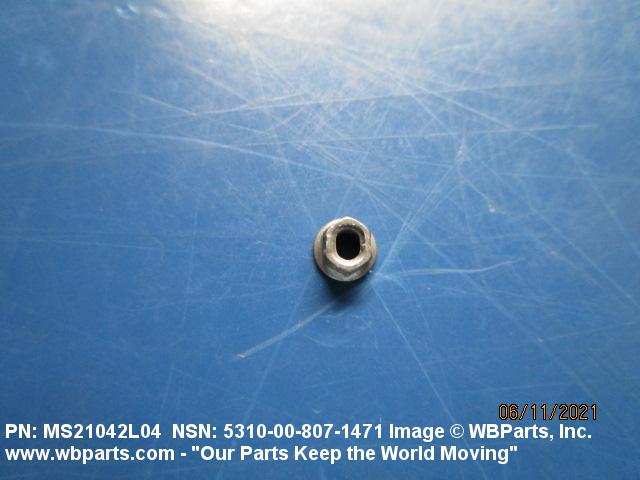

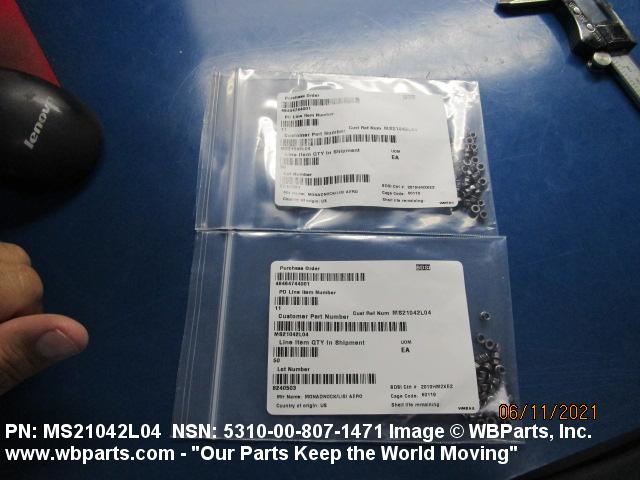

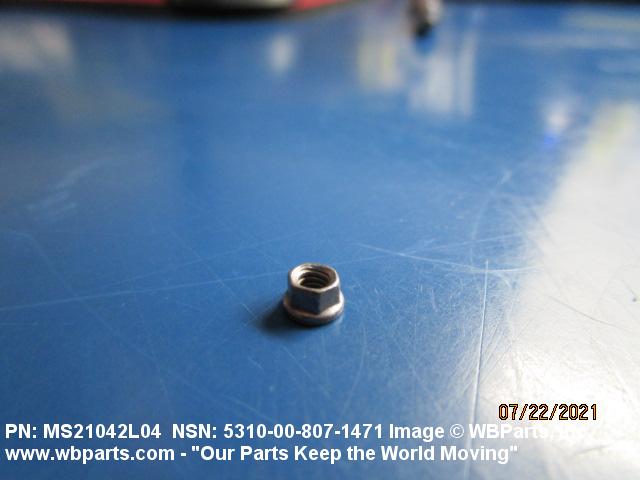

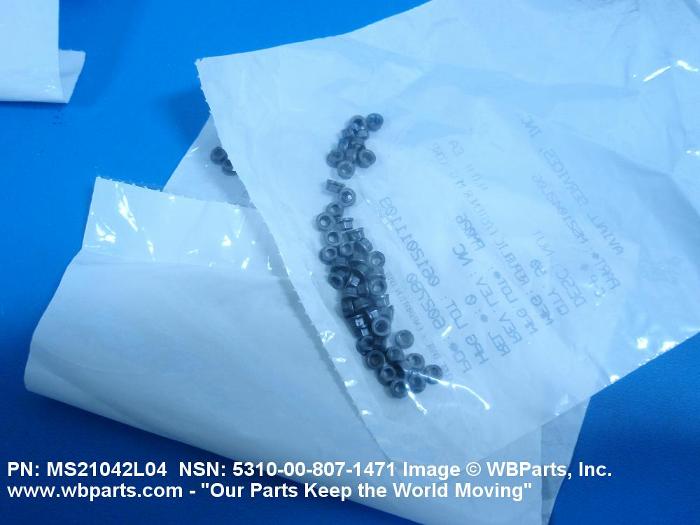

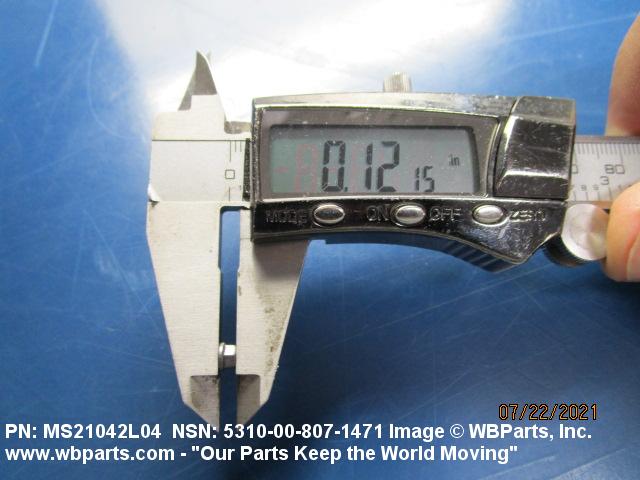

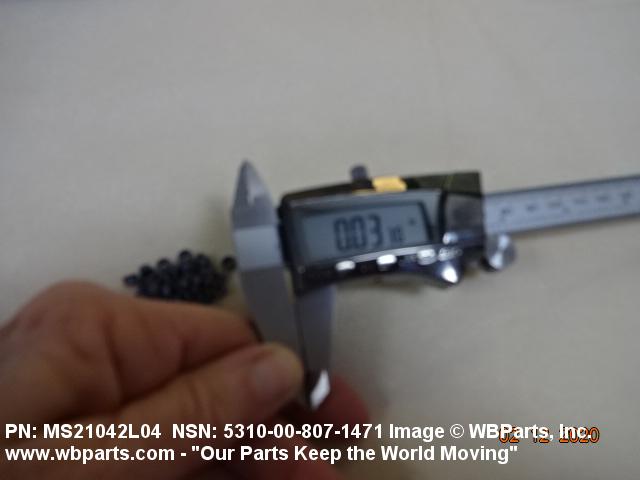

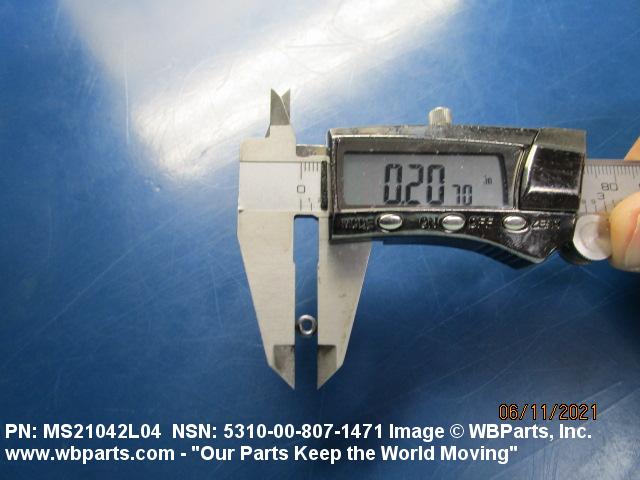

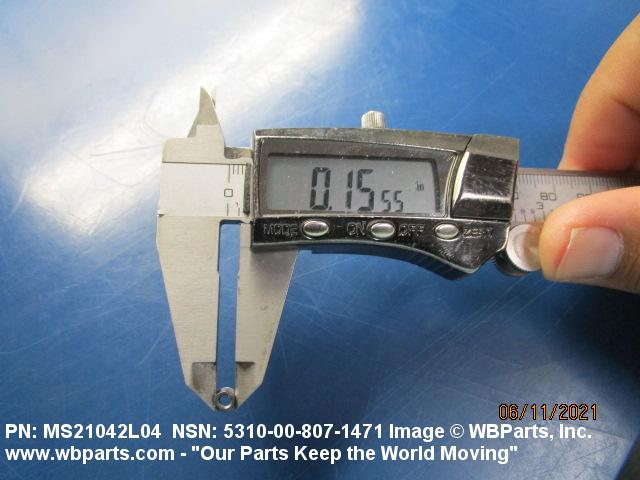

Drawings & Photos | NSN 5310-00-807-1471

Part Number	Request Date	QTY	Origin
MS21042L04	2023-10-03	30	Taiwan
5310-00-807-1471	2023-07-12	15	Spain
MS21042L04	2023-02-28	100	IN
MS21042L04	2022-09-09	3	United States
MS21042L04	2022-09-09	48	United States
MS21042L04	2022-02-17	32	United States
MS21042L04	2022-02-09	10	United States
MS21042L04	2021-08-26	300	US
5310-00-807-1471	2021-06-01	100	United States
MS21042L04	2021-04-01	40	Thailand
5310-00-807-1471	2020-09-24	1	DIBBS-RFPs
MS21042L04	2020-04-09	4	US
MS21042L04	2020-02-13	92	United States
5310-00-807-1471	2019-08-21	1000	United States
5310-00-807-1471	2019-08-08	1000	United States
MS21042L04	2019-05-30	4	United States
MS21042L04	2019-03-07	100	United States
5310-00-807-1471	2018-01-11	200	Brazil
MS21042L04	2017-08-21	152	US
5310-00-807-1471	2017-08-02	60	Malaysia
5310-00-807-1471	2017-02-22	72	MANUAL
5310-00-807-1471	2016-01-10	253	DIBBS
5310-00-807-1471	2015-08-13	1	DIBBS-RFPs
MS21042L04	2015-07-08	60	United States
MS21042L04	2015-04-01	60	Greece
5310-00-807-1471	2015-01-25	504	DIBBS
5310-00-807-1471	2014-12-02	300	DIBBS
MS21042L04	2014-11-13	84	United States
5310-00-807-1471	2014-08-05	100	United States
5310-00-807-1471	2014-06-29	294	DIBBS
MS21042L04	2014-06-02	50	CN
MS21042L04	2014-06-02	1200	CN
5310-00-807-1471	2014-03-11	451	DIBBS
5310-00-807-1471	2014-01-22	55	US
5310-00-807-1471	2014-01-22	55	US
5310-00-807-1471	2013-12-16	226	DIBBS
MS21042L04	2013-08-13	5	US
MS21042L04	2013-05-14	50	CZ
MS21042L04	2013-03-15	0	United States
MS21042L04	2012-11-06	100	Taiwan
MS21042L04	2012-10-30	16	Taiwan
MS21042L04	2012-09-10	12	United States
5310-00-807-1471	2012-04-23	20	Canada
MS21042L04	2011-09-14	500	PK
5310-00-807-1471	2011-09-14	500	PK
MS21042L04	2011-09-12	400	PK
5310-00-807-1471	2011-06-30	2500	US
5310-00-807-1471	2011-06-30	20000	US
Ms21042L04	2011-06-27	20	United States
MS21042L04	2011-06-24	24	United States
MS21042L04	2011-05-17	4	United States
MS21042L04	2011-01-14	50	United States
MS21042L04	2011-01-13	50	US
MS21042L04	2010-12-22	50	US
5310-00-807-1471	2010-09-09	40	US
5310-00-807-1471	2010-08-24	332	US
MS21042L04	2010-02-12	15	US
5310-00-807-1471	2010-01-25	176	US
5310-00-807-1471	2009-07-28	773	DIBBS
5310-00-807-1471	2009-07-27	2500	United States
5310-00-807-1471	2009-02-10	2710	DIBBS
5310-00-807-1471	2008-11-17	500	United States
5310-00-807-1471	2008-07-17	150	IL
5310-00-807-1471	2008-06-12	10000	US
5310-00-807-1471	2008-06-02	10	US

Cross Reference | NSN 5310-00-807-1471

Part Number	Cage Code	Manufacturer
000004001320000	F0554	ALKAN
2500929-2	07187	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
333-1422-020	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
334-0002-050	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
6343-0600	96487	VALCOR ENGINEERING CORP
C11999-0010	U8539	ROSEMOUNT AEROSPACE LTD
FN12M-40	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
HL04	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
MS21042-L04	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS210421L04	2N335	PATTONAIR USA, INC. DBA PATTONAIR
MS21042L04	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21042L04	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
T98S440	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-807-1471

Compare

Related Products | NSN 5310-00-807-1471

5310-00-807-1472, 5310-00-807-1473, 5310-00-807-1474, 5310-00-807-1475, 5310-00-807-1476

Technical Data | NSN 5310-00-807-1471

Characteristic	Specifications
THREAD SERIES	UNJC
NOMINAL THREAD SIZE	0.112 INCHES
THREAD QUANTITY PER INCH	40
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	46.0 ROCKWELL C MAXIMUM
NUT STYLE	A294 HEXAGON

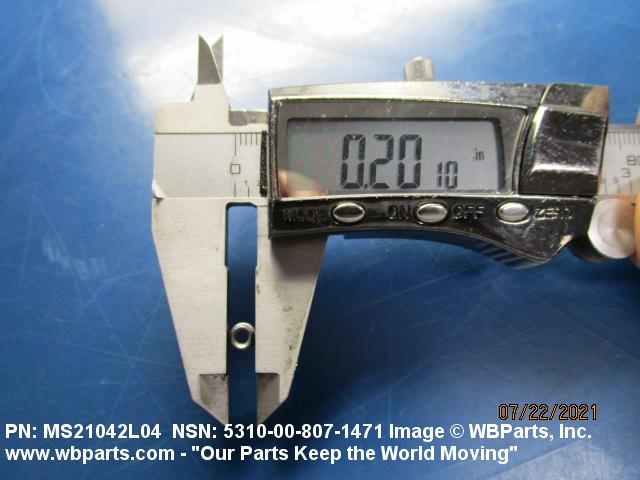

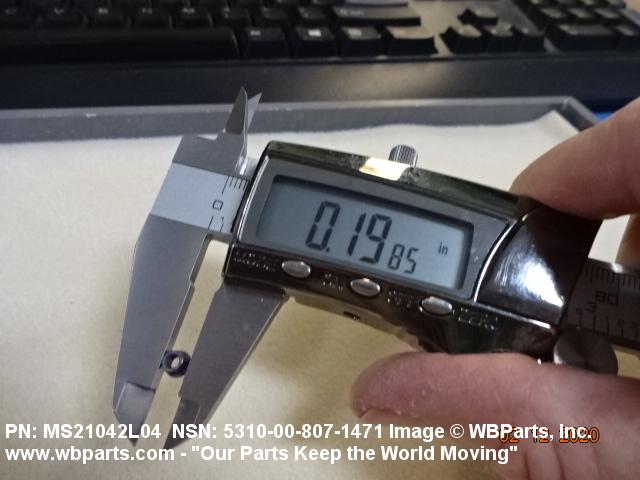

WASHER OUTSIDE DIAMETER	0.206 INCHES MAXIMUM

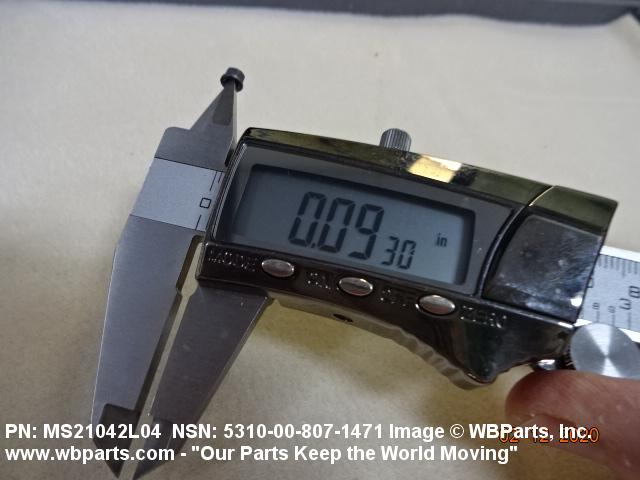

OVERALL HEIGHT	0.103 INCHES MINIMUM AND 0.125 INCHES MAXIMUM
WASHER THICKNESS	0.010 INCHES MINIMUM

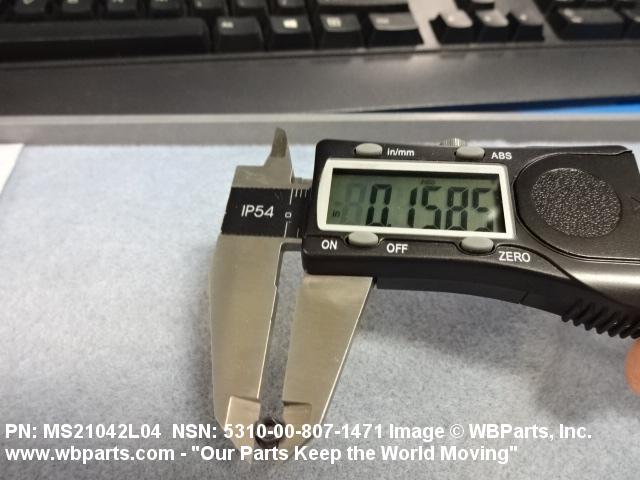

WIDTH ACROSS FLATS	0.150 INCHES MINIMUM AND 0.158 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL

Restrictions/Controls & Freight Information | NSN 5310-00-807-1471

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-807-1471

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	GC	TG:UH/60A BLACKHAWK
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
