NSN 5310-00-807-1465 MS2104206, MS21042-06, MN1606

Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

5310-00-807-1465 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS2104206, MS21042-06, MN1606, MN16-06, NAS679X06, A.S. 8600B, AN364632C, AN364-632C, AS8600B, H14L06CW, T98S632CPC, D3004366 FIND NO 9, D3004366FINDNO9, FN12A62, FN12A-62, 21FK632, 23185111100, 41380022, 4138-0022, 4575582, 457-5582 , 6300767-06, 96P62W, 96P-62W, 5310-00-807-1465, 00-807-1465, 5310008071465 , 008071465, 630076706

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-807-1465	29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON )

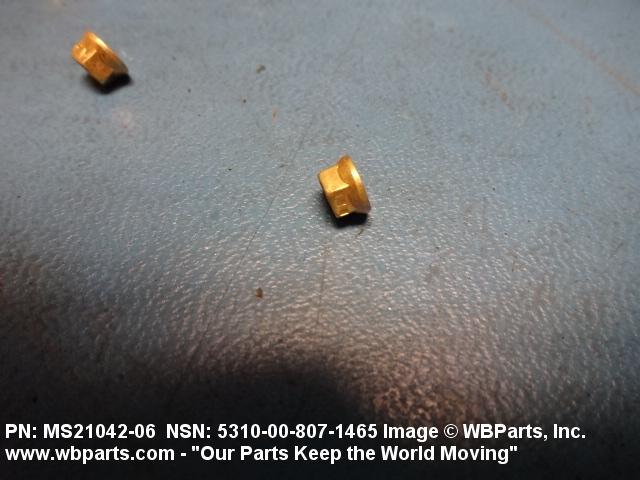

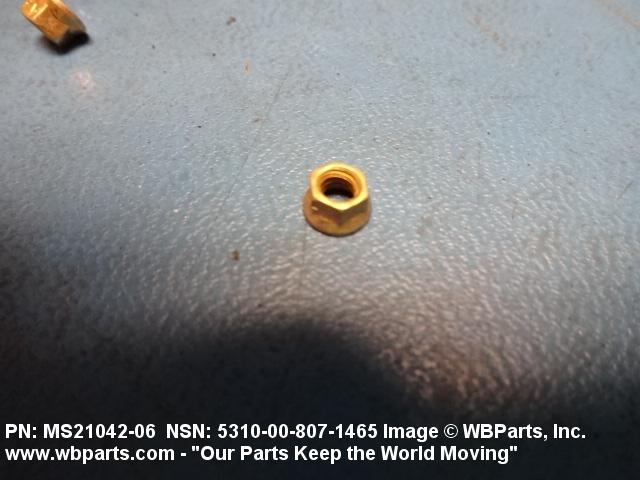

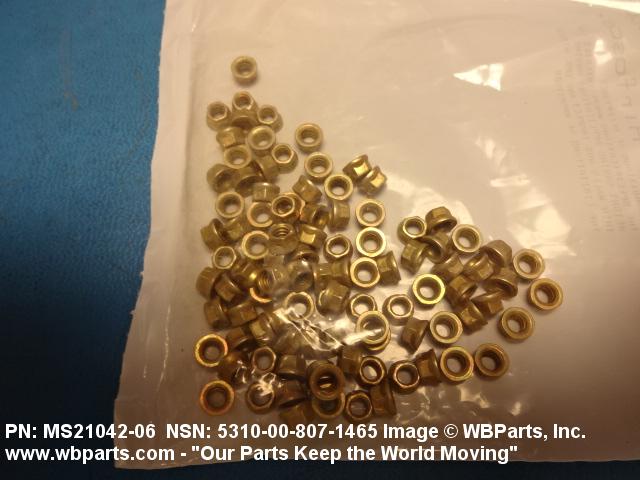

Drawings & Photos | NSN 5310-00-807-1465

Part Number	Request Date	QTY	Origin
MS2104206	2024-10-277	10	US
MS2104206	2022-12-346	6	United States
MS2104206	2022-07-192	68	South Africa
5310-00-807-1465	2021-05-141	5	US
MS2104206	2020-06-163	100	US
MS2104206	2020-01-06	50	United States
MS2104206	2019-12-336	100	US
5310-00-807-1465	2019-05-141	1000	DIBBS
5310-00-807-1465	2019-04-111	656	DIBBS
5310-00-807-1465	2019-04-106	280	Russian Federation
MS21042-06	2019-02-56	200	Turkey
MS2104206	2019-01-23	12	United States
5310-00-807-1465	2018-11-305	100	DIBBS
MS2104206	2018-05-123	2310	China
5310-00-807-1465	2018-01-29	22	DIBBS-KIT
MS21042-06	2018-01-29	22
MS2104206	2017-01-11	1000	Turkey
MS2104206	2016-05-140	4	CN
MS2104206	2016-04-109	5	Indonesia
MS2104206	2016-04-96	23	US
MS21042-06	2015-07-182	67	UK
MS21042-06	2015-06-176	1500	Turkey
MS2104206	2014-09-253	6800	China
MS2104206	2014-07-195	1	US
MS2104206	2014-02-48	100	US
MS2104206	2014-02-43	200	US
MS2104206	2013-11-326	240	United States
MS2104206	2013-09-261	17	United States
MS2104206	2013-06-164	656	US
MS2104206	2013-04-119	990	United States
MS2104206	2013-04-112	50	United States
MS2104206	2012-04-94	25	US
5310-00-807-1465	2012-03-80	2561	DIBBS
5310-00-807-1465	2012-01-27	2561	DIBBS
5310-00-807-1465	2011-08-230	925	DIBBS
5310-00-807-1465	2011-08-214	874	DIBBS
5310-00-807-1465	2011-06-181	879	DIBBS
MS2104206	2011-06-180	4	United States
MS2104206	2011-02-46	96	US
MS2104206	2011-01-14	300	United States
MS2104206	2011-01-13	300	US
5310-00-807-1465	2010-06-165	6	US
MS2104206	2010-05-137	100	US
5310-00-807-1465	2010-03-84	3159	DIBBS
5310-00-807-1465	2010-03-70	1714	DIBBS
5310-00-807-1465	2009-12-364	1714	DIBBS
5310-00-807-1465	2009-09-259	1714	DIBBS
21FK632	2009-03-77	500	France
5310-00-807-1465	2009-02-55	64	United States
5310-00-807-1465	2008-09-266	4	United States
5310-00-807-1465	2007-10-283	3000	United States

Cross Reference | NSN 5310-00-807-1465

Part Number	Cage Code	Manufacturer
21FK632	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
23185111100	S0522	TADIRAN LTD
4138-0022	13467	ASSOCIATED INDUSTRIES A DIV OF ARNOLD A SEMLER INC
5310008071465	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
6300767-06	53711	NAVAL SEA SYSTEMS COMMAND
96P-62W	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
A.S. 8600B	K4975	B/E AEROSPACE CONSUMABLESMANAGEMENT II
A.S. 8600B	K7766	BRITISH STANDARDS INSTITUTION
AN364-632C	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
D3004366 FIND NO 9	3X894	CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV
FN12A-62	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
H14L06CW	15653	ALCOA GLOBAL FASTENERS, INC.
H14L06CW	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
H14L06CW	F6033	TECNOTEC SARL
H14L06CW	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
H14L06CW	R1120	SATAIR A/S
MN16-06	73197	HI-SHEAR CORPORATION
MN16-06	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
MN16-06	L4528	LISI AEROSPACE CANADA CORP
MN16-06	R1120	SATAIR A/S
MS21042-06	2N335	PATTONAIR USA, INC. DBA PATTONAIR
MS21042-06	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21042-06	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS679X06	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
T98S632CPC	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
T98S632CPC	71087	REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-807-1465

Compare

Related Products | NSN 5310-00-807-1465

5310-00-807-1466, 5310-00-807-1467, 5310-00-807-1468, 5310-00-807-1469, 5310-00-807-1471

Technical Data | NSN 5310-00-807-1465

Characteristic	Specifications
THREAD SERIES	UNJC
NOMINAL THREAD SIZE	0.138 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A294 HEXAGON
WASHER OUTSIDE DIAMETER	0.244 INCHES MAXIMUM
OVERALL HEIGHT	0.115 INCHES MINIMUM AND 0.141 INCHES MAXIMUM
WASHER THICKNESS	0.010 INCHES MINIMUM
WIDTH ACROSS FLATS	0.181 INCHES MINIMUM AND 0.190 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	SOLUBLE LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL

Restrictions/Controls & Freight Information | NSN 5310-00-807-1465

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-807-1465

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
