NSN 5310-00-802-7128 324567, 4747A, 00-802-7128
Product Details | SPLIT WASHER
5310-00-802-7128 A washer, round in shape, and having a centrally located hole. Its two flat parallel bearing surfaces are divided or cut along the radius, leaving a cleft, fissure, or cutaway portion across the rim whch extends from the outer circumference to the washer hole but which is never as large as the washer hole diameter. Excludes WASHER (1), LOCK.
Part Alternates: 324567, 4747A, 5310-00-802-7128, 00-802-7128, 5310008027128, 008027128
Hardware and Abrasives | Nuts and Washers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 00-802-7128 | 15937 ( WASHER, SPLIT ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-802-7128
Related Products | NSN 5310-00-802-7128
Technical Data | NSN 5310-00-802-7128

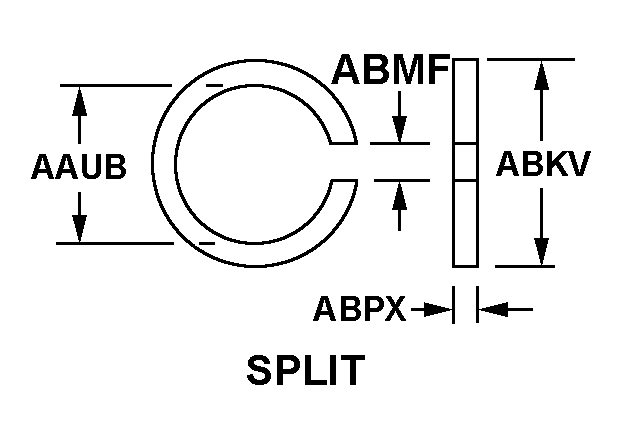

Characteristic | Specifications |
---|---|
MATERIAL | STEEL OVERALL |
STYLE DESIGNATOR | 9 SPLIT |
HOLE DIAMETER | 0.438 INCHES NOMINAL |
OUTSIDE DIAMETER | 0.688 INCHES NOMINAL |
DISTANCE ACROSS SPLIT OPENING | 0.250 INCHES NOMINAL |
MATERIAL THICKNESS | 0.047 INCHES NOMINAL |
FEATURES PROVIDED | MAGNETIZED |
Restrictions/Controls & Freight Information | NSN 5310-00-802-7128
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Category | Code | Description |
---|---|---|
No Freight Information |
