NSN 5310-00-720-8296 BACW10X5, GW502AS1C, 9174583

Product Details | SPLIT WASHER

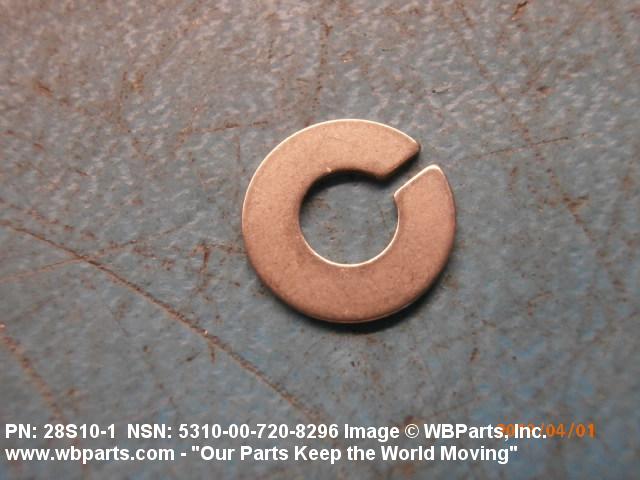

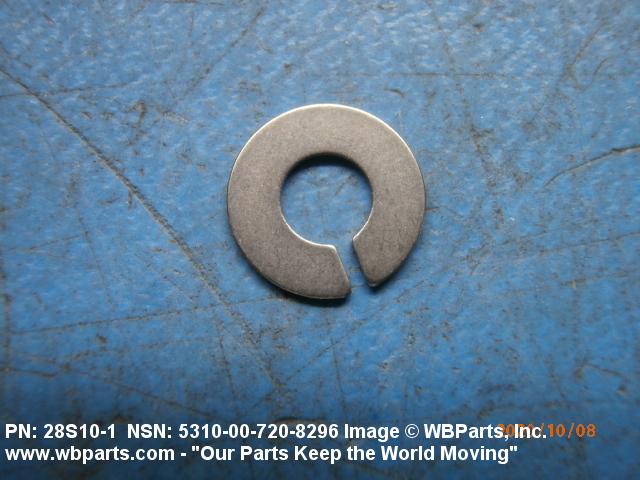

5310-00-720-8296 A washer, round in shape, and having a centrally located hole. Its two flat parallel bearing surfaces are divided or cut along the radius, leaving a cleft, fissure, or cutaway portion across the rim whch extends from the outer circumference to the washer hole but which is never as large as the washer hole diameter. Excludes WASHER (1), LOCK.

Part Alternates: BACW10X5, GW502AS1C, 9174583, 10034237-1, 1048710100, 1048710-100, 272.302 930, 28S101, 28S10-1, 43 691-002, 43691002, 5310-00-720-8296, 00-720-8296, 5310007208296, 272302930, 100342371, 007208296

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-720-8296	15937 ( WASHER, SPLIT )

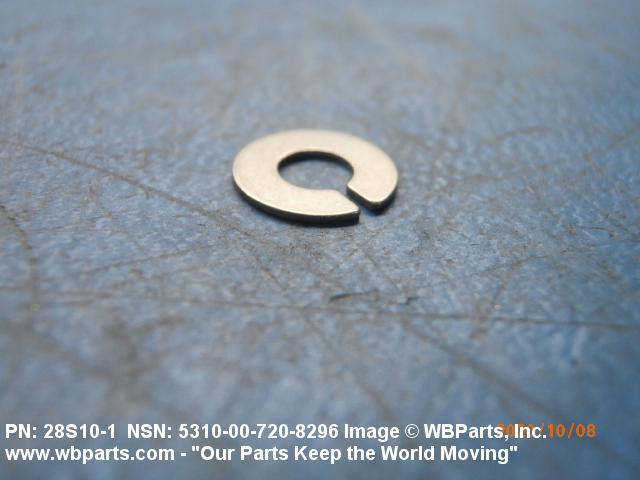

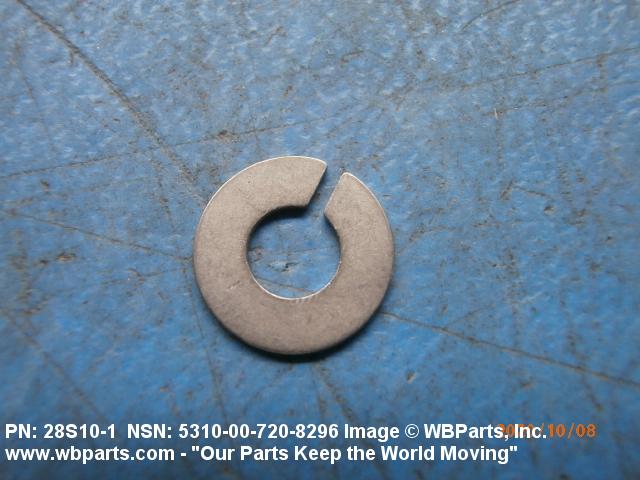

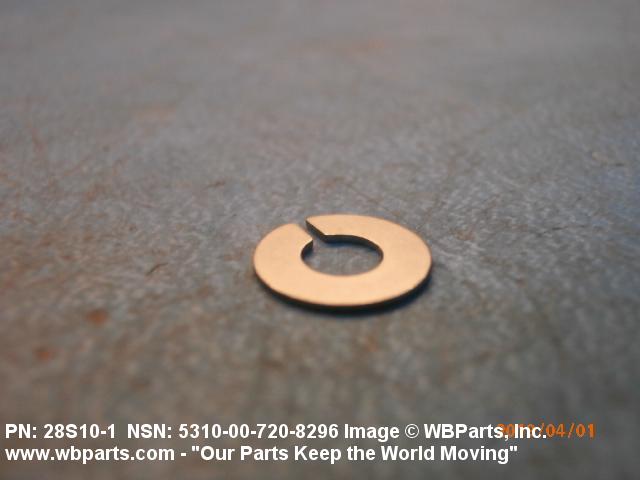

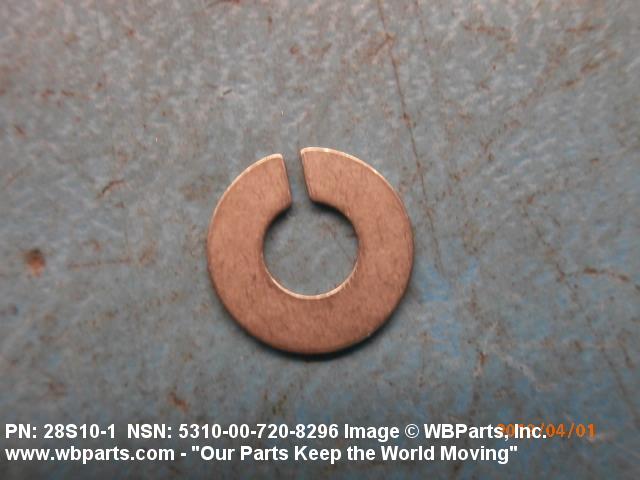

Drawings & Photos | NSN 5310-00-720-8296

Part Number	Request Date	QTY	Origin
5310-00-720-8296	2024-09-269	10718	DIBBS
5310-00-720-8296	2024-07-199	6433	DIBBS
5310-00-720-8296	2024-07-184	6433	DIBBS
5310-00-720-8296	2023-02-54	10505	DIBBS
5310-00-720-8296	2021-10-288	8600	DIBBS
5310-00-720-8296	2021-10-277	8600	DIBBS
100342371	2020-09-273	3	US
5310-00-720-8296	2020-09-273	3	US
100342371	2019-03-80	5	United States
5310-00-720-8296	2019-02-45	1	United States
5310-00-720-8296	2016-12-353	30910	DIBBS
5310-00-720-8296	2016-06-154	16691	DIBBS
5310-00-720-8296	2015-12-364	15986	DIBBS
5310-00-720-8296	2013-10-304	16560	DIBBS
28S101	2012-06-180	2	United States
5310-00-720-8296	2011-07-187	128	United Kingdom
5310-00-720-8296	2010-07-203	200	United States
5310-00-720-8296	2010-03-84	14530	DIBBS
5310-00-720-8296	2010-02-47	200	US
5310-00-720-8296	2008-08-218	19334	DIBBS
5310-00-720-8296	2008-05-137	8089	DIBBS

Cross Reference | NSN 5310-00-720-8296

Part Number	Cage Code	Manufacturer
10034237-1	18876	U S ARMY AVIATION AND MISSILE COMMAND
1048710-100	06840	BENDIX CORP THE
1048710-100	59364	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
272.302 930	D3683	ESW GMBH DIV JENOPTIK DEFENSE AND CIVIL
28S10-1	71286	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
28S10-1	D0680	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC
43 691-002	D9853	ROCKWELL COLLINS DEUTSCHLAND SERVICES GMBH
9174583	18876	U S ARMY AVIATION AND MISSILE COMMAND
BACW10X5	77272	THE BOEING COMPANY DBA BOEING
BACW10X5	81205	THE BOEING COMPANY DBA BOEING
GW502AS1C	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-720-8296

Compare

Related Products | NSN 5310-00-720-8296

5310-00-720-8305, 5310-00-720-8314, 5310-00-720-8315, 5310-00-720-8324, 5310-00-720-8362

Technical Data | NSN 5310-00-720-8296

Characteristic	Specifications
MATERIAL	STEEL COMP 302 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-766,COND A FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	9 SPLIT

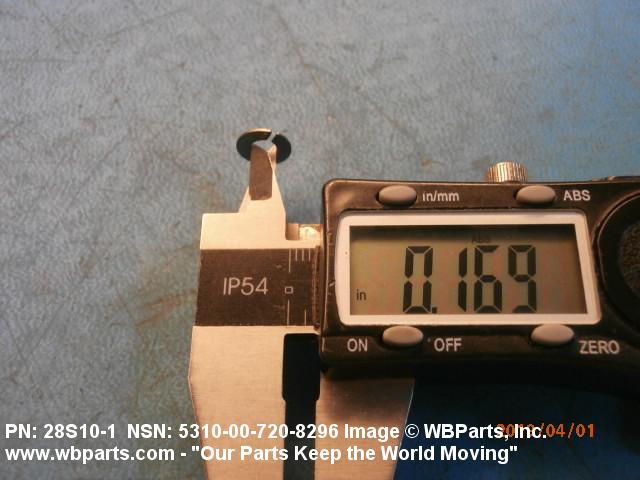

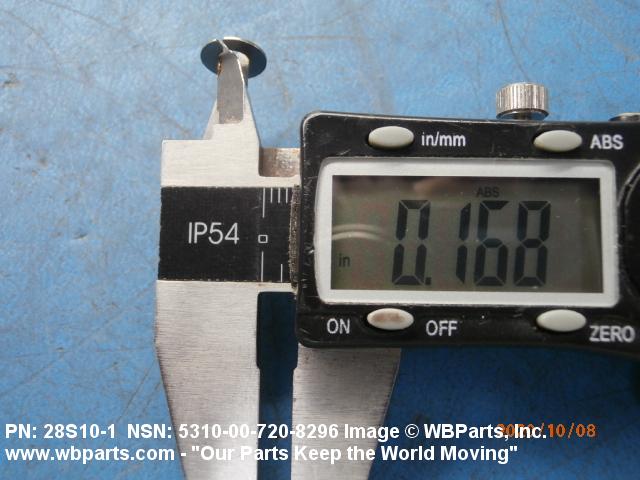

HOLE DIAMETER	0.160 INCHES MINIMUM AND 0.180 INCHES MAXIMUM

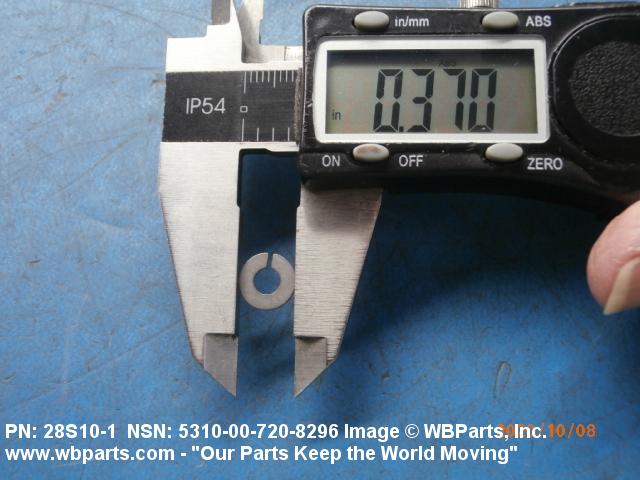

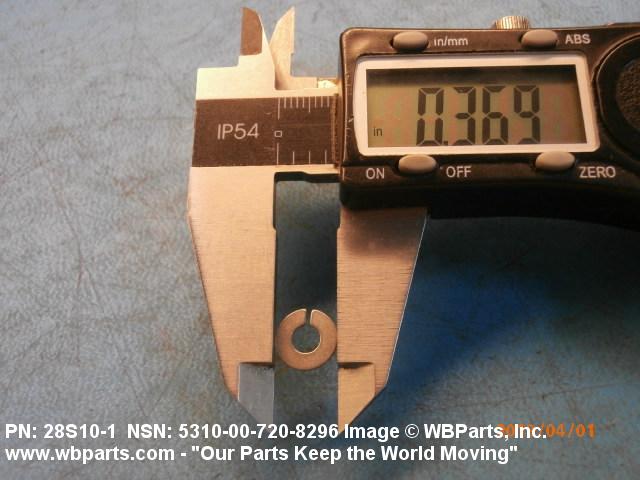

OUTSIDE DIAMETER	0.360 INCHES MINIMUM AND 0.380 INCHES MAXIMUM

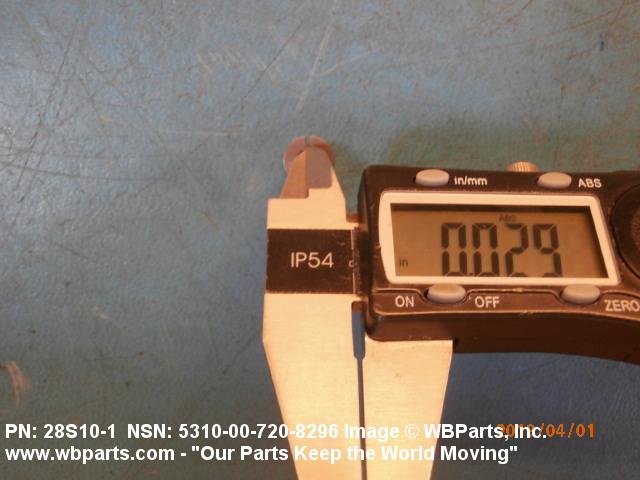

DISTANCE ACROSS SPLIT OPENING	0.020 INCHES MINIMUM AND 0.040 INCHES MAXIMUM

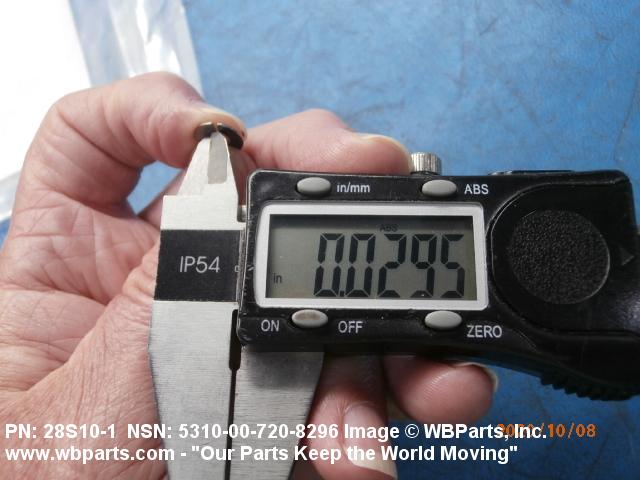

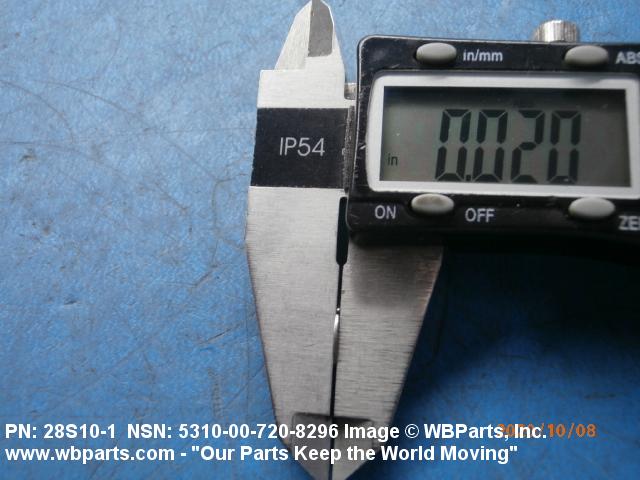

MATERIAL THICKNESS	0.015 INCHES MINIMUM AND 0.021 INCHES MAXIMUM
SPECIFICATION/STANDARD DATA	81205-BACW10X MANUFACTURERS STANDARD
