NSN 5310-00-243-2259 BACW10X2, C3747626X, HS44321C

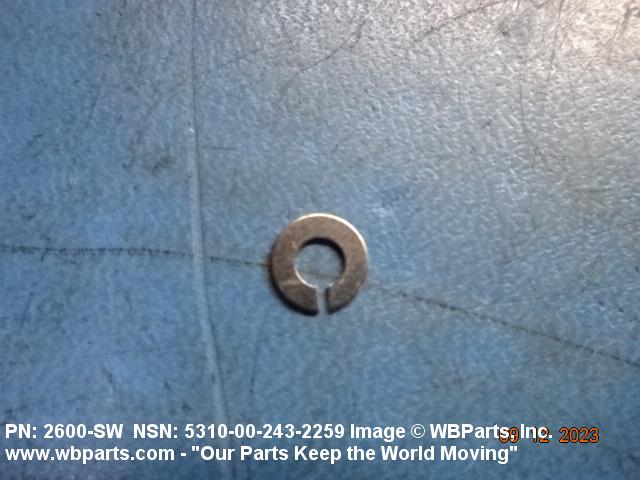

Product Details | SPLIT WASHER
5310-00-243-2259 A washer, round in shape, and having a centrally located hole. Its two flat parallel bearing surfaces are divided or cut along the radius, leaving a cleft, fissure, or cutaway portion across the rim whch extends from the outer circumference to the washer hole but which is never as large as the washer hole diameter. Excludes WASHER (1), LOCK.
Part Alternates: BACW10X2, C3747626X, HS44321C, HS4432-1C, R329856P1, W501ASW, W501A-SW, WA1585, GW501ASW, GW501A-SW, 0441B0197, 0F54060200, 0F54-0602-00, 0N180700, 54982971, 5498297-1, 58A5A2451, 58A5A245-1, 8168121, 82011021, 8201-1021, 85178500, 851785-00, 908F039601ITEM73, 9M2551, 9M255-1, 10630223-1, 1291001000, 12-910-01-000, 12Z1212020, 12Z12120-20, 160711, 1JA29651, 1JA2965-1, 1JA2965H01, 2600SW, 2600-SW, 283660, 28F161, 28F1-61, 30002600, 373MS002P003, 43825SS, 4382-5SS, 4382-5-SS, 5310-00-243-2259, 00-243-2259, 5310002432259, 106302231, 002432259
Hardware and Abrasives | Nuts and Washers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 02 NOV 1970 | 00-243-2259 | 15937 ( WASHER, SPLIT ) |
Demand History | NSN 5310-00-243-2259
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5310-00-243-2259 | 2023-11-319 | 1 | DIBBS |
5310-00-243-2259 | 2023-11-319 | 8 | DIBBS |
5310-00-243-2259 | 2023-11-311 | 1 | DIBBS |
5310-00-243-2259 | 2023-11-311 | 8 | DIBBS |
5310-00-243-2259 | 2023-10-295 | 1 | DIBBS |
5310-00-243-2259 | 2023-07-191 | 25 | United States |
5310-00-243-2259 | 2023-06-157 | 100 | United States |
5310-00-243-2259 | 2023-03-61 | 177 | DIBBS |
5310-00-243-2259 | 2023-01-23 | 67 | DIBBS |
5310-00-243-2259 | 2022-10-289 | 45 | DIBBS |
5310-00-243-2259 | 2022-09-255 | 110 | DIBBS |
5310-00-243-2259 | 2022-08-242 | 110 | DIBBS |
5310-00-243-2259 | 2022-07-209 | 28 | DIBBS |
5310-00-243-2259 | 2022-07-198 | 28 | DIBBS |
5310-00-243-2259 | 2021-11-322 | 10 | DIBBS |
5310-00-243-2259 | 2021-10-280 | 31 | DIBBS |
5310-00-243-2259 | 2021-06-154 | 1000 | MANUAL |
5310-00-243-2259 | 2020-11-322 | 1 | United States |
5310-00-243-2259 | 2020-10-287 | 67 | DIBBS |
5310-00-243-2259 | 2020-09-274 | 67 | DIBBS |
5310-00-243-2259 | 2020-08-238 | 100 | MY |
BACW10X2 | 2020-06-182 | 50 | MY |
BACW10X2 | 2020-06-176 | 100 | United States |
5310-00-243-2259 | 2020-05-146 | 50 | DIBBS |
BACW10X2 | 2020-04-100 | 3 | United States |
2600SW | 2020-03-86 | 100 | Brazil |
5310-00-243-2259 | 2020-03-76 | 50 | DIBBS |
5310-00-243-2259 | 2020-03-66 | 375 | US |
5310-00-243-2259 | 2020-03-65 | 50 | DIBBS |
BACW10X2 | 2020-02-38 | 125 | US |
2600SW | 2020-01-07 | 200 | United States |
5310-00-243-2259 | 2019-12-347 | 50 | DIBBS |
5310-00-243-2259 | 2019-11-321 | 50 | DIBBS |
5310-00-243-2259 | 2019-06-162 | 159 | India |
5310-00-243-2259 | 2019-03-79 | 2920 | US |
43825SS | 2019-03-79 | 100 | US |
43825SS | 2019-03-72 | 100 | US |
5310-00-243-2259 | 2019-03-72 | 2919 | DIBBS |
5310-00-243-2259 | 2018-09-250 | 461 | DIBBS |
5310-00-243-2259 | 2018-08-221 | 330 | DIBBS |
5310-00-243-2259 | 2018-04-105 | 18 | DIBBS |
5310-00-243-2259 | 2018-04-102 | 130 | DIBBS |
5310-00-243-2259 | 2018-04-99 | 92 | DIBBS |
5310-00-243-2259 | 2018-04-99 | 227 | DIBBS |
5310-00-243-2259 | 2018-04-91 | 130 | DIBBS |
5310-00-243-2259 | 2018-03-86 | 92 | DIBBS |
5310-00-243-2259 | 2017-05-123 | 1 | United States |
BACW10X2 | 2016-12-364 | 100 | China |
BACW10X2 | 2016-06-155 | 70 | United States |
2600SW | 2016-02-56 | 2 | CA |
43825SS | 2015-12-335 | 10 | US |
2600-SW | 2014-11-324 | 50 | Turkey |
BACW10X2 | 2013-12-347 | 3 | United States |
BACW10X2 | 2013-12-340 | 35 | US |
2600SW | 2013-04-94 | 1086 | SG |
2600SW | 2013-04-94 | 70 | United States |
2600SW | 2012-11-311 | 50 | Lithuania |
2600SW | 2012-11-310 | 99 | |
2600SW | 2012-10-297 | 10 | Pakistan |
2600-SW | 2012-03-72 | 40 | Uruguay |
5310-00-243-2259 | 2011-11-313 | 10 | United States |
BACW10X2 | 2010-02-33 | 850 | US |
2600SW | 2010-01-25 | 200 | Italy |
5310-00-243-2259 | 2009-12-344 | 400 | US |
2600SW | 2009-09-271 | 200 | Italy |
2600SW | 2008-11-330 | 12 | Italy |
5310-00-243-2259 | 2008-10-287 | 100 | China |
5310-00-243-2259 | 2008-07-197 | 36 | US |
5310-00-243-2259 | 2008-07-197 | 57 | US |
5310-00-243-2259 | 2008-06-172 | 20 | us |
5310-00-243-2259 | 2007-04-108 | 1600 | Malaysia |
2600SW | 2006-04-101 | 36 | United States |
2600SW | 2006-04-100 | 36 | Australia |
Cross Reference | NSN 5310-00-243-2259
Part Number | Cage Code | Manufacturer |
---|---|---|
0441B0197 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
0F54-0602-00 | 60359 | AKRON BRASS COMPANY DBA WELDON TECHNOLOGIES |
0N180700 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
10630223-1 | 04939 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
10630223-1 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
10630223-1 | 38597 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
12-910-01-000 | 78022 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
12Z12120-20 | 94135 | NAVAL ORDNANCE STANDARDS |
160711 | 93953 | MELSTROM MANUFACTURING CORPORATION |
1JA2965-1 | 79500 | WESTINGHOUSE ELECTRIC CORP |
1JA2965-1 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
1JA2965H01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
2600-SW | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
2600-SW | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
2600-SW | K1678 | FAIRCHILD FASTENERS UK LTD |
2600SW | 06349 | COOPER INDUSTRIES INC CROUSE-HINDS DIV |
2600SW | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
2600SW | F0224 | ALCOA FIXATIONS SIMMONDS SAS |
283660 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
28F1-61 | 38597 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
30002600 | 14028 | SYPRIS ELECTRONICS, LLC |
373MS002P003 | 04164 | RAYTHEON ELECTRONIC SYSTEMS, INC |
373MS002P003 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
373MS002P003 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
4382-5-SS | 08YX1 | L-3 COMMUNICATIONS CORPORATION DBA L-3 COMMUNICATIONS, RCCS |
4382-5SS | 1YGB8 | CAREY MANUFACTURING COMPANY, INC. DBA AMATOM ELECTRONIC HARDWARE |
5310002432259 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
5498297-1 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
58A5A245-1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
58A5A245-1 | 53774 | MISCO INC |
8168121 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
8201-1021 | K0662 | SELEX ES LTD |
8201-1021 | U3755 | MARCONI AVIONICS LTD |
851785-00 | D8095 | GOODRICH LIGHTING SYSTEMS GMBH |
908F039601ITEM73 | 34228 | L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO |
9M255-1 | 76301 | BOEING COMPANY, THE DBA BOEING |
BACW10X2 | 77272 | THE BOEING COMPANY DBA BOEING |
BACW10X2 | 81205 | THE BOEING COMPANY DBA BOEING |
C3747626X | S3092 | RHEINMETALL AIR DEFENCE AG |
GW501A-SW | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
HS4432-1C | 8V613 | BOEING COMPANY, THE DBA BOEING |
R329856P1 | 04071 | RAYTHEON COMPANY DBA RAYTHEON |
W501A-SW | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
WA1585 | 80249 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5310-00-243-2259
Technical Data | NSN 5310-00-243-2259
Characteristic | Specifications |
---|---|
MATERIAL | STEEL CORROSION RESISTING OVERALL |
STYLE DESIGNATOR | 9 SPLIT |

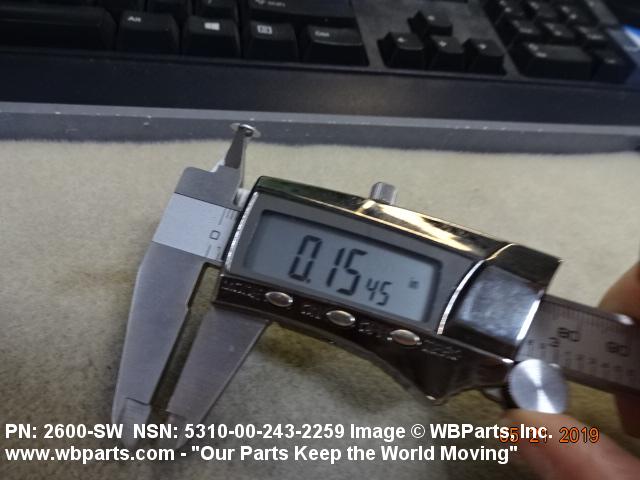

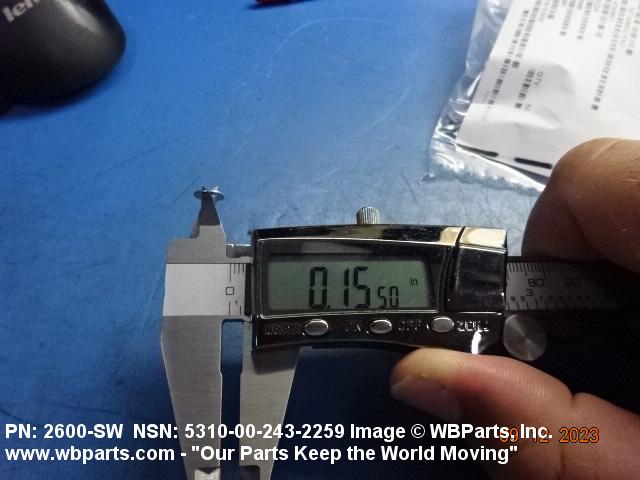

HOLE DIAMETER | 0.156 INCHES NOMINAL |

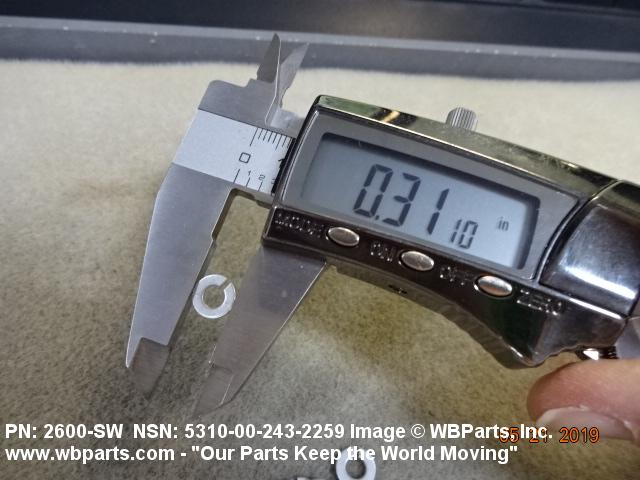

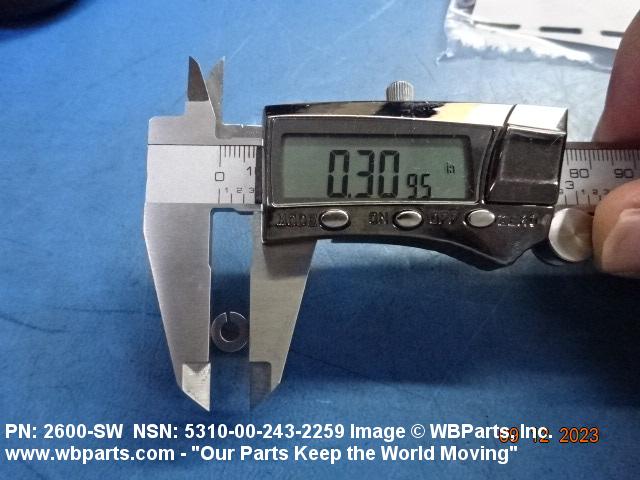

OUTSIDE DIAMETER | 0.312 INCHES NOMINAL |

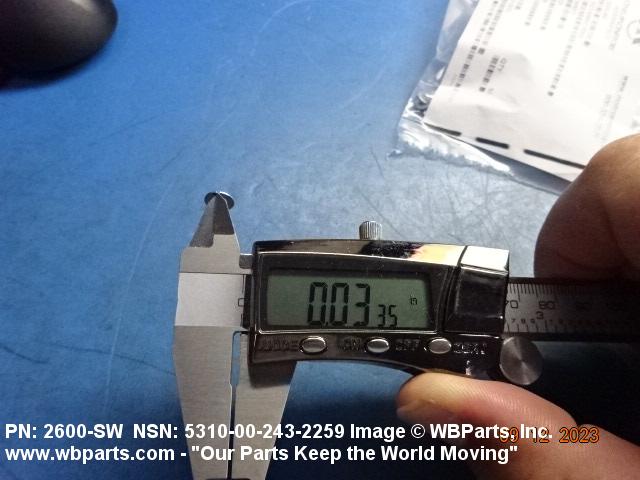

DISTANCE ACROSS SPLIT OPENING | 0.032 INCHES NOMINAL |

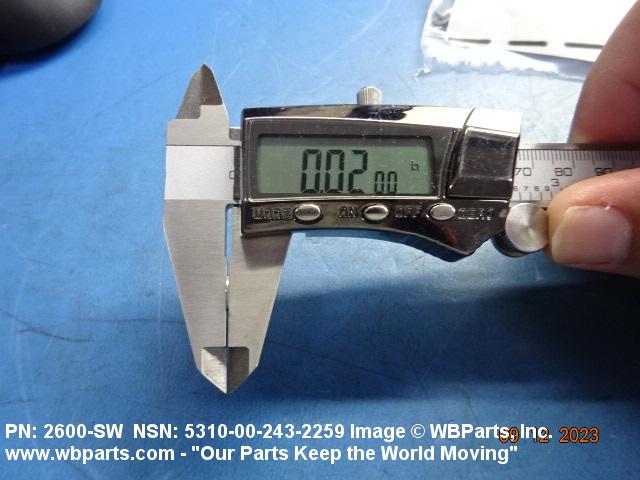

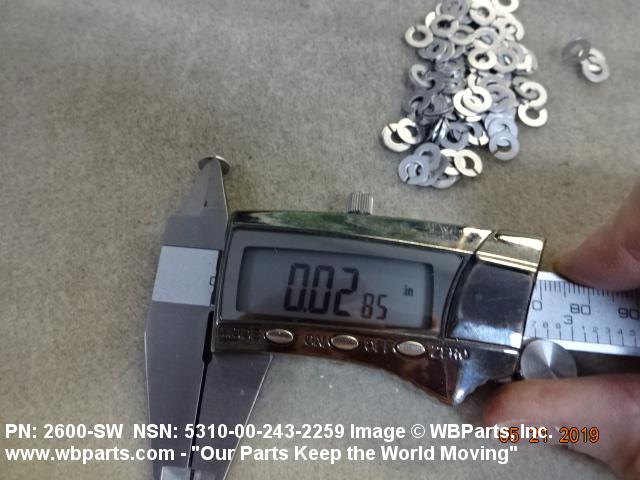

MATERIAL THICKNESS | 0.014 INCHES MINIMUM AND 0.024 INCHES MAXIMUM |
SPECIFICATION/STANDARD DATA | 81205-BACW10X MANUFACTURERS STANDARD |
III END ITEM IDENTIFICATION | W/S:COMMUNICATIONS TERMINAL, SATELLITE AN/GSC-39(V)1; GROUND MOBILE FORCE SATELLITE COMM TERM (AN/TSC-93A); RADAR SET, AN/PPS-5B; GROUND MOBILE FORCE SATELLITE COMM TERM AN/TSC-85A); VERTICAL LAUNCHING SYSTEM, MK-41; SUPPORT EQUIPMENT, B-1 AIRCRAFT; AIRCRAFT, (AC-130H, MC-130H, EC-130E, HC-130); AIRBORNE MOBILE DIR AIR SPT CTL (2ID), (02M JUL83)(AN/UYQ-3A; JOINT STARS TARGET RADAR SYSTEM; AIRCRAFT, C-2A (REPROCURED) |
Restrictions/Controls & Freight Information | NSN 5310-00-243-2259
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
Less than car load rating | ||
Less than truck load rating | U | 50.0 |
Water commodity Code | 713 | unknown |
Originating Activity Code | ZG | Germany ZH ZJ |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-243-2259
Category | Code | Description |
---|---|---|
Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
Specific Group/Generic Code | B | Rotary Wing Aircraft |
Weapons Systems/End Item or Homogeneous Group | BX | OH-58D Army Helicopter Improvement Program (AHIP) |
Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DA | Department of the Army |
Service Organization | A | U.S. Army |
Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 HD : Each |
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 HD : Each |
Category | Code | Description |
---|---|---|
Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DM | U.S. Marine Corps |
Service Organization | M | U.S. Marine Corps |
Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 HD : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 HD : Each |
