NSN 5310-01-178-5030 HS44321, HS4432-1, 1127723
Product Details | SPLIT WASHER
5310-01-178-5030 A washer, round in shape, and having a centrally located hole. Its two flat parallel bearing surfaces are divided or cut along the radius, leaving a cleft, fissure, or cutaway portion across the rim whch extends from the outer circumference to the washer hole but which is never as large as the washer hole diameter. Excludes WASHER (1), LOCK.
Part Alternates: HS44321, HS4432-1, 1127723, 2600SW2, 3D00501, 3D0050-1, 5310-01-178-5030, 01-178-5030, 5310011785030, 011785030
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 DEC 1999 | 01-178-5030 | 15937 ( WASHER, SPLIT ) |

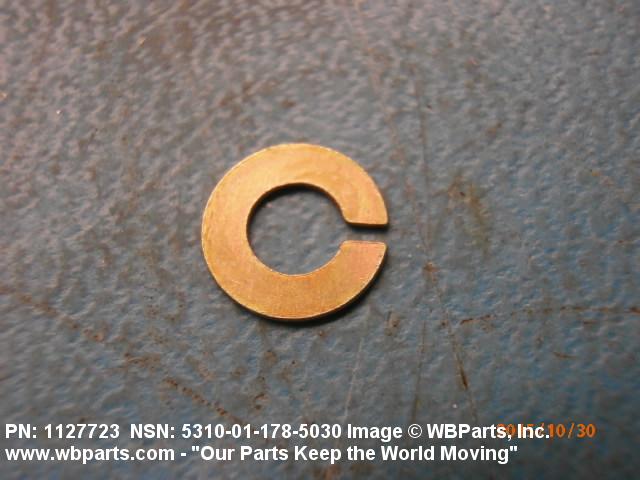

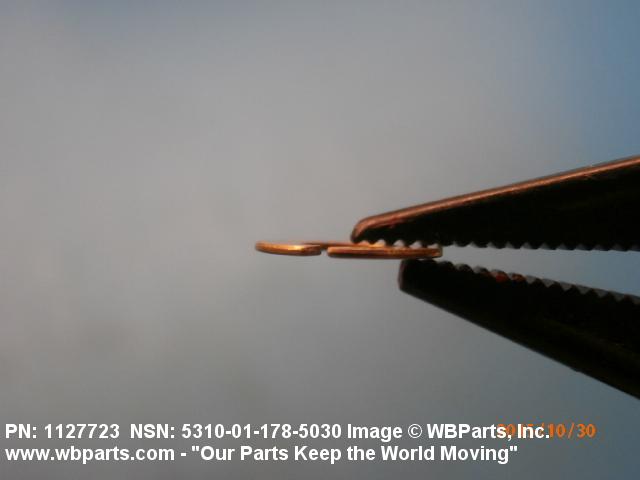

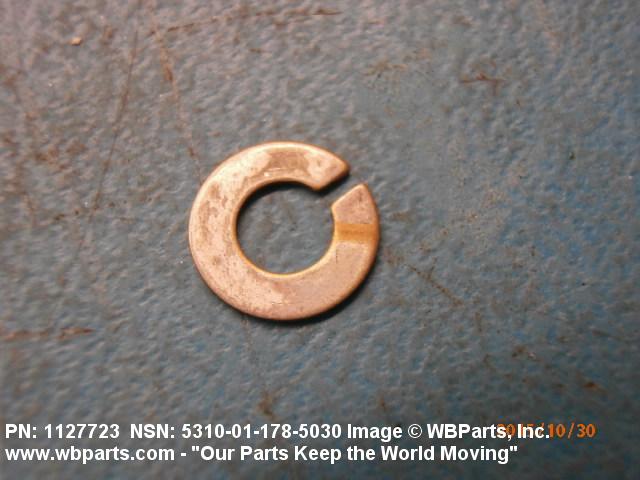

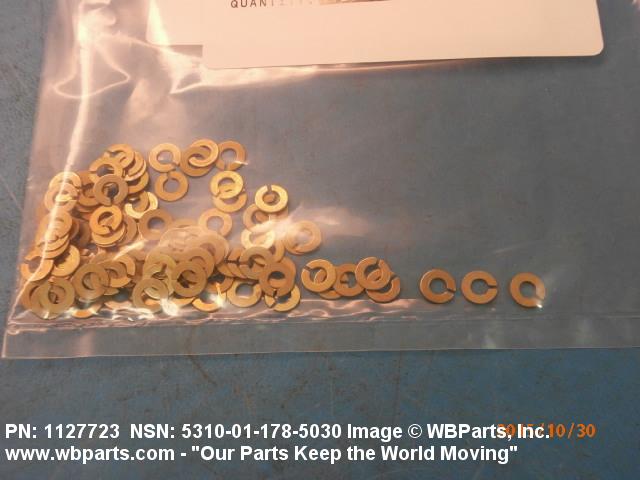

Drawings & Photos | NSN 5310-01-178-5030
Demand History | NSN 5310-01-178-5030
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1127723 | 2024-07-21 | 5608 | DIBBS |
| 2600SW2 | 2024-07-21 | 5608 | DIBBS |
| HS4432-1 | 2024-07-21 | 5608 | DIBBS |
| 1127723 | 2023-10-15 | 3847 | DIBBS |
| 2600SW2 | 2023-10-15 | 3847 | DIBBS |
| HS4432-1 | 2023-10-15 | 3847 | DIBBS |
| 5310-01-178-5030 | 2023-09-08 | 3424 | Singapore |
| 1127723 | 2022-06-22 | 9192 | DIBBS |
| 2600SW2 | 2022-06-22 | 9192 | DIBBS |
| HS4432-1 | 2022-06-22 | 9192 | DIBBS |
| 1127723 | 2021-10-05 | 5864 | DIBBS |
| 2600SW2 | 2021-10-05 | 5864 | DIBBS |
| HS4432-1 | 2021-10-05 | 5864 | DIBBS |
| HS44321 | 2019-01-18 | 1760 | US |
| 5310-01-178-5030 | 2019-01-14 | 1760 | US |
| HS44321 | 2018-02-13 | 15 | United States |
| 2600SW2 | 2016-11-14 | 675 | US |
| 5310-01-178-5030 | 2016-02-26 | 17174 | DIBBS |
| 5310-01-178-5030 | 2016-02-18 | 17174 | DIBBS |
| 2600SW2 | 2016-01-15 | 500 | United States |
| 5310-01-178-5030 | 2015-06-18 | 110 | Seychelles |
| 2600SW2 | 2013-08-26 | 14 | BR |
| 2600SW2 | 2013-04-04 | 28 | SG |
| 2600SW2 | 2013-01-30 | 8 | United States |
| 2600SW2 | 2012-08-16 | 10 | United States |
| 2600SW2 | 2012-06-28 | 2 | United States |
| 3D00501 | 2012-06-27 | 2 | United States |
| 2600SW2 | 2011-12-27 | 30 | United States |
| 2600SW2 | 2010-11-01 | 500 | US |
| 2600SW2 | 2009-06-19 | 50 | United States |
| 5310-01-178-5030 | 2009-04-07 | 4800 | India |
| 5310-01-178-5030 | 2009-01-12 | 25908 | DIBBS |
| 5310-01-178-5030 | 2008-09-11 | 25142 | DIBBS |
| 5310-01-178-5030 | 2008-06-18 | 24520 | DIBBS |
| 5310-01-178-5030 | 2008-05-06 | 17133 | DIBBS |
Cross Reference | NSN 5310-01-178-5030
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1127723 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| 2600SW2 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 3D0050-1 | 88277 | BOEING COMPANY, THE DBA BOEING |
| HS4432-1 | 02731 | MCDONNELL DOUGLAS HELICOPTER CO INC |
| HS4432-1 | 10630 | ANILLO INDUSTRIES, INC. DBA ANILLO INDUSTRIES |
| HS4432-1 | 8V613 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-178-5030
Related Products | NSN 5310-01-178-5030
Technical Data | NSN 5310-01-178-5030
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1095 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTMA682 ASSN STD 1ST MATERIAL RESPONSE OR ASTMA681 ASSN STD 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPEII,CLASS2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 9 SPLIT |

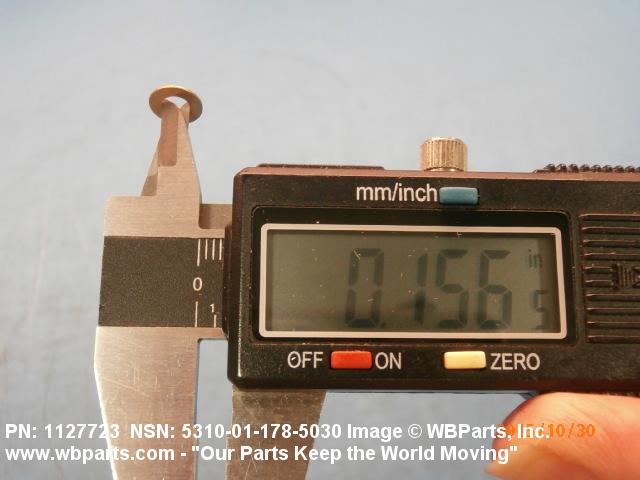

| HOLE DIAMETER | 0.156 INCHES NOMINAL |

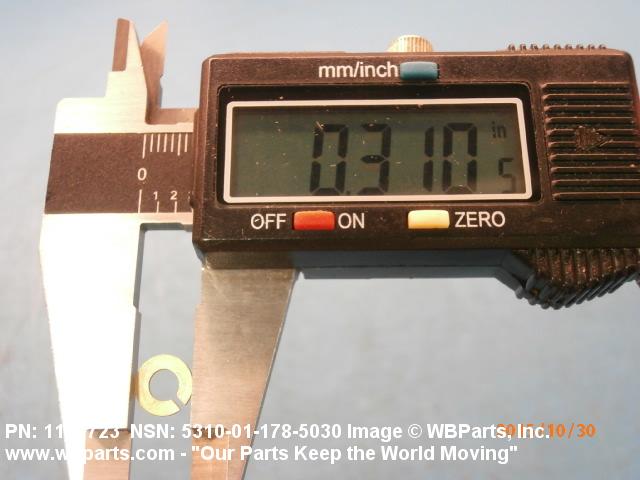

| OUTSIDE DIAMETER | 0.312 INCHES NOMINAL |
| DISTANCE ACROSS SPLIT OPENING | 0.020 INCHES MINIMUM AND 0.042 INCHES MAXIMUM |

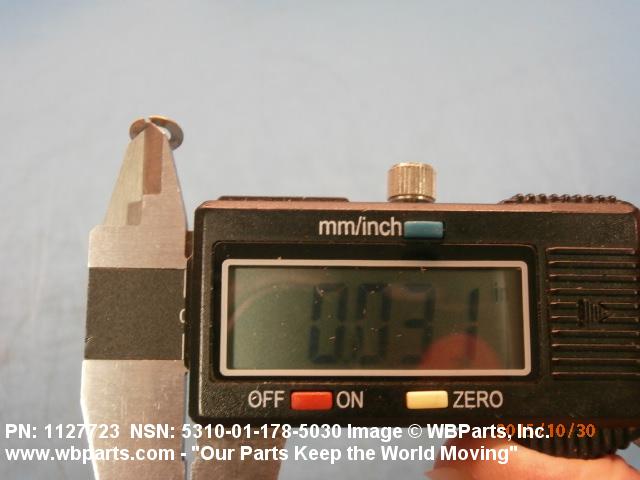

| MATERIAL THICKNESS | 0.014 INCHES MINIMUM AND 0.024 INCHES MAXIMUM |
| MANUFACTURERS CODE | 02731 |
| MFR SOURCE CONTROLLING REFERENCE | HS4432-1 |
Restrictions/Controls & Freight Information | NSN 5310-01-178-5030
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
