NSN 5310-00-796-8893 DN5124286, DN512-428-6, 84384892
Product Details | BLIND RIVET SELF-LOCKING NUT

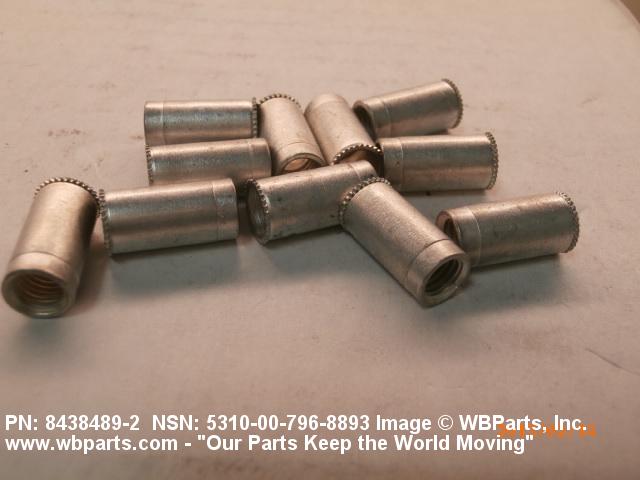

5310-00-796-8893 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. It is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: DN5124286, DN512-428-6, 84384892, 8438489-2, 5310-00-796-8893, 00-796-8893, 5310007968893 , 007968893
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 OCT 1968 | 00-796-8893 | 29724 ( NUT, SELF-LOCKING, BLIND RIVET ) |

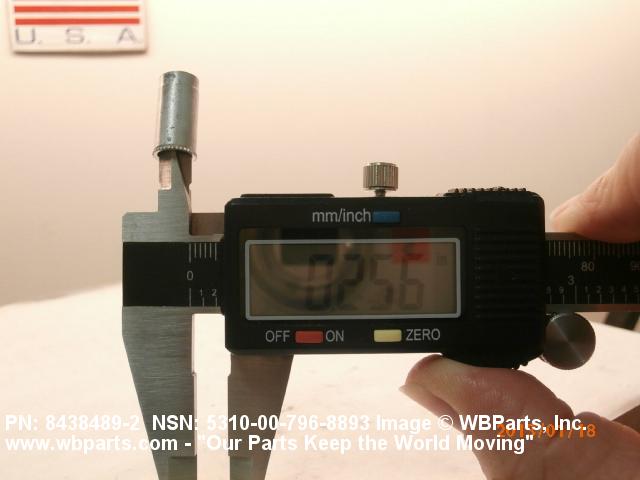

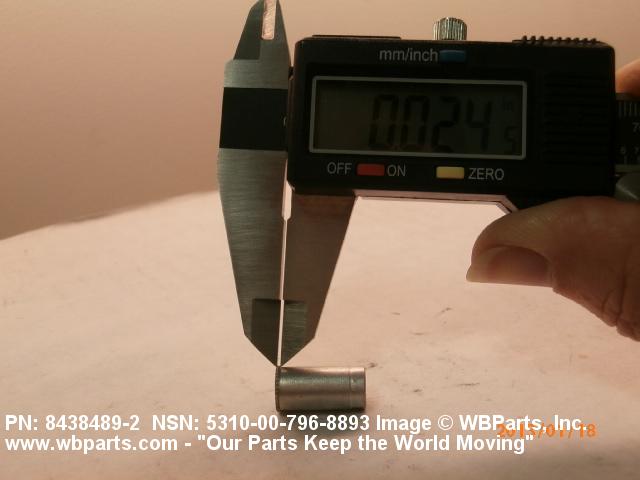

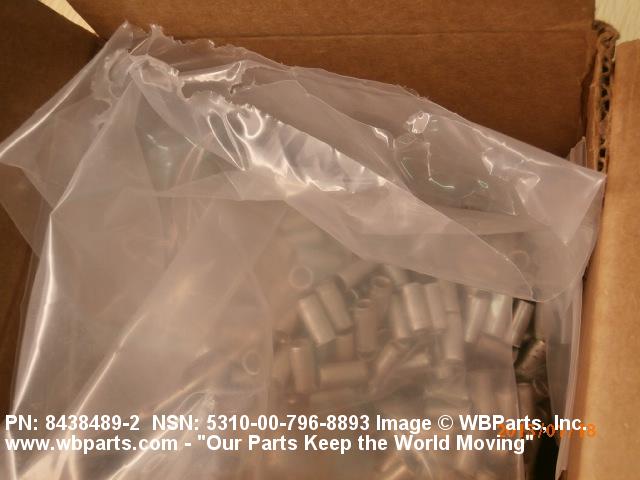

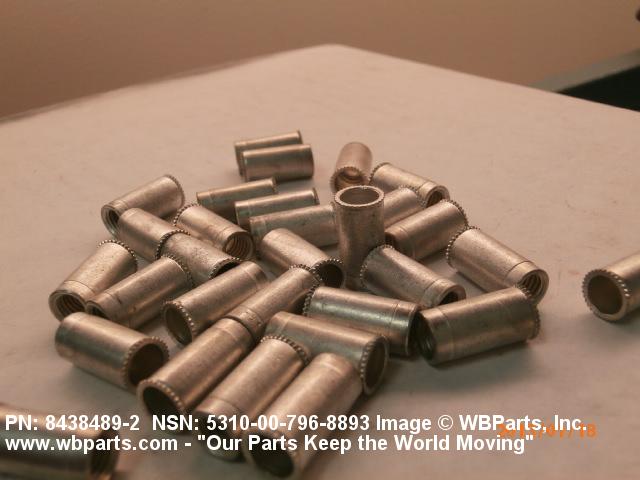

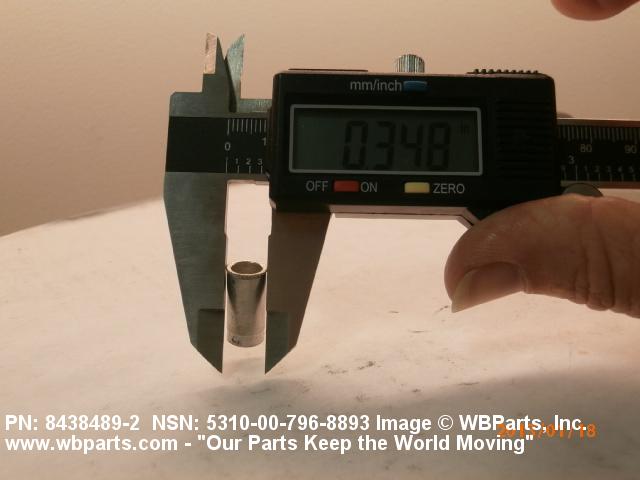

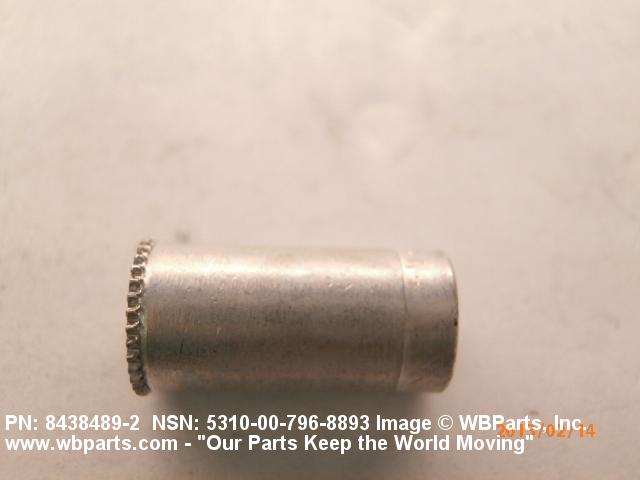

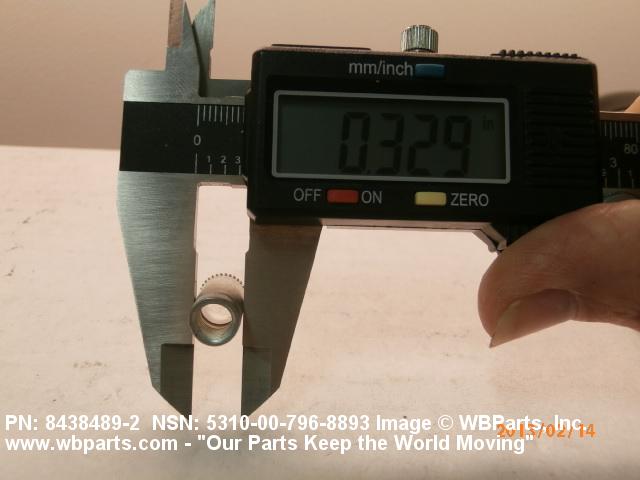

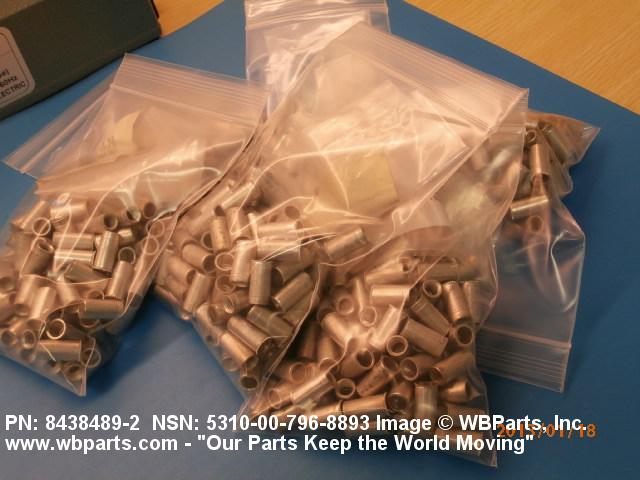

Drawings & Photos | NSN 5310-00-796-8893
Demand History | NSN 5310-00-796-8893
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-796-8893 | 2019-08-233 | 400 | US |
| 5310-00-796-8893 | 2015-03-85 | 550 | United States |
| 5310-00-796-8893 | 2015-03-85 | 550 | United States |
| 5310-00-796-8893 | 2014-02-37 | 56 | South Korea |
| 5310-00-796-8893 | 2013-01-31 | 8 | United States |
| 5310-00-796-8893 | 2013-01-31 | 20 | United States |
| 5310-00-796-8893 | 2013-01-21 | 20 | United States |
| 5310-00-796-8893 | 2013-01-11 | 550 | United States |
| 5310-00-796-8893 | 2012-07-213 | 550 | United States |
| 5310-00-796-8893 | 2012-07-213 | 550 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-796-8893
Related Products | NSN 5310-00-796-8893
Technical Data | NSN 5310-00-796-8893
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 10.0 ROCKWELL C MINIMUM AND 20.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A22 BLIND RIVET W/SMOOTH ROUND SHANK |

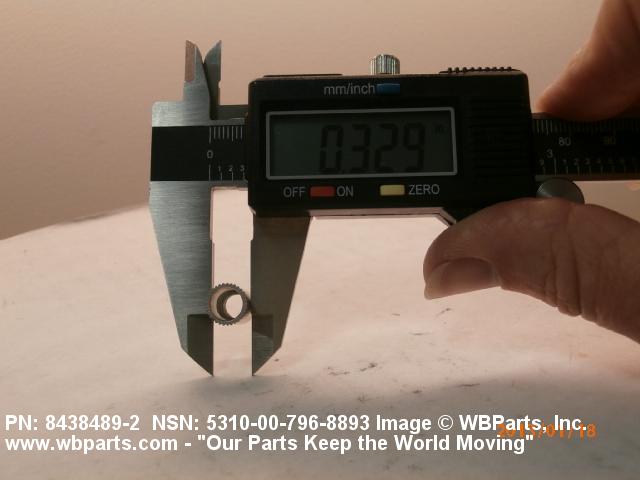

| NUT DIAMETER | 0.329 INCHES MINIMUM AND 0.331 INCHES MAXIMUM |

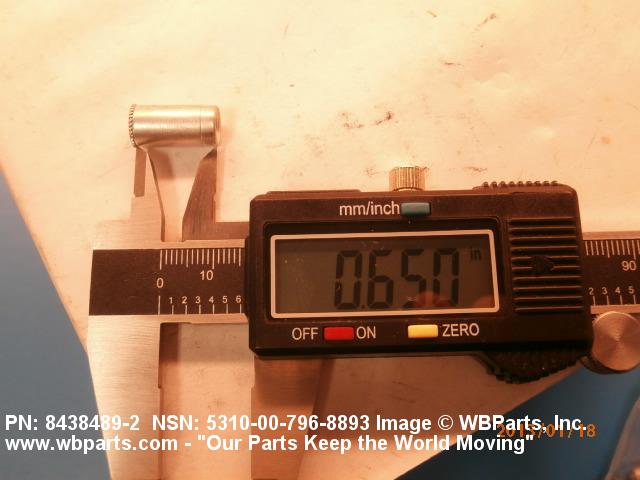

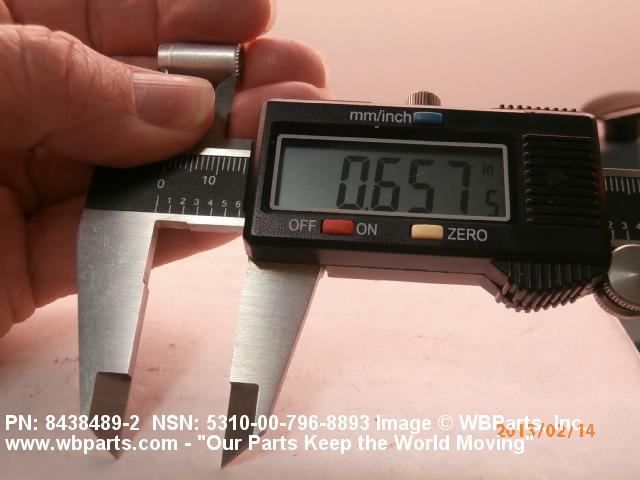

| NUT LENGTH | 0.652 INCHES NOMINAL |
| NUT GRIP RANGE | 0.240 TO 0.280 INCHES |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| HEAD STYLE | D22 SERRATED WITH PILOT |
| HEAD DIAMETER | 0.354 INCHES MAXIMUM |
| HEAD HEIGHT | 0.015 INCHES MINIMUM AND 0.025 INCHES MAXIMUM |
| HEAD PILOT DIAMETER | ANY ACCEPTABLE |
| SHANK END TYPE | CLOSED |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-00-796-8893
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-796-8893
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
