NSN 5310-00-584-7353 A8W262, 00-584-7353, 005847353
Product Details | BLIND RIVET SELF-LOCKING NUT
5310-00-584-7353 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. It is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: A8W262, 5310-00-584-7353, 00-584-7353, 5310005847353, 005847353
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-584-7353 | 29724 ( NUT, SELF-LOCKING, BLIND RIVET ) |

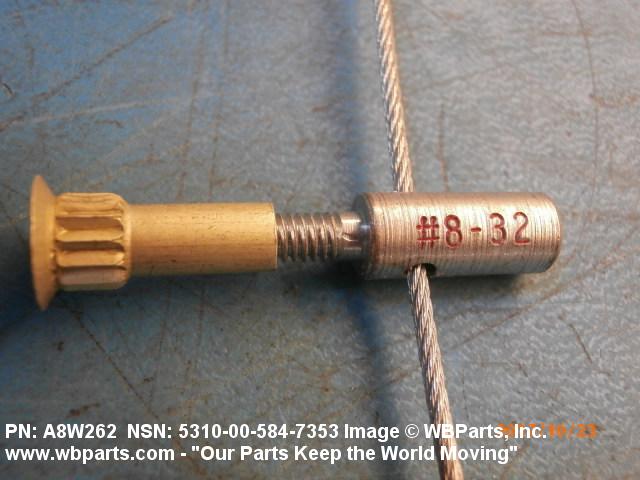

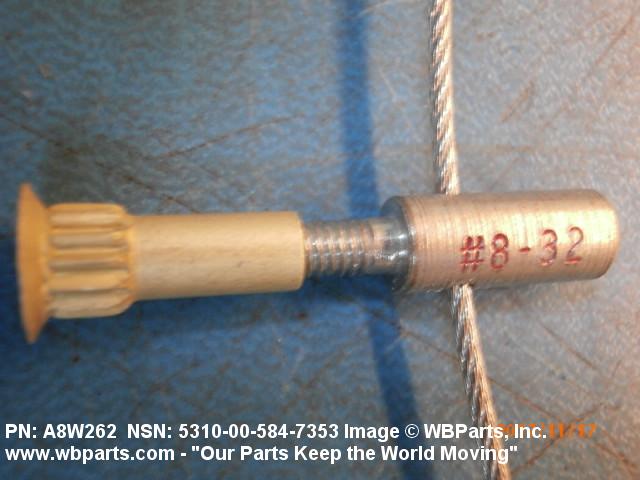

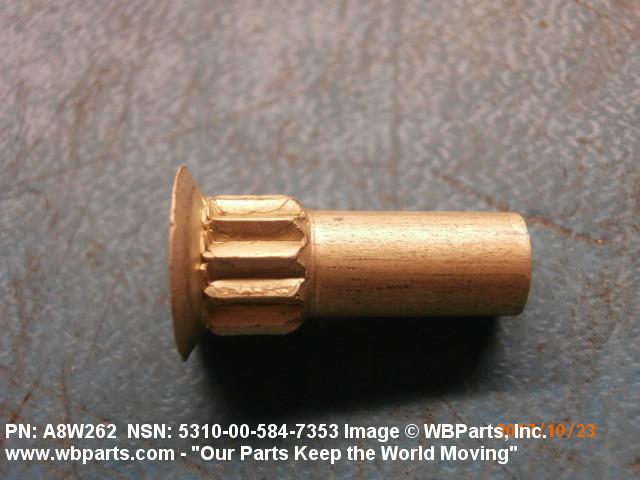

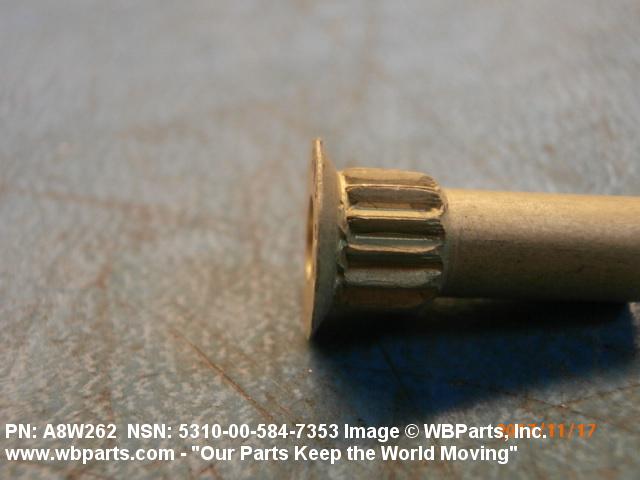

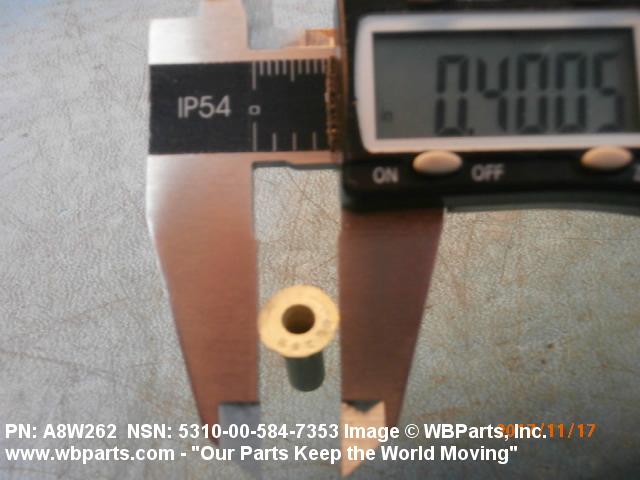

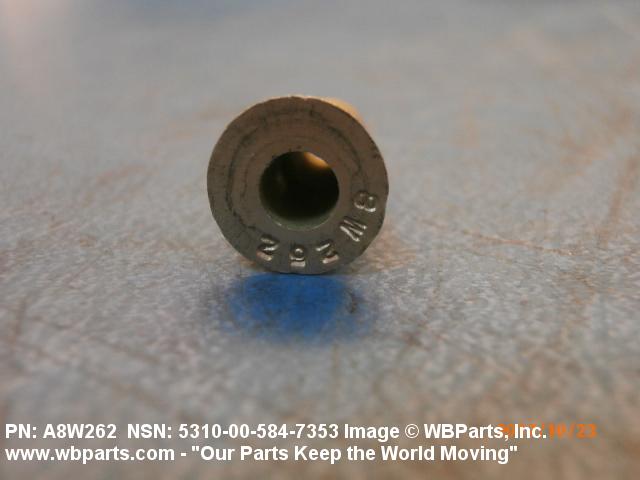

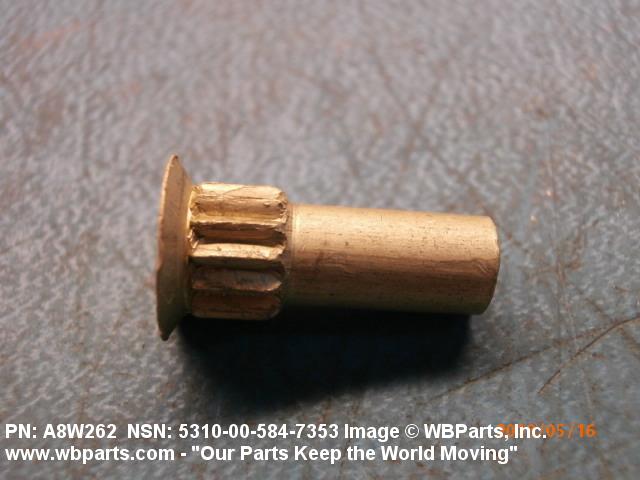

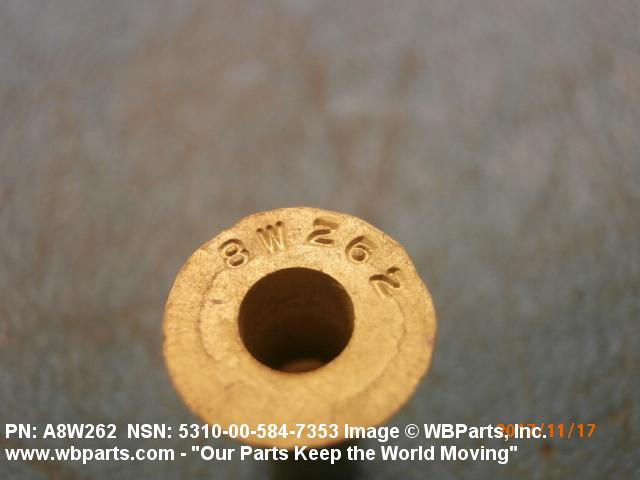

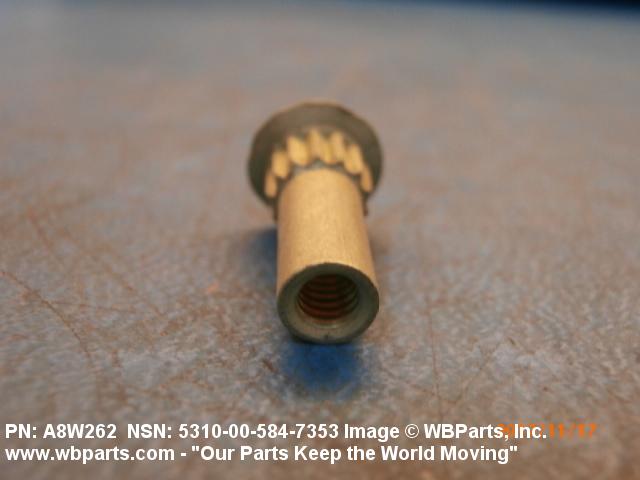

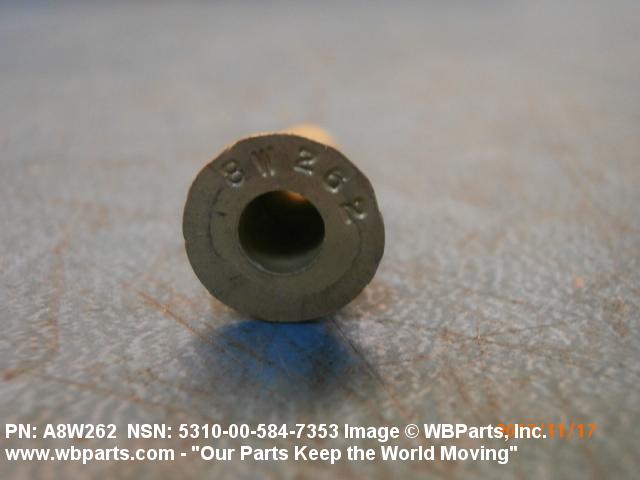

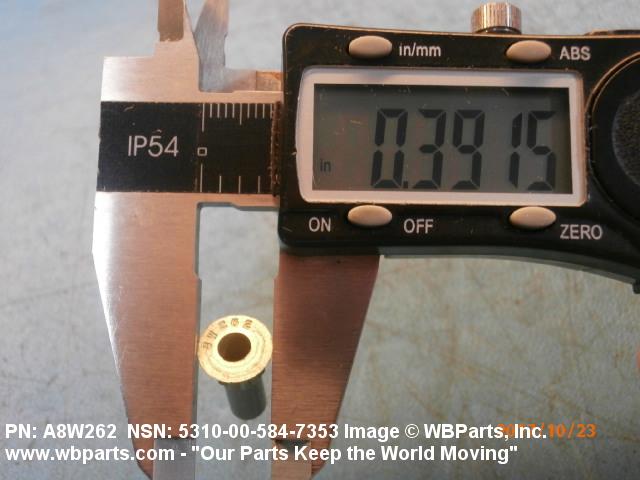

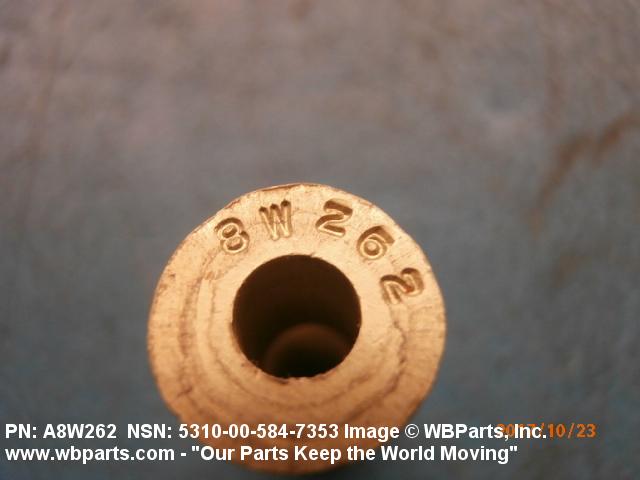

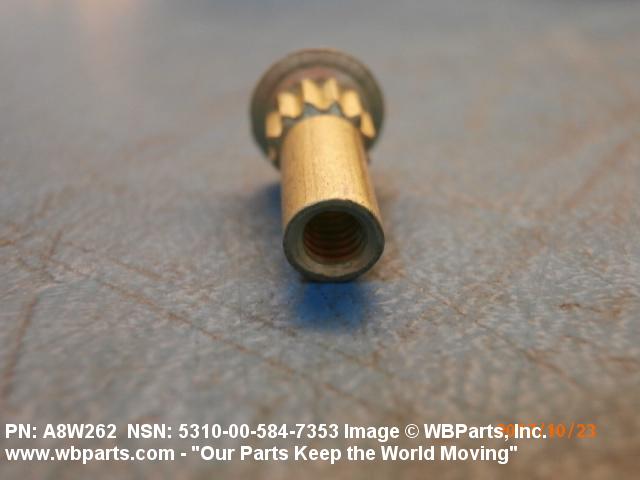

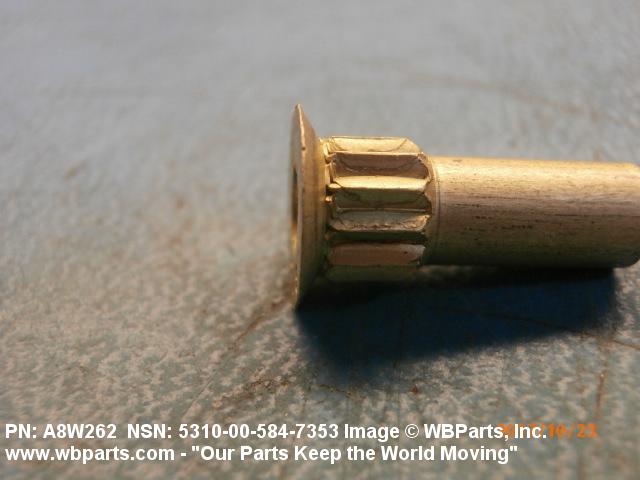

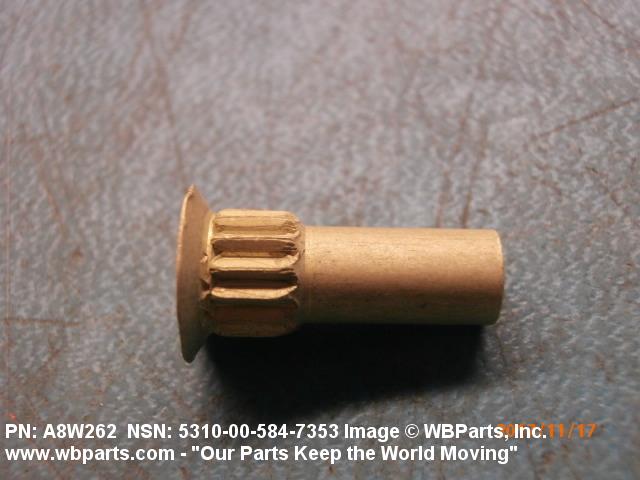

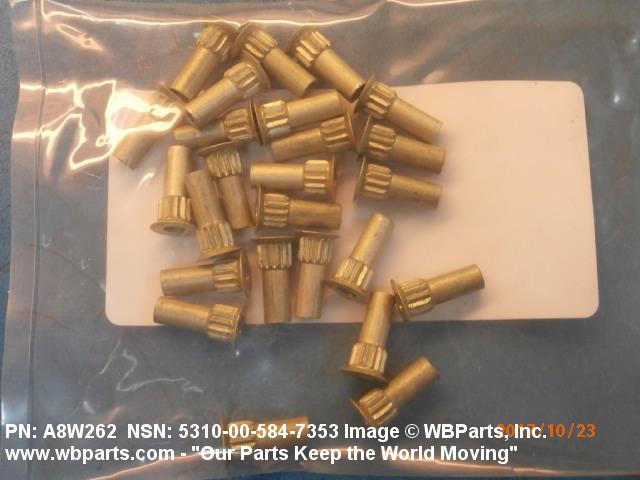

Drawings & Photos | NSN 5310-00-584-7353
Demand History | NSN 5310-00-584-7353
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| A8W262 | 2024-06-171 | 9 | United States |
| 5310-00-584-7353 | 2021-11-321 | 20 | United States |
| A8W262 | 2018-05-128 | 200 | United States |
| 5310-00-584-7353 | 2018-04-95 | 271 | DIBBS |
| A8W262 | 2018-03-60 | 12 | United States |
| A8W262 | 2017-10-289 | 60 | United States |
| A8W262 | 2017-07-199 | 25 | United States |
| A8W262 | 2017-06-156 | 182 | United States |
| 5310-00-584-7353 | 2014-06-163 | 379 | DIBBS |
| 5310-00-584-7353 | 2014-02-42 | 244 | DIBBS |
| 5310-00-584-7353 | 2012-03-65 | 12 | CA |
| 5310-00-584-7353 | 2010-05-134 | 176 | DIBBS |
| 5310-00-584-7353 | 2010-01-28 | 176 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-584-7353
Related Products | NSN 5310-00-584-7353
Technical Data | NSN 5310-00-584-7353
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 6053 OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A22 BLIND RIVET W/SMOOTH ROUND SHANK |

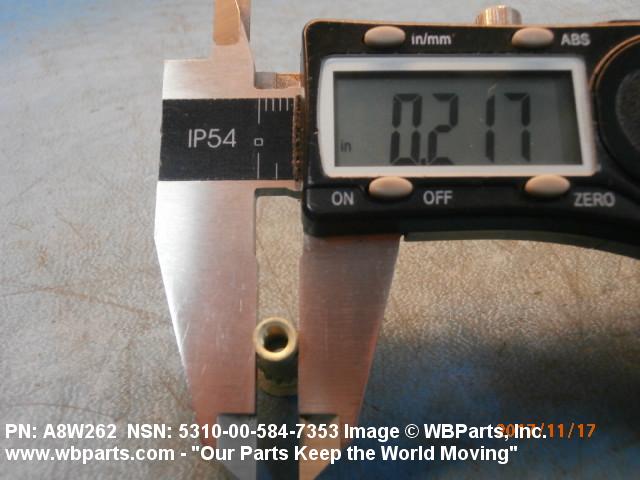

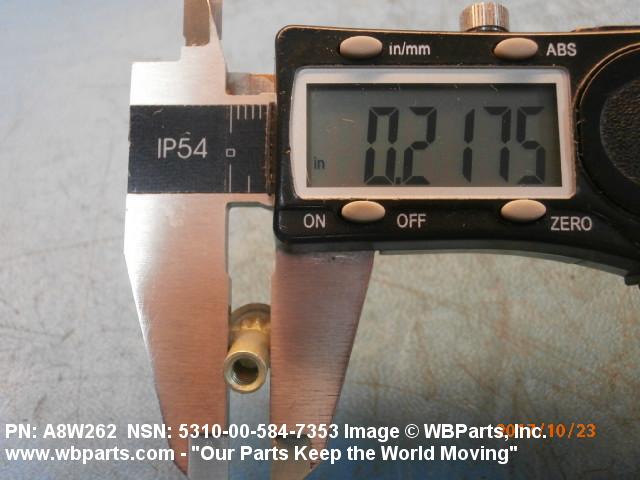

| NUT DIAMETER | 0.221 INCHES NOMINAL |

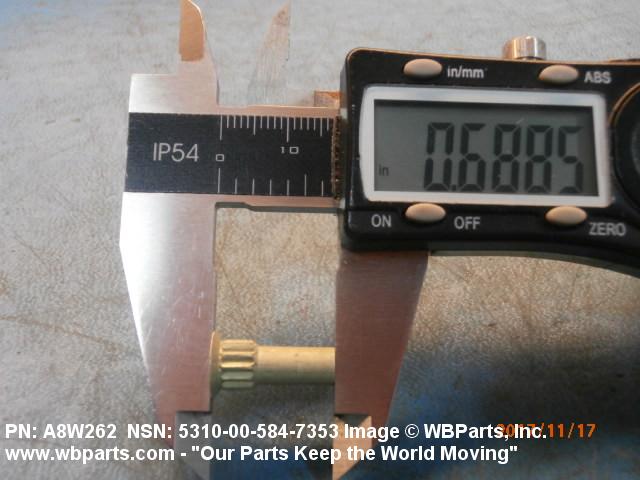

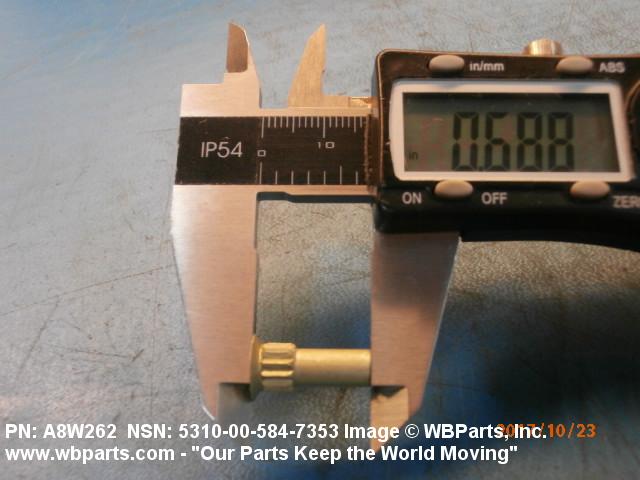

| NUT LENGTH | 0.688 INCHES NOMINAL |
| NUT GRIP RANGE | 0.180 TO 0.262 INCHES |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |

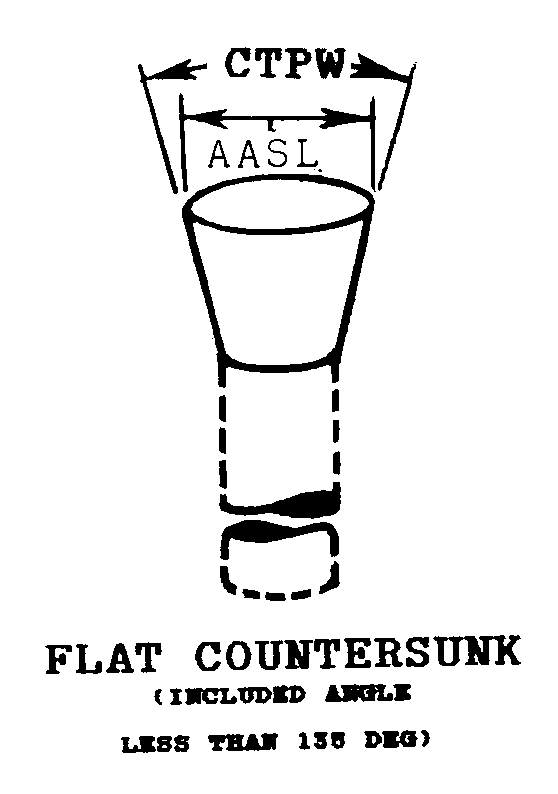

| HEAD STYLE | D11 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.398 INCHES NOMINAL |
| HEAD COUNTERSINK ANGLE | 115.00 DEGREES NOMINAL |
| SHANK END TYPE | OPEN |
| TEMP RATING | NOT RATED |
| SPECIAL FEATURES | PORTION OF SHANK SPLINED |
| MANUFACTURERS CODE | 25472 |
| DESIGN CONTROL REFERENCE | A8W262 |
Restrictions/Controls & Freight Information | NSN 5310-00-584-7353
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013540 | ALUM NUTS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-584-7353
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
