NSN 5310-00-877-6421 2R1391, 00-877-6421, 008776421
Product Details | BLIND RIVET SELF-LOCKING NUT
5310-00-877-6421 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. It is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: 2R1391, 5310-00-877-6421, 00-877-6421, 5310008776421, 008776421
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 AUG 1967 | 00-877-6421 | 29724 ( NUT, SELF-LOCKING, BLIND RIVET ) |

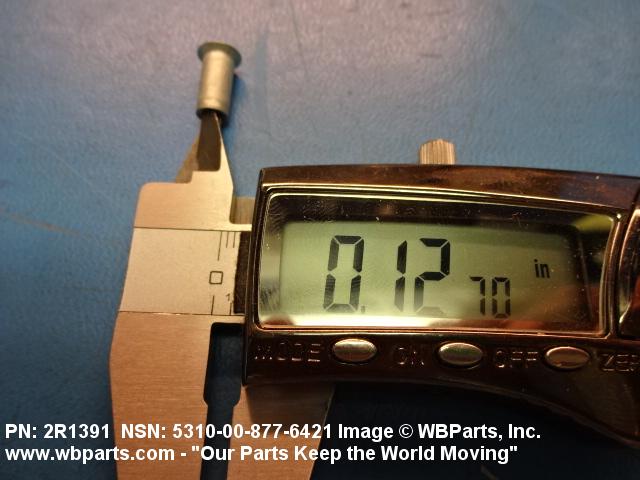

Drawings & Photos | NSN 5310-00-877-6421
Demand History | NSN 5310-00-877-6421
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2R1391 | 2021-11-319 | 281 | DIBBS |
| 5310-00-877-6421 | 2018-11-332 | 338 | DIBBS |
| 5310-00-877-6421 | 2017-06-164 | 174 | United States |
| 5310-00-877-6421 | 2017-03-86 | 174 | DIBBS |
| 5310-00-877-6421 | 2017-03-78 | 174 | DIBBS |
| 5310-00-877-6421 | 2010-08-240 | 150 | DIBBS |
| 5310-00-877-6421 | 2009-12-336 | 261 | DIBBS |
| 5310-00-877-6421 | 2009-06-155 | 204 | DIBBS |
| 5310-00-877-6421 | 2008-11-318 | 202 | DIBBS |
| 5310-00-877-6421 | 2008-10-283 | 210 | DIBBS |
| 5310-00-877-6421 | 2008-09-263 | 1 | DIBBS |
| 5310-00-877-6421 | 2008-09-248 | 66 | DIBBS |
| 5310-00-877-6421 | 2008-07-203 | 169 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-877-6421
Related Products | NSN 5310-00-877-6421
Technical Data | NSN 5310-00-877-6421
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 4037 OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |

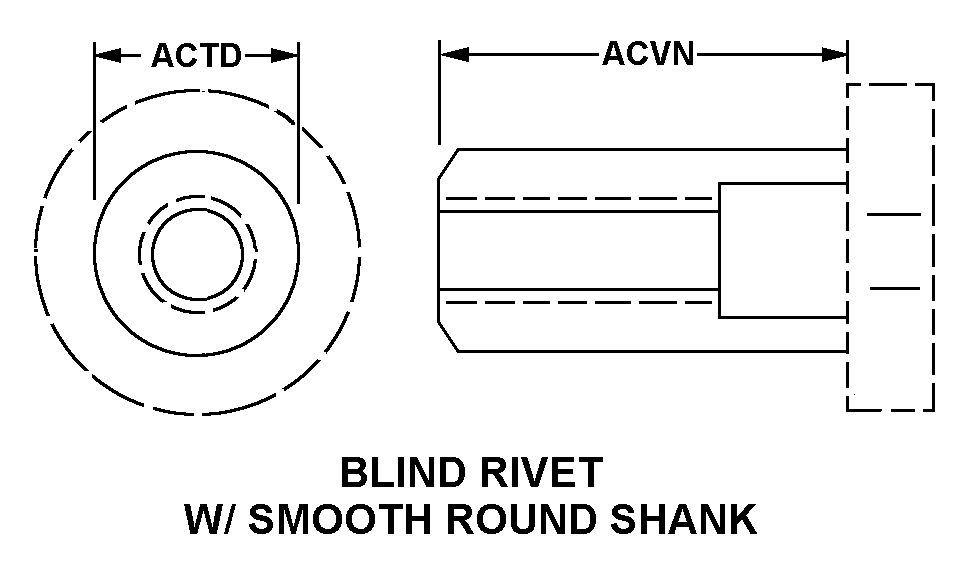

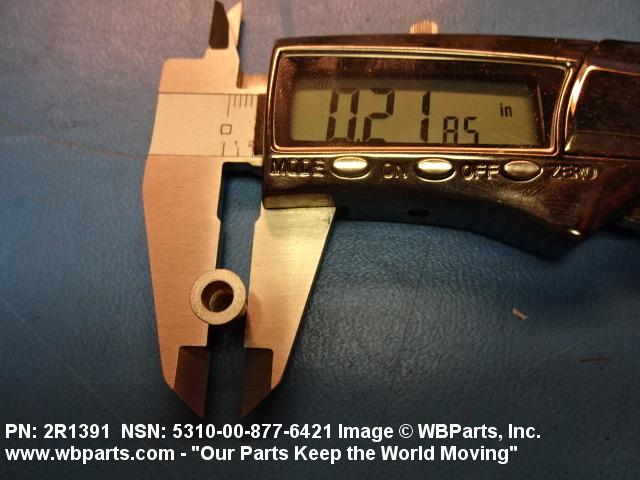

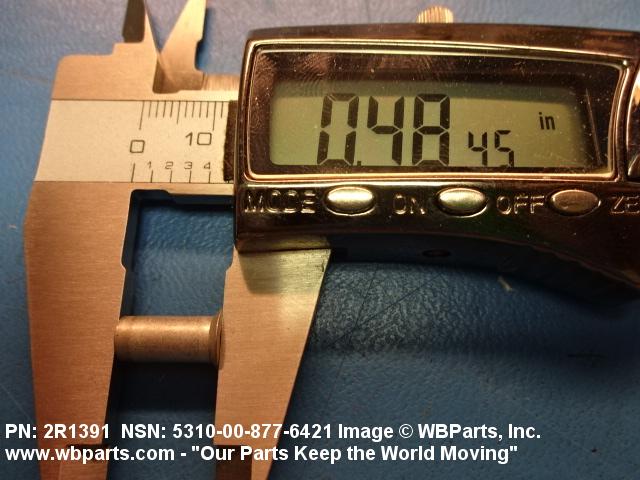

| NUT STYLE | A22 BLIND RIVET W/SMOOTH ROUND SHANK |
| NUT DIAMETER | 0.221 INCHES MAXIMUM |
| NUT LENGTH | 0.469 INCHES MINIMUM AND 0.499 INCHES MAXIMUM |
| NUT GRIP RANGE | 0.050 TO 0.106 INCHES |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |

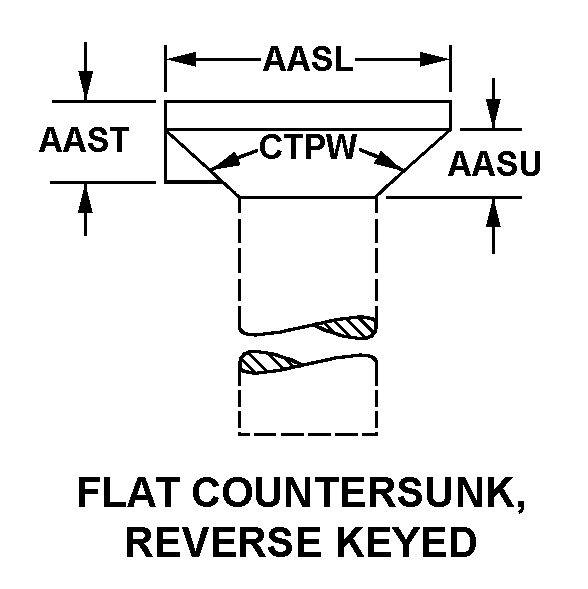

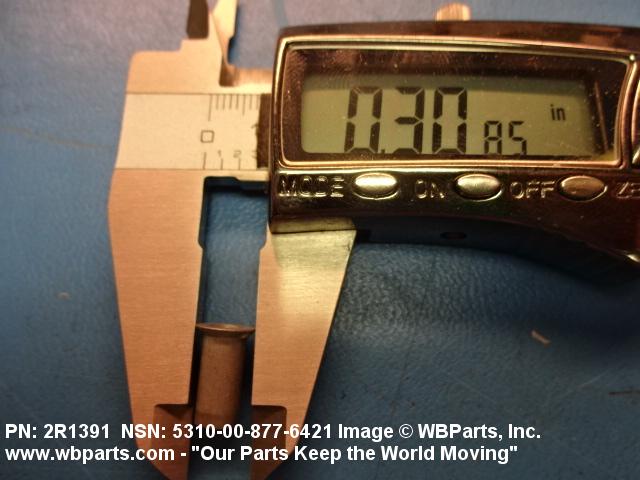

| HEAD STYLE | D16 FLAT COUNTERSUNK REVERSE KEYED |
| HEAD DIAMETER | 0.328 INCHES NOMINAL |
| KEY LENGTH | 0.031 INCHES NOMINAL |
| HEAD HEIGHT | 0.050 INCHES NOMINAL |
| HEAD COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK END TYPE | OPEN |
| TEMP RATING | NOT RATED |
