Product Details | BLIND RIVET SELF-LOCKING NUT

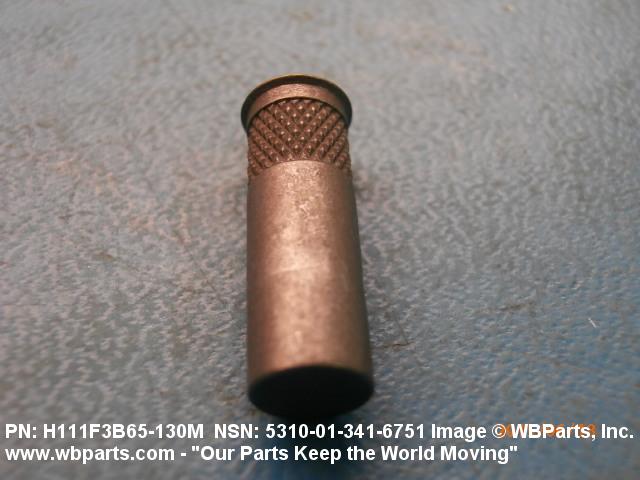

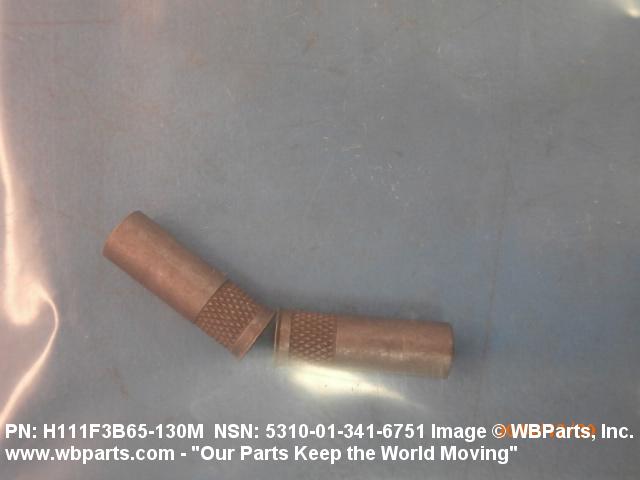

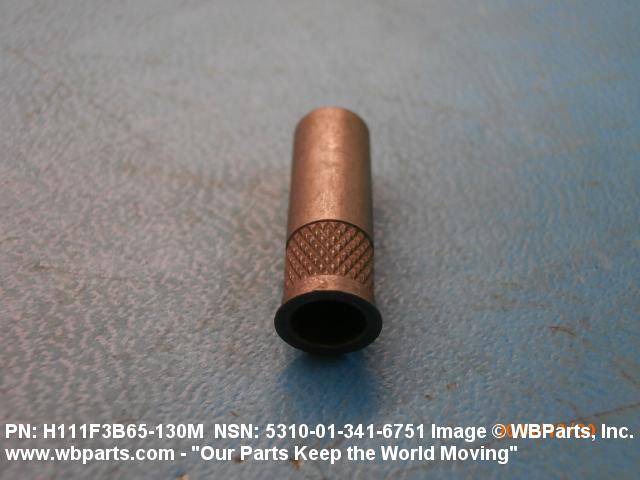

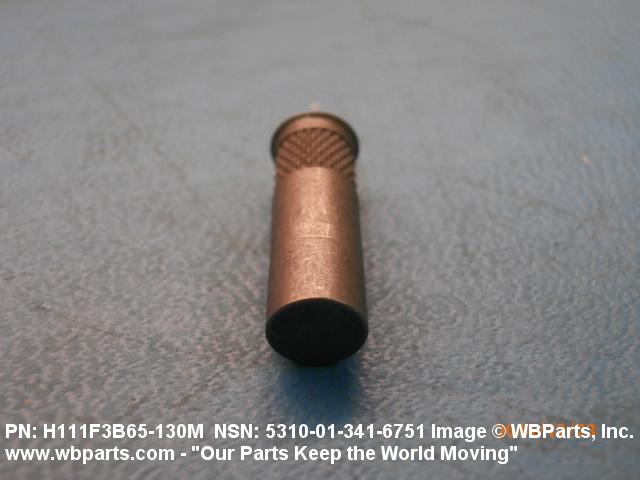

5310-01-341-6751 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. It is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: H111F3B65130M, H111F3B65-130M, SMA91130952, SM-A-911309-52, 5310-01-341-6751, 01-341-6751, 5310013416751, 013416751

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 05 JUL 1991 01-341-6751

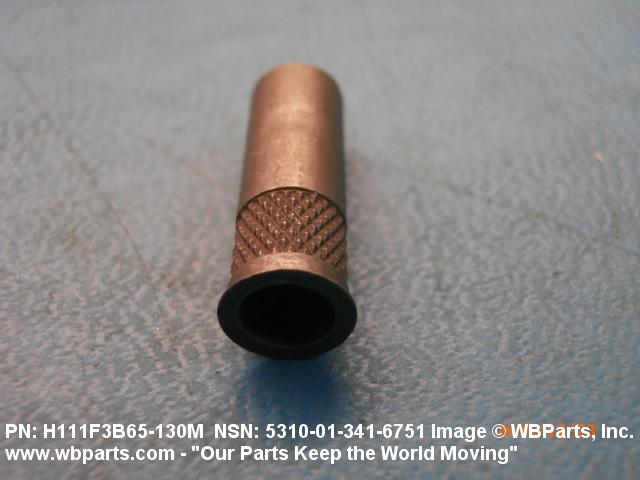

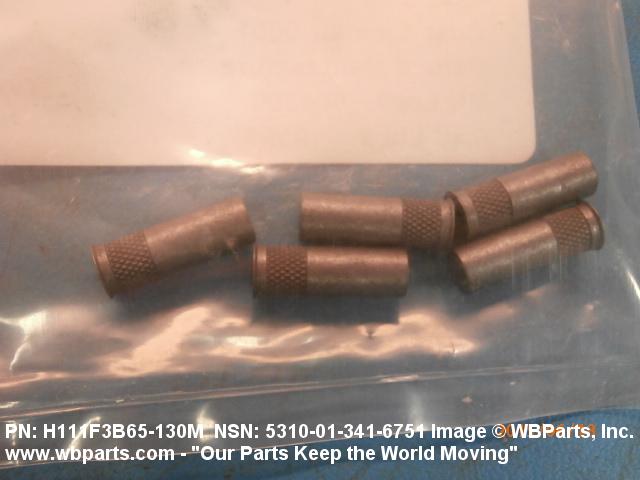

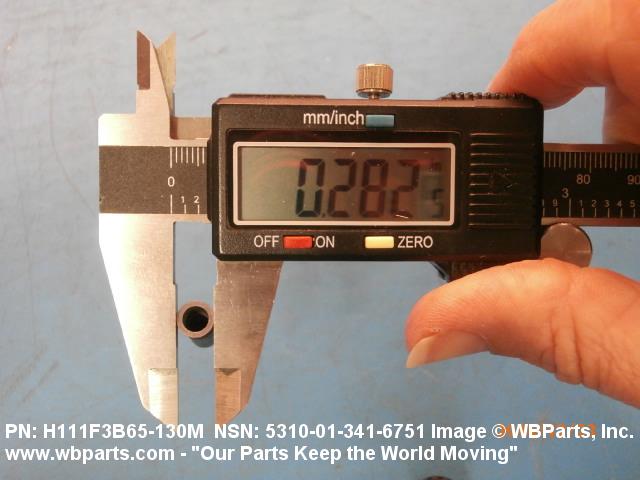

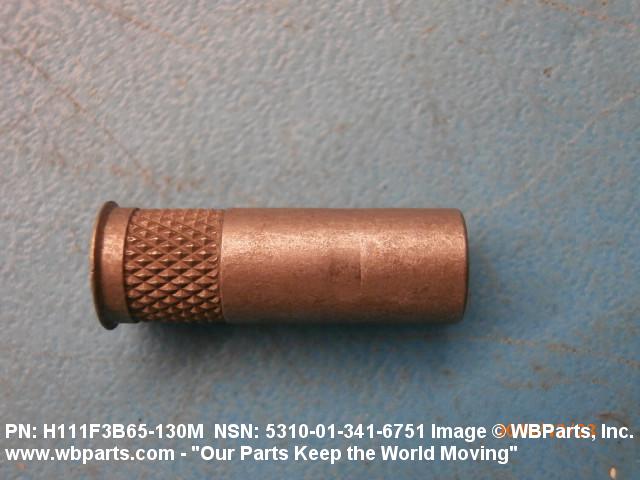

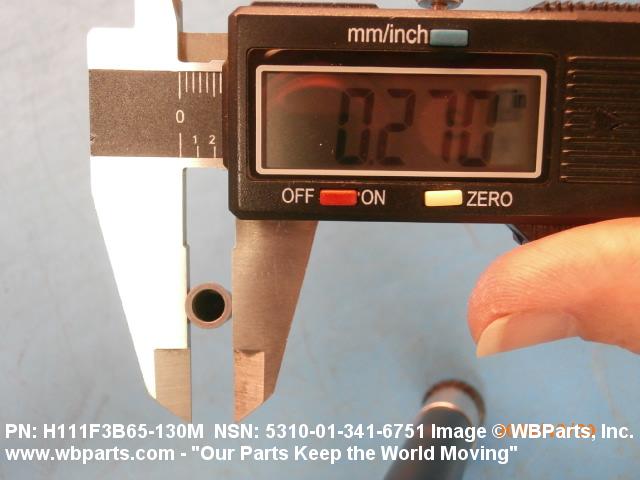

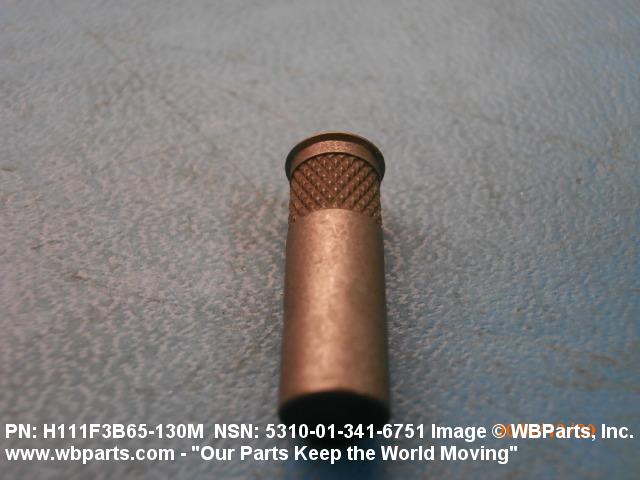

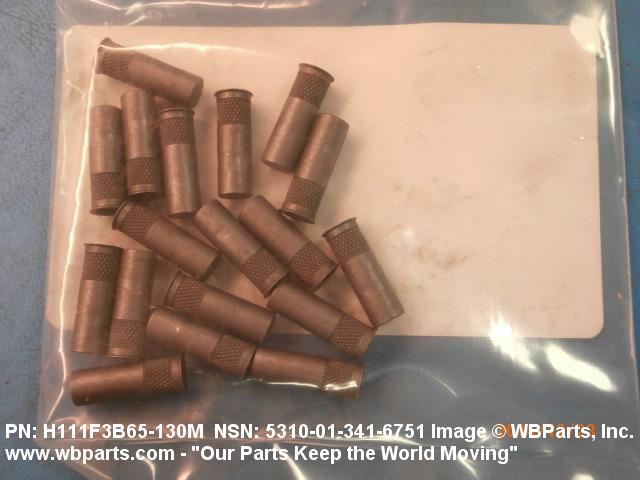

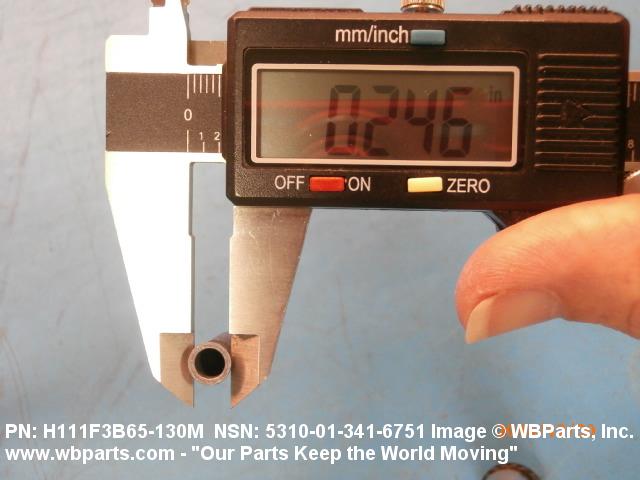

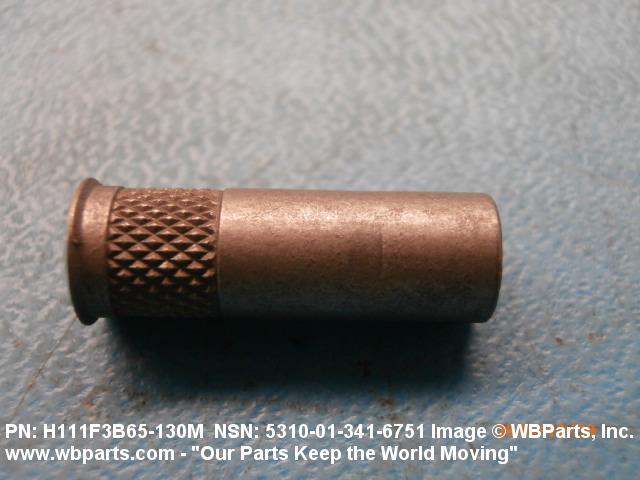

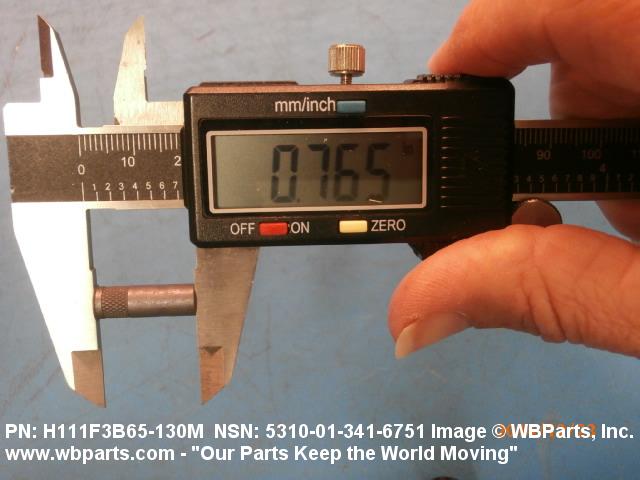

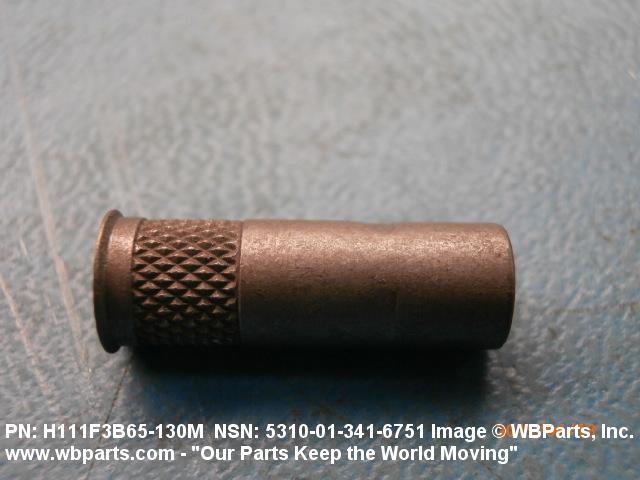

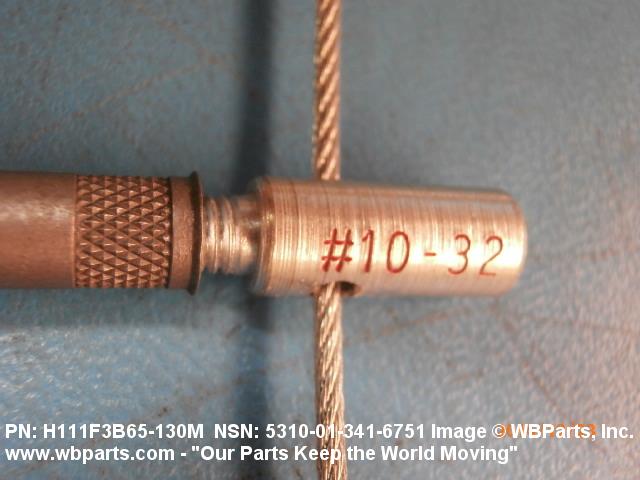

Drawings & Photos | NSN 5310-01-341-6751


Demand History | NSN 5310-01-341-6751

Part Number Request Date QTY Origin
5310-01-341-6751 2019-05-135 40 UK
H111F3B65130M 2016-06-161 25 us
H111F3B65130M 2016-04-95 7 us
H111F3B65130M 2016-04-92 30 us
H111F3B65130M 2016-02-60 30 Sweden
H111F3B65130M 2015-12-352 30 Sweden
H111F3B65130M 2015-06-161 5 Sweden
H111F3B65130M 2014-12-343 20 Sweden
H111F3B65130M 2013-01-23 10 United Kingdom

Cross Reference | NSN 5310-01-341-6751

Part Number Cage Code Manufacturer
H111F3B65-130M 71286 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
SM-A-911309-52 80063 US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-341-6751

Technical Data | NSN 5310-01-341-6751

Characteristic Specifications
THREAD SERIES UNJF

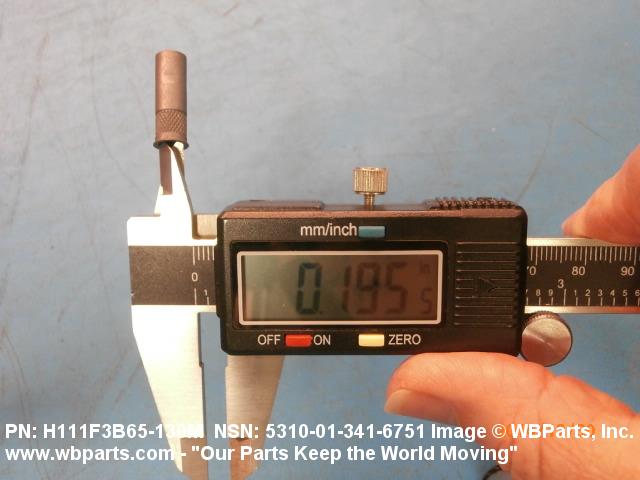

NOMINAL THREAD SIZE 0.190 INCHES
THREAD QUANTITY PER INCH 32
THREAD CLASS 3B
THREAD DIRECTION RIGHT-HAND
MATERIAL STEEL COMP 303 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION ASTM A484 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A582 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING NOT RATED
NUT STYLE A22 BLIND RIVET W/SMOOTH ROUND SHANK

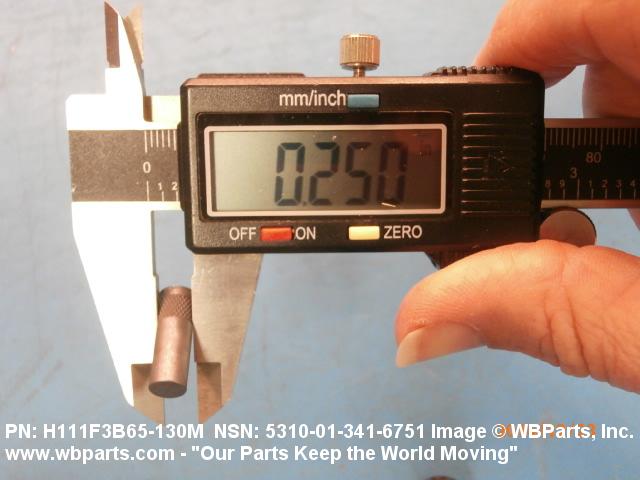

NUT DIAMETER 0.255 INCHES NOMINAL

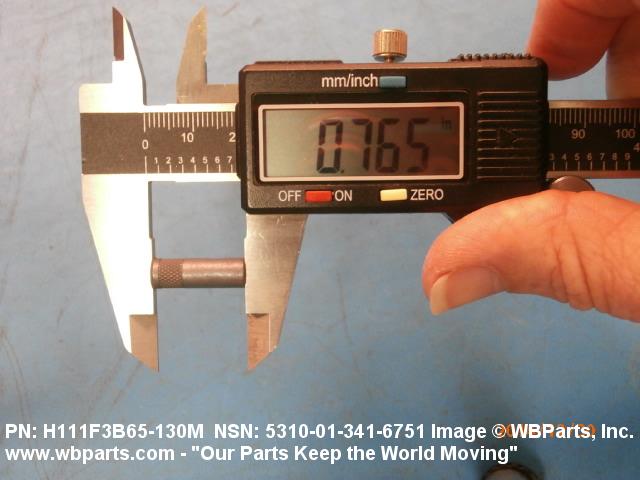

NUT LENGTH 0.755 INCHES NOMINAL
NUT GRIP RANGE 0.080 TO 0.130 INCHES
LOCKING FEATURE PREVAILING TORQUE ALL METAL DESIGN
NUT COUNTERBORE DEPTH 0.260 INCHES NOMINAL FIRST END
LUBRICATION DRY FILM LUBRICANT
HEAD STYLE D11 FLAT COUNTERSUNK
HEAD DIAMETER 0.294 INCHES MAXIMUM
HEAD COUNTERSINK ANGLE 100.0 DEGREES NOMINAL
SHANK END TYPE CLOSED
TEMP RATING NOT RATED
SPECIAL FEATURES KNURLED,BODY OD REDUCED BEYOND KNURL
III END ITEM IDENTIFICATION 5865-01-008-6626
