Product Details | BLIND RIVET SELF-LOCKING NUT
5310-00-796-9013 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. It is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: DN5126244, DN512-624-4, 84384893, 8438489-3, 5310-00-796-9013, 00-796-9013, 5310007969013, 007969013
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 OCT 1968 | 00-796-9013 | 29724 ( NUT, SELF-LOCKING, BLIND RIVET ) |
Drawings & Photos | NSN 5310-00-796-9013
Demand History | NSN 5310-00-796-9013
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-796-9013 | 2012-04-97 | 7 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-796-9013
Related Products | NSN 5310-00-796-9013
Technical Data | NSN 5310-00-796-9013
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 10.0 ROCKWELL C MINIMUM AND 20.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A22 BLIND RIVET W/SMOOTH ROUND SHANK |
| NUT DIAMETER | 0.489 INCHES MINIMUM AND 0.491 INCHES MAXIMUM |
| NUT LENGTH | 0.760 INCHES NOMINAL |
| NUT GRIP RANGE | 0.160 TO 0.200 INCHES |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |

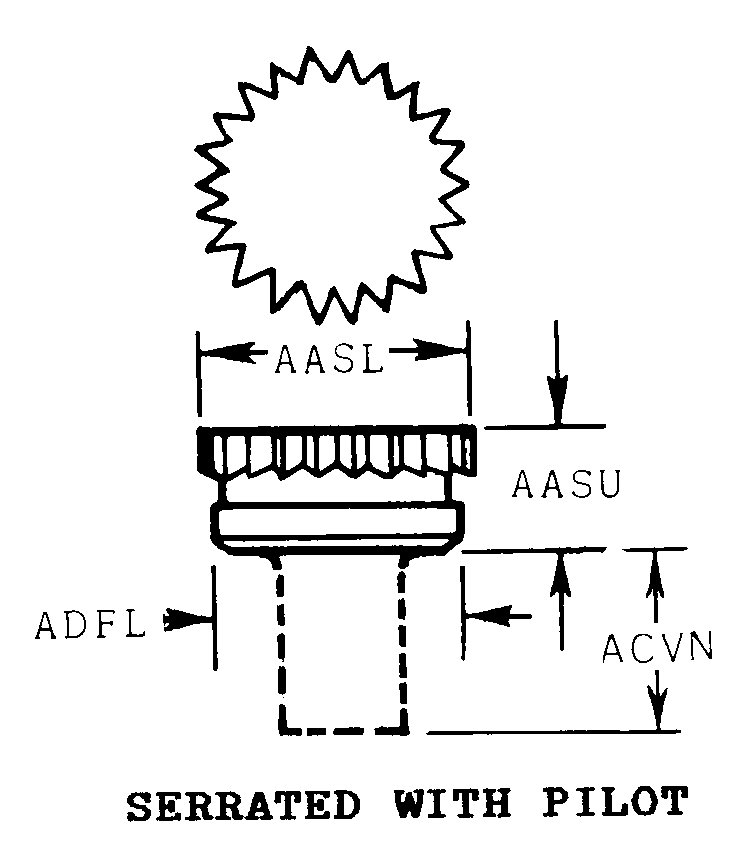

| HEAD STYLE | D22 SERRATED WITH PILOT |
| HEAD DIAMETER | 0.520 INCHES MAXIMUM |
| HEAD HEIGHT | 0.025 INCHES MINIMUM AND 0.035 INCHES MAXIMUM |
| HEAD PILOT DIAMETER | ANY ACCEPTABLE |
| SHANK END TYPE | CLOSED |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
