Product Details | SELF-LOCKING STUD
5307-01-413-9686 A headed fastener threaded externally on a portion or on the full length of the shank. The head has projections on the underside or periphery, or is otherwise designed to be mechanically pressed and embedded in a metallic panel, or the like. It is securely locked in position by the displaced metal. For items that require locking rings, see BOLT, SELF-LOCKING and STUD, LOCKED IN. Excludes INSERT, SCREW THREAD.
Part Alternates: M63540/2-08E7C, M63540208E7C, MIL-S-63540/2, MILS635402, 5307-01-413-9686, 01-413-9686, 5307014139686, 014139686
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 MAY 1995 | 01-413-9686 | 27783 ( STUD, SELF-LOCKING ) |

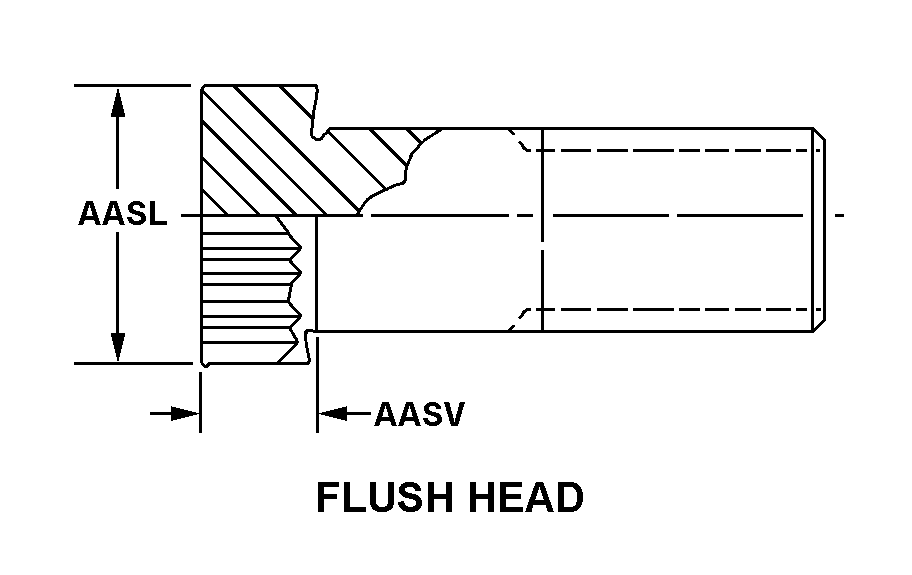

Drawings & Photos | NSN 5307-01-413-9686
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-01-413-9686
Technical Data | NSN 5307-01-413-9686
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 |
| STYLE DESIGNATOR | 85 FLUSH HEAD |
| HEAD DIAMETER | 0.205 INCHES MINIMUM AND 0.235 INCHES MAXIMUM |
| HEAD LENGTH | 0.073 INCHES MINIMUM AND 0.083 INCHES MAXIMUM |
| OVERALL LENGTH | 0.423 INCHES MINIMUM AND 0.453 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNC NUT THREAD |
| NOMINAL THREAD SIZE | 0.164 INCHES NUT THREAD |
| THREAD CLASS | 2A NUT THREAD |
| THREAD QUANTITY PER INCH | 32 NUT THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD |
| THREAD LENGTH | 0.423 INCHES MINIMUM AND 0.453 INCHES MAXIMUM |
| LOCKING FEATURE | SELF-CLINCHING HEAD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-63540/2 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M63540/2-08E7C |
