Product Details | SELF-LOCKING STUD

5307-01-377-8056 A headed fastener threaded externally on a portion or on the full length of the shank. The head has projections on the underside or periphery, or is otherwise designed to be mechanically pressed and embedded in a metallic panel, or the like. It is securely locked in position by the displaced metal. For items that require locking rings, see BOLT, SELF-LOCKING and STUD, LOCKED IN. Excludes INSERT, SCREW THREAD.

Part Alternates: 10333702, 10333-702, 5307-01-377-8056, 01-377-8056, 5307013778056, 013778056

Hardware and Abrasives | Studs

Supply Group (FSG) NSN Assign. NIIN
53 28 JUL 1993 01-377-8056

Drawings & Photos | NSN 5307-01-377-8056


Cross Reference | NSN 5307-01-377-8056

Part Number Cage Code Manufacturer
10333-702 10138 ASTRONAUTICS CORPORATION OF AMERICA

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5307-01-377-8056

Technical Data | NSN 5307-01-377-8056

Characteristic Specifications

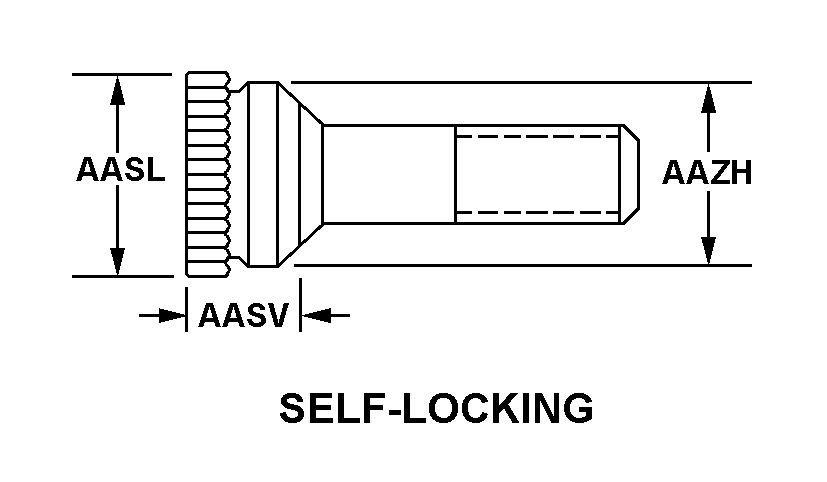

STYLE DESIGNATOR 82 SELF-LOCKING
III SUPPLEMENTARY FEATURES T.O. 5F8-16-9-24,FIG 8,INDEX 13
III END ITEM IDENTIFICATION REAR COVER ASSY P/N 119469; HORIZONTAL SITUATION INDICATOR AQU-13A/A P/N 126460; PACER DAWN
MANUFACTURERS CODE 10138
DESIGN CONTROL REFERENCE 10333-702

Restrictions/Controls & Freight Information | NSN 5307-01-377-8056

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
