NSN 5307-01-348-8284 MS51833A20213, MS51833A202-13, NAS1581C6H20
Product Details | LOCKED IN STUD

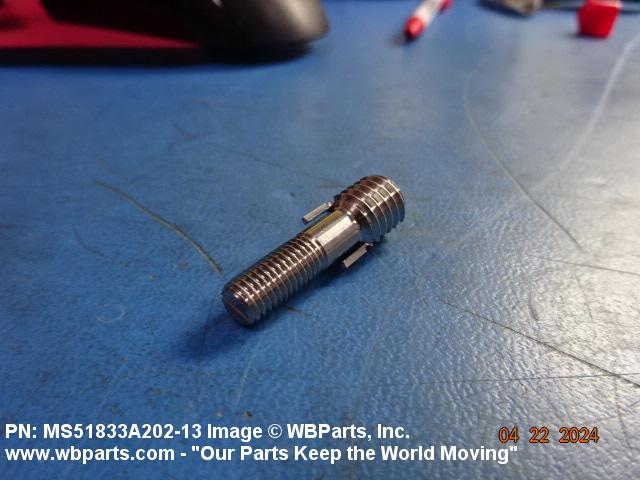

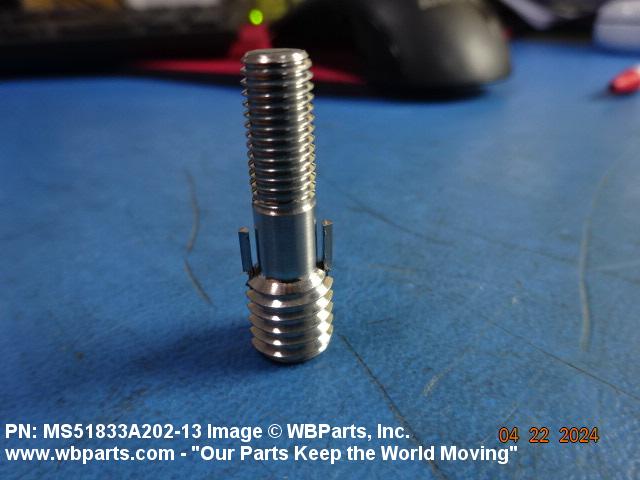

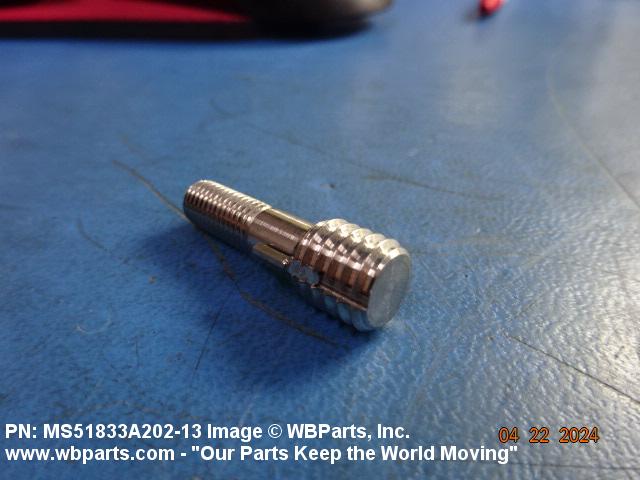

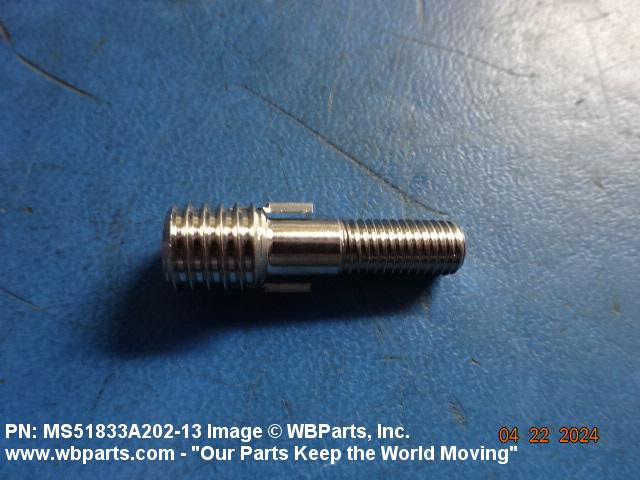

5307-01-348-8284 A headless fastener externally threaded on both ends with each threaded portion of one but not necessarily the same nominal diameter. It is designed to be locked in place by either a RING, LOCK, SERRATED or a RING, LOCK, KEYED.
Part Alternates: MS51833A20213, MS51833A202-13, NAS1581C6H20, T428000A20213, T428000A-202-13, TR28000A20213, TR28000A202-13, 5307-01-348-8284, 01-348-8284, 5307013488284, 013488284
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 NOV 1991 | 01-348-8284 | 16012 ( STUD, LOCKED IN ) |
Drawings & Photos | NSN 5307-01-348-8284
Demand History | NSN 5307-01-348-8284
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS51833A20213 | 2024-03-72 | 50 | United Kingdom |
| MS51833A20213 | 2024-01-17 | 35 | UK |
| MS51833A20213 | 2024-01-17 | 50 | UK |
| MS51833A20213 | 2024-01-02 | 250 | UK |
| MS51833A20213 | 2012-09-261 | 27 | US |
Cross Reference | NSN 5307-01-348-8284
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51833A202-13 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS51833A202-13 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS1581C6H20 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| T428000A-202-13 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| TR28000A202-13 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-348-8284
Related Products | NSN 5307-01-348-8284
Technical Data | NSN 5307-01-348-8284
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5734 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | 39 LOCKED IN |

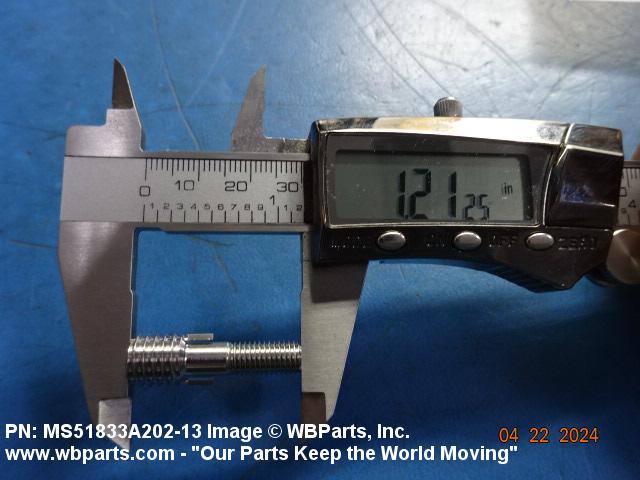

| DISTANCE FROM END OF STUD END THREADS TO NUT END | 0.782 INCHES MINIMUM AND 0.842 INCHES MAXIMUM |

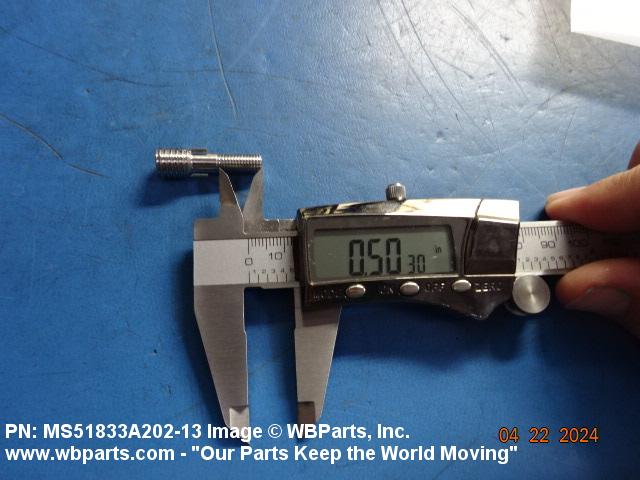

| OVERALL LENGTH | 1.187 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF NUT THREAD UNC STUD THREAD |
| NOMINAL THREAD SIZE | 0.250 INCHES NUT THREAD 0.375 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD 2A STUD THREAD |
| THREAD QUANTITY PER INCH | 28 NUT THREAD 16 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.440 INCHES MINIMUM AND 0.500 INCHES MAXIMUM NUT THREAD |
| LOCKING FEATURE | KEY INSERTS |
