NSN 5307-01-299-1984 J1196P09, J1196P09A, KLS1015839
Product Details | LOCKED IN STUD
5307-01-299-1984 A headless fastener externally threaded on both ends with each threaded portion of one but not necessarily the same nominal diameter. It is designed to be locked in place by either a RING, LOCK, SERRATED or a RING, LOCK, KEYED.
Part Alternates: J1196P09, J1196P09A, KLS1015839, KLS10158-3-9, 211969, 21196-9, 5307-01-299-1984, 01-299-1984, 5307012991984, 012991984
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 APR 1989 | 01-299-1984 | 16012 ( STUD, LOCKED IN ) |

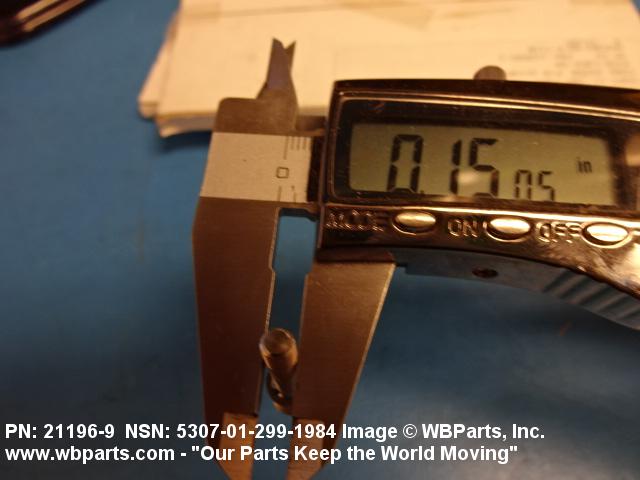

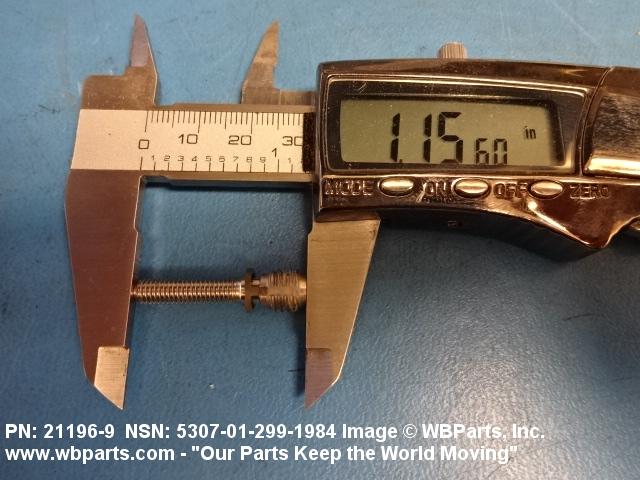

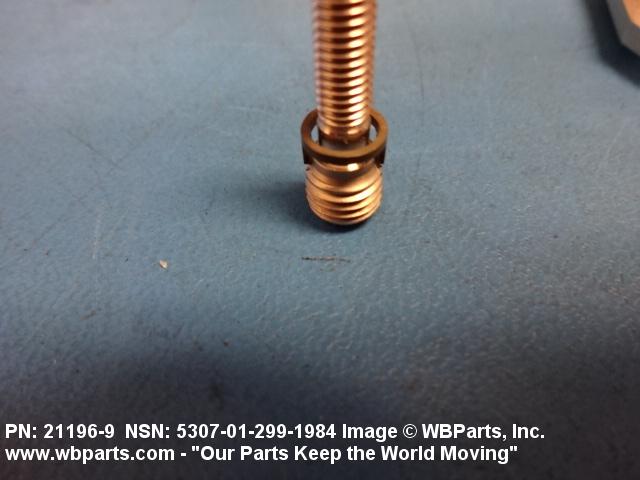

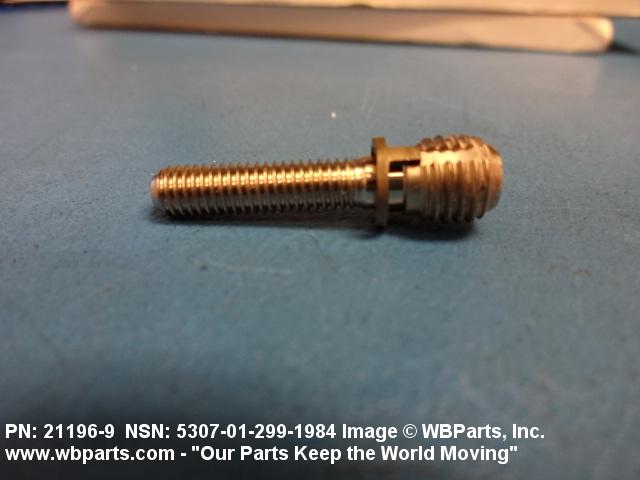

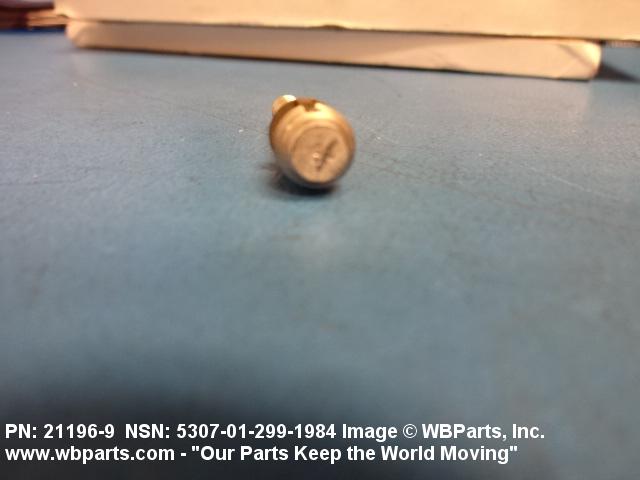

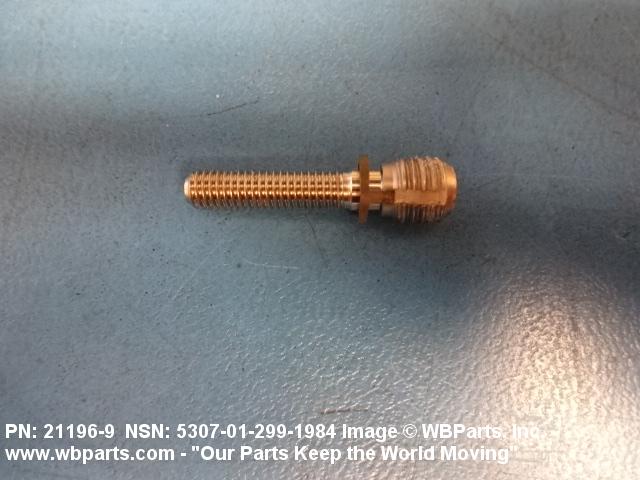

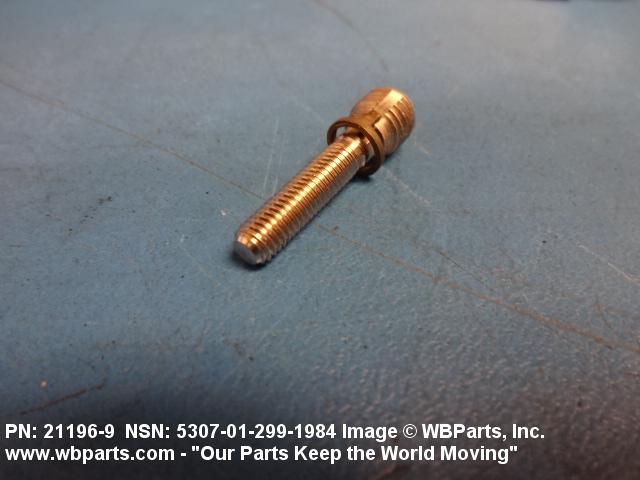

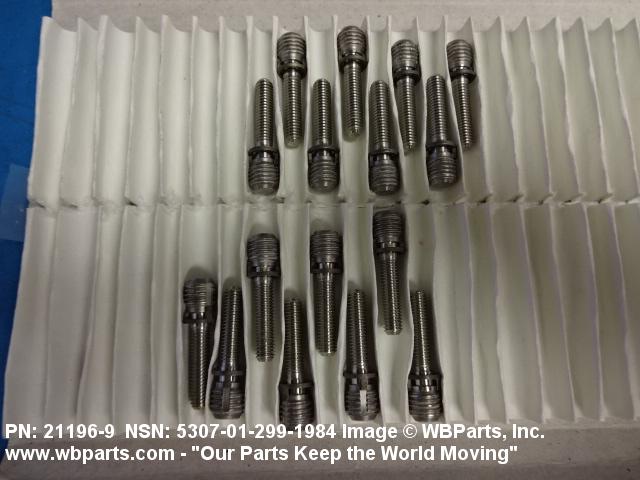

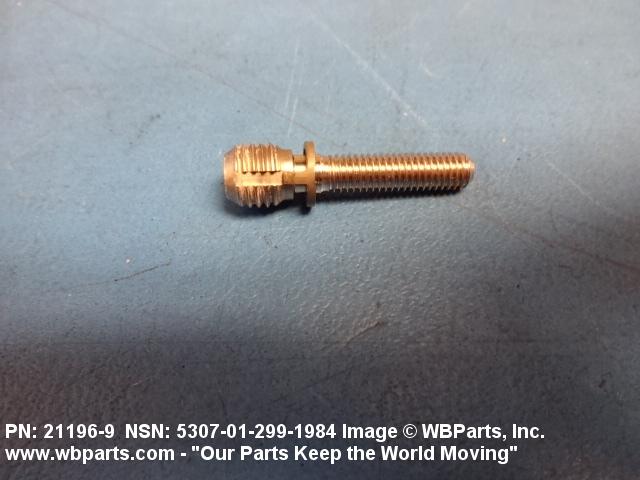

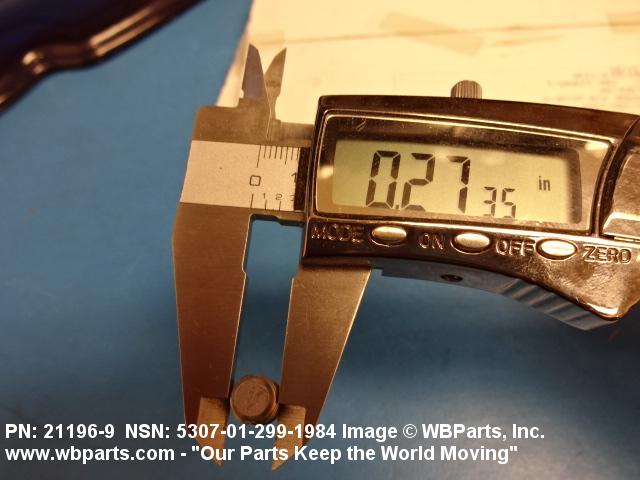

Drawings & Photos | NSN 5307-01-299-1984
Demand History | NSN 5307-01-299-1984
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-01-299-1984 | 2019-12-10 | 66 | United States |
| 5307-01-299-1984 | 2019-10-18 | 66 | DIBBS |
| 5307-01-299-1984 | 2019-10-10 | 66 | DIBBS |
| 5307-01-299-1984 | 2019-04-24 | 66 | DIBBS |
| 5307-01-299-1984 | 2019-04-16 | 66 | DIBBS |
| 5307-01-299-1984 | 2018-04-19 | 26 | DIBBS |
| 5307-01-299-1984 | 2018-04-11 | 26 | DIBBS |
Cross Reference | NSN 5307-01-299-1984
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 21196-9 | 01556 | EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES |
| J1196P09 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| J1196P09A | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| KLS10158-3-9 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| KLS10158-3-9 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-299-1984
Related Products | NSN 5307-01-299-1984
Technical Data | NSN 5307-01-299-1984
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | WITH KEY RING |
| MANUFACTURERS CODE | 07482 |
| MFR SOURCE CONTROLLING REFERENCE | J1196P09A |
Restrictions/Controls & Freight Information | NSN 5307-01-299-1984
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 575 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-01-299-1984
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
