NSN 5307-01-188-5229 M63540/1-9C, M6354019C, MIL-S-63540/1
Product Details | SELF-LOCKING STUD

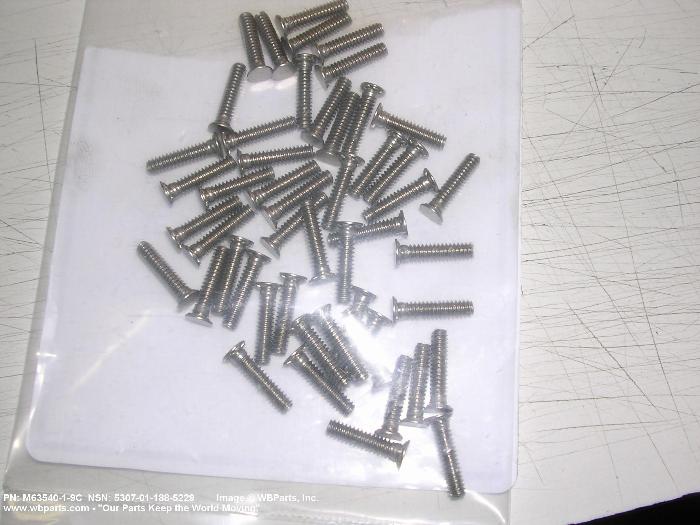

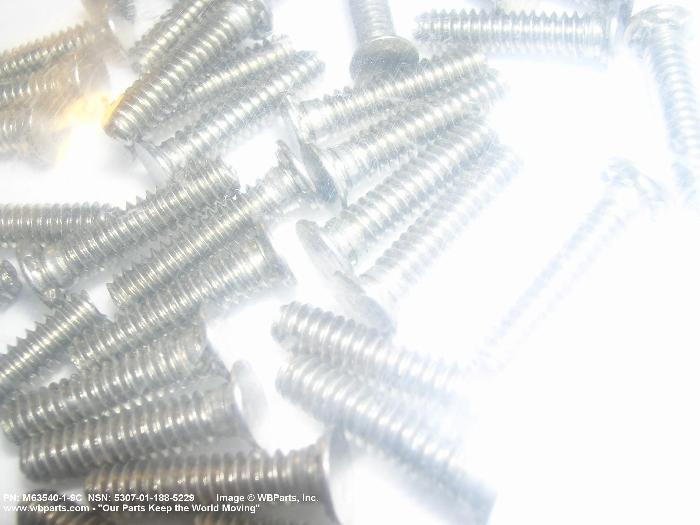

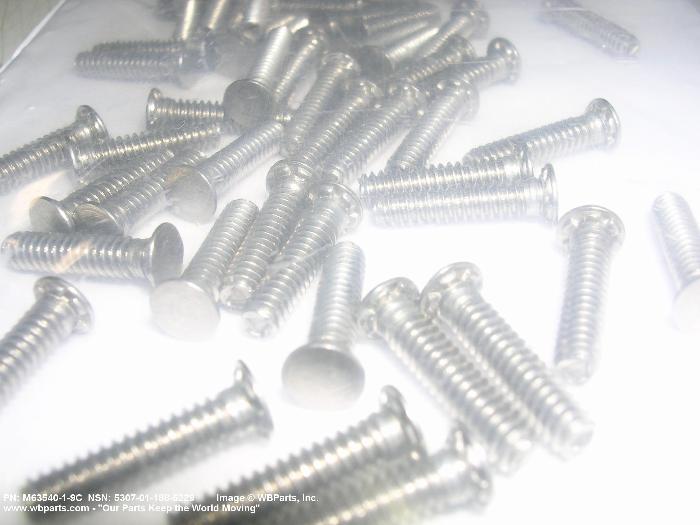

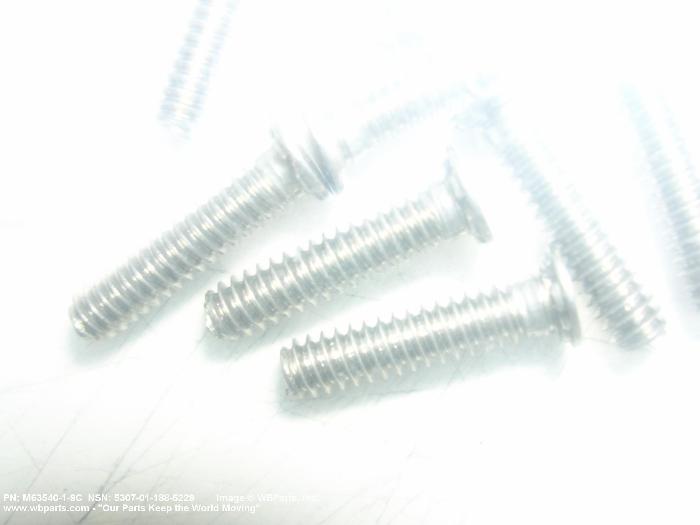

5307-01-188-5229 A headed fastener threaded externally on a portion or on the full length of the shank. The head has projections on the underside or periphery, or is otherwise designed to be mechanically pressed and embedded in a metallic panel, or the like. It is securely locked in position by the displaced metal. For items that require locking rings, see BOLT, SELF-LOCKING and STUD, LOCKED IN. Excludes INSERT, SCREW THREAD.
Part Alternates: M63540/1-9C, M6354019C, MIL-S-63540/1, MILS635401, FDB0028052, FD-B0028-052, FHS4408, FHS-440-8, 1811659132, 1811659-132, 704AS99651, 704AS9965-1, 8595570009, 85955700-09, 8999651, 899965-1, 9902147, 990214-7, 5307-01-188-5229, 01-188-5229, 5307011885229, 011885229
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 SEP 1984 | 01-188-5229 | 27783 ( STUD, SELF-LOCKING ) |
Drawings & Photos | NSN 5307-01-188-5229
Demand History | NSN 5307-01-188-5229
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FHS4408 | 2018-02-32 | 564 | United States |
| M6354019C | 2017-03-76 | 10 | US |
| FHS4408 | 2016-04-96 | 161 | US |
| 5307-01-188-5229 | 2015-10-286 | 1000 | US |
| M6354019C | 2014-04-113 | 230 | India |
| 5307-01-188-5229 | 2013-10-285 | 10 | United States |
| M6354019C | 2012-07-208 | 2500 | United States |
| MILS635401 | 2012-03-83 | 115 | United States |
| 5307-01-188-5229 | 2009-06-168 | 1941 | DIBBS |
| 5307-01-188-5229 | 2008-11-309 | 2 | US |
| 1811659132 | 2007-11-310 | 50 | United States |
Cross Reference | NSN 5307-01-188-5229
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1811659-132 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 704AS9965-1 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 85955700-09 | 27963 | GENERAL DYNAMICS INFORMATION SYSTEMS INC. |
| 899965-1 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 990214-7 | 00752 | EDO CORPORATION DIV EDO CORPORATION AP&T |
| FD-B0028-052 | 33875 | RAYTHEON E-SYSTEMS INC |
| FHS-440-8 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| M63540/1-9C | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| M63540/1-9C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-63540/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-188-5229
Related Products | NSN 5307-01-188-5229
Technical Data | NSN 5307-01-188-5229
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 301 OR STEEL COMP 302 OR STEEL COMP 302B OR STEEL COMP 303 OR STEEL COMP 303SE OR STEEL COMP 304 OR STEEL COMP 304L OR STEEL COMP 305 OR STEEL COMP 309 OR STEEL COMP 308 OR STEEL COMP 309S OR STEEL COMP 310 OR STEEL COMP 310S OR STEEL COMP 316 OR STEEL COMP 316L OR STEEL COMP 317 OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 348 OR STEEL COMP 384 OR STEEL COMP 385 |
| STYLE DESIGNATOR | 80 SELF-LOCKING |
| HEAD DIAMETER | 0.160 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| HEAD LENGTH | 0.075 INCHES MINIMUM AND 0.085 INCHES MAXIMUM |
| OVERALL LENGTH | 0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNC NUT THREAD |
| NOMINAL THREAD SIZE | 0.112 INCHES NUT THREAD |
| THREAD CLASS | 2A NUT THREAD |
| THREAD QUANTITY PER INCH | 40 NUT THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD |
| THREAD LENGTH | 0.400 INCHES MINIMUM AND 0.440 INCHES MAXIMUM NUT THREAD |
| LOCKING FEATURE | SELF-CLINCHING HEAD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-63540/1 |
Restrictions/Controls & Freight Information | NSN 5307-01-188-5229
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
