Product Details | SELF-LOCKING STUD

5307-01-143-5355 A headed fastener threaded externally on a portion or on the full length of the shank. The head has projections on the underside or periphery, or is otherwise designed to be mechanically pressed and embedded in a metallic panel, or the like. It is securely locked in position by the displaced metal. For items that require locking rings, see BOLT, SELF-LOCKING and STUD, LOCKED IN. Excludes INSERT, SCREW THREAD.

Part Alternates: FV1077588, KFH4405, KFH-440-5, KFH4405ET, KFH-440-5ET, 0191561, 019156-1, 2176110107, 21761-101-0-7, 5307-01-143-5355, 01-143-5355, 5307011435355, 011435355

Hardware and Abrasives | Studs

Supply Group (FSG) NSN Assign. NIIN
53 06 DEC 1982 01-143-5355

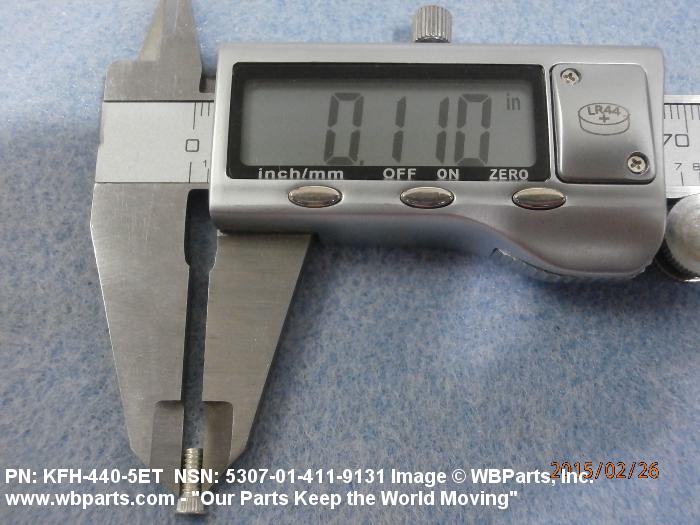

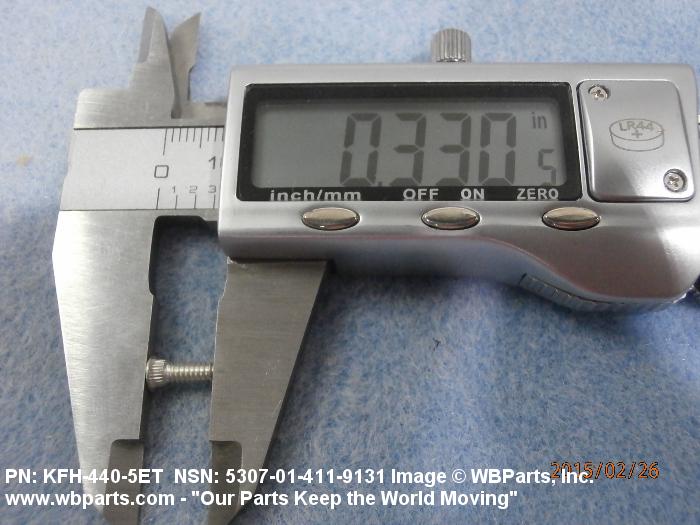

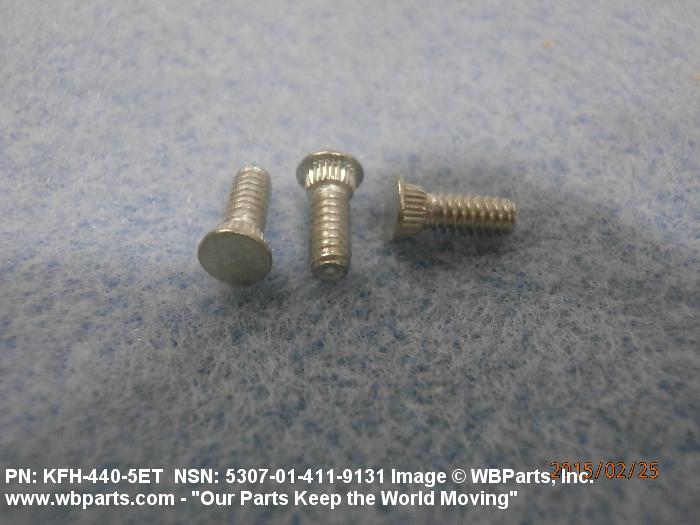

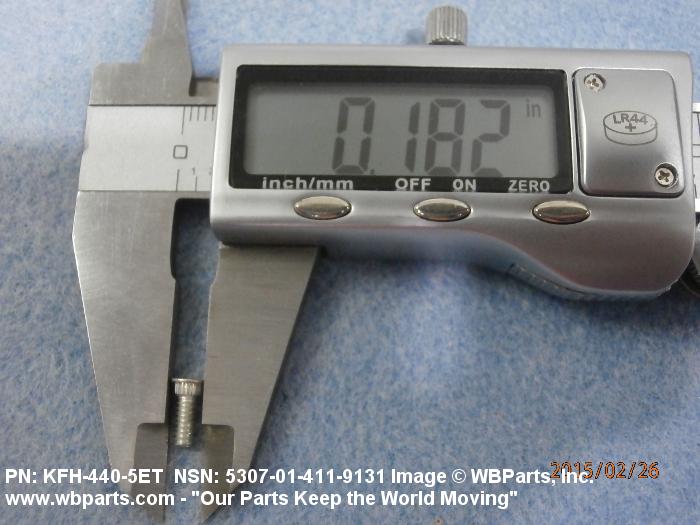

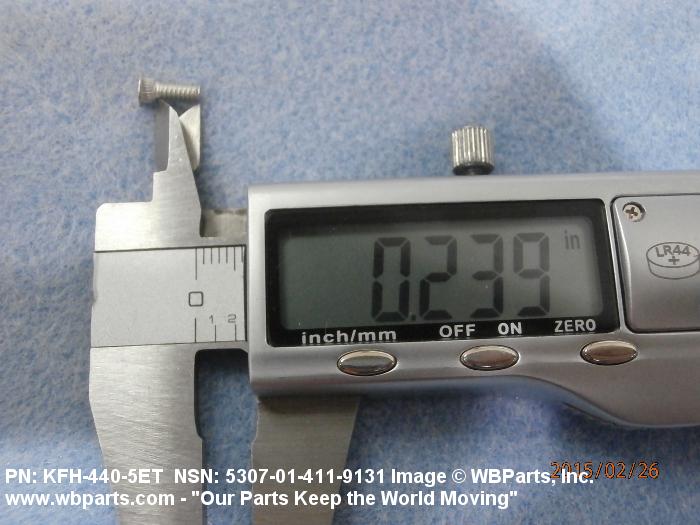

Drawings & Photos | NSN 5307-01-143-5355


Demand History | NSN 5307-01-143-5355

Part Number Request Date QTY Origin
KFH4405ET 2010-08-223 60 US
KFH4405ET 2009-04-112 100 United States

Cross Reference | NSN 5307-01-143-5355

Part Number Cage Code Manufacturer
019156-1 17981 SCI SYSTEMS INC
21761-101-0-7 K8081 ULTRA ELECTRONICS LTD DBA CONTROLS DIVISION
21761-101-0-7 K8082 ULTRA ELECTRONICS LIMITED,COMMUNICATION & INTEGRATED
FV1077588 U0795 QINETIQ
KFH-440-5 46384 PENN ENGINEERING & MANUFACTURING CORP.
KFH-440-5ET 46384 PENN ENGINEERING & MANUFACTURING CORP.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5307-01-143-5355

Technical Data | NSN 5307-01-143-5355

Characteristic Specifications
MATERIAL COPPER ALLOY
MATERIAL DOCUMENT AND CLASSIFICATION QQ-B-750 FED SPEC SINGLE MATERIAL RESPONSE
SURFACE TREATMENT TIN OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-T-10727,TYPE 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR 84 SELF-LOCKING
HEAD DIAMETER 0.188 INCHES NOMINAL
HEAD LENGTH 0.110 INCHES NOMINAL
HEAD MINOR DIAMETER 0.120 INCHES NOMINAL
OVERALL LENGTH 0.332 INCHES NOMINAL
THREAD SERIES DESIGNATOR UNC STUD THREAD
NOMINAL THREAD SIZE 0.112 INCHES STUD THREAD
THREAD CLASS 2A STUD THREAD
THREAD QUANTITY PER INCH 40 STUD THREAD
THREAD DIRECTION RIGHT-HAND STUD THREAD
THREAD LENGTH 0.222 INCHES NOMINAL STUD THREAD
LOCKING FEATURE HEAD SERRATIONS
MANUFACTURERS CODE 17981
MFR SOURCE CONTROLLING REFERENCE 019156-1

Restrictions/Controls & Freight Information | NSN 5307-01-143-5355

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:NThe item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input).
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 095190 HARDWARE, NOI
Less than car load rating P 77.5
Less than truck load rating W Rating Variable
Water commodity Code 713 unknown
Originating Activity Code KE Naval ICP
Philadelphia, PA 19111
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5307-01-143-5355

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplyNRPNAVICP-ERP
700 Robbins Avenue
Philadelphia, PA 19111-5098
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
A
EA : Each
Category Code Description
Stores Account Code1Marine Corps Stock Fund Account Item.
Combat Essentiality Code5Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code5General Property Materiel15; 16; 18; 31; 35; 39; 40; 44; 49 except 4910, 4925, 4930, 4931, 4933, 4935; 51; 52; 53; 63; 65 except 6545; 69; 70; 71; 72; 73; 74; 75; 76; 77; 78; 79; 80; 81 except 8140; 83; 84; 85; 87; 88; 89; 91; 93; 94; 95; 96; 99 10.3-125
Echelon Management Code6ICP/DSSCs Weapon system-oriented consumable items assigned to another Service/Agency for integrated materiel management which are managed by the ICP on a complex basis and which have not been decontrolled by the Integrated Materiel Manager.
Source of SupplyNRPNAVICP-ERP
700 Robbins Avenue
Philadelphia, PA 19111-5098
AgencyDMU.S. Marine Corps
Service OrganizationMU.S. Marine Corps
ReparabilityZNonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
A
EA : Each
Category Code Description
Cognizance Codes1RAeronautical, photographic, and meteorological material (consumable or expense type material)
Naval Inventory Control Point, Philadelphia
Special Material IDGF (Non-HSP) FIGHTER SUPPORTAIRCRAFT(F/A-18)
Special Material Content9 Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of SupplyNRPNAVICP-ERP
700 Robbins Avenue
Philadelphia, PA 19111-5098
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
ReparabilityMMedium Demand Velocity Items (consumables)
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
A
EA : Each
