NSN 5307-01-140-5732 MS5183320644, MS51833-206-44, KNS9000844
Product Details | LOCKED IN STUD

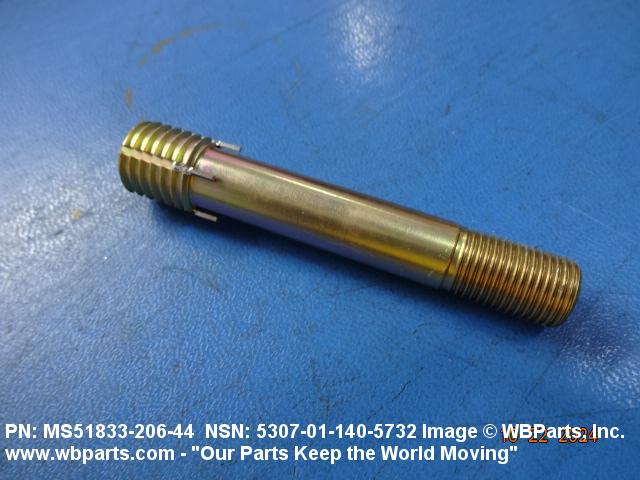

5307-01-140-5732 A headless fastener externally threaded on both ends with each threaded portion of one but not necessarily the same nominal diameter. It is designed to be locked in place by either a RING, LOCK, SERRATED or a RING, LOCK, KEYED.
Part Alternates: MS5183320644, MS51833-206-44, KNS9000844, KNS9000-8-44, 5307-01-140-5732, 01-140-5732, 5307011405732, 011405732
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 OCT 1982 | 01-140-5732 | 16012 ( STUD, LOCKED IN ) |
Drawings & Photos | NSN 5307-01-140-5732
Demand History | NSN 5307-01-140-5732
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-01-140-5732 | 2024-09-270 | 200 | United States |
| 5307-01-140-5732 | 2015-12-364 | 100 | DIBBS |
| 5307-01-140-5732 | 2015-12-340 | 186 | DIBBS |
Cross Reference | NSN 5307-01-140-5732
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-140-5732
Related Products | NSN 5307-01-140-5732
Technical Data | NSN 5307-01-140-5732
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 38 LOCKED IN |
| SHOULDER DIAMETER | 0.528 INCHES MINIMUM AND 0.536 INCHES MAXIMUM |
| SHOULDER LENGTH | ANY ACCEPTABLE |
| DISTANCE FROM SHOULDER PORTION TO NUT END | 2.720 INCHES MINIMUM AND 2.780 INCHES MAXIMUM |
| OVERALL LENGTH | 3.330 INCHES MINIMUM AND 3.420 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF NUT THREAD UNC STUD THREAD |
| NOMINAL THREAD SIZE | 0.500 INCHES NUT THREAD 0.625 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD 2A STUD THREAD |
| THREAD QUANTITY PER INCH | 20 NUT THREAD 11 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.750 INCHES MINIMUM AND 0.810 INCHES MAXIMUM NUT THREAD 0.610 INCHES MINIMUM AND 0.640 INCHES MAXIMUM STUD THREAD |
| LOCKING FEATURE | KEY INSERTS |
| SPECIAL FEATURES | 4 LOCKING KEYS CRES COMP 302 PER QQ-W-423 |
| III SURFACE FINISH | 63.0 MICROINCHES NUT THD 63.0 MICROINCHES SHANK 32.0 MICROINCHES STUD THD |
Restrictions/Controls & Freight Information | NSN 5307-01-140-5732
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
